Industrial LoRaWAN® Time-of-Flight Sensor
For People Counting, Object Detection & Zone Monitoring
MacRay-LoRaWAN® Time of Flight Sensor
Meet the next generation of depth sensing intelligence MacRay ToF Series
Meet the next generation of depth sensing intelligence
MacRay ToF Series
MacRay ToF
Explore the highlights
Optical time-of-flight measurement for precise, fast distance and presence sensing — unaffected by colour or ambient light in its working range.
Around 2 km through a built-up site and up to 8 km in the open — figures from our own field range tests, not textbook models.
The 2×2 and 4×4 models run 5+ years at hourly reporting on an 8 Ah Li-SOCl₂ cell, and the 8×8 model takes a 9–36 V DC supply for continuous counting.
Report on a schedule, when a threshold is crossed, or the moment an event happens — the radio speaks only when there is something worth saying.
Commission and configure with Maya, the companion app for every Macnman device.
In plain terms
What Is a Time-of-Flight Sensor?
The short answer
A time-of-flight sensor measures distance by timing how long a pulse of infrared light takes to reach a surface and return. Arranged as a grid of zones, it builds a small depth map of the space below it, which is enough to count people through a doorway or tell whether a zone is occupied, without a camera and without capturing anyone's identity.
Sensing
- 940 nm
Infrared, eye-safe and invisible
- 100k lux
Ambient light tolerance
- No camera
Depth only, no identity captured
Grid
- 2 × 2
Doorway counting and narrow zones
- 4 × 4
Room occupancy
- 8 × 8
Finest depth map
Radio
- v1.0.4
LoRaWAN® version, Class A by default
- 23 dBm
Transmit power at 865 MHz
- −137 dBm
Receive sensitivity at 300 bps
Reporting
- 3 modes
Periodic, event-based or hybrid
- 1 min – 24 h
Sampling interval, configurable
- 3 alerts
Occupancy, movement and distance
Setup
- Maya
Android app, configuration over BLE
- OTA
Remote configuration by downlink
- AES-128
LoRaWAN® encryption
MacRay ToF
The MacRay ToF puts that sensor on LoRaWAN®. It offers 2 × 2, 4 × 4 or 8 × 8 zone grids, tolerates ambient light up to 100k lux, and reports on a schedule, when a threshold is crossed or the moment an event happens.
Infrared time-of-flight at 940 nm, eye-safe and invisible, measuring depth only.
A selectable 2 × 2, 4 × 4 or 8 × 8 zone grid, from a single doorway to a full room.
LoRaWAN® v1.0.4, Class A by default and Class C configurable, transmitting at 23 dBm.
Periodic, event-based or hybrid, with occupancy, movement and distance thresholds.
Configured over BLE with the Maya Android app, and reconfigured remotely by downlink.
Used for people counting at doorways, room and zone occupancy, object detection and distance measurement.
Get a quote
Need a quote for the MacRay ToF?
Tell us how many you need and where they are going. A product engineer replies within one working day with availability, lead time and the right variant for your site.
- Reply within one working day
- Designed and built in Pune, India
- WPC compliant, RoHS conformant
Downloads
Everything You Need to Get Building
Datasheets, drawings, firmware, and tools — all in one place.
Product Datasheet
PDF · full technical specifications
Engineered for Privacy-Safe People Counting and Occupancy Analytics
Applications of the MacRay LoRaWAN Time-of-Flight Sensor
01 / 08

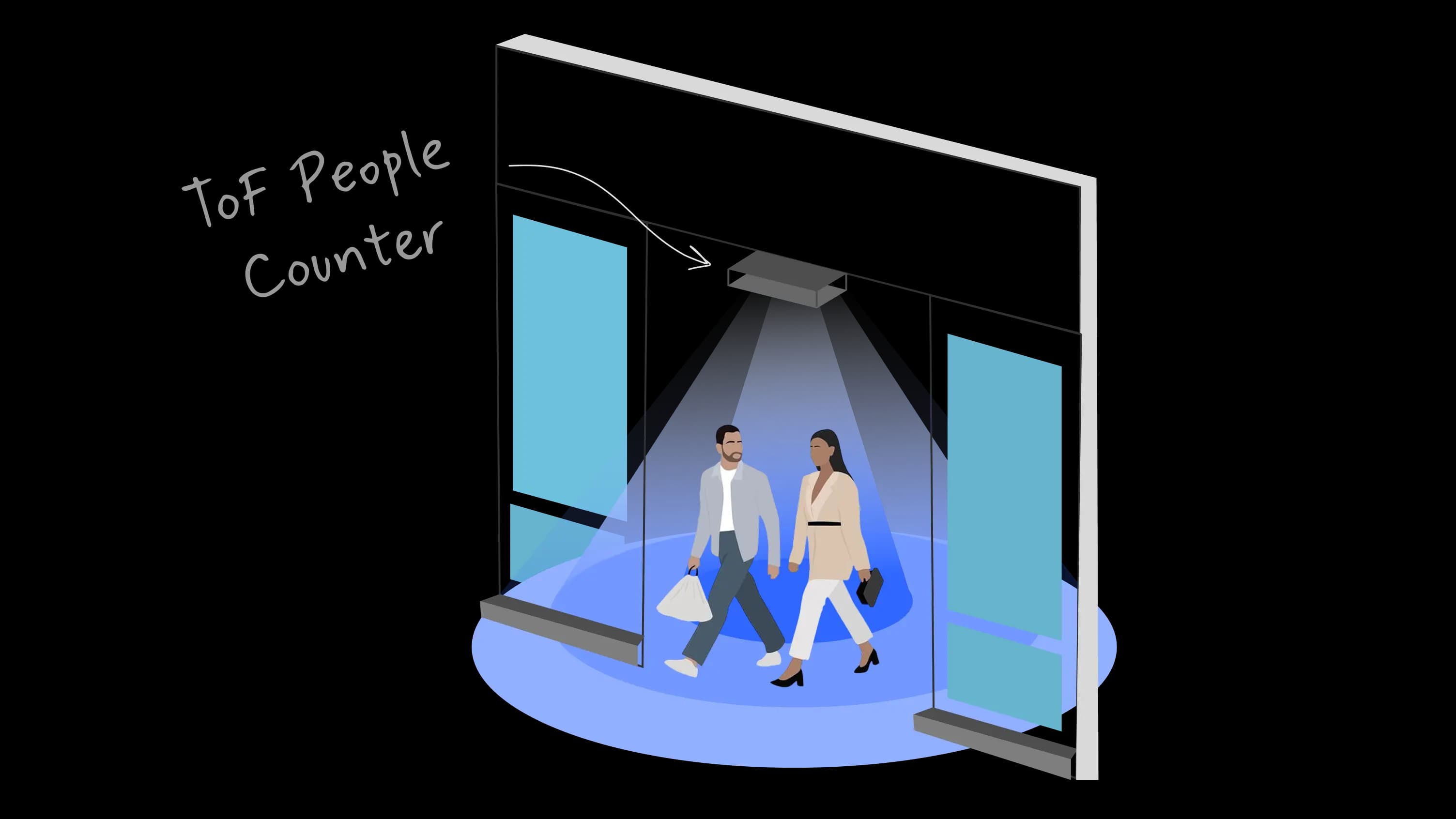

People Counting
- Accurate Footfall Tracking
- Non-Camera Counting
- Smart Occupancy Insights
Object Detection
- Instant Object Detection
- Precise Distance Sensing
- Industrial Automation Ready
Zone Monitoring
- Real-Time Zone Activity
- Presence Detection
- Smart Area Surveillance
Space Occupancy
- Live Occupancy Status
- Area Utilization Insights
- Smart Building Automation
Queue Monitoring
- Crowd Density Alerts
- Queue Length Analytics
- Non-Intrusive Monitoring
Aisle Activity Tracking
- Movement Heatmaps
- Retail Analytics
- Smart Store Optimization
Smart Parking Detection
- Car Presence Detection
- Slot Availability Monitoring
- Fast Response Sensing
Bin Level Detection
- Bin Fill-Level Sensing
- Non-Contact Depth Tracking
- Smart Waste Automation
Not sure where the MacRay-ToF fits in your project? Let’s explore
Hardware
LoRaWAN Time-of-Flight Sensor with 2×2, 4×4, 8×8 Grid Options People Counting & Object Detection

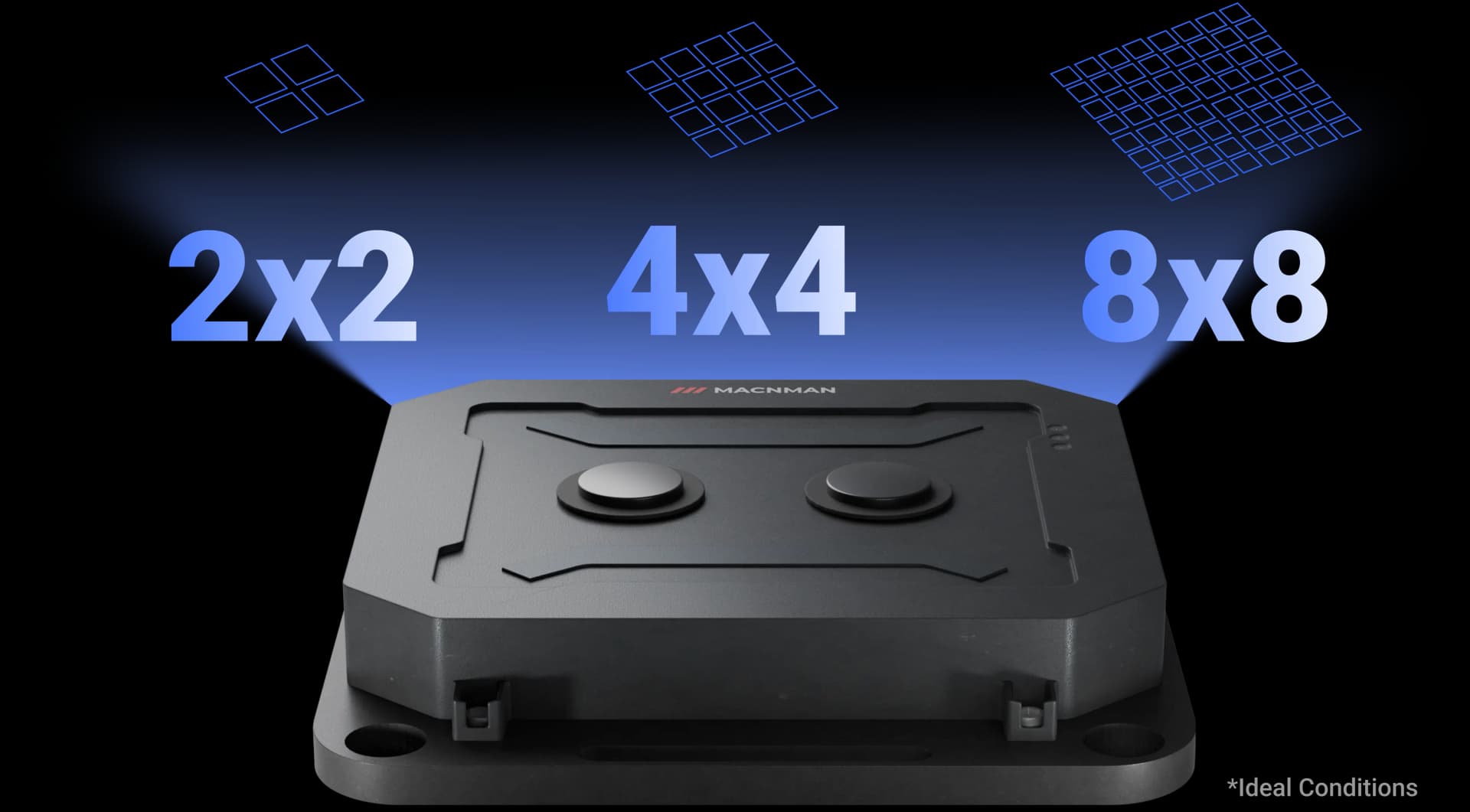

Select from 2×2, 4×4 and 8×8 ToF depth grids based on your need for people counting, object detection, zone monitoring, and occupancy analytics.
Works with
Ultra-Precise LoRaWAN Time-of-Flight Measurement for Industrial IoT

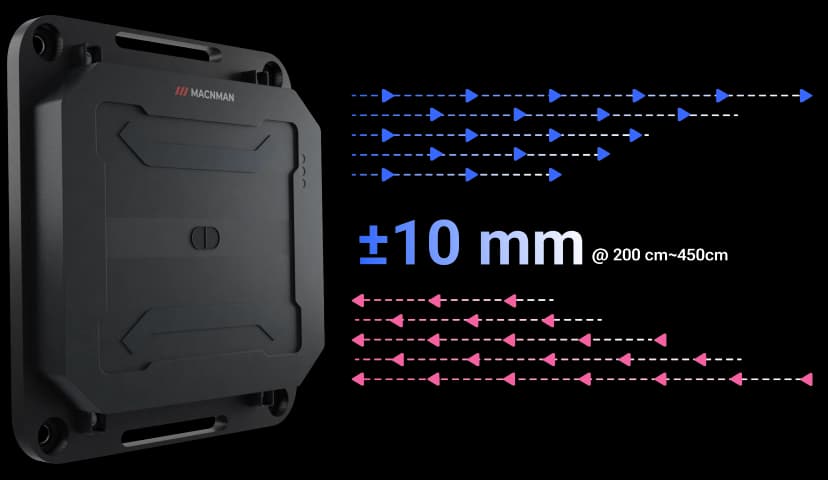

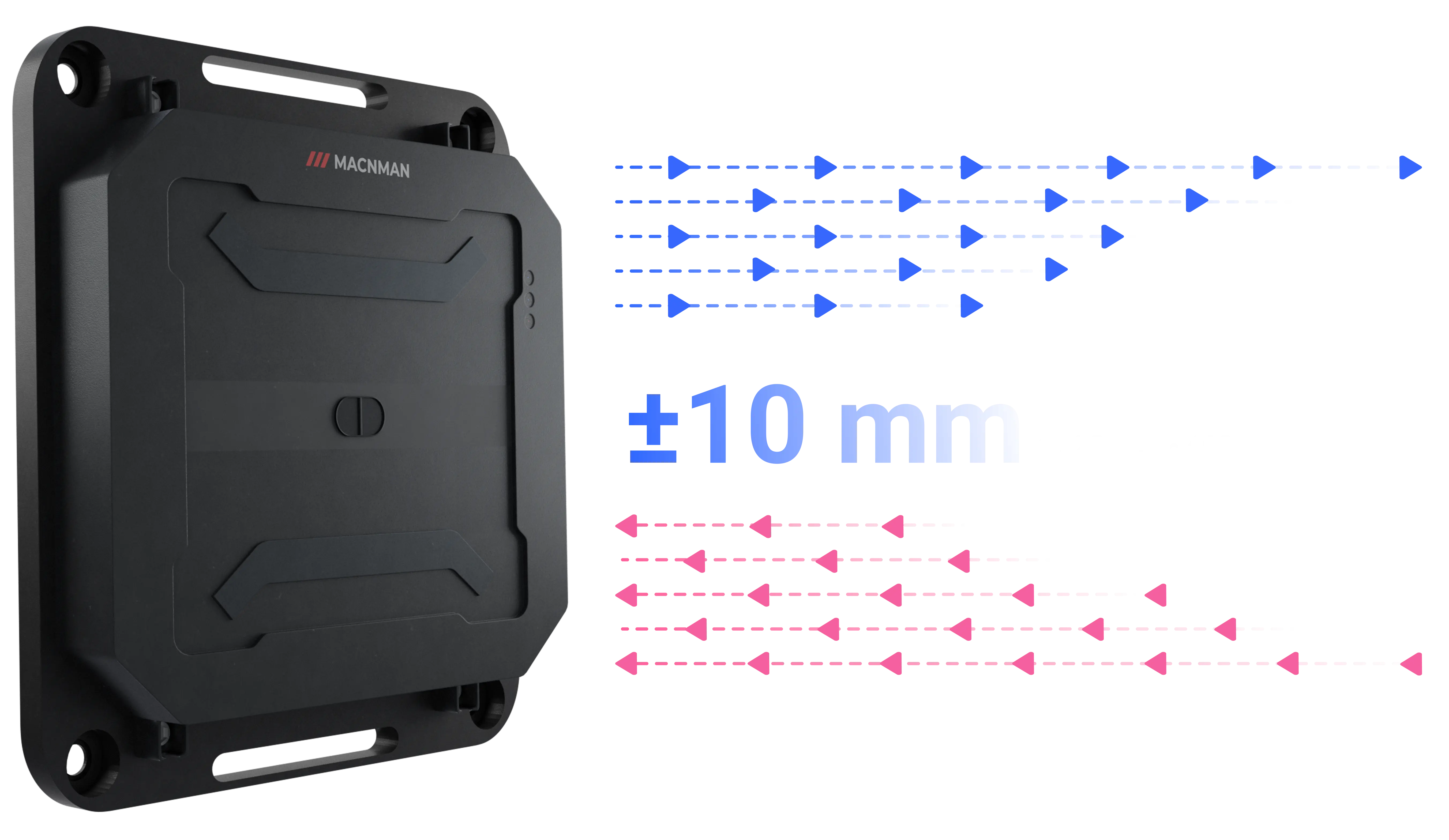

±3% typical accuracy with 1 mm resolution for dependable distance measurement±3% typical accuracy with 1 mm resolution for dependable distance measurement
Want to see how this accuracy performs in your real environment?
Book Your Demo NowPower

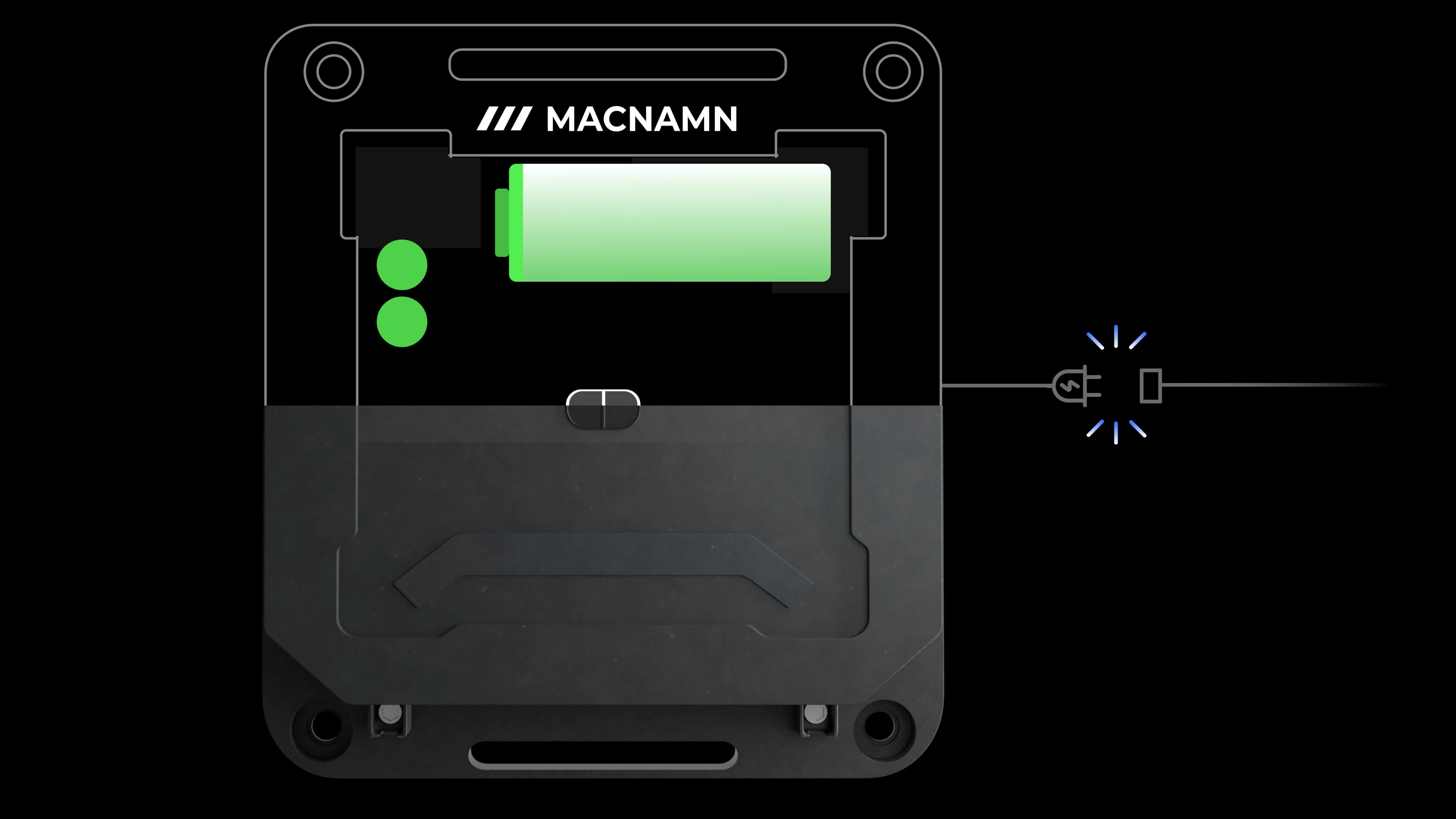

Up to 5+ Years on One Battery, or 9–36 V DC Power
Battery-Powered 2×2 and 4×4 Models, DC-Powered 8×8 Model
The 2×2 and 4×4 battery models carry an 8 Ah Li-SOCl₂ cell rated for about 1.5 years at 5-minute reporting, 3 years at 15 minutes and 5+ years at hourly reporting. The 8×8 X3 model runs from a 9–36 V DC supply for continuous high-resolution counting.
Capacity

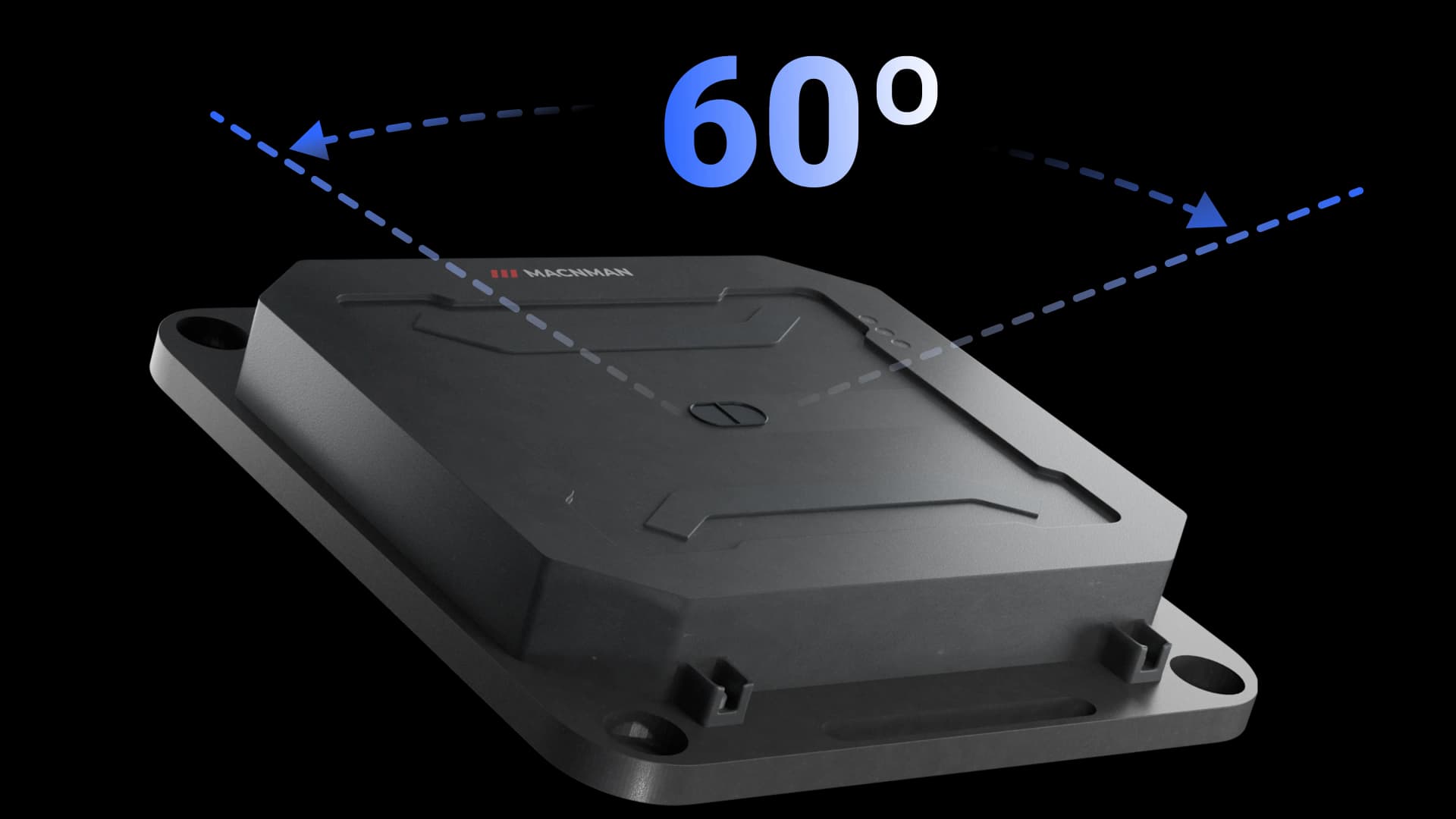

Wide Field of View ToF Sensor for Occupancy, Depth & Area Mapping
The MacRay-ToF sensor offers a wide, high-clarity Field of View—perfect for people counting, object detection, and area mapping across all 2×2, 4×4, and 8×8 depth grids.
Preset modes
Ready-to-Use Preset Modes Instant
LoRaWAN ToF Sensor Deployment

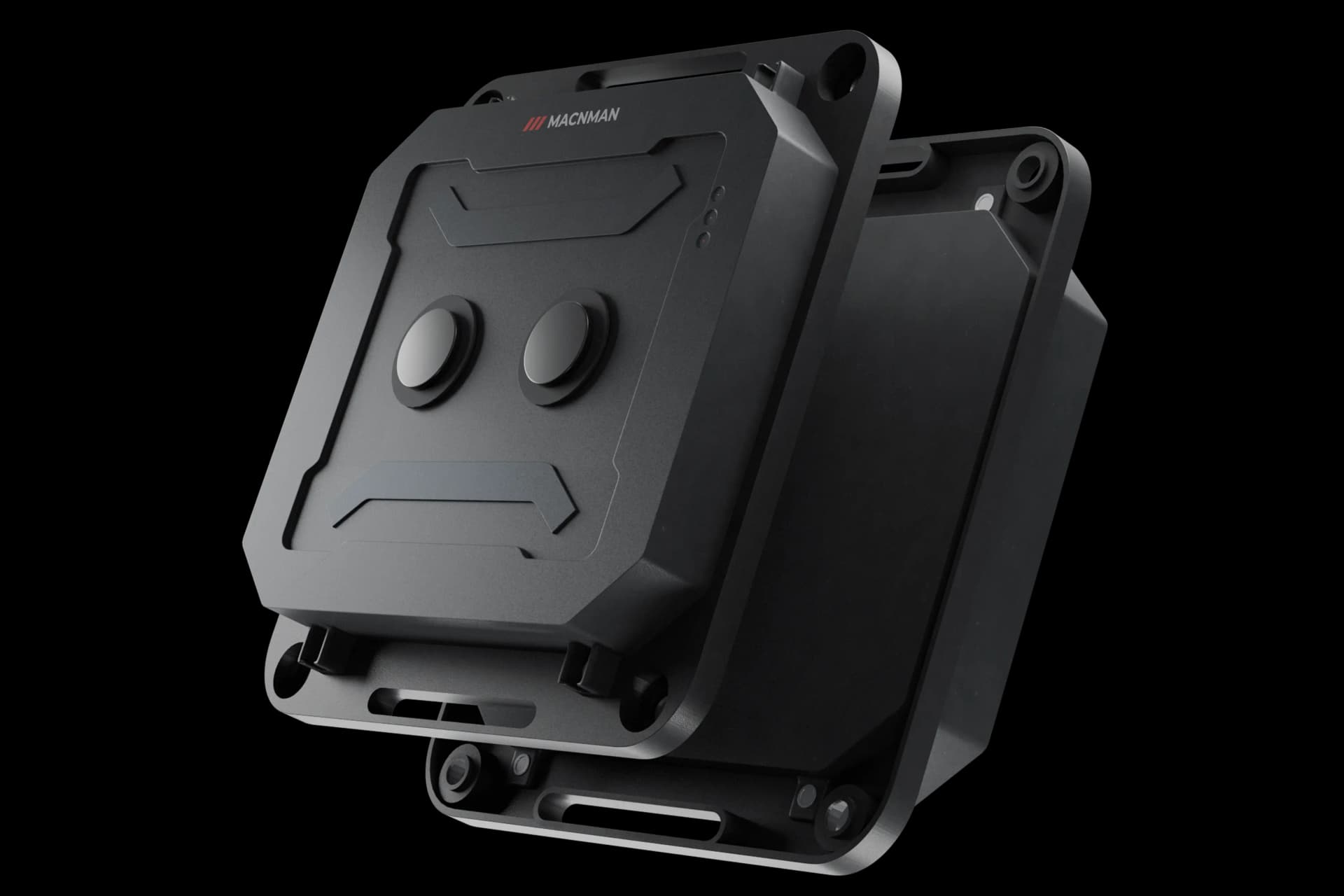

Deploy the MacRay-ToF sensor in seconds with built-in preset modes designed for people counting, object detection, and depth monitoring.
Preloaded firmware mode — select it in Maya and deploy.
Capabilities
How to Position Your LoRaWAN ToF Sensor for Maximum Accuracy
Recommended Mounting Height, Angle & Depth Range for Perfect 3D Detection
At a glance

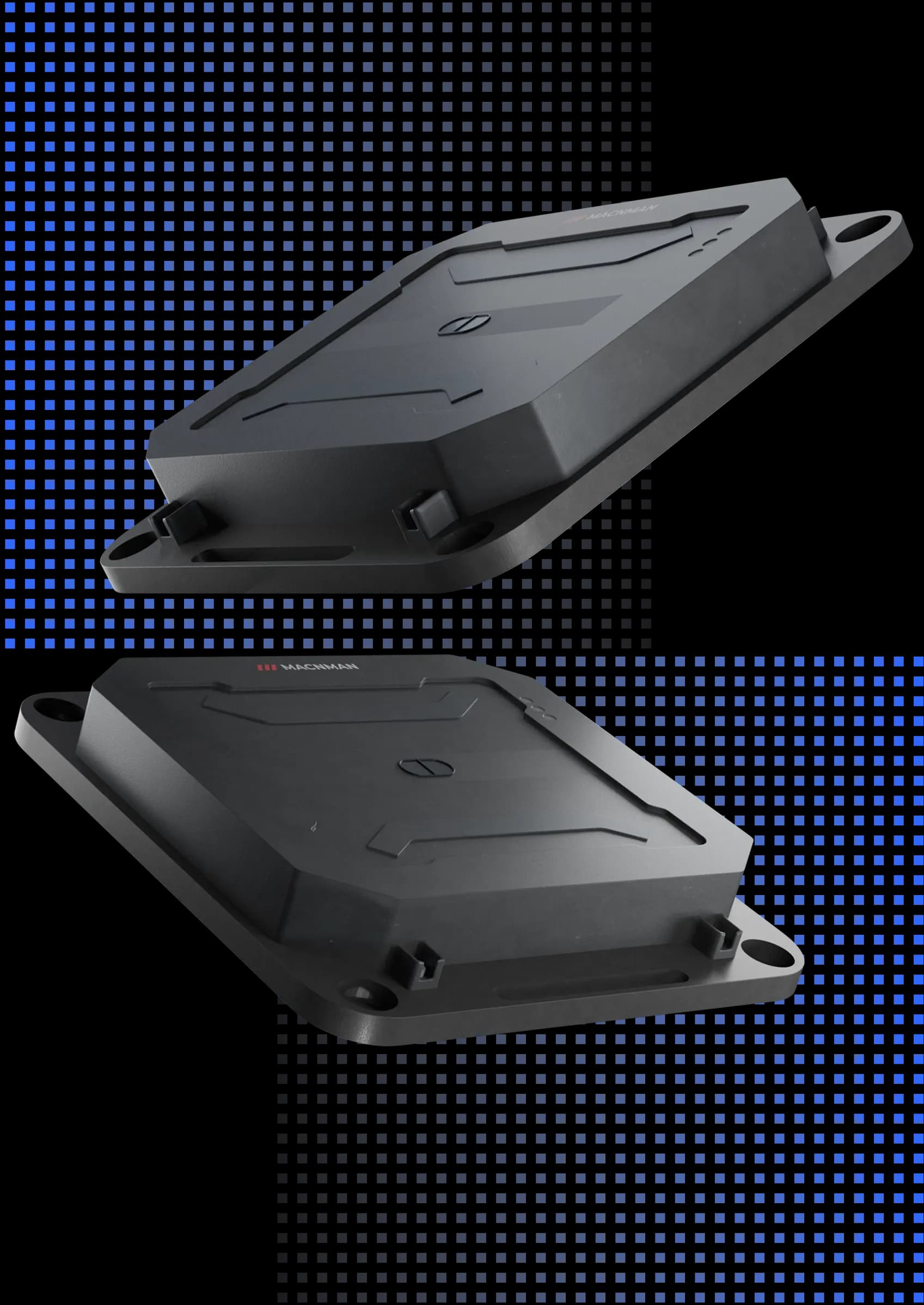

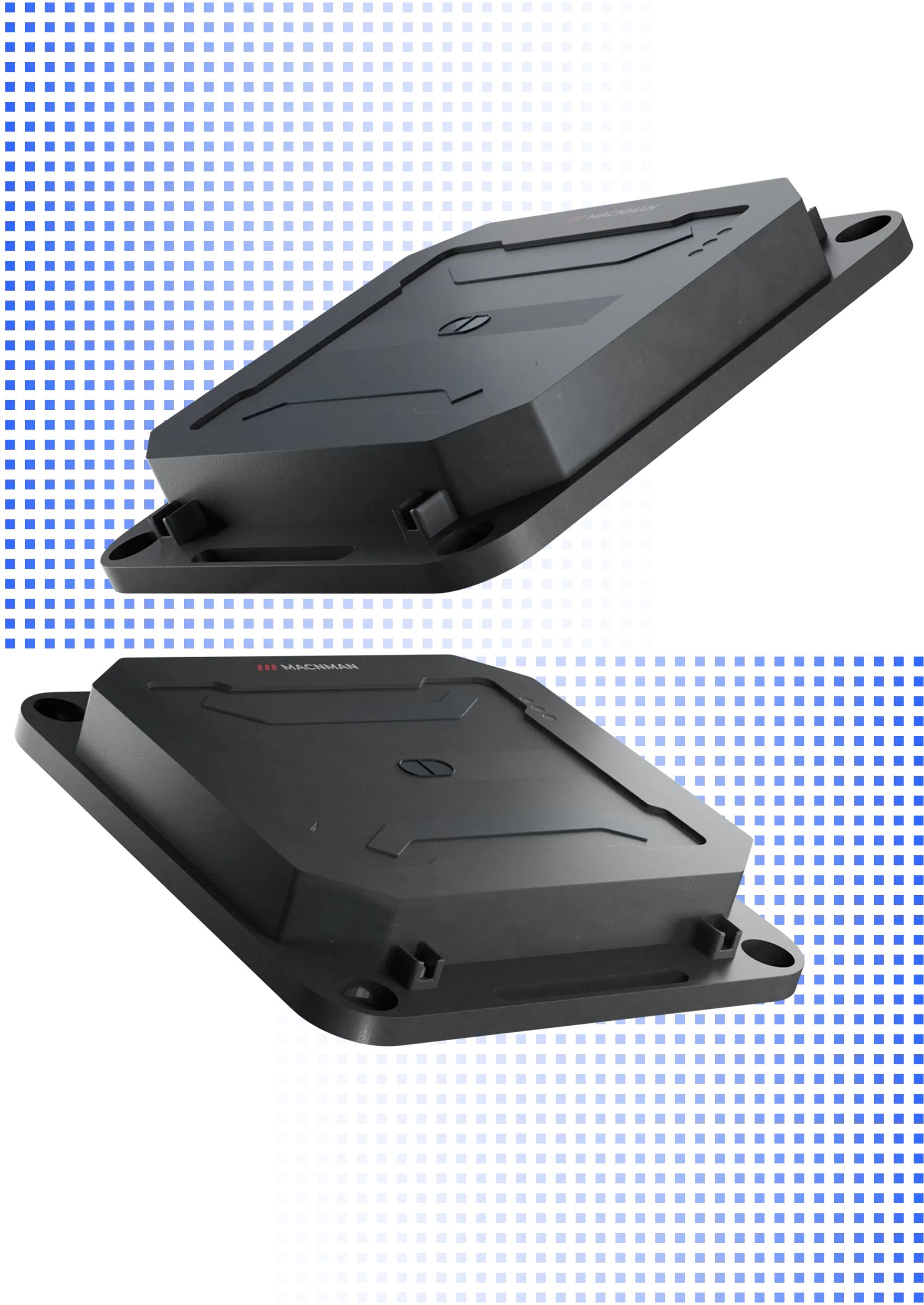

MacRay ToF LoRaWAN Sensor — Key Specifications
Every key specification in one view.
400 cm
detection range
4 cm – 400 cm time-of-flight sensing
8×8
depth-map grid
2×2, 4×4 or 8×8 zone options
±3%
typical accuracy
< ±10 mm repeatability · 1 mm resolution
15 km
line-of-sight range
Long-range LoRaWAN connectivity
BLE
no-code setup
Maya app configuration · OTA updates
Any GW
gateway compatibility
Works with all major LoRaWAN gateways
Features
Everything built in
Customizable ToF Modes
Choose preset modes like counting, zone detection, or depth tracking for plug-and-play use
Send periodic distance data at user-defined LoRaWAN intervals
Multi-Grid Depth Mapping
Supports 2×2, 4×4 & 8×8 grids for flexible people counting, area mapping, and depth analytics
Reliable Edge Processing
Onboard AI filtering ensures stable depth data by removing noise, false triggers, and ambient interference
Real-Time Event Detection
Detects presence, movement, and zone breaches in real-time for automation and safety systems
Industrial-Grade Durability
Device Firmware Library
providing essential tools and resources for ToF firmware updates, calibration, & performance tuning
Macnman Maya
Manage all ToF configurations using the Maya app for rapid setup & remote tuning
Proceed to pricing and procurement options for the MacRay sensor
Contact Macnman's Team Now !Cloud & LNS
Compatible With All LoRaWAN Network Servers & Gateways
Seamless Integration With Major LNS & LoRaWAN Gateway Manufacturer
The MacRay-ToF sensor works out of the box with all LoRaWAN network servers and every LoRaWAN-certified gateway — no custom firmware, no extra setup, no restrictions.
Device-to-device
Macnman MacTalk(TM) Device-to-Device Communication Protocol
Offline, Gateway-Free Automation With Direct Sensor-to-Controller

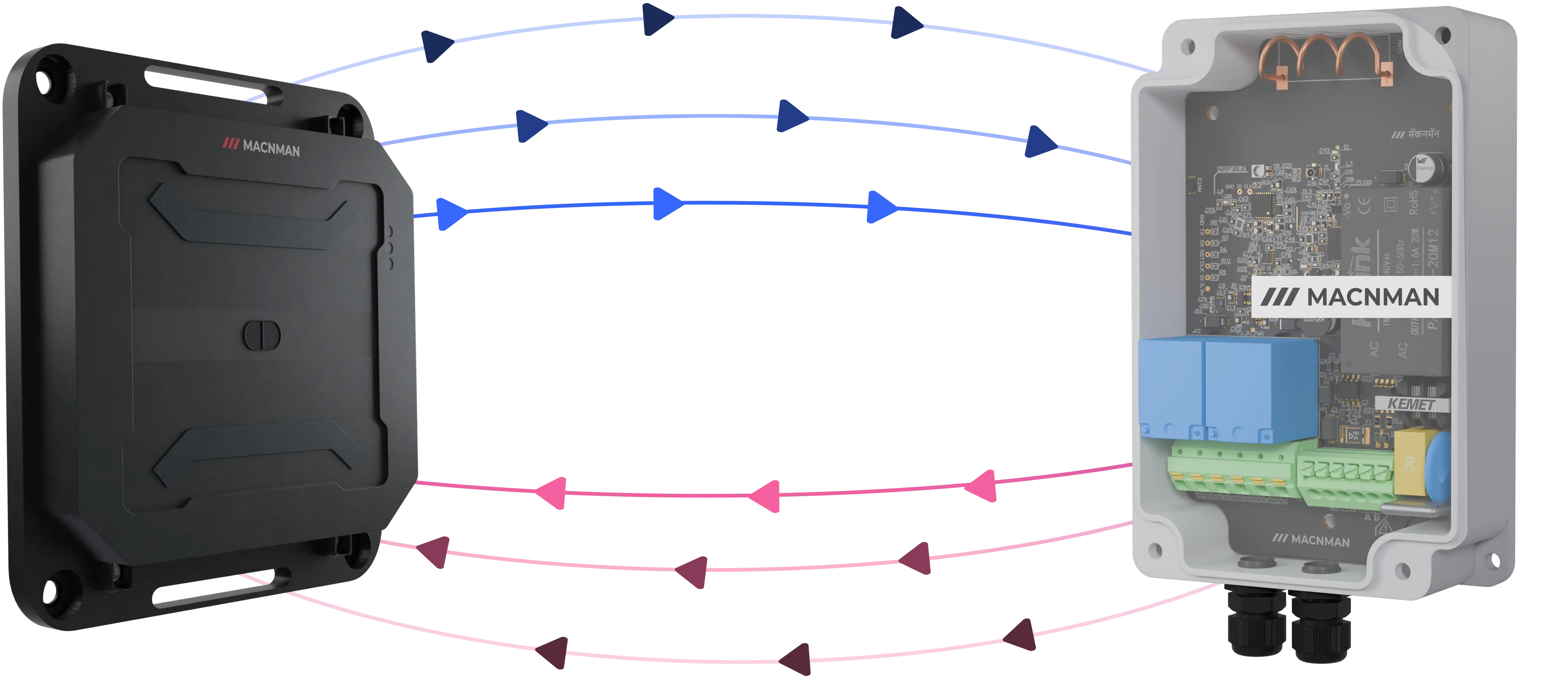

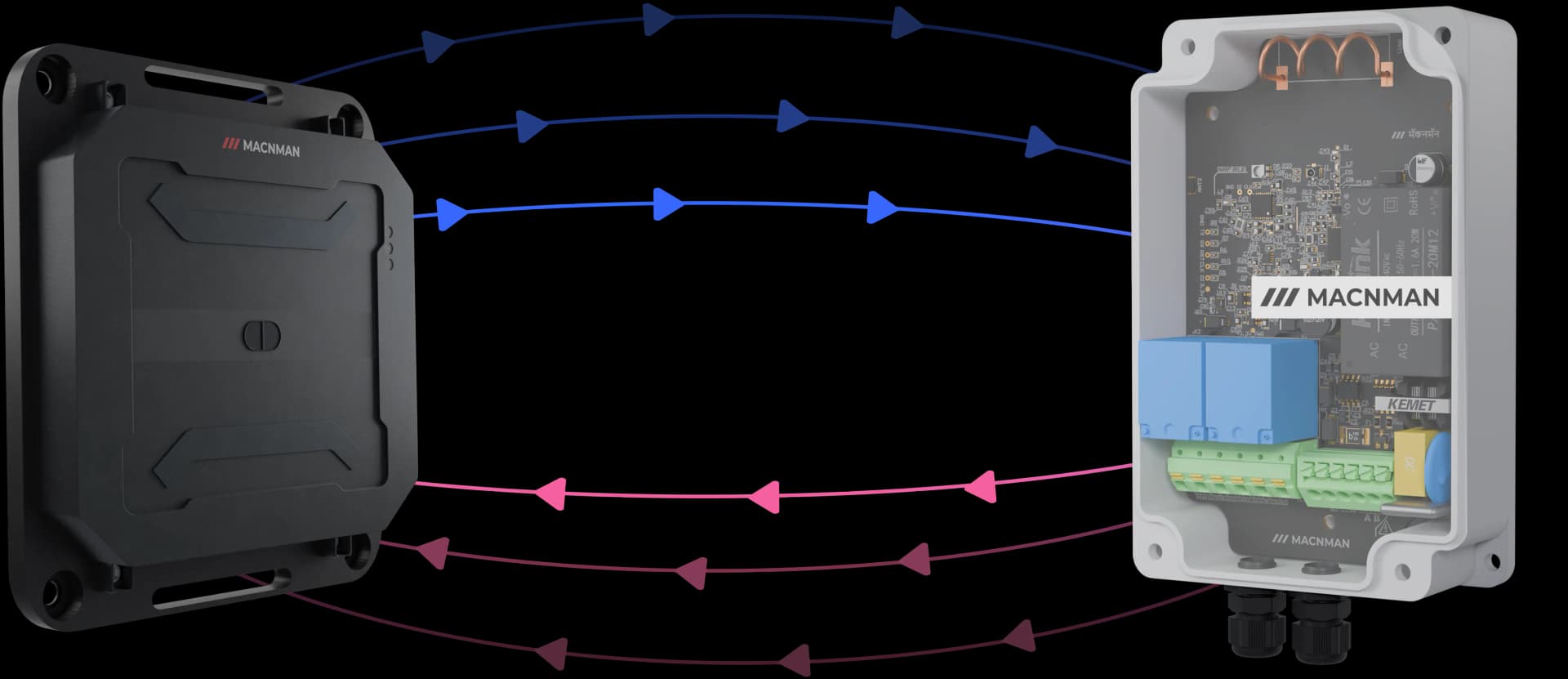

MacTalk™ enables the MacRay-ToF sensor to communicate directly with other Macnman devices—no internet, no SIM, no LoRaWAN network required—for instant, real-time offline automation.
MacTalk™ enables the MacRay-ToF sensor to communicate directly with other Macnman devices—no internet, no SIM, no LoRaWAN network required—for instant, real-time offline automation.
Plug & Play
Truly Plug & Play , No Complex Setup.
Real-Time Control
Near-instant signal transmission between two devices.
Long-Range
Long-range coverage for hard- to-reach places.
See how MacTalk™ enables instant device-to-device communication without any network.
Why Macnman
MacRay-ToF Sensor Fully Configurable via the Macnman Maya
Effortless Setup, Parameter Tuning & Diagnostics Over BLE
Experience effortless LoRaWAN sensor configuration with the Maya App
Click to see Magic !Maximize Efficiency
with Customizable Solution
On-Off On Set Time
Schedule precise timings for your IoT applications, perfect for daily routines in smart buildings or agriculture.
Operating modes
Advanced Multi-Uplink Modes for MacRay LoRaWAN ToF Sensor
Intelligent Uplink Modes for Precise & Efficient ToF Data Reporting

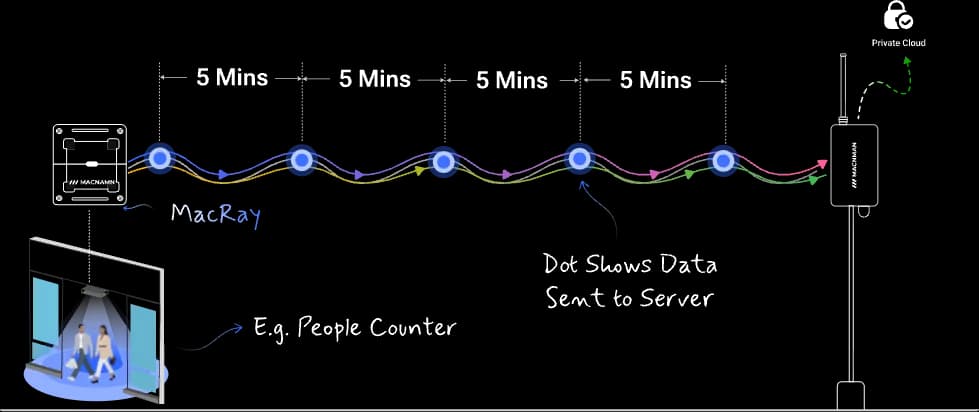

MacRay-ToF offers three intelligent uplink modes—Sample, Regular Heartbeat, and High-Resolution Sampling—designed to optimize accuracy, battery performance, and LoRaWAN bandwidth usage.
01
Set the Interval
Choose how often your device sends data every few minutes, hours, or once a day based on your operational needs.
02
Configure via Maya App
Use the Macnman Maya App to set your preferred heartbeat interval instantly over Bluetooth no coding or manual setup required.
03
Get Real-Time Updates
Your MacRay-ToF sensors automatically transmits sensor data at the defined intervals, ensuring a steady data flow
Architecture

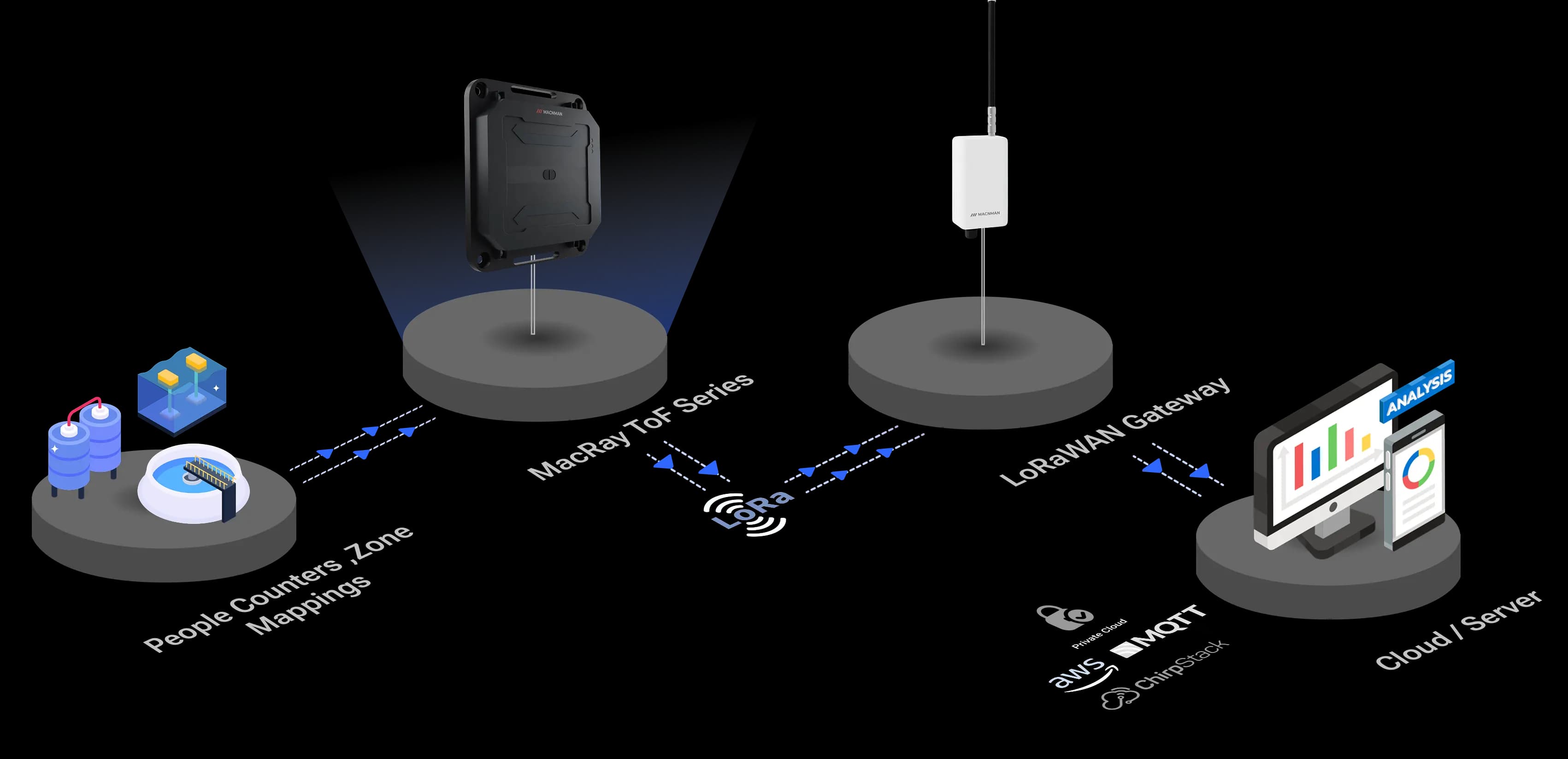

LoRaWAN Architecture for Industrial-Grade MacRay ToF Sensor
Range & reliability
Long-Range LoRaWAN ToF Sensor With Strong Indoor Wall Penetration
Stable LoRaWAN Connectivity Across Walls, Floors, & Large Distances
MacRay-ToF maintains strong long-distance LoRaWAN communication with excellent wall and floor penetration, ensuring reliable depth and occupancy data even in dense indoor environments.
Capabilities
Easy Wall Mounting for Fast & Clean ToF Sensor Installation

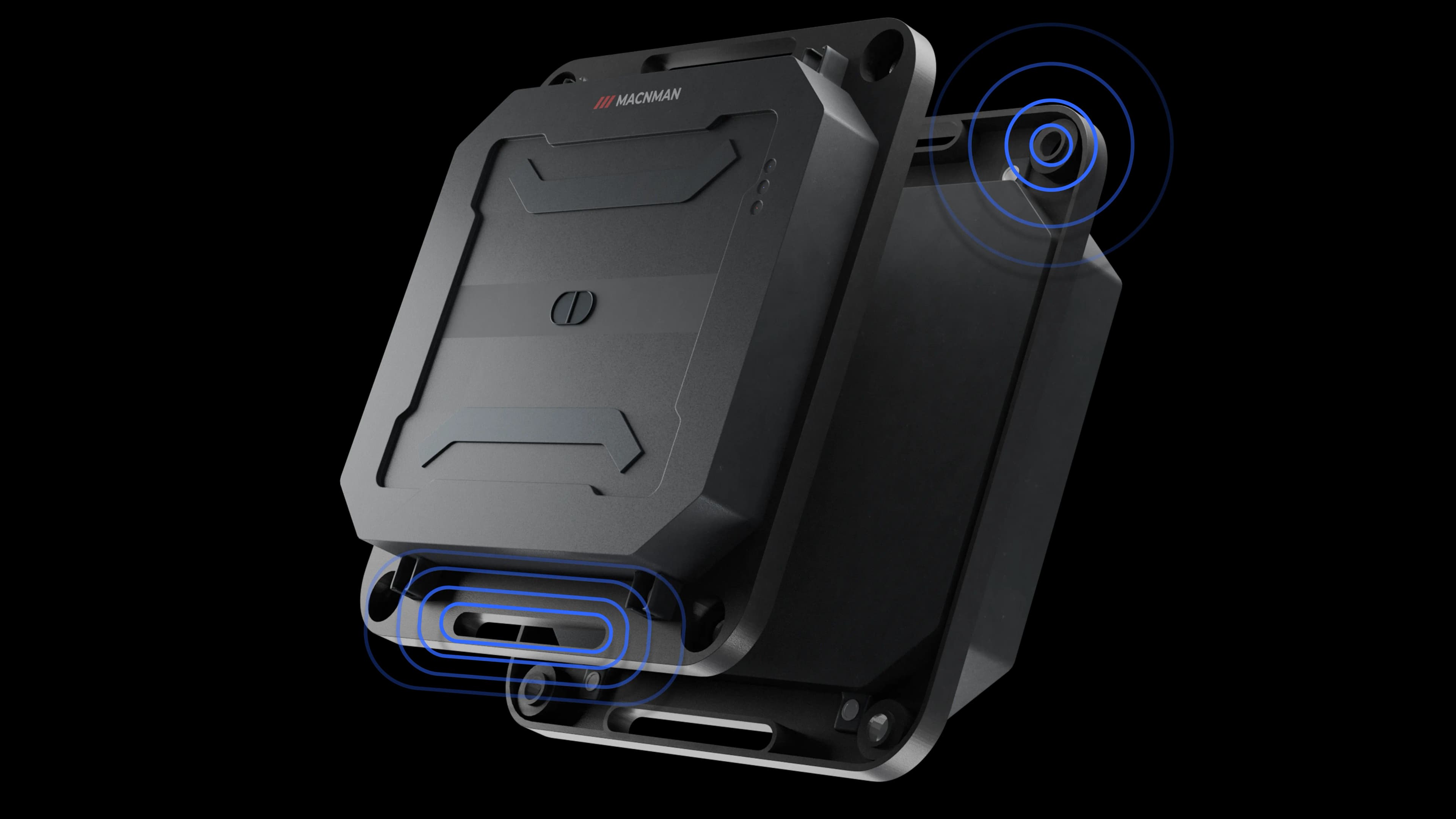

Mount Your LoRaWAN ToF Sensor Securely on Any Wall in Minutes
See how pole & wall mounting boosts measurement accuracy
FAQ
Frequently asked questions
It measures depth, distance, presence, and occupancy using Time-of-Flight infrared technology.
The detection range is 4 cm to 400 cm in long-range mode, with 2×2, 4×4 and 8×8 grid options.
Accuracy is ±3% typical, with repeatability better than ±10 mm and resolution down to 1 mm, across all grid configurations.
Yes, it is optimized for indoor depth sensing, people counting, and occupancy detection.
The 2×2 and 4×4 battery models use an 8 Ah Li-SOCl₂ cell rated for about 1.5 years at 5-minute reporting, 3 years at 15-minute reporting and 5+ years at hourly reporting. The 8×8 model is powered from 9–36 V DC.
People counting, object detection, zone monitoring, and depth tracking.
Use the Macnman Maya App over BLE for setup, tuning, and diagnostics.
Compatible with The Things Stack, ChirpStack, Loriot, Actility, and all standard LNS platforms.
Yes, it supports all LoRaWAN-compliant gateways globally.
Yes, through MacTalk™ for offline automation without gateways or internet.
Retail aisles, rooms, corridors, entrances, smart offices, warehouses, and indoor automation setups.
Sample Mode, Regular Heartbeat Mode, and High-Resolution Sampling Mode.
Wall mounting and ceiling/top mounting depending on the coverage area.
Depth readings, occupancy states, grid output, battery status, and trigger events.
