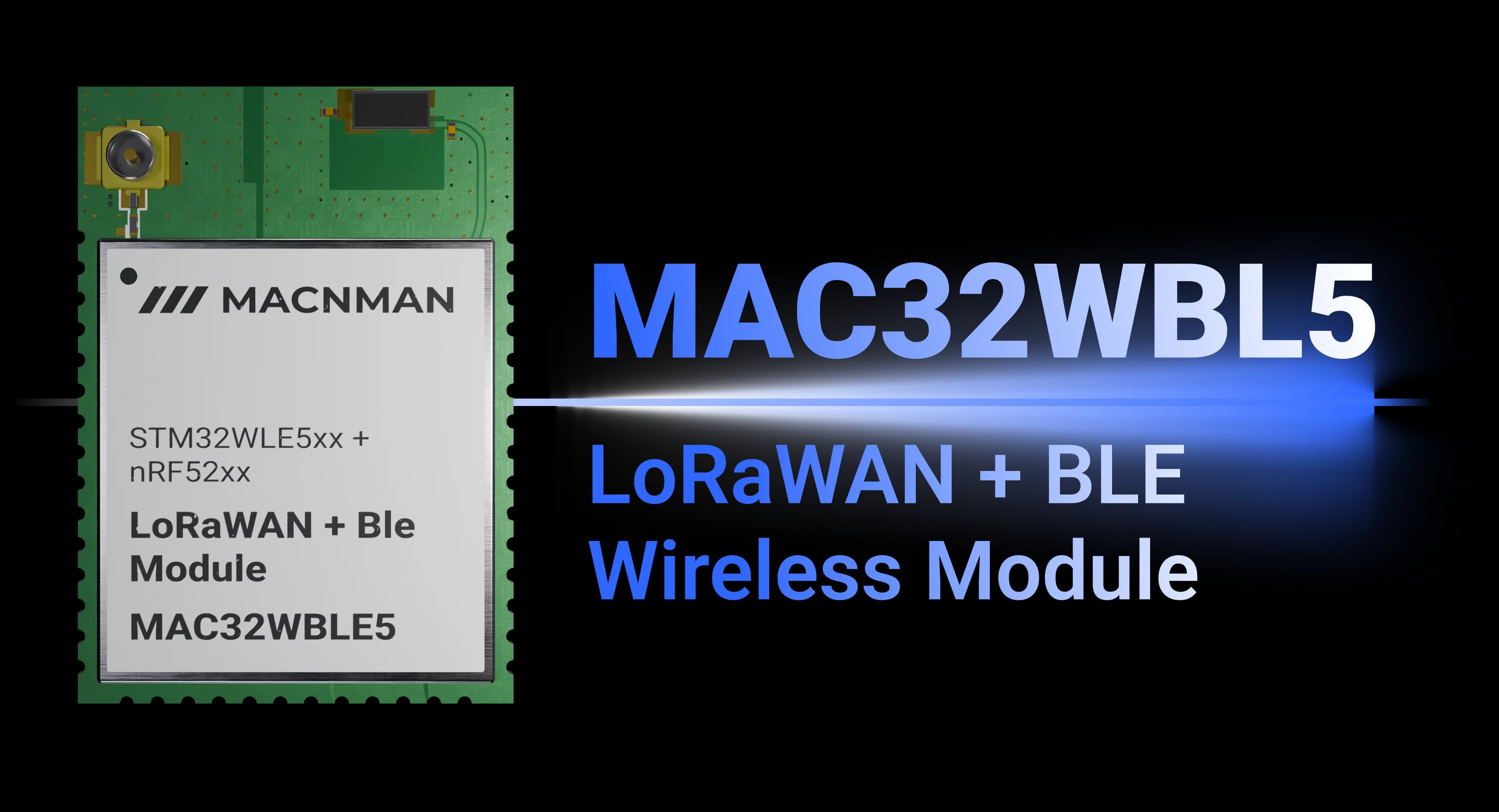

Dual-Protocol LoRaWAN® + BLE IoT Module
Ultra-low-power wireless module with dual-protocol flexibility.

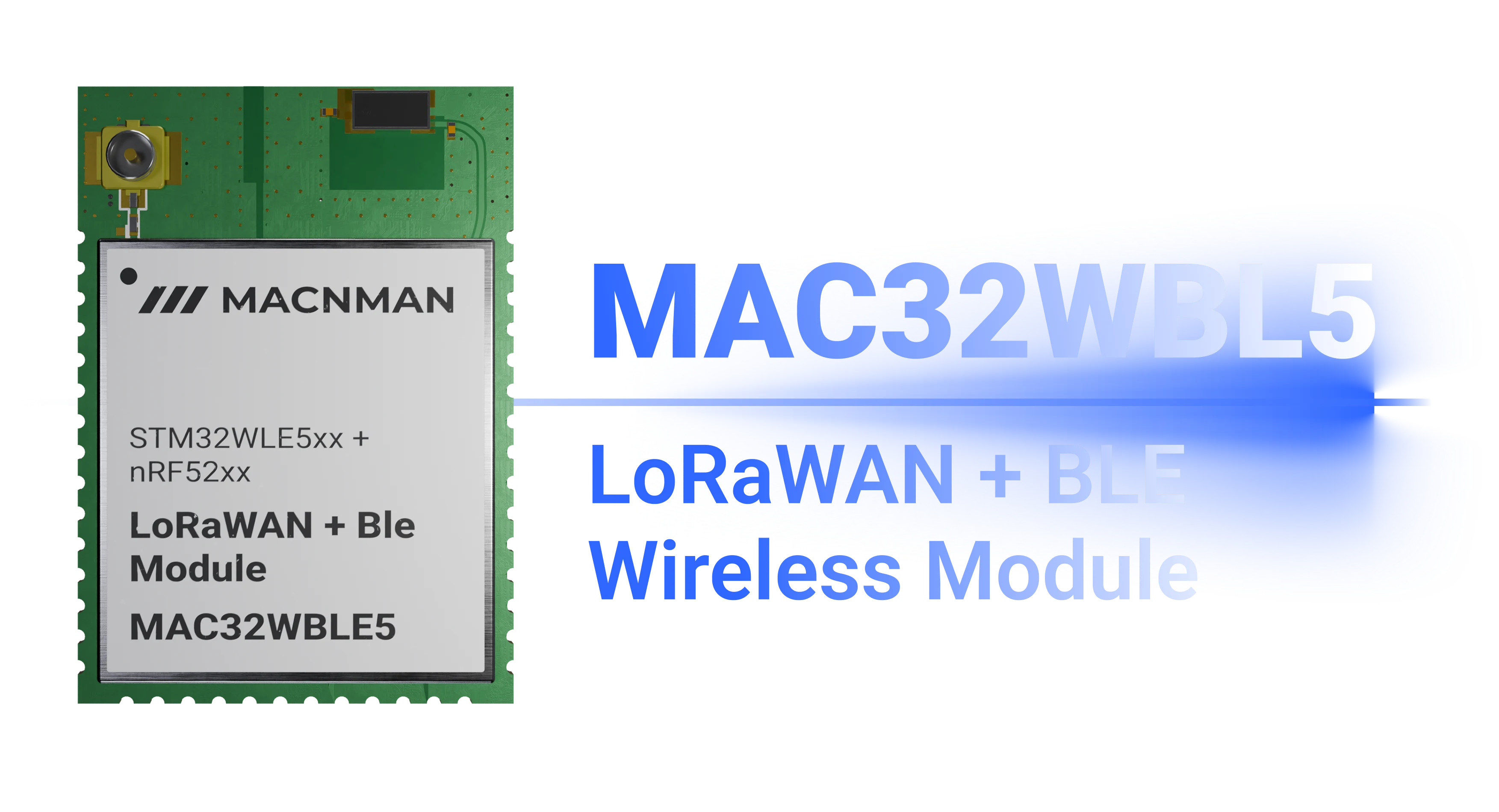

MAC32WBLE5 LoRWAN® + BLE Wireless Module
Where Ultra-Low-Power Meets Industrial-Grade Wireless
Where Ultra-Low-Power Meets
Industrial-Grade Wireless
MAC32WBLE5
Explore the highlights

LoRa for the long haul and Bluetooth LE for what is standing next to it — commissioning, diagnostics and local data without touching the LoRa link.
Full sub-GHz transmit power on the STM32WLE5 platform, across the bands used worldwide.
Pair from a phone for setup and diagnostics — the pattern behind Maya, our companion app, available to your product too.

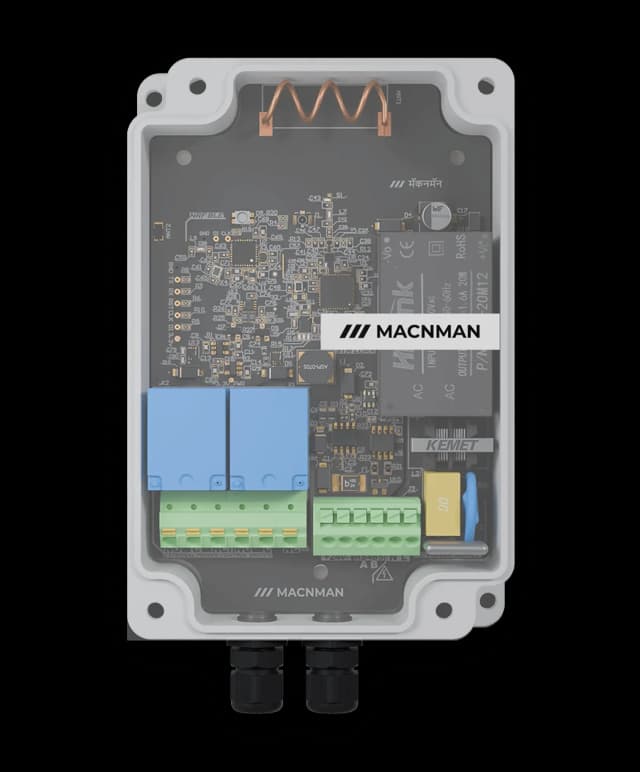

The same combo module inside Macnman's shipping products — field-tested before it ever reaches your design.
In plain terms
What Is a LoRaWAN + BLE Module?
The short answer
A LoRaWAN + BLE module carries two radios on one board. LoRa sends small amounts of data over kilometres to a gateway, and Bluetooth Low Energy talks to a phone standing next to the device. A product built on it can report from the field on a battery and still be set up, diagnosed and updated from a phone, with no cable and no buttons.
LoRa
- +22 dBm
Maximum LoRa output power
- IN865
Also US915, EU868 and AU915
- P2P
LoRa point-to-point without a gateway
BLE
- BLE 5.0
Bluetooth Low Energy version
- +4 dBm
Maximum BLE output power
- 2.4 GHz
BLE band
Memory
- 256 kB
Flash on the LoRa processor
- 192 kB
Flash on the BLE processor
- 64 kB
RAM on the LoRa processor
Power
- 1.8–3.6 V
Operating voltage
- <3 µA
LoRa-side sleep current
- <5 µA
BLE-side sleep current
Interfaces
- 32
I/O pins on the module
- 12-bit
ADC
- 3 buses
UART, SPI and I2C

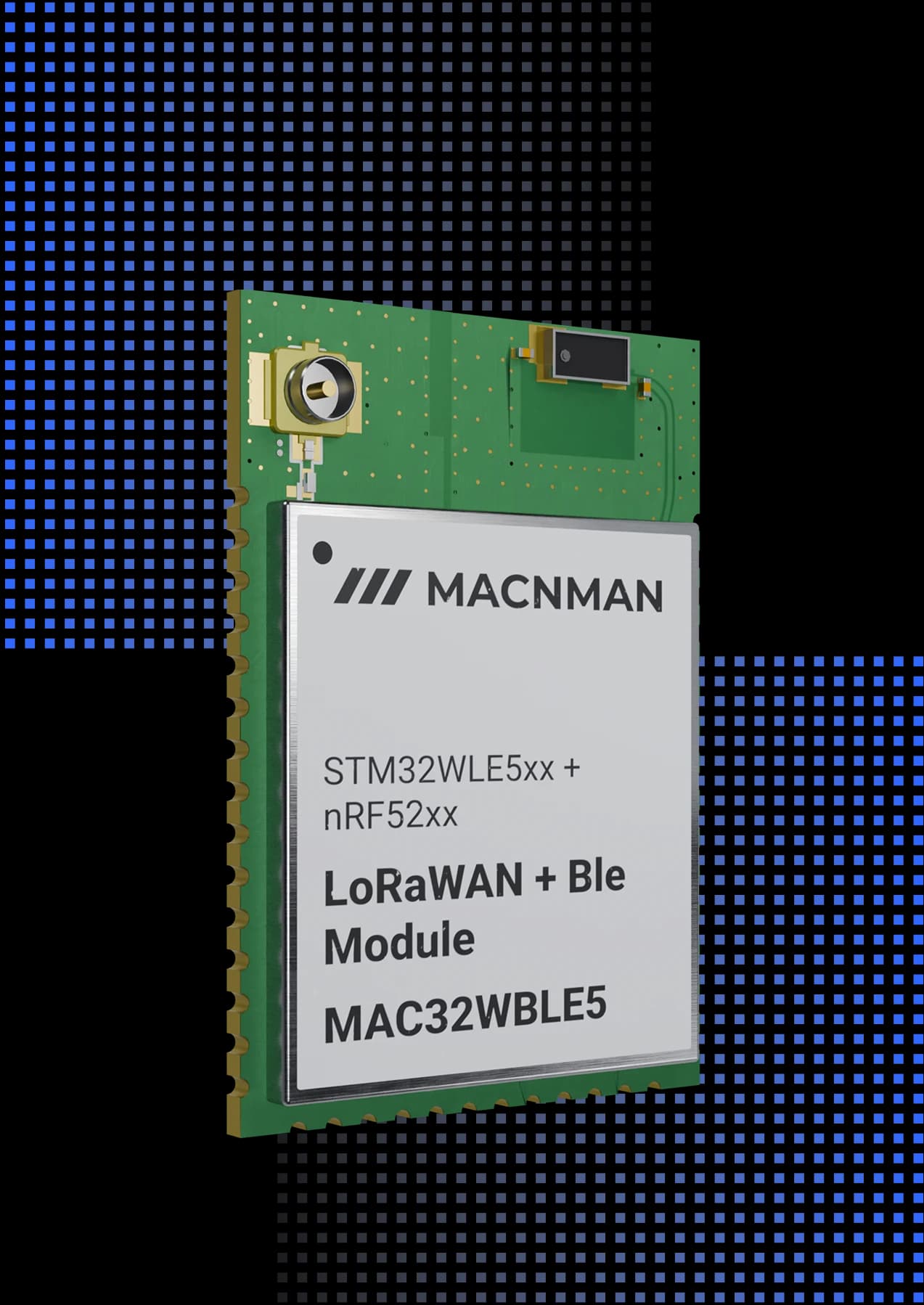

MAC32WBLE5
The MAC32WBLE5 pairs an STM32WLE5 for LoRa with a Nordic nRF52810 for BLE, so both radios can run at the same time. It is the same combo module inside Macnman's shipping products, and the pattern behind the Maya setup app.
An STM32WLE5 radio with up to +22 dBm output on the sub-GHz ISM bands, for LoRaWAN® or LoRa point-to-point links.
A Nordic nRF52810 running Bluetooth Low Energy 5.0 at 2.4 GHz, with up to +4 dBm output.
256 kB of flash and 64 kB of RAM on the LoRa processor; 192 kB of flash and 24 kB of RAM on the BLE processor.
Runs from 1.8 V to 3.6 V; in sleep the LoRa side draws under 3 µA and the BLE side under 5 µA.
32 I/O pins on the module with a 12-bit ADC, and UART, SPI and I2C buses.
In a typical design LoRaWAN carries the data to the cloud while BLE handles provisioning, in-field configuration, firmware updates and local diagnostics from a phone.
Get a quote
Need a quote for the MAC32WBLE5?
Tell us how many you need and where they are going. A product engineer replies within one working day with availability, lead time and the right variant for your site.
- Reply within one working day
- Designed and built in Pune, India
- WPC compliant, RoHS conformant
Downloads
Everything You Need to Get Building
Datasheets, drawings, firmware, and tools — all in one place.
Product Datasheet
PDF · full technical specifications
Applications
MAC32WBLE5 LoRaWAN® + Ble Module Applications

Industrial IoT Automation with MAC32WBLE5
Connect legacy industrial systems to the MAC32WBLE5 LoRaWAN + BLE Module. Enable predictive maintenance, machine monitoring, and secure wireless automation with ultra‑reliable communication and low‑power performance.
Read case studiesSmart Water Monitoring with Wireless IoT (Water Quality Sensors, Level Sensors, Flow Meters, LoRaWAN IoT): Enable real‑time water level and quality insights with MAC32WBLE5 dual‑protocol wireless. Achieve smart irrigation, leak detection, and remote water management even in rural deployments.
Energy & Utility IoT Connectivity (Smart Energy, Wired-to-Wireless, Remote Metering): Modernize energy infrastructure with the MAC32WBLE5 LoRaWAN + BLE module, enabling wireless meter reading, consumption analytics, and reduced downtime for utilities and industries.
Cold Chain IoT Monitoring (Temperature Sensors, Humidity Monitoring, LoRaWAN BLE Gateway): Ensure refrigeration compliance with continuous monitoring powered by MAC32WBLE5 dual‑protocol connectivity. Improve logistics safety and preserve high‑value perishables across the supply chain.
Predictive Industrial Maintenance over LoRaWAN (Vibration Sensing, Motor Health, Condition Monitoring): Leverage proactive maintenance insights using BLE + LoRaWAN sensor connectivity to predict failures, reduce breakdowns, and extend equipment lifespan in manufacturing plants.
Smart Farming & Agri IoT Connectivity (Soil Sensors, Agri Automation, Low‑Power Wireless): Improve yields using MAC32WBLE5 wireless IoT, enabling soil intelligence, livestock monitoring, and irrigation automation across large farmland.
Asset Tracking & BLE / LoRaWAN Location Intelligence (BLE Beacons, UWB Supported, Smart Logistics): Track critical assets over long distance with dual‑protocol wireless. Improve logistics visibility and prevent costly losses across warehouses and transport systems.
Smart Parking IoT Communication (Parking Sensors, Edge Devices, Wireless Occupancy): Power accurate parking detection solutions with MAC32WBLE5 enabling ultra‑low‑power LoRaWAN coverage and fast BLE deployment for urban congestion reduction.
Wireless Fill‑Level Monitoring for Waste Bins (Smart Waste, Fill Level Sensors, LoRaWAN): Deploy intelligent waste collection using MAC32WBLE5 IoT module to optimize collection routes and reduce workforce & fuel cost.
Greenhouse Automation with LoRaWAN + BLE (Climate Sensing, Smart Irrigation, Wireless Control): Maintain ideal plant health with real‑time wireless climate monitoring using the MAC32WBLE5, ensuring maximum yield and resource savings.
Environmental IoT Monitoring (Air Quality, Compliance, Industrial IoT): Monitor pollution & AQI with long‑range LoRaWAN communication and BLE setup for environmental compliance & public safety.
Smart Tank & Storage IoT Connectivity (Non‑Contact Sensors, Tank Level Monitoring, Industrial Wireless): Enable real‑time liquid level and remote stock visibility using MAC32WBLE5 for tanks, silos, and chemical storage monitoring.
Smart Buildings Wireless Automation (HVAC Control, BLE + LoRaWAN, Occupancy Sensors): Automate buildings with seamless BLE commissioning and LoRaWAN cloud reporting for HVAC, energy & security enhancement.
Utility Network Wireless Modernization (Smart Grid, Water Distribution, Power Monitoring): Transform public infrastructure with secure IoT data transmission for better uptime, leak detection, and predictive analytics.
Mining & Quarry Industrial IoT Deployment (Rugged Wireless, Asset Safety, Environmental Sensors): Deploy long‑range sensors underground with high‑penetration LoRaWAN ensuring safe operations and reliable data capture.
Wireless Quality Control & SOP Audit (Industrial Data, Factory Optimization, BLE Sensors): Automate quality tracking using dual‑wireless IoT communication ensuring production consistency and zero‑error visibility.
Hazardous Material & Chemical IoT Safety (Non‑Contact Monitoring, LoRaWAN, Worker Safety): Ensure safe chemical handling using MAC32WBLE5 enabled sensors that require no human contact in corrosive environments.
Resource Optimization & Smart Operations (Usage Analytics, IoT Efficiency, Wireless Metering): Reduce operational cost with timely resource monitoring and wireless control powered by MAC32WBLE5.
Smart Airport IoT Infrastructure (Asset Tracking, BLE Smart Tags, LoRaWAN Coverage): Enhance ground operation visibility using BLE + LoRaWAN hybrid architecture for faster turnarounds and airport‑wide automation.
STP & Wastewater IoT Monitoring (Water Quality Sensors, LoRaWAN Networking, Cloud Analytics): Improve compliance with real‑time STP monitoring and secure remote telemetry powered by MAC32WBLE5.
Livestock & Animal Resource Monitoring (Smart Feeding, Wireless Sensors, Agri IoT): Enable automated feeding and continuous animal health tracking with ultra‑low‑power LoRaWAN connectivity.
Shopping Mall Smart Facility Management (Energy Savings, BLE Presence Detection, Smart Building IoT): Enable smarter retail & HVAC automation with dual‑protocol IoT connectivity reducing operational cost and improving visitor experience.
Browse all 22 applications
01 / 22
Want to check if this module fits your hardware design? Let’s review it together
Capabilities

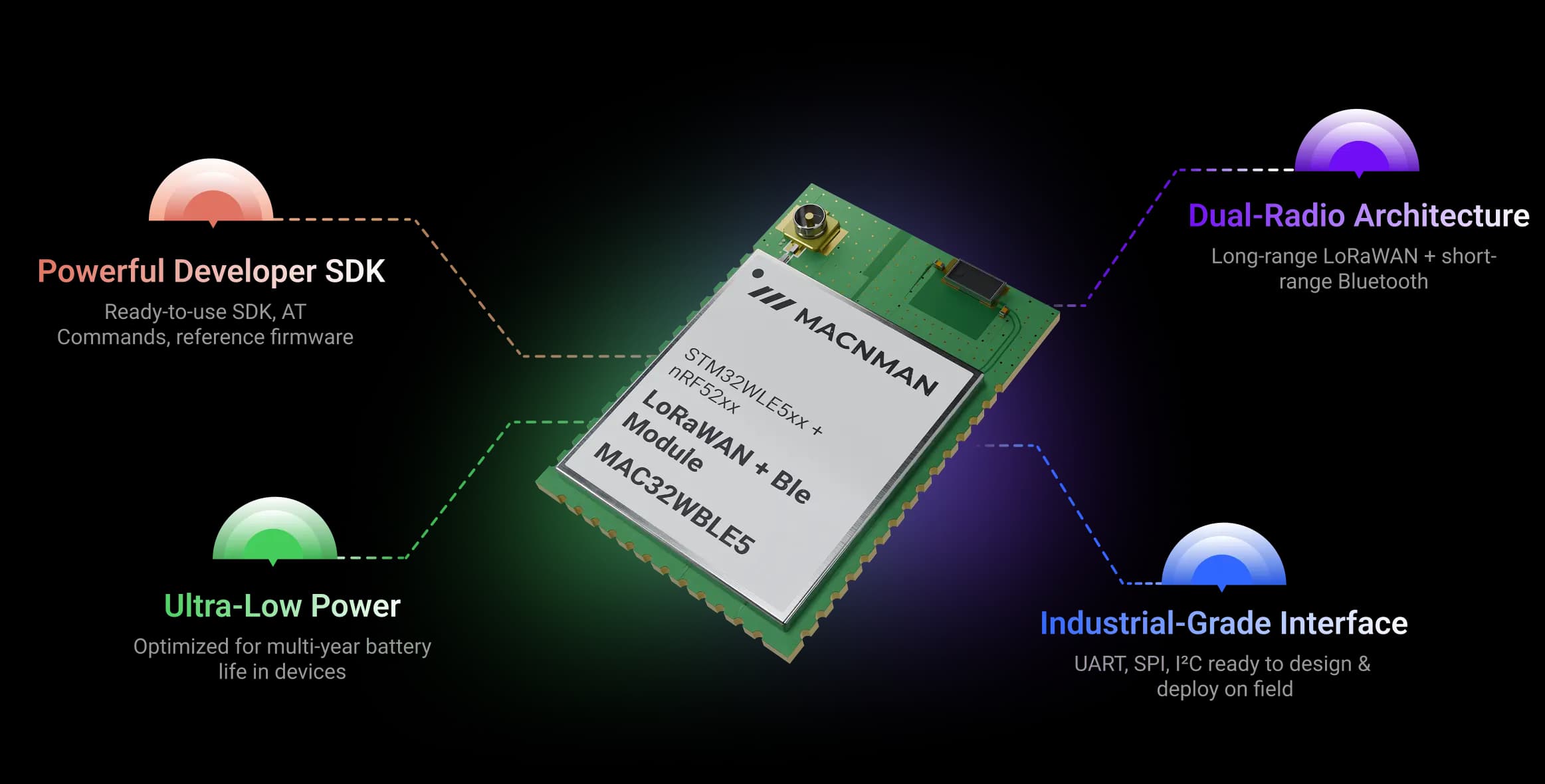

Why MAC32WBLE5 is the Best & Most Powerful LoRaWAN + BLE Module
for Industrial, Medical, Tracking, Agricultural Applications

Why Macnman
Ultra-Low Power LoRaWAN BLE Module for Multi-Year Battery Life
ultra-low sleep currents & optimized dual-radio scheduling to extend battery life

At a glance
MAC32WBLE5 LoRa + BLE Module — Key Specifications
Every key specification in one view.

Cortex-M33
32-bit ARM core
Processing & memory on-module
LoRa + BLE
wireless
LoRaWAN® and BLE 5.x combined
<5 µA
deep sleep
Low-power performance
I/O
hardware interfaces
Digital interfaces · ADC channels
22 mm
package size
22 × 18 × 2.8 mm ultra-compact
+80 °C
operating range
−40 °C to +80 °C
Need guidance on RF tuning, antenna selection, or footprint integration? Ask us anytime.
Check Out Referance DesignsArchitecture
Accelerate Your Hardware Development with Ready-Made Designs


Share your PCB layout — we’ll help ensure perfect LoRaWAN and BLE performance
Contact Macnman's Team Now !Power

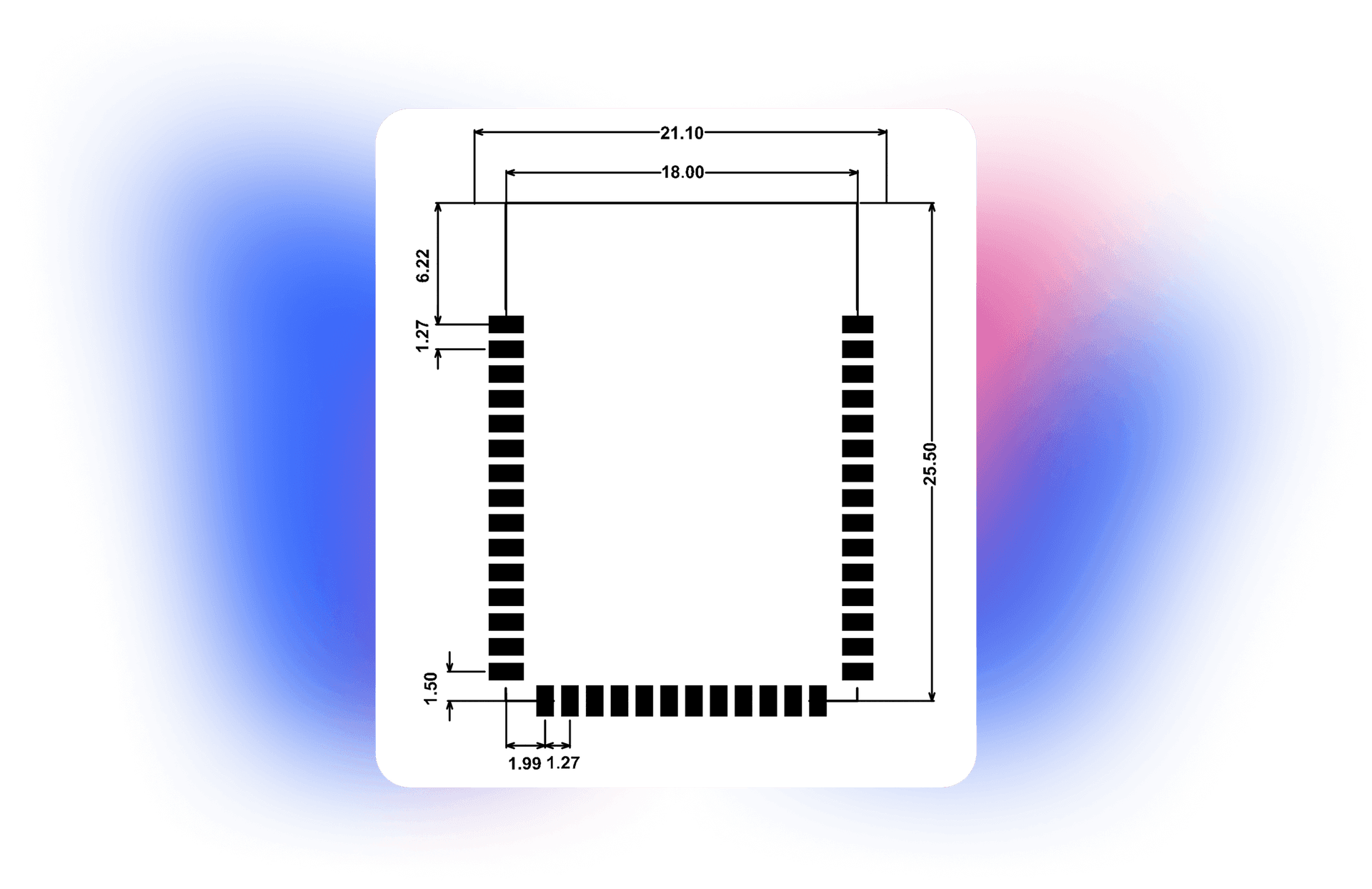

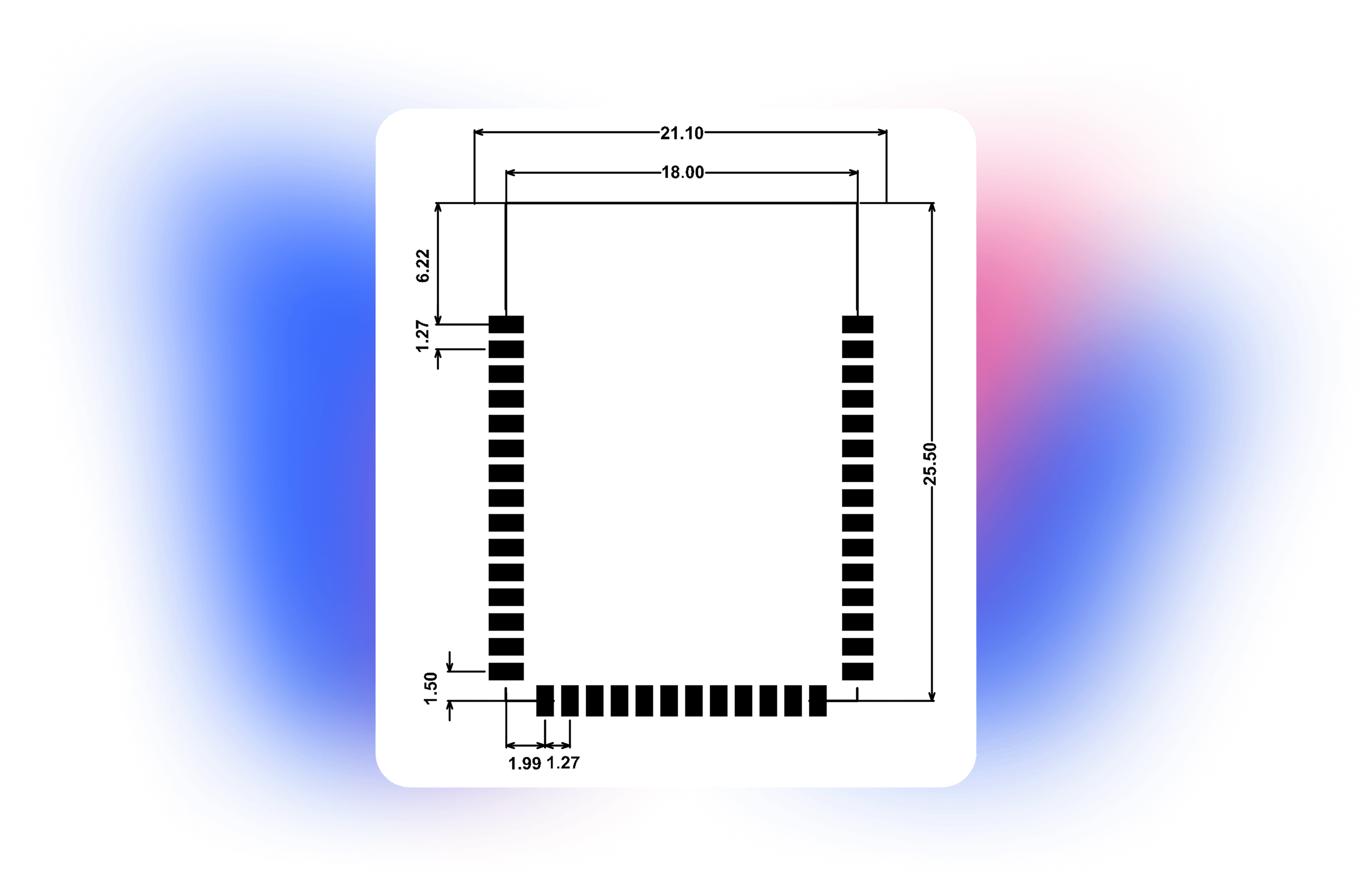

Ultra-Compact LoRaWAN BLE Module with a Small Footprint
Space-Constrained Compacy IoT Products
This ultra-compact LoRaWAN BLE module features a small PCB footprint designed for space-constrained IoT devices, enabling sleek, lightweight, and highly integrated product designs

Not sure which module variant suits your product? Let’s figure it out
Explore Battery LifePreset modes

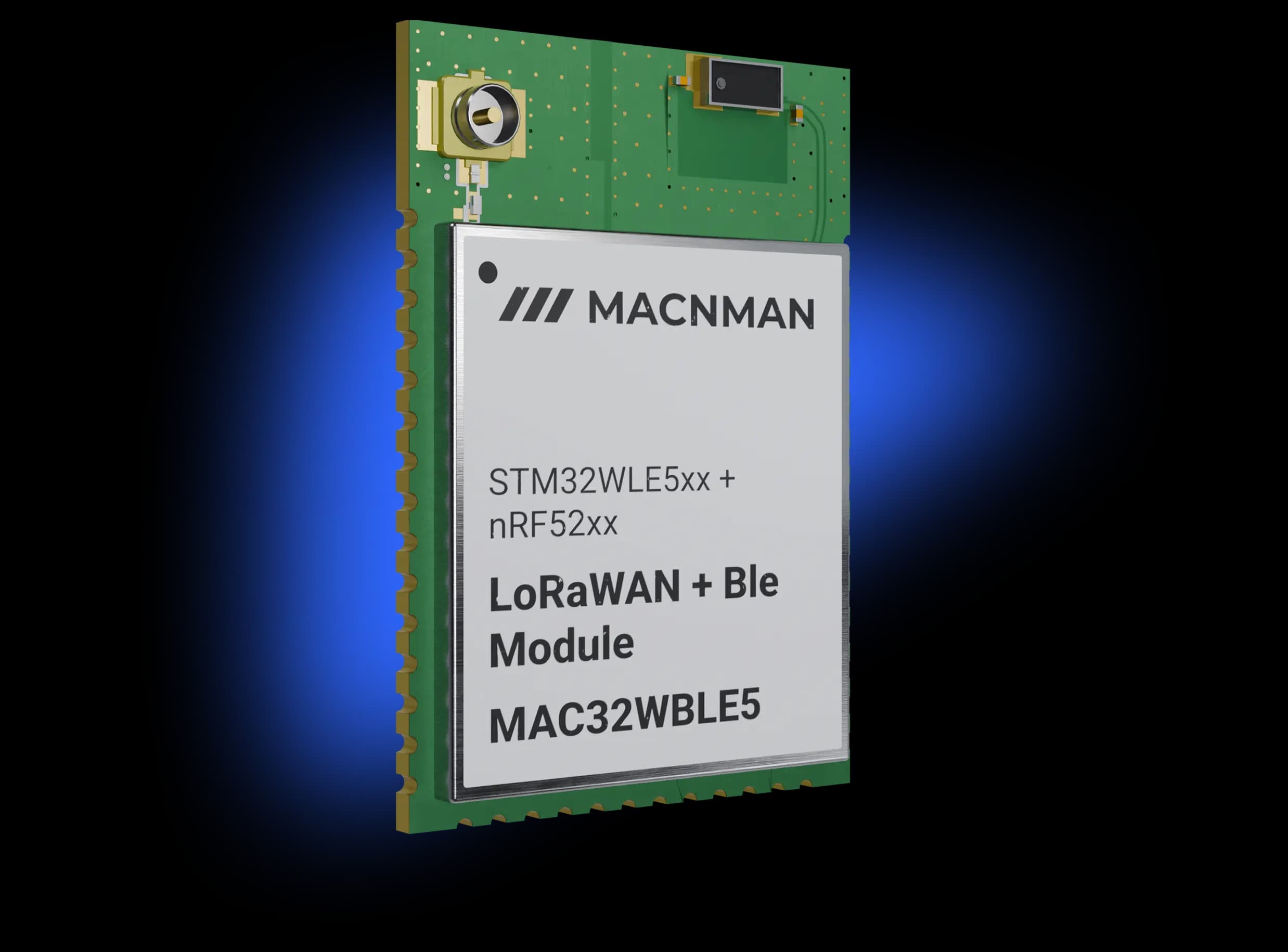

Compact LoRaWAN + BLE Module for
OEM Smart Sensors
A compact, low-power LoRaWAN BLE module designed for long-range communication, seamless BLE provisioning—perfect for OEMs building next-gen IoT devices.
Preloaded firmware mode — select it in Maya and deploy.

Range & reliability

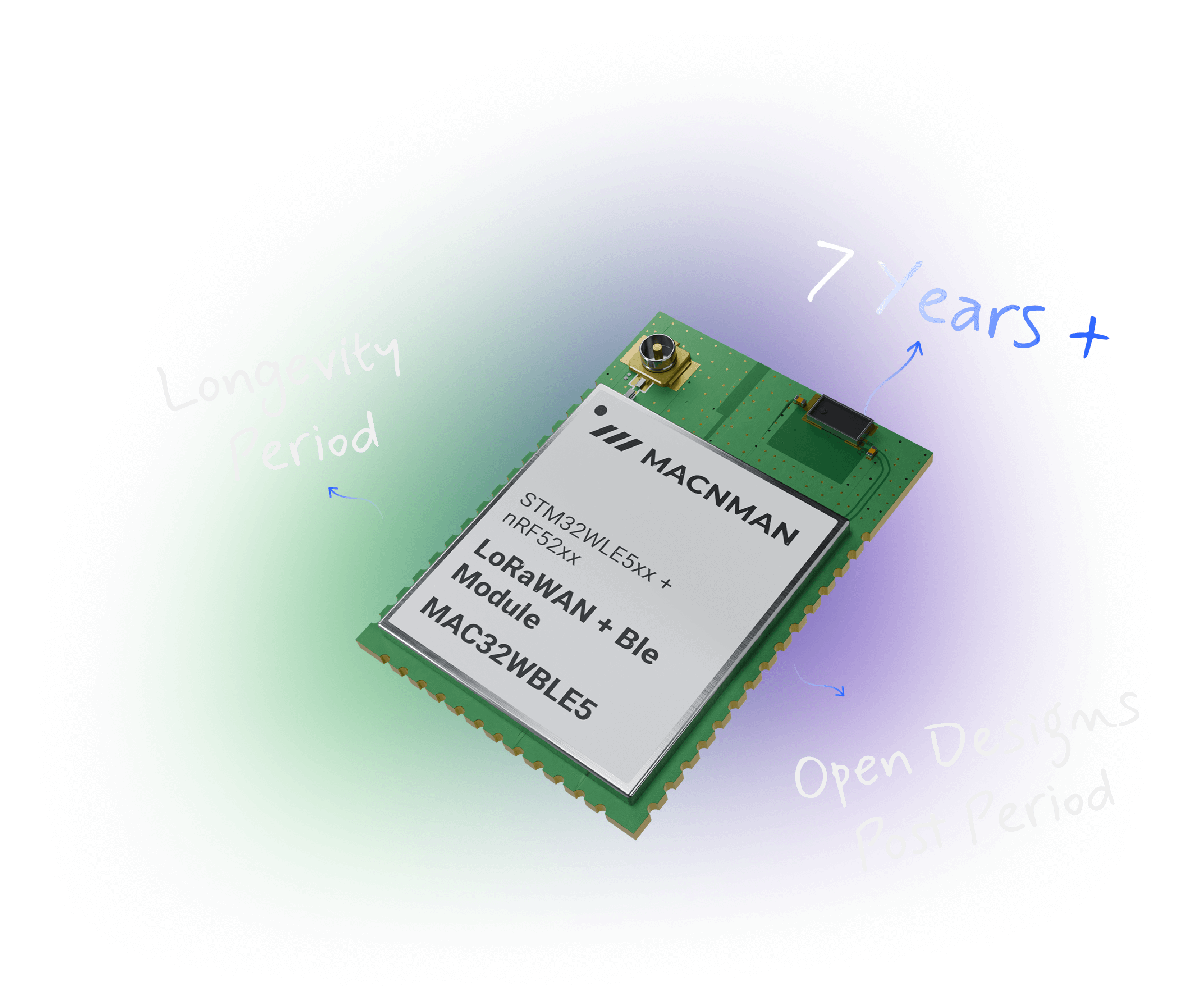

Guaranteed 7-Year Production & Supply Commitment
No Redesigns, No Surprises Your Product Roadmap Stays Stable
MAC32WBLE5 is engineered for products that stay in the market for years.Macnman guarantees a minimum of 7 years of continuous manufacturing, supply stability, and component availability, ensuring OEMs never face redesigns, part shortages, or forced upgrades.

Want pricing for bulk or OEM orders? Get a quick quote.
Hardware

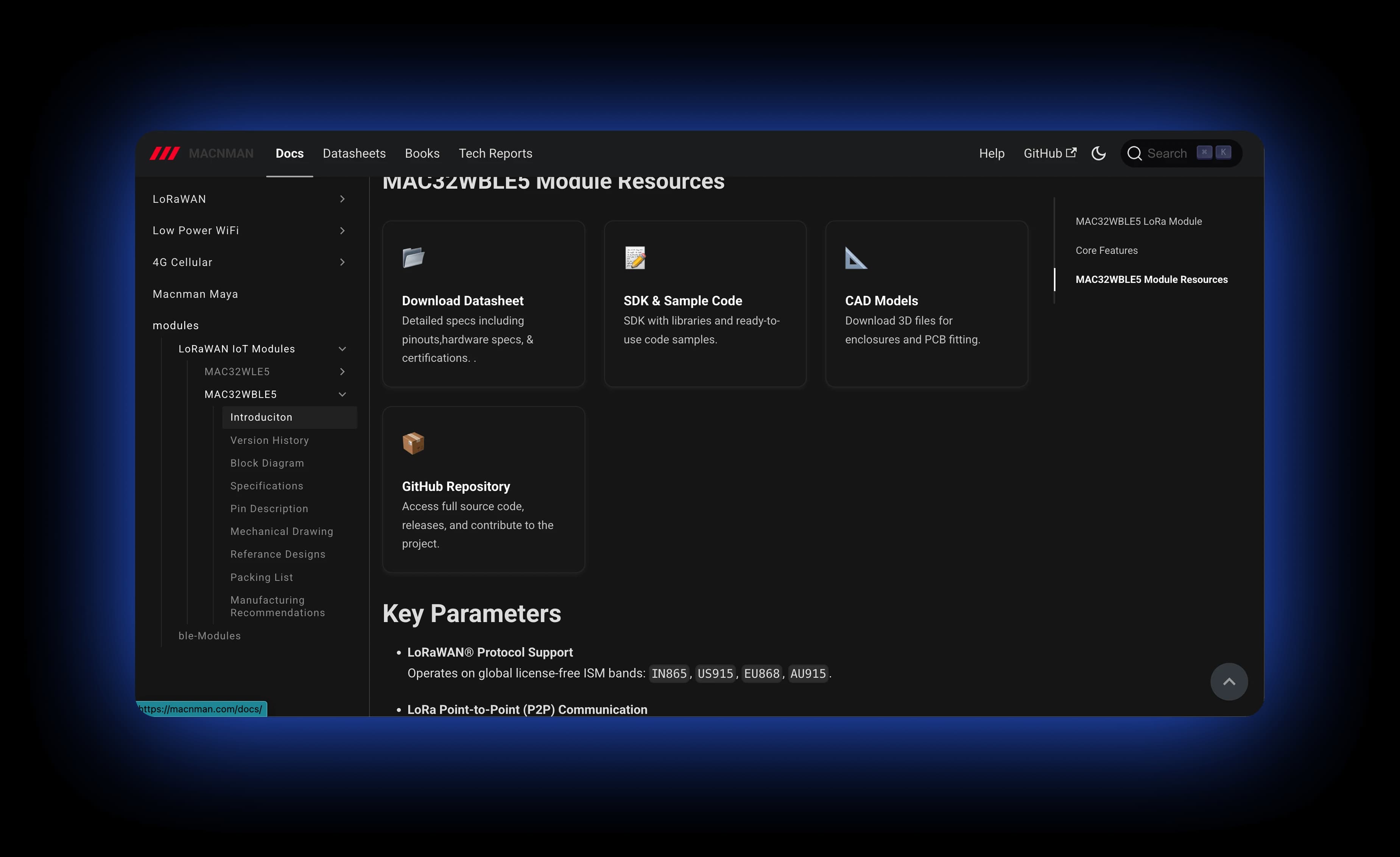

Comprehensive Documentation & Developer Resources for Faster Integration hardware guides, firmware examples
Macnman provides full LoRaWAN BLE module documentation, including hardware design files, firmware samples, integration guides, and RF tuning resources—everything engineers need for fast, reliable deployment.

Want example code or API references? Explore the developer resources
Works with
Product-Ready Certifications for Seamless OEM Integration
WPC & RoHS Approved Build & Launch IoT Products ConfidentlyProduct-Ready Certifications for Seamless OEM Integration


Features
Everything built in
Software Support / SDK
~
Explain how developers interact with LoRaWAN stack, BLE stack, event callbacks, and hardware abstraction.
Dual-Protocol Wireless Support
LoRaWAN® + BLE connectivity engineered for seamless integration into any industrial, smart city, or automation products.
Developer Tools & SDK Resources
A section that gives developers instant confidence. Include firmware SDK, API docs, AT commands, sample projects, and reference boards.
Ultra-Low-Power Architecture
Deep-sleep current, wake-up triggers, battery optimization, and RF-optimized power modes.
Engineered for Durability & Reliability
Open Pinout & Hardware Interface
A clean mapping of UART, SPI, SWD, GPIO, RF pins, power pins, reset pins, etc.
Optimized for Small Module Size
Smalles LoRaWAN + Ble Module in India (23 mm X 16 mm X 0.8 mm
Highlights
Top 6 Reasons to Choose Macnman’s MAC32WBLE5 Module
Dual Wireless Performance
Powerful LoRaWAN + BLE combo for long-range data + instant provisioning
Strong RF Stability
Reliable long-range communication backed by optimized STM32WLE5 RF.
Developer-Friendly SDK
Clean APIs, sample code, and fast integration for rapid product development.
Ultra-Low Power Consumption
Optimized sleep modes support multi-year battery-based devices.
Strong RF Stability
Reliable long-range communication backed by optimized STM32WLE5 RF.
WPC & RoHS Certified
Ready for commercial production with built-in compliance.
Want implementation best practices? Read our engineering notes.
Schedule a Call BackFAQ
Frequently asked questions
A compact dual-protocol RF module for OEMs building long-range LoRaWAN devices with BLE provisioning, diagnostics, and OTA support.
The module supports IN865, EU868, RU864, US915, AU915, KR920 and AS923-1/2/3/4 bands for global deployments.
Yes. BLE is used for provisioning, debugging and OTA updates while LoRaWAN handles long‑range data transmission.
Use the Macnman Maya App over BLE, or configure via AT commands and SDK-based firmware.
Yes. The module includes a full SDK, AT command firmware, reference examples, and documentation.
Yes. Optimized deep‑sleep modes allow multi‑year operation in battery‑powered IoT products.
Yes.* It supports optional STSafe secure element for hardware‑level LoRaWAN key protection.
MAC32WBLE5 is WPC approved and RoHS compliant, ready for commercial IoT deployment.
Yes. The module’s 23 × 16 × 0.8 mm footprint is designed for direct surface‑mount integration.
Yes. We provide PCB keep‑out zones, antenna placement rules, and tuning recommendations.
Yes. OTA updates are supported via BLE, and FUOTA via LoRaWAN can be enabled on request.
It provides UART, SPI, I2C, ADC pins, GPIOs, and SWD debug interface for flexible development.
Macnman guarantees a minimum of 7 years of continuous production and availability.
Yes. Developer support, example firmware, reference schematics, and consultation services are available.
Contact us via WhatsApp +91 7972856163, email bansi@macnman.com, or visit macnman.com.
