Mac32WBLE5 Technical Specifications

Part Order Number

MAC32WBLE5

Product Brand

Macnman Technologies Pvt Ltd

• LoRaWAN
• Ble

•
  STM32WLE5xx
•
  nRF52810

2KM

8KM

2 KM Given for Semi LoS , 8 KM givem for LoSLoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•

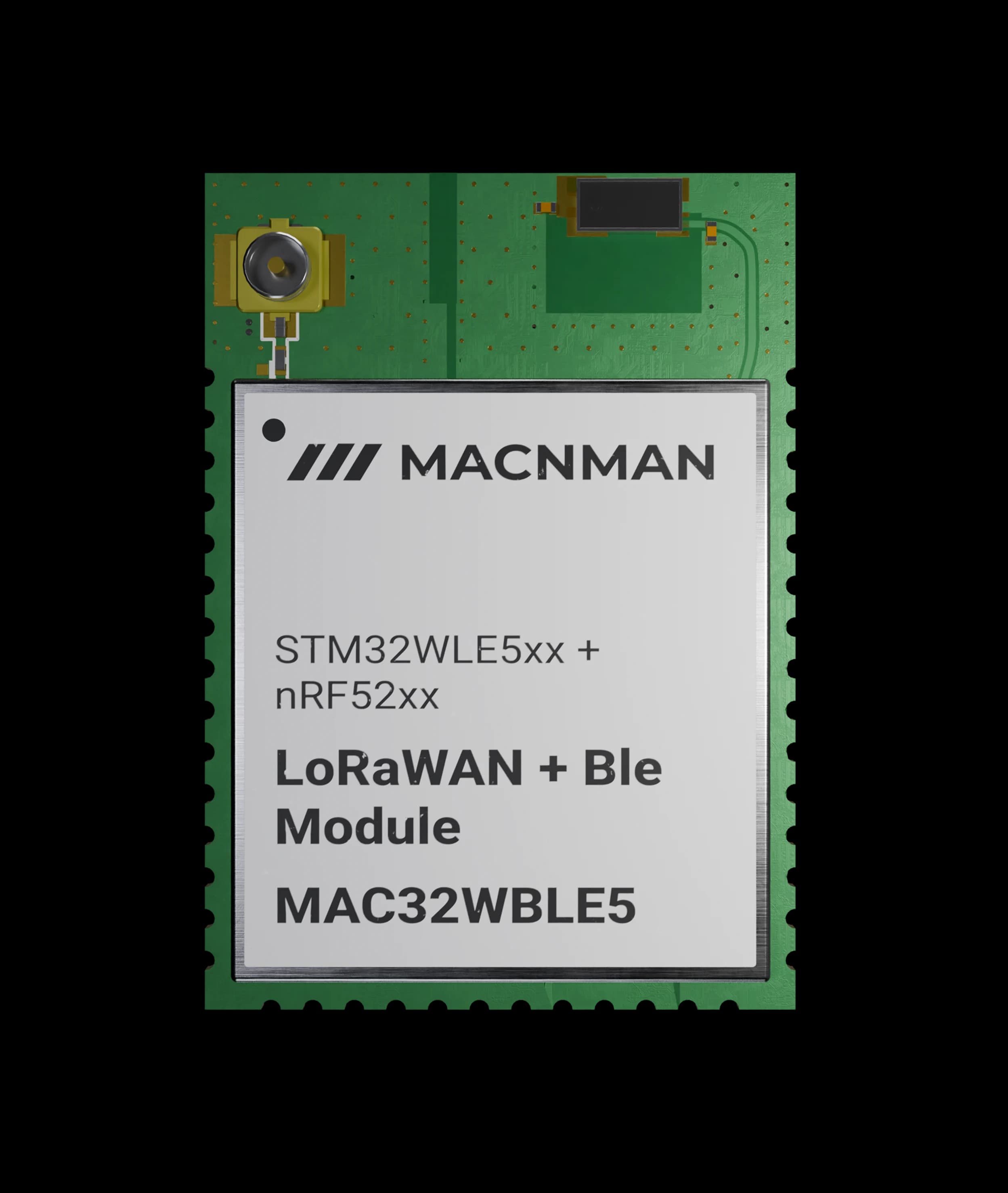

  MAC32WBLE5 Module

(*) Accessories need to be purchased separately and are not included in the box.

LoRaWAN®

LoRaWAN v1.0.4, Supports Class A & C

Supported Bands

IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923-1/2/3/4

LoRa Tx Power

Up to +22 dBm

LoRa Sensitivity

-137 dBm @ SF12, 125 kHz

BLE Version

Bluetooth Low Energy 5.0

BLE Features

Provisioning, Diagnostics, Local configuration

LoRaWAN MCU

STM32WLE5 (ARM Cortex-M4)

BLE MCU

Nordic nRF52810

Flash / RAM

256 KB Flash, 64 KB RAM

Security Engine

AES-128 encryption, Secure boot, Signed firmware

Operating Voltage

1.8V – 3.6V

Sleep Current

< 2 µA (Deep Sleep)

Tx Current

~40 mA @ 22 dBm

Low Power Modes

Multiple sleep levels, Optimized dual-radio scheduling

Module Dimensions

23 mm × 16 mm × 0.8 mm

Antenna Options

Pad interface for external antenna

Operating Temperature

-40°C to +80°C

Mounting

SMT reflow compatible

Digital Interfaces

UART, SPI, I2C, GPIO

Configuration

BLE commissioning, AT commands, JSON-based config

Firmware Update

OTA via BLE, Wired update via SWD

RF Compliance

Designed for CE & FCC compliance

RoHS

Yes — fully compliant

WPC

Available on request
