Best LoRaWAN® Module for IoT Devices
Long-range, ultra-low-power LoRaWAN module for IoT product manufacturers


MAC32WLE5 LoRWAN® Long Range IoT Module
Where Ultra-Low-Power Meets Industrial-Grade Wireless
Where Ultra-Low-Power Meets
Industrial-Grade Wireless
MAC32WLE5
Explore the highlights

Built on the STM32WLE5 — an Arm Cortex-M4 and the LoRa radio in a single silicon die, so your product needs one part where designs used to need two.
The full transmit power the silicon offers, across the sub-GHz bands used worldwide.
Single-digit microamp deep sleep from the same platform that powers our ten-year battery sensors — your battery budget starts from the right place.
The same module inside Macnman's shipping sensors and dataloggers — field-tested before it ever reaches your design.
In plain terms
What Is a LoRaWAN Module?
The short answer
A LoRaWAN module is a small radio board that a manufacturer solders into its own product to give it long-range, low-power connectivity. It carries the LoRa transceiver, a microcontroller and the LoRaWAN® protocol stack in one part, so the product team writes its application without designing the radio circuit from scratch.
Core
- Cortex-M4
Arm core in the STM32WLE5
- 256 kB
Flash memory
- 64 kB
RAM
Radio
- +22 dBm
Maximum output power
- IN865
Also US915, EU868 and AU915
- P2P
LoRa point-to-point as well as LoRaWAN®
Power
- <3 µA
Sleep current
- 1.8–3.6 V
Operating voltage
- 48 MHz
Maximum clock
Interfaces
- 21
I/O pins
- 12-bit
ADC
- 3 buses
UART, SPI and I2C
Package
- 15 × 15 mm
Module footprint
- SMT
Reflow-compatible mounting
- External
Antenna, through a pad interface

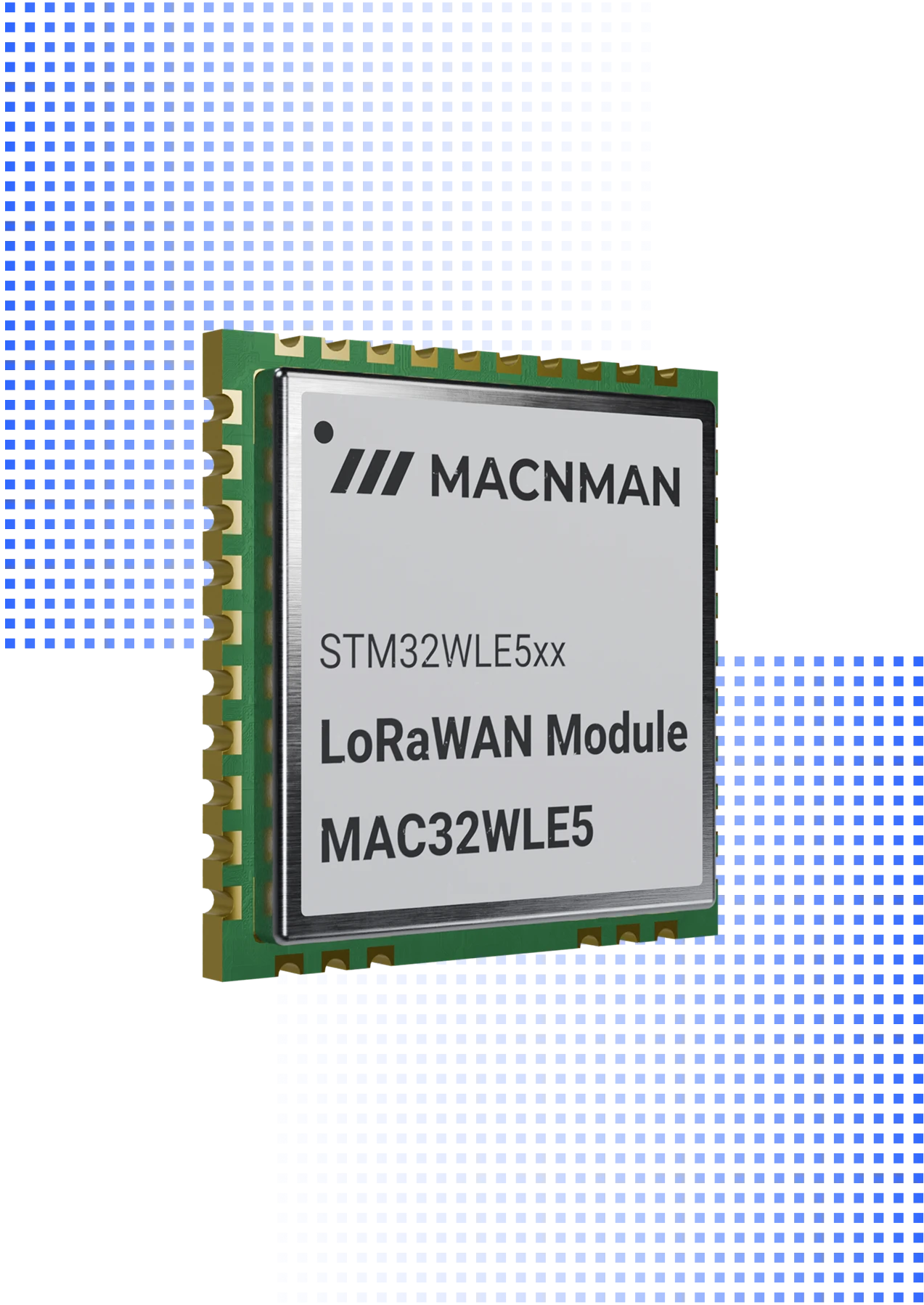

MAC32WLE5
The MAC32WLE5 is built on the STM32WLE5, which puts an Arm Cortex-M4 and the LoRa radio on a single chip. It is the same module inside Macnman's own sensors and dataloggers, so it is field-tested before it reaches your design.
An STM32WLE5 system-on-chip: an Arm Cortex-M4 with 256 kB of flash and 64 kB of RAM, clocked at up to 48 MHz.
Up to +22 dBm on the sub-GHz ISM bands, for LoRaWAN® or LoRa point-to-point links.
Runs from 1.8 V to 3.6 V and draws less than 3 µA in sleep.
21 I/O pins with a 12-bit ADC, and UART, SPI and I2C buses.
A 15 mm × 15 mm surface-mount module with a pad for an external antenna.
Also described as a LoRa module, an STM32WLE5 module or a LoRaWAN OEM module.
Get a quote
Need a quote for the MAC32WLE5?
Tell us how many you need and where they are going. A product engineer replies within one working day with availability, lead time and the right variant for your site.
- Reply within one working day
- Designed and built in Pune, India
- WPC compliant, RoHS conformant
Downloads
Everything You Need to Get Building
Datasheets, drawings, firmware, and tools — all in one place.
Product Datasheet
PDF · full technical specifications
Applications
MAC32WLE5 LoRaWAN® + Ble Module Applications

Industrial IoT Automation with MAC32WBLE5
Connect legacy industrial systems to the MAC32WBLE5 LoRaWAN + BLE Module. Enable predictive maintenance, machine monitoring, and secure wireless automation with ultra‑reliable communication and low‑power performance.
Read case studiesSmart Water Monitoring with Wireless IoT (Water Quality Sensors, Level Sensors, Flow Meters, LoRaWAN IoT): Enable real‑time water level and quality insights with MAC32WBLE5 dual‑protocol wireless. Achieve smart irrigation, leak detection, and remote water management even in rural deployments.
Energy & Utility IoT Connectivity (Smart Energy, Wired-to-Wireless, Remote Metering): Modernize energy infrastructure with the MAC32WBLE5 LoRaWAN + BLE module, enabling wireless meter reading, consumption analytics, and reduced downtime for utilities and industries.
Cold Chain IoT Monitoring (Temperature Sensors, Humidity Monitoring, LoRaWAN BLE Gateway): Ensure refrigeration compliance with continuous monitoring powered by MAC32WBLE5 dual‑protocol connectivity. Improve logistics safety and preserve high‑value perishables across the supply chain.
Predictive Industrial Maintenance over LoRaWAN (Vibration Sensing, Motor Health, Condition Monitoring): Leverage proactive maintenance insights using BLE + LoRaWAN sensor connectivity to predict failures, reduce breakdowns, and extend equipment lifespan in manufacturing plants.
Smart Farming & Agri IoT Connectivity (Soil Sensors, Agri Automation, Low‑Power Wireless): Improve yields using MAC32WBLE5 wireless IoT, enabling soil intelligence, livestock monitoring, and irrigation automation across large farmland.
Asset Tracking & BLE / LoRaWAN Location Intelligence (BLE Beacons, UWB Supported, Smart Logistics): Track critical assets over long distance with dual‑protocol wireless. Improve logistics visibility and prevent costly losses across warehouses and transport systems.
Smart Parking IoT Communication (Parking Sensors, Edge Devices, Wireless Occupancy): Power accurate parking detection solutions with MAC32WBLE5 enabling ultra‑low‑power LoRaWAN coverage and fast BLE deployment for urban congestion reduction.
Wireless Fill‑Level Monitoring for Waste Bins (Smart Waste, Fill Level Sensors, LoRaWAN): Deploy intelligent waste collection using MAC32WBLE5 IoT module to optimize collection routes and reduce workforce & fuel cost.
Greenhouse Automation with LoRaWAN + BLE (Climate Sensing, Smart Irrigation, Wireless Control): Maintain ideal plant health with real‑time wireless climate monitoring using the MAC32WBLE5, ensuring maximum yield and resource savings.
Environmental IoT Monitoring (Air Quality, Compliance, Industrial IoT): Monitor pollution & AQI with long‑range LoRaWAN communication and BLE setup for environmental compliance & public safety.
Smart Tank & Storage IoT Connectivity (Non‑Contact Sensors, Tank Level Monitoring, Industrial Wireless): Enable real‑time liquid level and remote stock visibility using MAC32WBLE5 for tanks, silos, and chemical storage monitoring.
Smart Buildings Wireless Automation (HVAC Control, BLE + LoRaWAN, Occupancy Sensors): Automate buildings with seamless BLE commissioning and LoRaWAN cloud reporting for HVAC, energy & security enhancement.
Utility Network Wireless Modernization (Smart Grid, Water Distribution, Power Monitoring): Transform public infrastructure with secure IoT data transmission for better uptime, leak detection, and predictive analytics.
Mining & Quarry Industrial IoT Deployment (Rugged Wireless, Asset Safety, Environmental Sensors): Deploy long‑range sensors underground with high‑penetration LoRaWAN ensuring safe operations and reliable data capture.
Wireless Quality Control & SOP Audit (Industrial Data, Factory Optimization, BLE Sensors): Automate quality tracking using dual‑wireless IoT communication ensuring production consistency and zero‑error visibility.
Hazardous Material & Chemical IoT Safety (Non‑Contact Monitoring, LoRaWAN, Worker Safety): Ensure safe chemical handling using MAC32WBLE5 enabled sensors that require no human contact in corrosive environments.
Resource Optimization & Smart Operations (Usage Analytics, IoT Efficiency, Wireless Metering): Reduce operational cost with timely resource monitoring and wireless control powered by MAC32WBLE5.
Smart Airport IoT Infrastructure (Asset Tracking, BLE Smart Tags, LoRaWAN Coverage): Enhance ground operation visibility using BLE + LoRaWAN hybrid architecture for faster turnarounds and airport‑wide automation.
STP & Wastewater IoT Monitoring (Water Quality Sensors, LoRaWAN Networking, Cloud Analytics): Improve compliance with real‑time STP monitoring and secure remote telemetry powered by MAC32WBLE5.
Livestock & Animal Resource Monitoring (Smart Feeding, Wireless Sensors, Agri IoT): Enable automated feeding and continuous animal health tracking with ultra‑low‑power LoRaWAN connectivity.
Shopping Mall Smart Facility Management (Energy Savings, BLE Presence Detection, Smart Building IoT): Enable smarter retail & HVAC automation with dual‑protocol IoT connectivity reducing operational cost and improving visitor experience.
Browse all 22 applications
01 / 22
Want to check if this module fits your hardware design? Let’s review it together
Capabilities

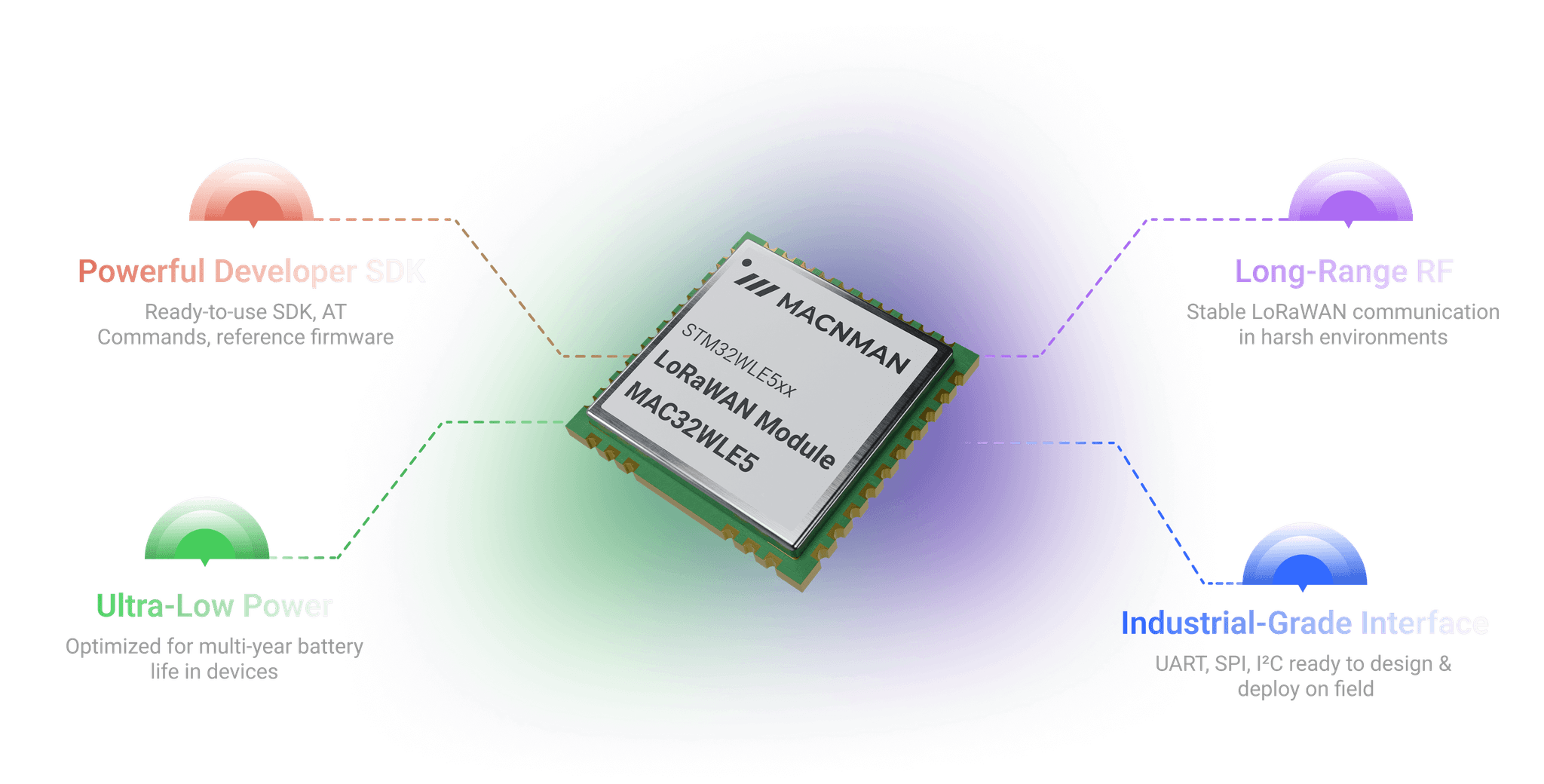

What Makes a Reliable LoRaWAN® Module for IoT Deployments

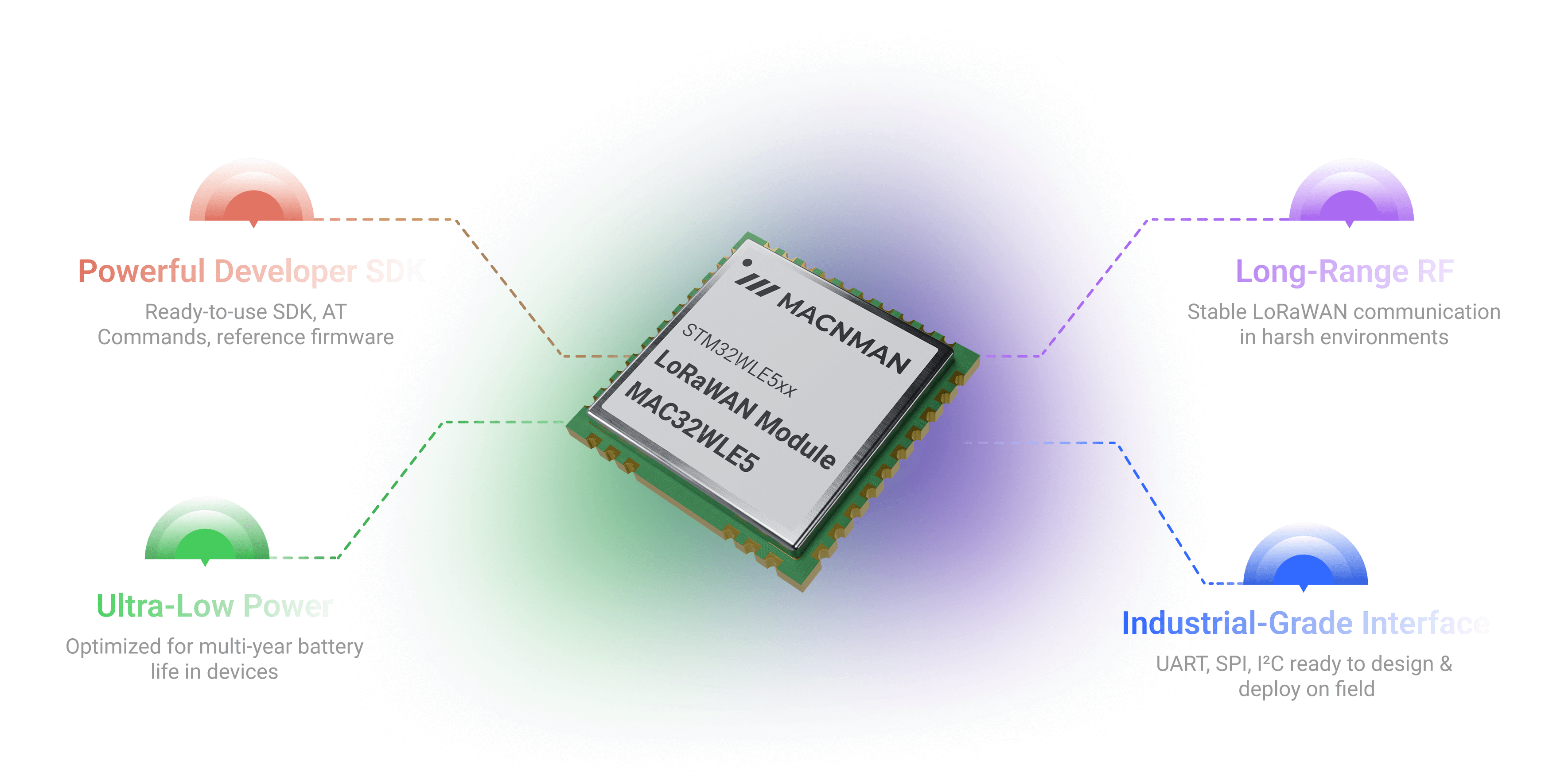

Built for OEMs Stable Long-distance Connectivity, Secure Operation

Why Macnman
Ultra-Low Power LoRaWAN® Module Built for Multi-Year Battery Life
Designed to Minimize Energy Usage During Transmission, Idle States
At a glance
MAC32WLE5 LoRa Module — Key Specifications
Every key specification in one view.

Cortex-M33
32-bit ARM core
Processing & memory on-module
LoRa
transceiver
LoRa · (G)FSK · BPSK modulations
<3 µA
deep sleep
Ultra-low-power architecture
I/O
rich peripherals
Digital interfaces · ADC channels
15 mm
package size
15 × 15 × 0.8 mm ultra-compact
+80 °C
operating range
−40 °C to +80 °C
Need guidance on RF tuning, antenna selection, or footprint integration? Ask us anytime.
Check Out Referance DesignsArchitecture
Macnman's Ready-to-Use LoRaWAN Reference Designs for Rapid Prototyping


Share your PCB layout — we’ll help ensure perfect LoRaWAN and BLE performance
Contact Macnman's Team Now !Power

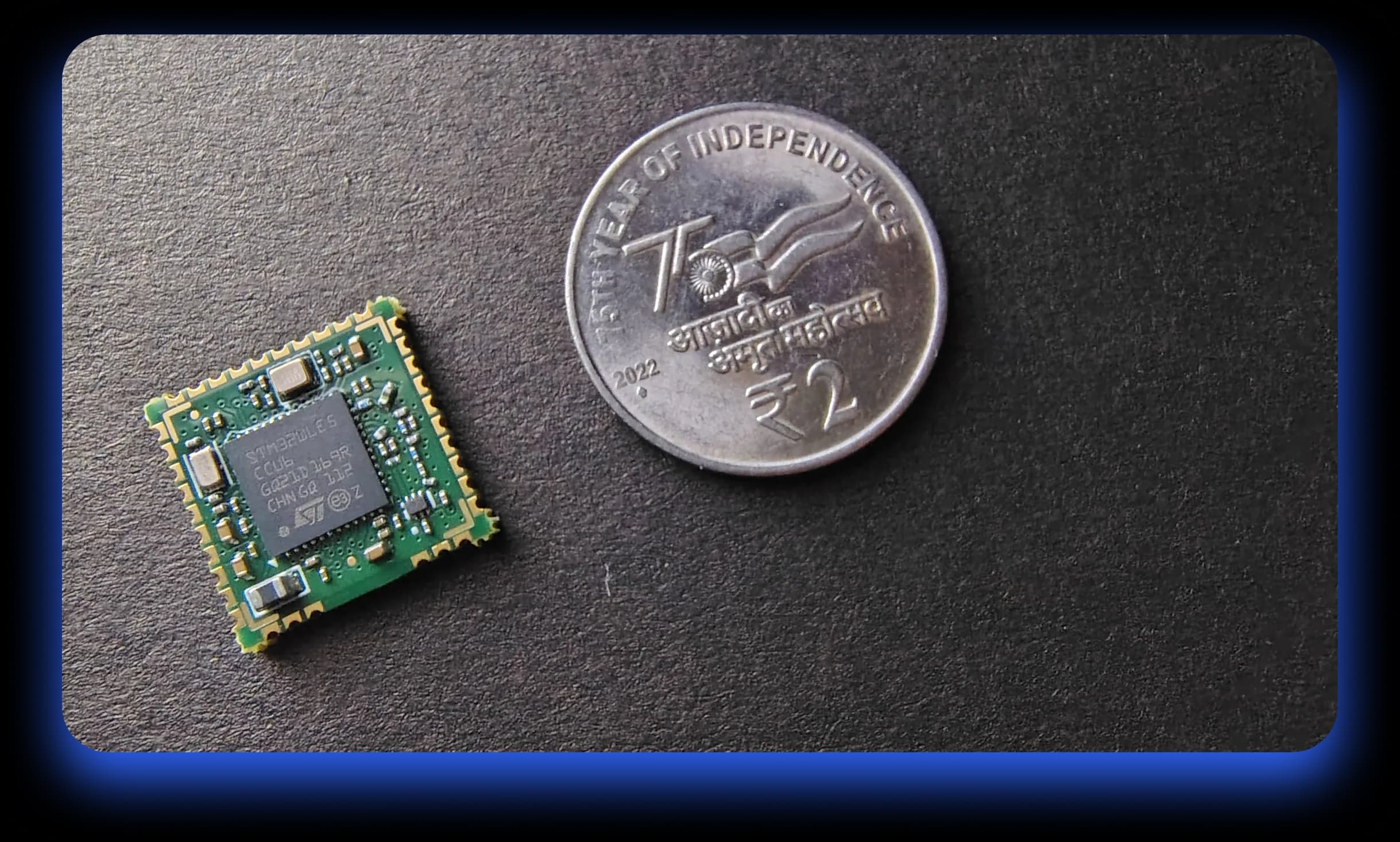

Compact LoRaWAN® Module Designed for Space-Restricted IoT Devices
Space-Constrained Compacy IoT Products
Perfect for developers building next-generation IoT devices where size, weight, and battery space are limited

Not sure which module variant suits your product? Let’s figure it out
Explore Battery LifePreset modes

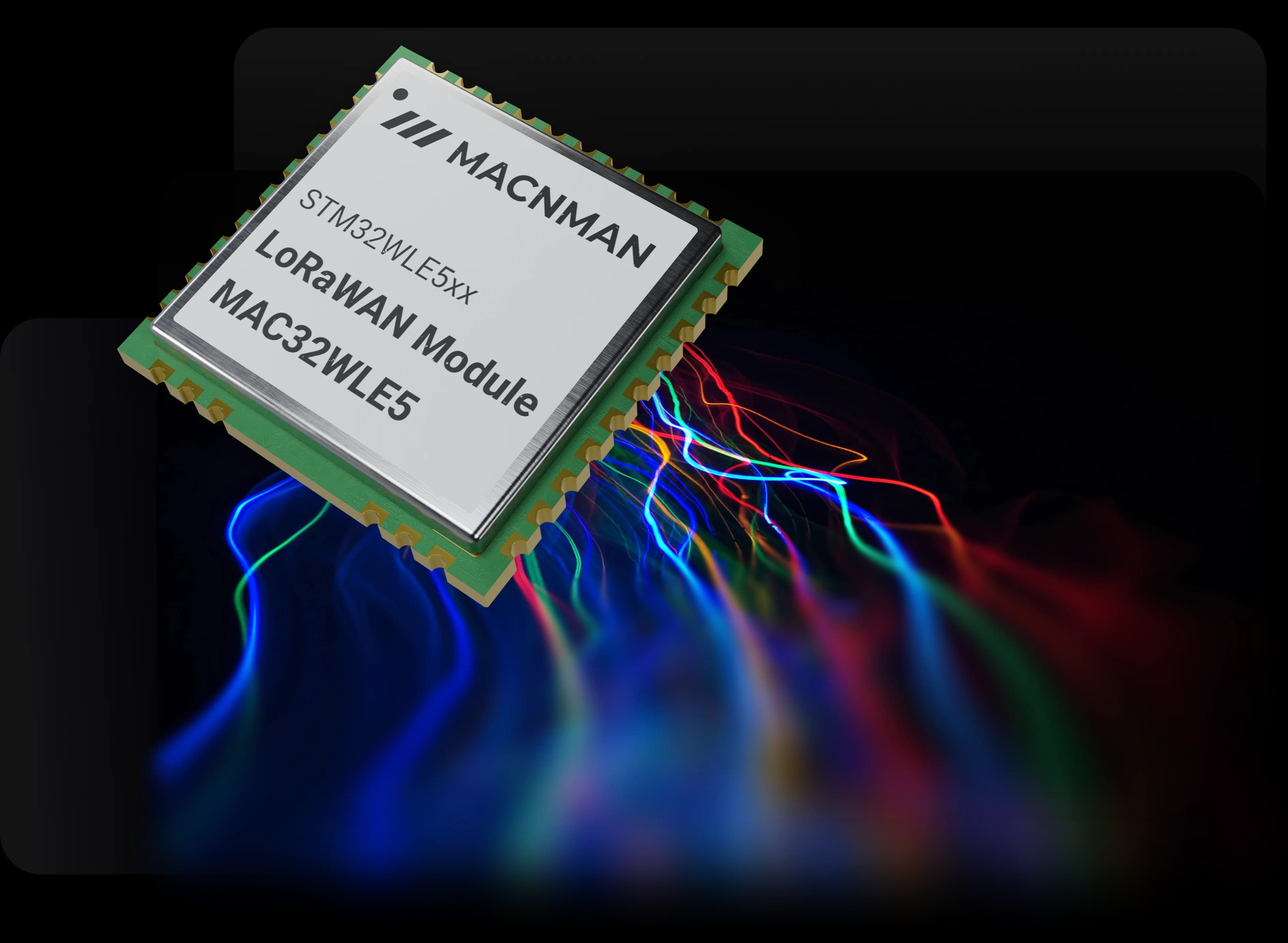

Core Capabilities of Our Long-Range
Low-Power LoRaWAN® Module
Engineered as a high-performance, long-range, low-power LoRaWAN® module, it delivers stable RF sensitivity, efficient power usage, & flexible integration options
Preloaded firmware mode — select it in Maya and deploy.

Range & reliability

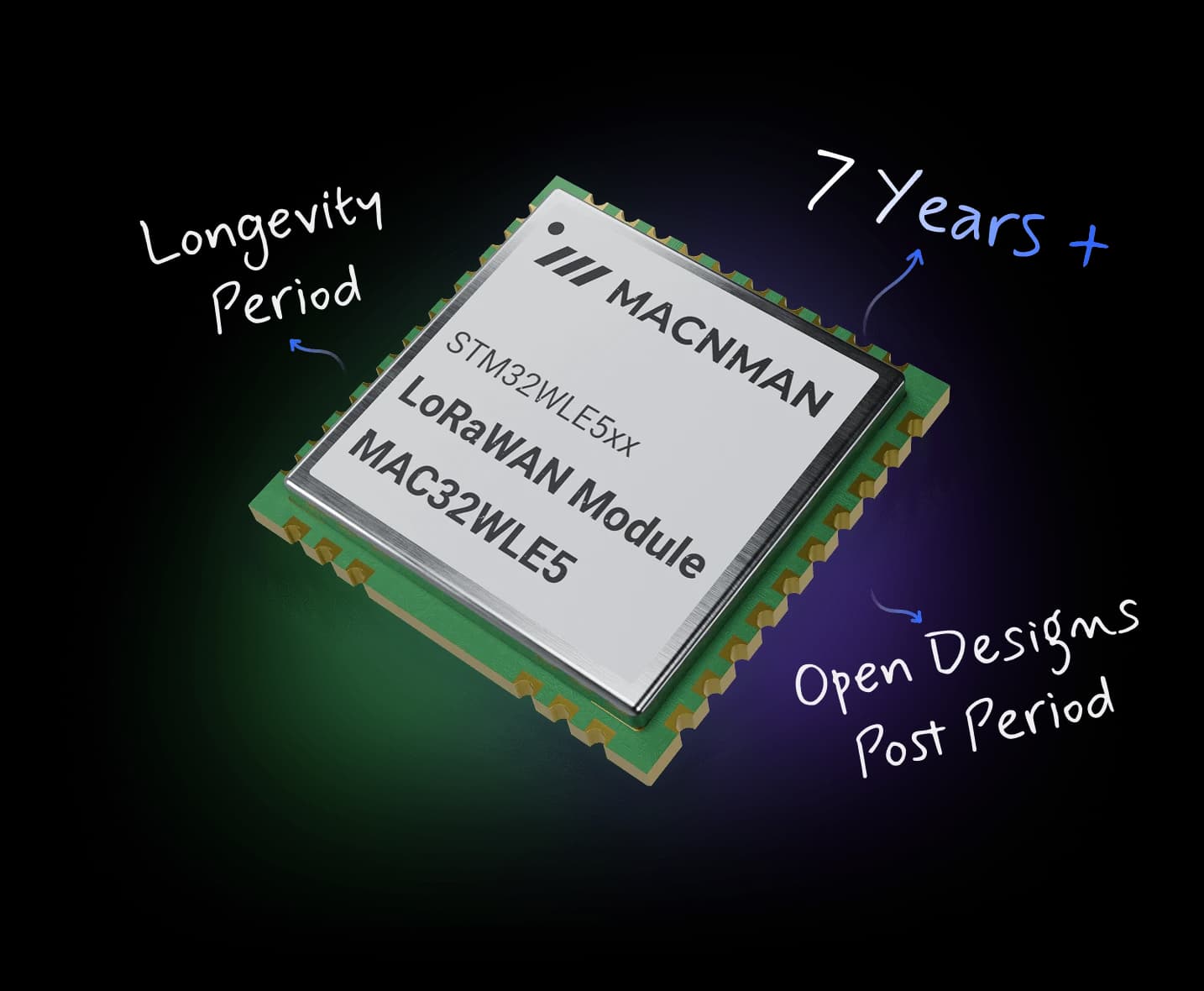

Long-Term Availability: 7-Year Guaranteed Supply for OEMs
Ensuring availability of our LoRaWAN module for large-scale deployments
Our LoRaWAN module comes with a guaranteed 7-year production commitment, ensuring long-term availability, stable sourcing, and zero redesign disruptions for OEM and industrial IoT manufacturers

Want pricing for bulk or OEM orders? Get a quick quote.
Hardware

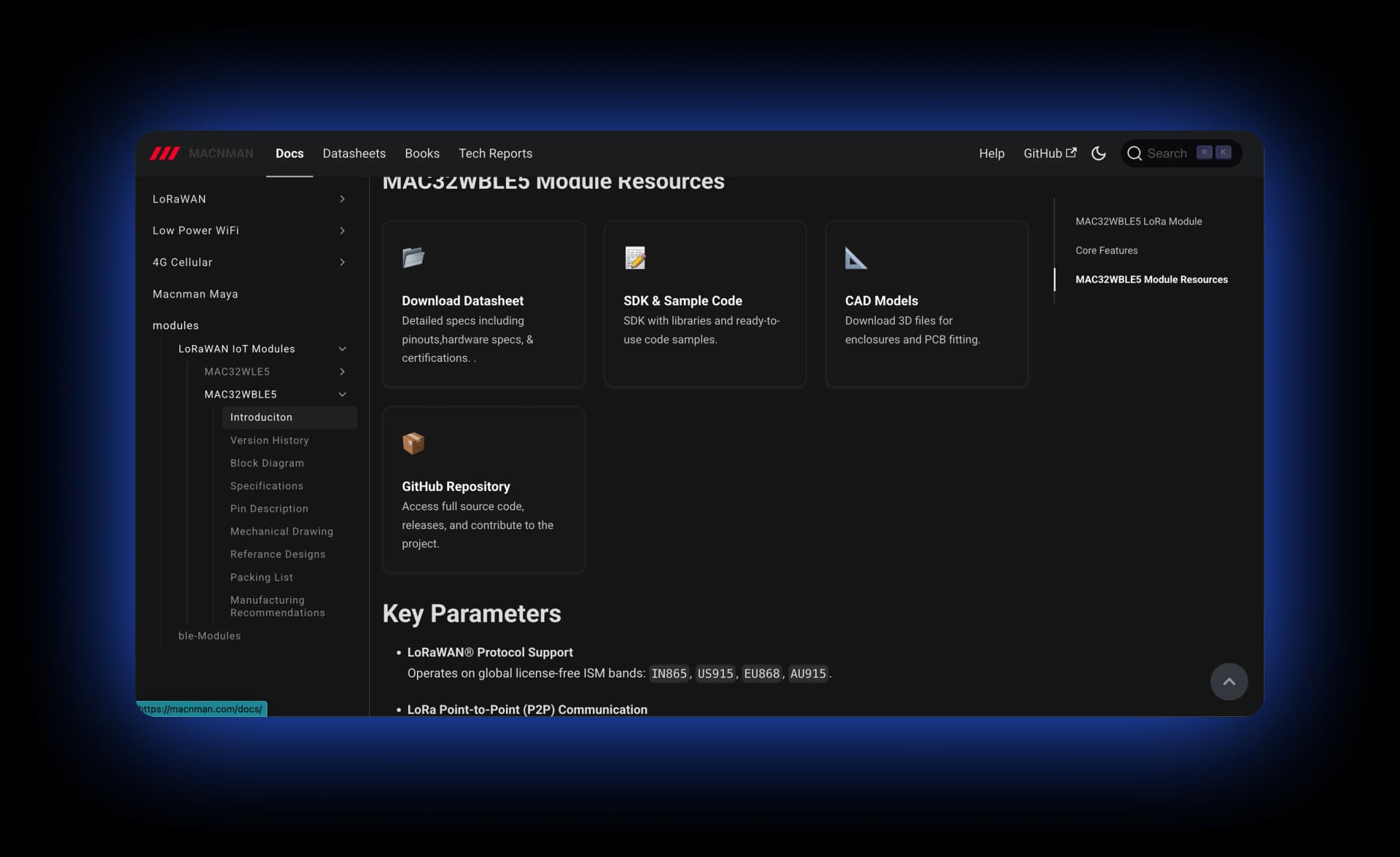

Full LoRaWAN® Module Documentation for Fast Integration
Access detailed datasheets, hardware guides, firmware examples, and API references designed to accelerate your product development.

Want example code or API references? Explore the developer resources
Works with

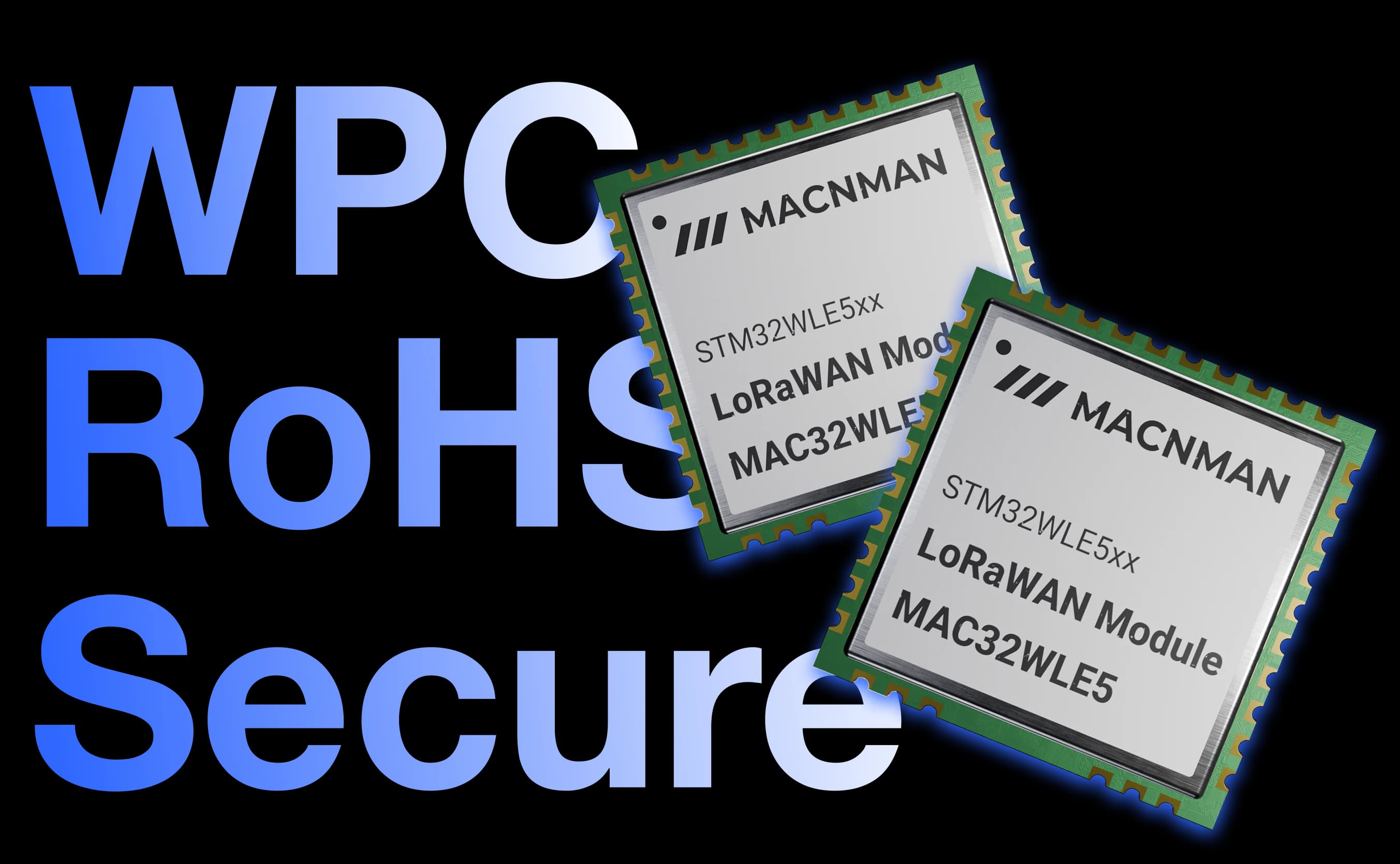

Regulatory-Certified LoRaWAN® Module WPC + RoHS Included
Certified for Indian wireless regulations & global safety standards Certified for Indian wireless regulations & global safety standards


Features
Everything built in
Full Software Support & SDK Access
Comprehensive tools, firmware examples, and integration guides for rapid IoT deployment.
Detailed LoRaWAN stack flow, event callbacks, and hardware abstraction for production‑grade firmware.
High‑Performance LoRaWAN® Module
Advanced long‑range LoRaWAN connectivity engineered for industrial, smart city, & automation devices.
Developer‑Ready Tools & Complete SDK
Full SDK, AT commands, API docs, sample firmware, and reference designs for fast IoT development.
Ultra-Low-Power Architecture
Ultra‑efficient deep‑sleep modes and optimized RF power design for multi‑year battery performance.
Built for Industrial Reliability & Lifecycle
Open Pinout & Hardware Interface
Mapped UART, SPI, SWD, GPIO, power pins, and RF interfaces for effortless hardware integration.
Optimized for Small Module Size
Smallest LoRaWAN module footprint in its class (23 mm × 16 mm × 0.8 mm), ideal for compact IoT devices.
Designed for Industrial‑Grade Durability
Highlights
Top 6 Reasons to Choose Macnman’s MAC32WLE5 LoRaWAN® Module
Long‑Range LoRaWAN Performance
High‑sensitivity RF design ensures stable long‑range communication in dense & industrial environments.
Ultra‑Low Power Architecture
Multi‑year battery life enabled by deep‑sleep modes and optimized LoRaWAN radio scheduling.
Developer‑Friendly SDK
Clean APIs, sample firmware, and full documentation for rapid integration & faster time‑to‑market.
Compact OEM‑Friendly Footprint
Miniature 23 × 16 × 0.8 mm module ideal for space‑restricted IoT product designs.
Industrial‑Grade Reliability
Stable performance across −40°C to +80°C with robust RF tuning & hardware validation.
WPC & RoHS Certified
Ready for commercial deployments with pre‑approved wireless & environmental compliance.
Want implementation best practices? Read our engineering notes.
Schedule a Call BackFAQ
Frequently asked questions
A compact dual-protocol RF module for OEMs building long-range LoRaWAN devices with BLE provisioning, diagnostics, and OTA support.
The module supports IN865, EU868, RU864, US915, AU915, KR920 and AS923-1/2/3/4 bands for global deployments.
Yes. BLE is used for provisioning, debugging and OTA updates while LoRaWAN handles long‑range data transmission.
Use the Macnman Maya App over BLE, or configure via AT commands and SDK-based firmware.
Yes. The module includes a full SDK, AT command firmware, reference examples, and documentation.
Yes. Optimized deep‑sleep modes allow multi‑year operation in battery‑powered IoT products.
Yes.* It supports optional STSafe secure element for hardware‑level LoRaWAN key protection.
MAC32WBLE5 is WPC approved and RoHS compliant, ready for commercial IoT deployment.
Yes. The module’s 23 × 16 × 0.8 mm footprint is designed for direct surface‑mount integration.
Yes. We provide PCB keep‑out zones, antenna placement rules, and tuning recommendations.
Yes. OTA updates are supported via BLE, and FUOTA via LoRaWAN can be enabled on request.
It provides UART, SPI, I2C, ADC pins, GPIOs, and SWD debug interface for flexible development.
Macnman guarantees a minimum of 7 years of continuous production and availability.
Yes. Developer support, example firmware, reference schematics, and consultation services are available.
Contact us via WhatsApp +91 7972856163, email bansi@macnman.com, or visit macnman.com.
