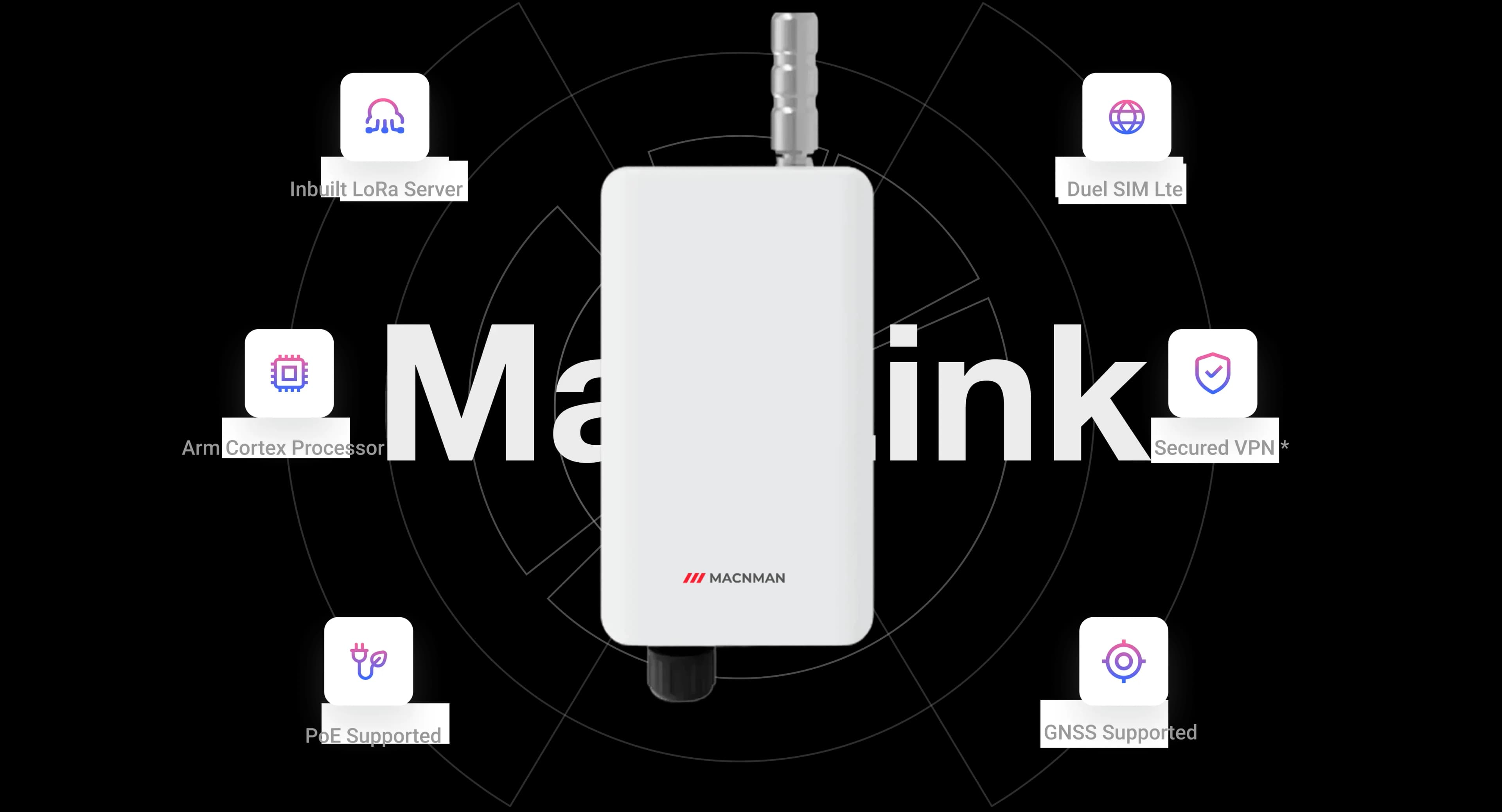

Outdoor LoRaWAN® Gateway, Built for Industry
8-Channel · IP67 · Dual-SIM 4G, PoE & Wi-Fi Backhaul


MacLink Gen-2 LoRaWAN® Gateway
Industrial LoRaWAN Gateway for Secure, Long-Range Communication 8 Channels · 2000+ Nodes · Built-in ChirpStack
Industrial LoRaWAN Gateway for Secure, Long-Range Communication
8 Channels · 2000+ Nodes · Built-in ChirpStack
MacLink Gen2
Explore the highlights

An 8-channel SX1303 concentrator carries 2000+ LoRaWAN devices concurrently, with an ARM Cortex-A7 handling the traffic — one gateway for an entire site.
Transmits at up to 27 dBm; our own open-terrain range test reached 8 km to a sensor at ground level — the figure our calculators are calibrated to.
Dual-SIM 4G LTE, PoE Ethernet and Wi-Fi with automatic failover — if one path drops, your sensor data keeps flowing on the next.
The network server and Node-RED dashboards run on the gateway itself — deploy a fully private LoRaWAN network with no cloud dependency.
A weather-resistant aluminium enclosure engineered for masts and rooftops — heat, rain and dust included.
Power over Ethernet takes data and power up in a single run, with a supercapacitor riding through short power blips.
Standard LoRaWAN, so it forwards to the network server you already run — public or private.
In plain terms
What Is an Outdoor LoRaWAN Gateway?
The short answer
An outdoor LoRaWAN gateway is a weatherproof receiver, usually mounted on a mast or rooftop, that picks up the radio packets from LoRaWAN® sensors across a wide area and forwards them to a network server over Ethernet, Wi-Fi or 4G. Because one gateway serves sensors kilometres away, a whole plant, campus or town can be covered from a single mounting point.
Channels
- 8 channels
Uplink, received in parallel
- 1 channel
Downlink
- 2000+
Devices supported on one gateway
Radio
- 27 dBm
Maximum transmit power
- −139 dBm
Receive sensitivity at SF12, 125 kHz
- N-type
Female antenna connector
Backhaul
- 2 SIMs
4G LTE with dual nano-SIM
- PoE
One 10/100 Mbps Ethernet port
- Wi-Fi
802.11 b/g/n, 2.4 GHz
Software
- ChirpStack
Network server built into the gateway
- Node-RED
Dashboards and flows on the gateway
- OpenWRT
Linux operating system
Processor
- Quad-core
ARM Cortex-A7 processor
- 512 MB
Memory
- 8 GB
eMMC storage
Enclosure
- IP67
Ingress protection
- Aluminium
Housing
- Pole / wall
Mounting

MacLink Gen-2
The MacLink Gen-2 is an 8-channel IP67 gateway with the network server on board. ChirpStack and Node-RED run on the gateway, so a fully private LoRaWAN® network works without the internet, and dual-SIM 4G, PoE Ethernet and Wi-Fi give it three ways back to your platform.
Eight uplink channels received in parallel and one downlink channel, enough for 2000+ LoRaWAN® devices on one gateway.
Transmits at up to 27 dBm and receives down to −139 dBm at SF12 on a 125 kHz bandwidth.
Dual-SIM 4G LTE, PoE Ethernet and Wi-Fi, with automatic failover between them.
Runs OpenWRT Linux with a built-in ChirpStack network server, UDP and ChirpStack MQTT forwarders, and Node-RED dashboards.
A quad-core ARM Cortex-A7 with 512 MB of memory and 8 GB of eMMC storage handles the traffic.
An IP67 enclosure with an aluminium housing, for pole or wall mounting.
Range depends on antenna height and terrain. In our own open-terrain test the MacLink Gen-2 reached 8 km to a sensor at ground level; expect 2–5 km in a built-up area.
Get a quote
Need a quote for the MacLink Gen2?
Tell us how many you need and where they are going. A product engineer replies within one working day with availability, lead time and the right variant for your site.
- Reply within one working day
- Designed and built in Pune, India
- WPC compliant, RoHS conformant
Downloads
Everything You Need to Get Building
Datasheets, drawings, firmware, and tools — all in one place.
Product Datasheet
PDF · full technical specifications
In focus
The Capabilities That Set It Apart
An 8-channel SX1303 concentrator carries 2000+ LoRaWAN devices concurrently, with an ARM Cortex-A7 handling the traffic — one gateway for an entire site.

01 / 05
Applications
LoRaWAN Gateway MacLink Gen-2 Applications

Industrial IoT Automation
Ideal for industrial automation where long‑range LoRaWAN coverage ensures uninterrupted monitoring, machine insights, and real‑time IoT control.
Read case studiesSmart Water & Flow Monitoring (Water Level, Flow Monitoring, Pump Automation): Perfect for water utilities and irrigation systems requiring reliable LoRaWAN connectivity for level, flow, and pump automation monitoring.
Energy Usage & Power Infrastructure (Energy Monitoring, Current Sensors, Power Analytics): Designed for remote power infrastructure where long‑range LoRaWAN helps monitor energy consumption, load patterns, and electrical health.
Cold Chain & Refrigeration Control (Temperature, Humidity, Cold Storage): Ensures long‑range monitoring of cold rooms, freezers, and storage facilities with reliable LoRaWAN connectivity for temperature compliance.
Predictive Maintenance (Vibration, Thermal Monitoring, Condition Alerts): Empowers industries with long‑range vibration and temperature monitoring for early fault detection and predictive maintenance.
Smart Agriculture & Irrigation (Soil Sensors, NPK, Smart Irrigation): Ideal for modern agriculture where LoRaWAN enables soil health, moisture, and crop environmental monitoring across large farmlands.
Facility & Building Automation (HVAC, CO₂ Sensors, Ambient Monitoring): Optimized for facility automation including HVAC, CO₂, and temperature monitoring with long‑range LoRaWAN coverage.
Tank & Silo Level Monitoring (Level, Pressure, Storage Tanks): Enables long‑range monitoring of industrial tanks and silos for level, pressure, and storage safety applications.
Smart Parking Systems (Parking Sensors, Occupancy, Digital Inputs): Supports smart parking deployment with long‑range LoRaWAN connectivity for occupancy detection and automated parking guidance.
Smart Waste Bin Monitoring (Bin Levels, 4–20mA Sensors, Smart City): Built for smart city waste systems where fill‑level monitoring requires dependable wide‑area LoRaWAN coverage.
Greenhouse Automation (CO₂, Humidity, Climate Control): Optimizes greenhouse climate by enabling long‑range monitoring of temperature, humidity, and CO₂ for automated growing environments.
Environmental Monitoring (Air Quality, PM2.5, NO₂): Perfect for pollution and environmental monitoring requiring dependable, kilometer‑scale LoRaWAN coverage.
Tank & Silo Level Monitoring (Level, Pressure, Storage Tanks): Enables long‑range monitoring of industrial tanks and silos for level, pressure, and storage safety applications.
Smart Building Automation (Building Sensors, CO₂, Digital IO): Ideal for building automation solutions including HVAC, occupancy, and environmental controls over LoRaWAN.
Utility Metering (Water Meters, Gas Meters, Pulse IO): Connect utility meters over long‑range LoRaWAN for real‑time consumption, alerts, and automated billing insights.
Mining & Harsh Industry Monitoring (Gas, Pressure, Vibration): Engineered for harsh mining environments with long‑range LoRaWAN ideal for gas, pressure, and vibration monitoring.
Quality Control & Automation (Relay Control, Digital Inputs, Automation): Supports remote control and automation of industrial processes using LoRaWAN‑based relay and sensor integration.
Chemical Tank Monitoring (pH, Temperature, Chemical Storage): Ensures safe monitoring of chemical tanks with long‑range LoRaWAN connectivity for pH, temperature, and storage levels.
Resource & Process Optimization (Occupancy, Process Sensors, Automation): Ideal for optimizing workflows and resources with long‑range monitoring of occupancy, equipment, and process sensors.
Airport Asset & Utility Monitoring (Utilities, Tracking, Digital IO): Supports airport‑wide LoRaWAN monitoring of baggage systems, utilities, and critical infrastructure assets.
Water & Sewage Treatment (pH, DO, Turbidity): Enables STP and ETP process automation with long‑range LoRaWAN monitoring of turbidity, DO, pH, and water levels.
Livestock & Poultry Automation (Temperature, Humidity, Farm Sensors): Enhances livestock productivity with long‑range LoRaWAN monitoring of barn temperature, humidity, and farm conditions.
Commercial & Mall Automation (Occupancy, HVAC, Digital Inputs): Ideal for malls and commercial buildings needing long‑range LoRaWAN monitoring for HVAC, occupancy, and energy control.
Browse all 23 applications
01 / 23
Did you know MacLink Gen-2 can send data directly to your PLC? Want to see how?
At a glance
MacLink Gen2 Outdoor LoRaWAN Gateway — Key Specifications
Every key specification in one view.

8 ch
parallel channels
Concurrent LoRaWAN demodulation
5 km
urban range
2–5 km wide-area coverage
2000+
nodes supported
High concurrent capacity
IP67
rugged enclosure
Outdoor-ready design
v1.0.4
LoRaWAN protocol
Class A/B/C · global bands supported
Any LNS
network servers
Global LNS support

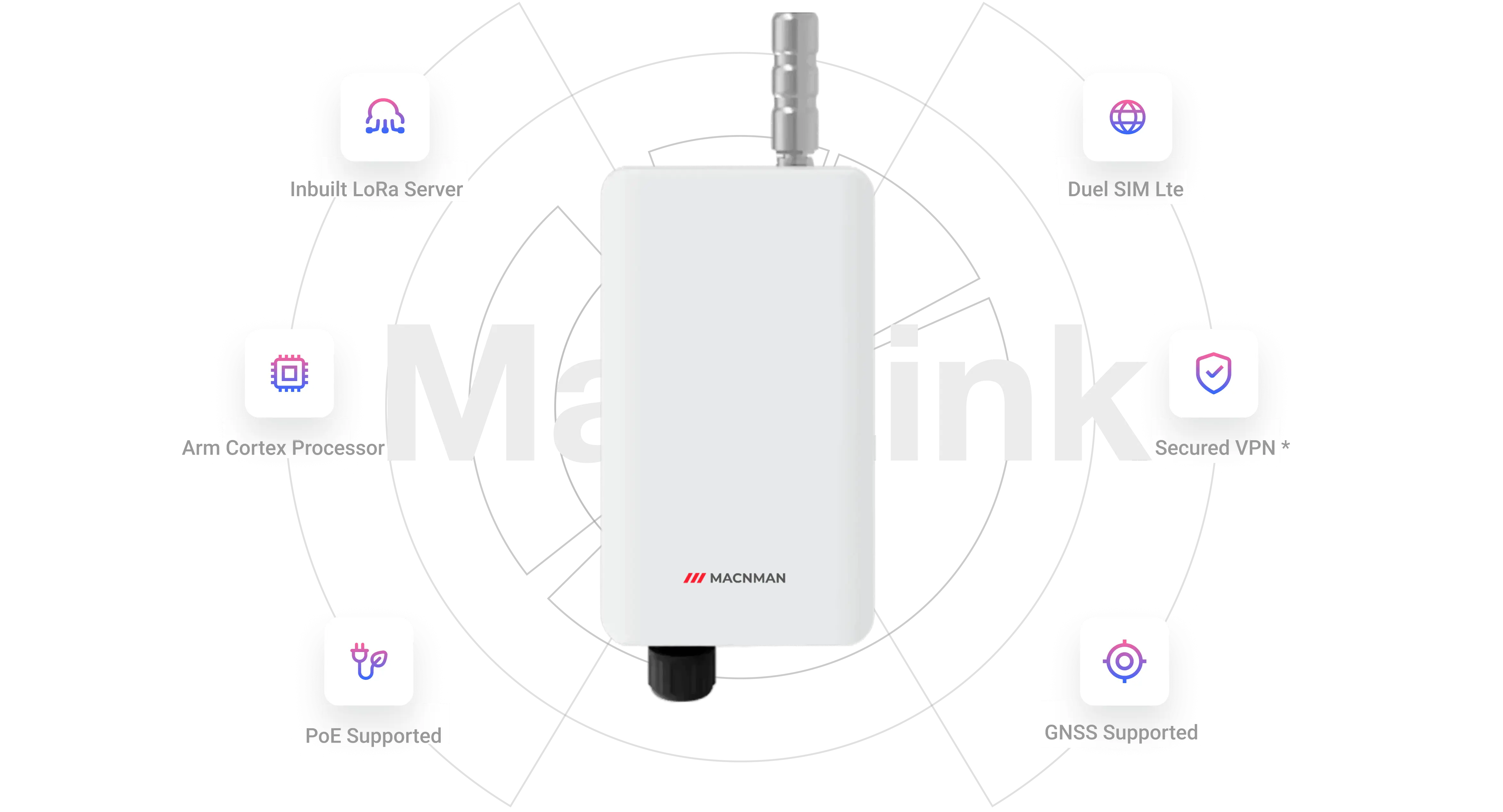

Overview
8-Channel Outdoor Gateway, Built for Indian Conditions
for Industrial IoT Applications
This outdoor LoRaWAN® gateway features a powerful ARM A7 processor and a durable, weather-resistant aluminum enclosure, built to withstand harsh environments. Designed for professional LoRaWAN® networks and industrial control systems, it also includes a superCAP backup power supply to ensure reliable operation during outages.
Features
Everything built in
Flexible Backhaul Options
Ensure your LoRaWAN® gateway stays connected, no matter the deployment environment.
Dual SIM support allows automatic switching between carriers, reducing downtime
Multi-Channel LoRa® Support
Handles multiple device connections simultaneously for scalable IoT networks.
Powerful Processor
Delivers fast, efficient processing for reliable real-time data handling.
Built-in SuperCAP Backup Power
Emergency power backup to keep critical operations running during outages
IP67 Aluminium Enclosure
Integrated GNSS Module
Enable precise location tracking and accurate time synchronization.
LoRaWAN® Classes A, B & C
Compatible with all device classes for full application flexibility.
Engineered for durability & reliability

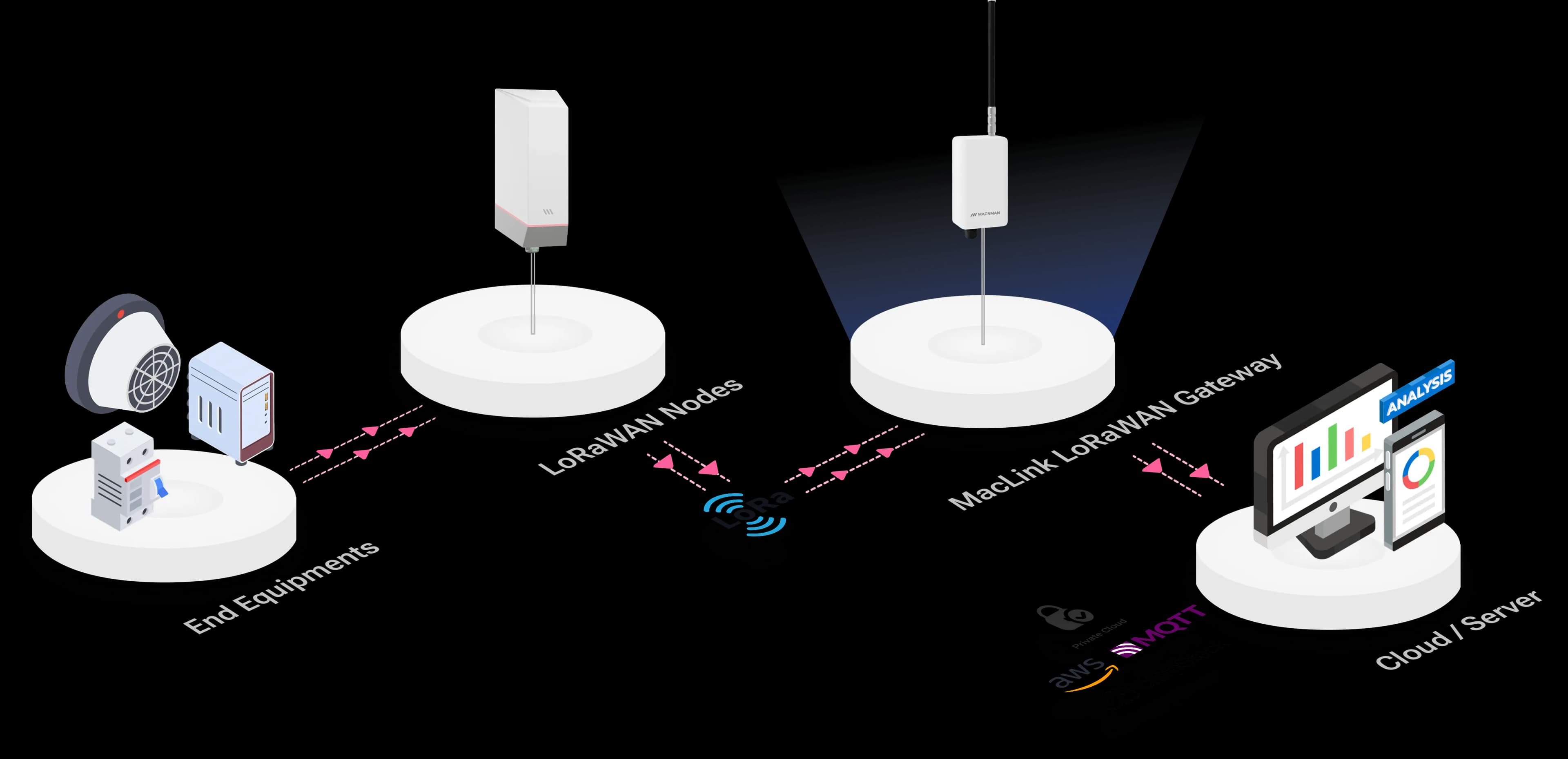

Architecture
MacLink Gen-2 Industrial LoRaWAN Gateway Architecture


Edge processing
Boost LoRaWAN Network Performance
with Intelligent Edge Processing

512MB
RAM
1066MHz
max Speed
ARM Cortex-A7
Processor
Chipset
Reliable LoRaWAN® Gateway with a Next-Gen Chipset
The MacLink Gen-2 gateway is equipped with a new-generation LoRaWAN chipset built to handle modern IoT demands. It delivers stronger signal penetration, faster data handling, and ultra-efficient power usage perfect for dense & dynamic environments.

Advanced LoRaWAN® Chip for High-Traffic Networks
Optimized for Low-Power, Long-Range IoT Communication
Supports Fast Spreading for faster transmission
Seamless Compatibility with LoRaWAN® Class A, B & C Devices
Capacity

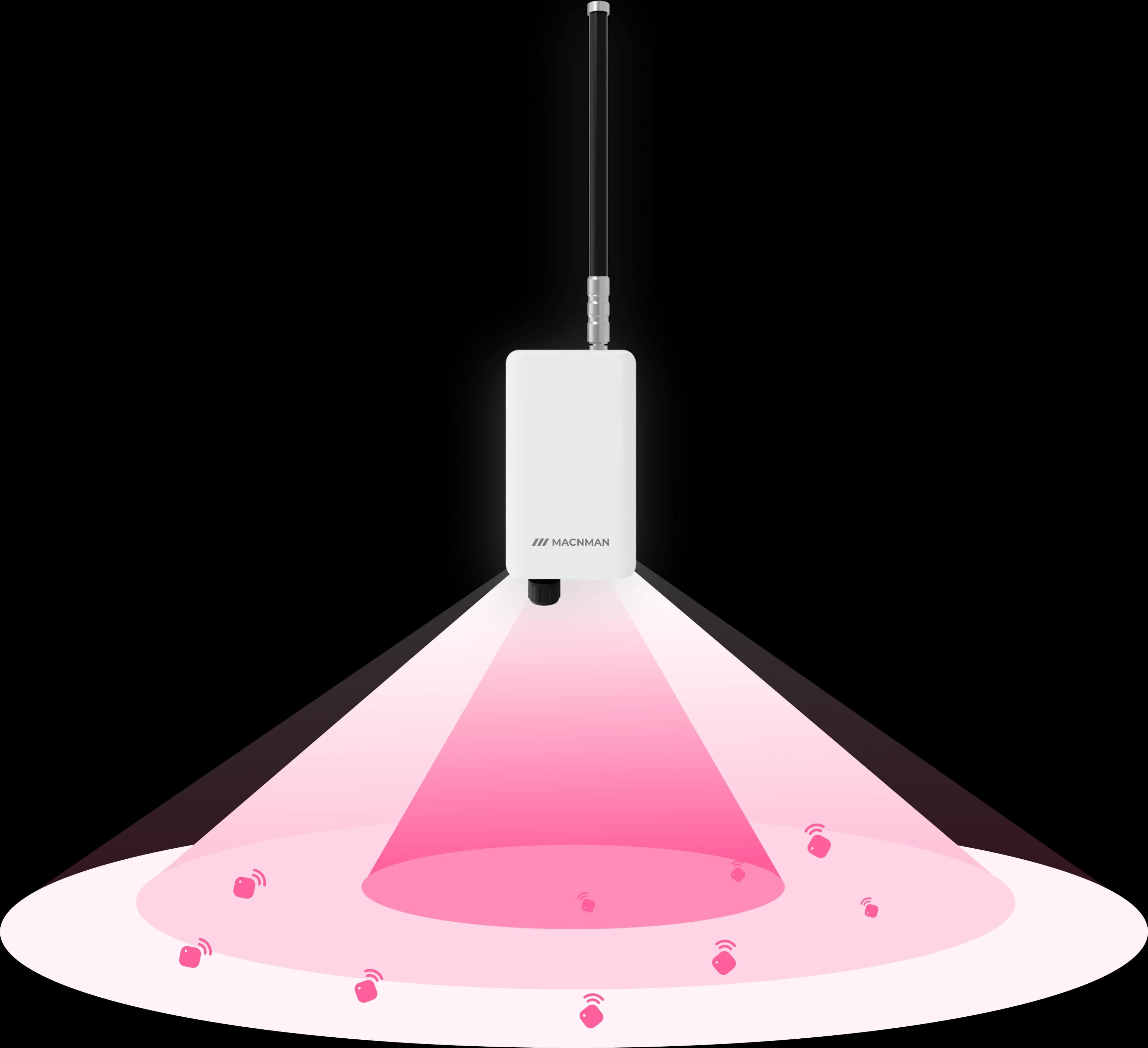

Connect Up to 2000+ IoT Devices Seamlessly
Empower large-scale IoT networks with the MacLink Gen-2 LoRaWAN® Gateway, powered by the SX1303 LoRa chip and a powerful quad-core CPU. It supports up to 2000 IoT devices, making it ideal for smart cities and large-scale industrial networks.

Range & reliability

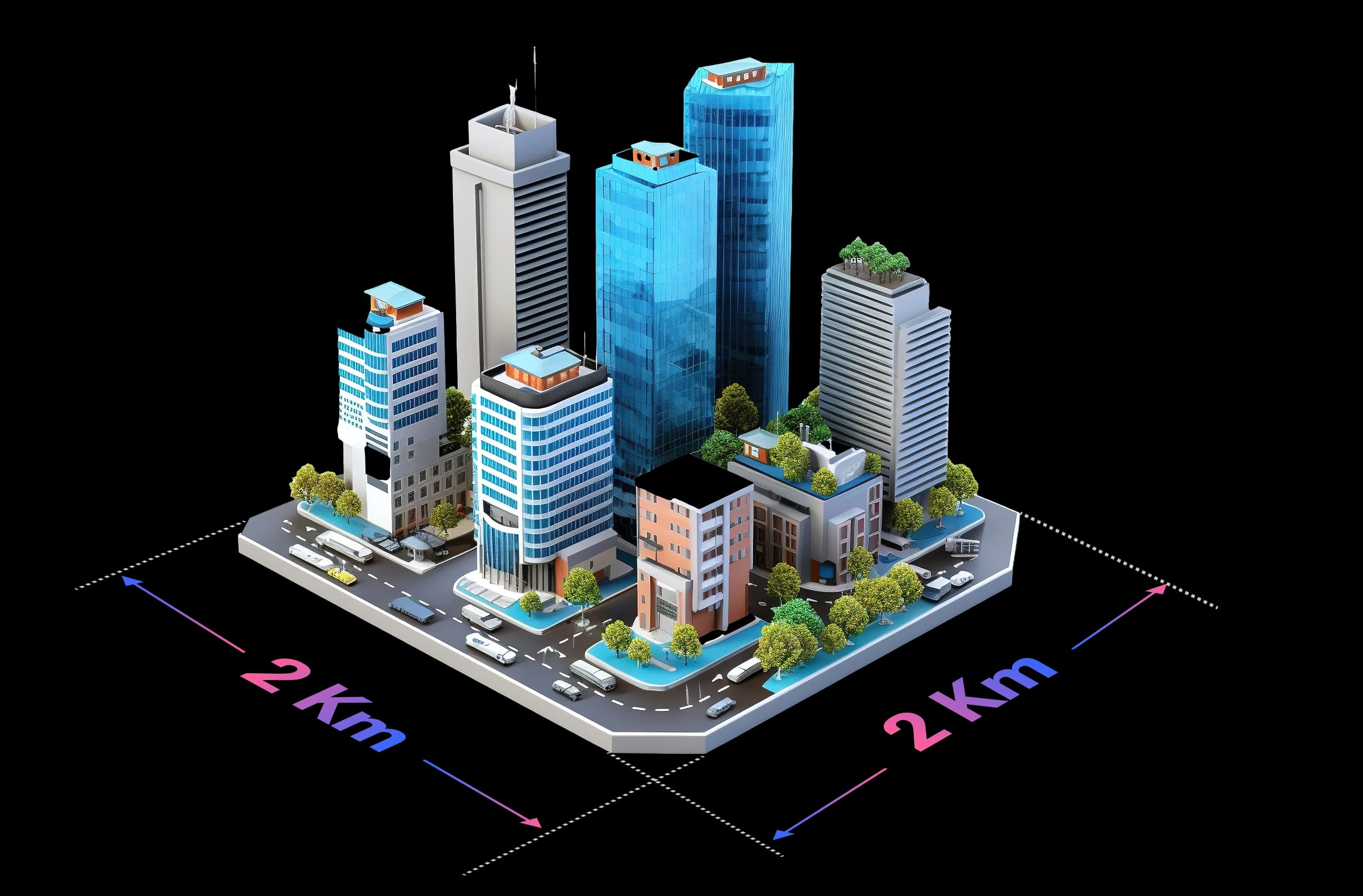

How Far Can an Outdoor LoRaWAN Gateway Reach?
Delivers multi-kilometer LoRaWAN coverage with high-gain antennas
The MacLink Gen-2 offers multi-kilometer LoRaWAN range, delivering unmatched outdoor coverage and reliable long-distance communication for industrial, agricultural, and smart-city applications.

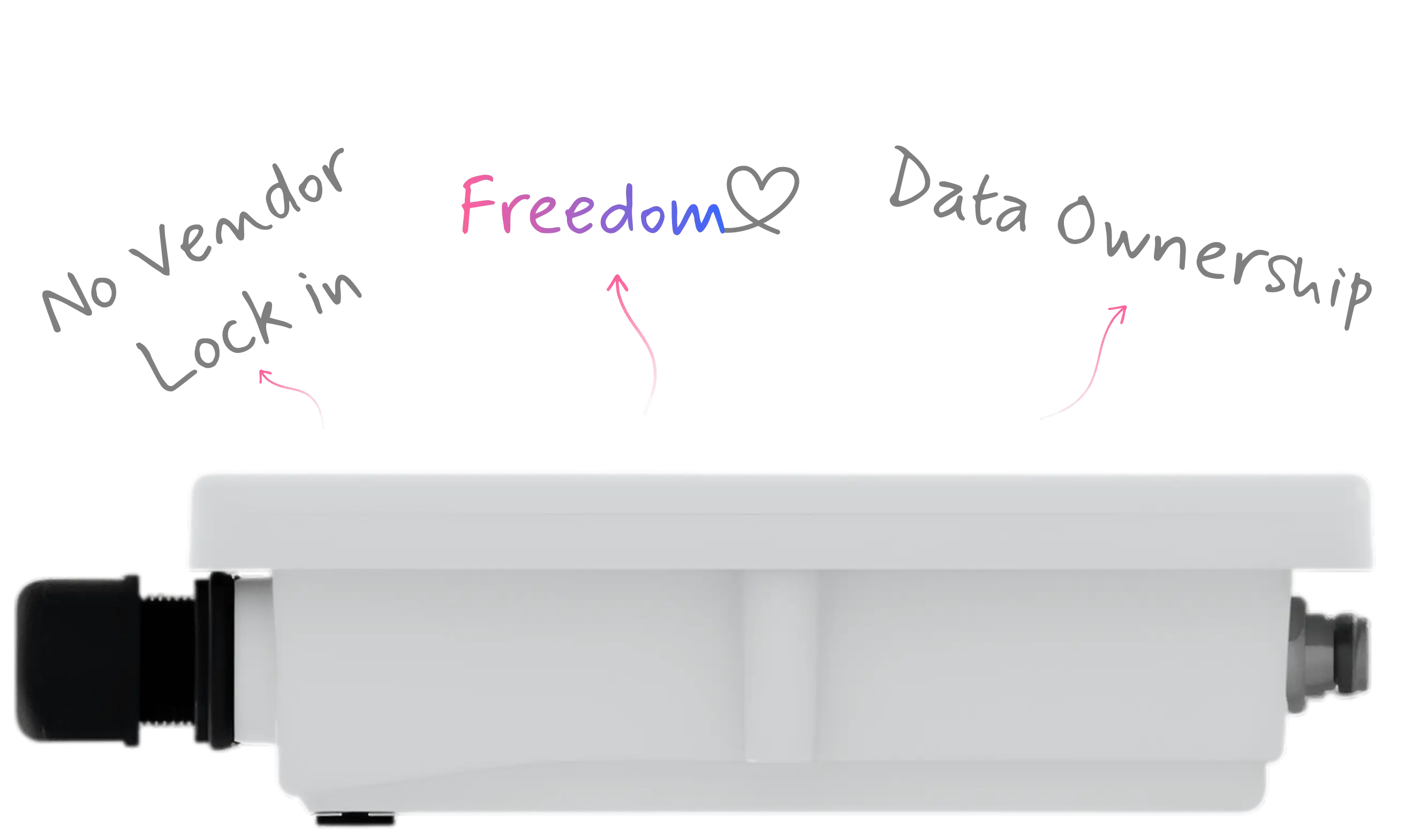

Cloud & LNS
LoRaWAN Gateway Compatible With All Network Servers
Supports ChirpStack, The Things Stack, Actility, AWS IoT Core
Experience true plug-and-play integration with all LoRaWAN LNS platforms, giving you unlimited flexibility to build, scale, and manage any IoT network without compatibility issues.


Core features

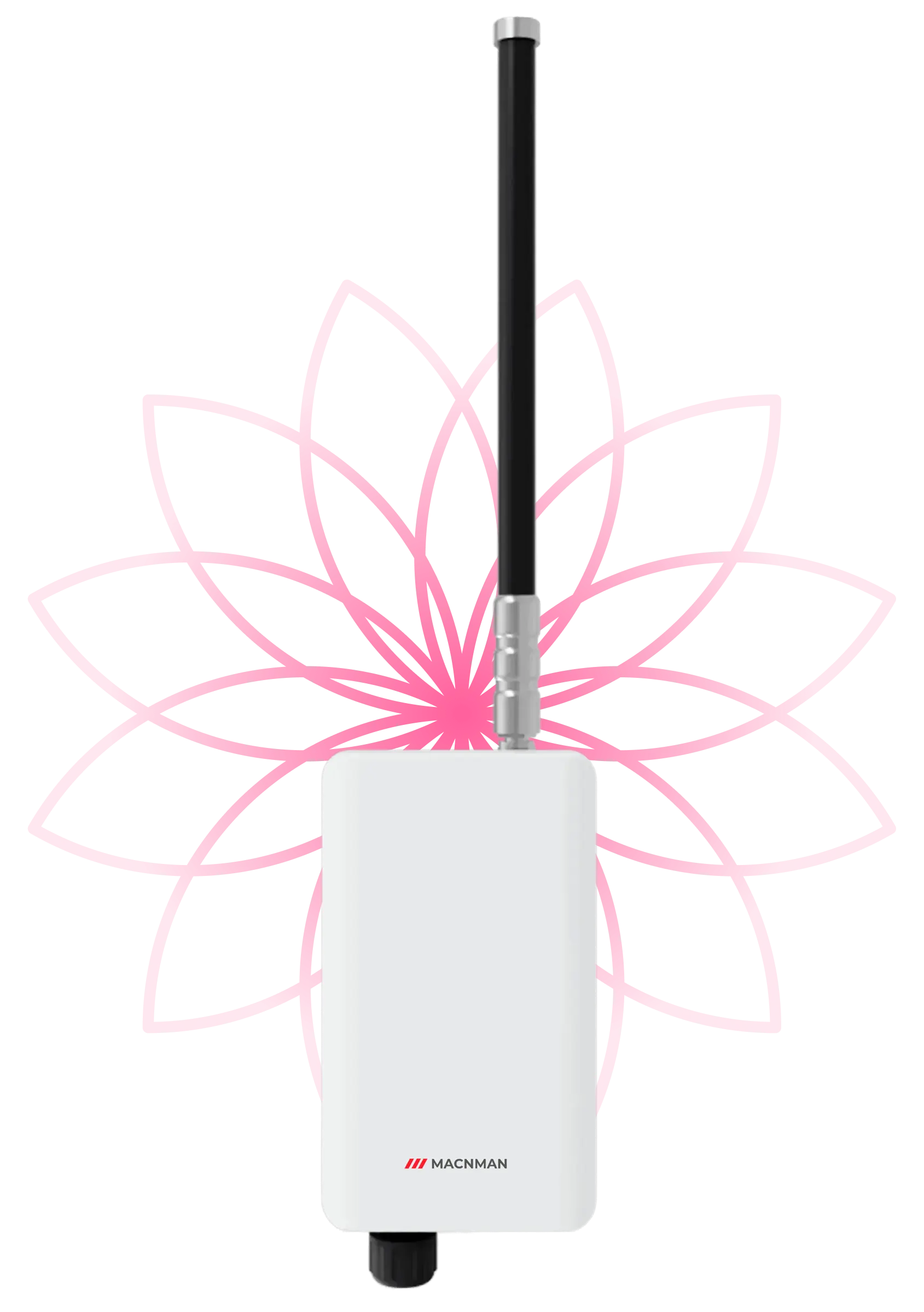

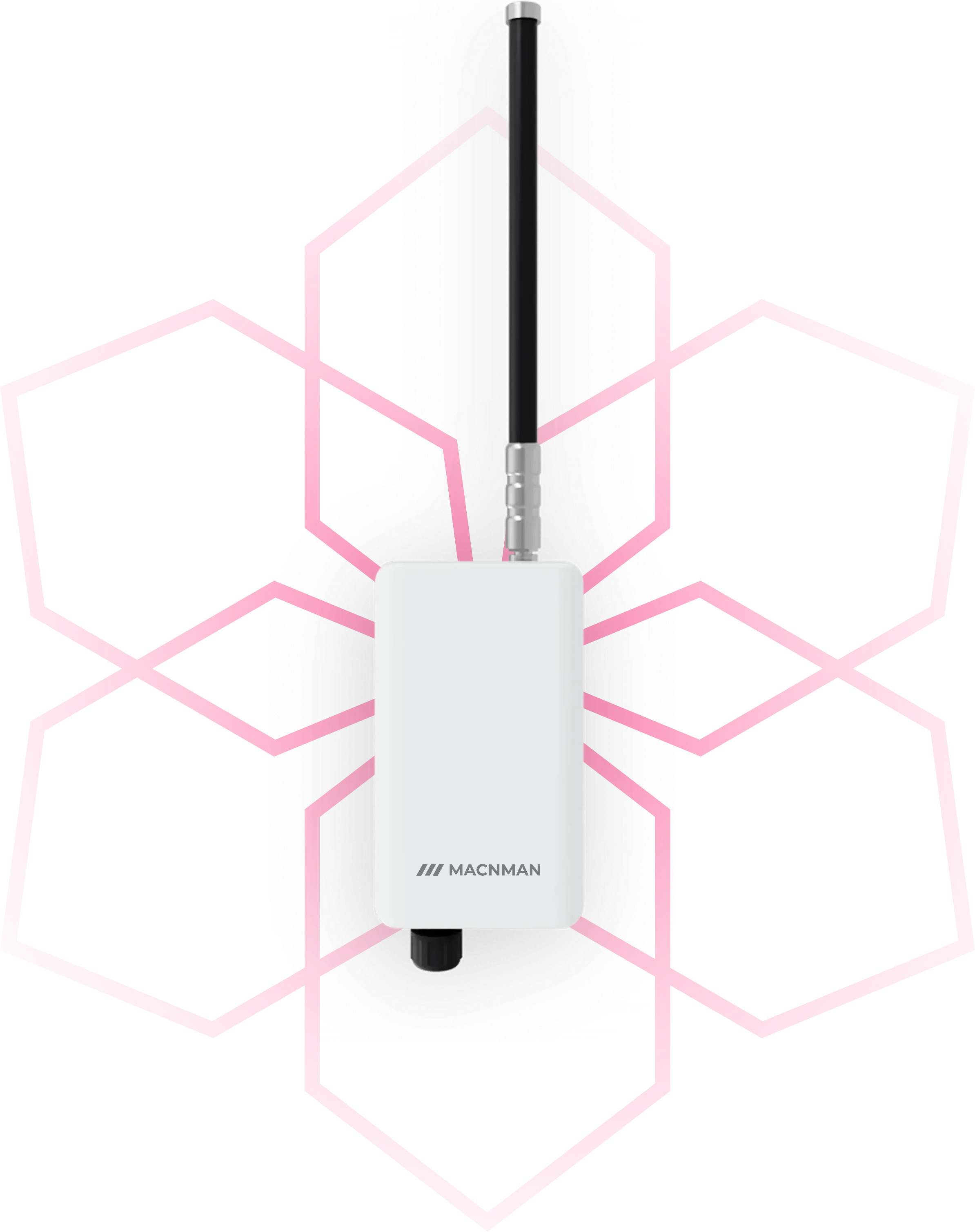

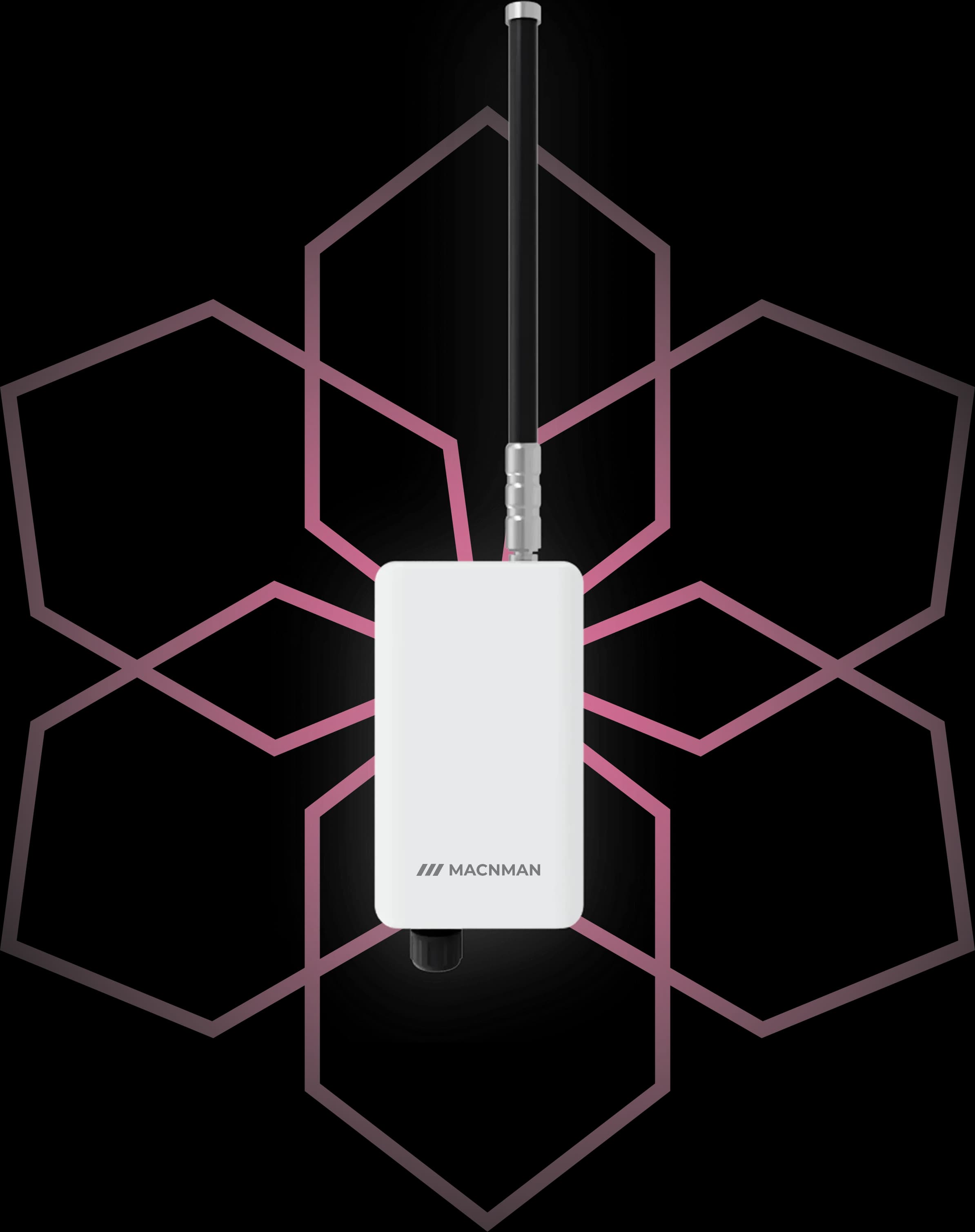

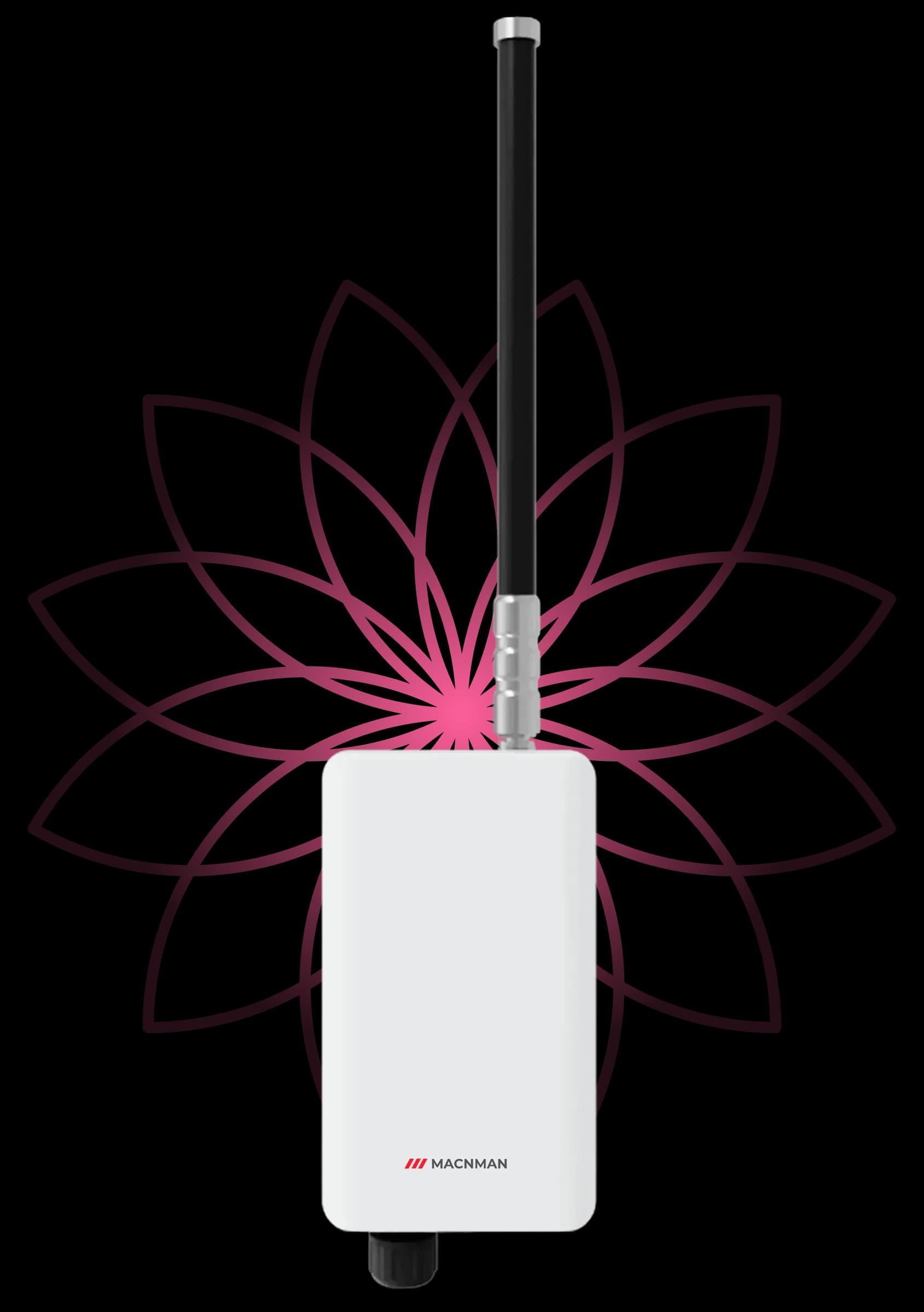

Multiple Backhaul Options Dual-SIM 4G LTE, PoE & Wi-Fi

Multi-Network 2 X 4G Connectivity
Stay online anywhere with Dual SIM 4G LTE. The MacLink LoRaWAN® Gateway auto-switches networks for uninterrupted IoT performance.
Triple backhaul architecture ensures zero downtime
Flexible Network Options
Connect easily to Wi-Fi or Ethernet for seamless backhaul. Perfect for smart buildings and retrofits where wiring is limited
Power & Data in One Cable
Enable reliable, high-speed connectivity through PoE, simplifying installation for industrial, smart city, and outdoor IoT gateways.
Always-On Connectivity
Connect easily to Wi-Fi or Ethernet for seamless backhaul. Perfect for smart buildings and retrofits where wiring is limited.
Capabilities

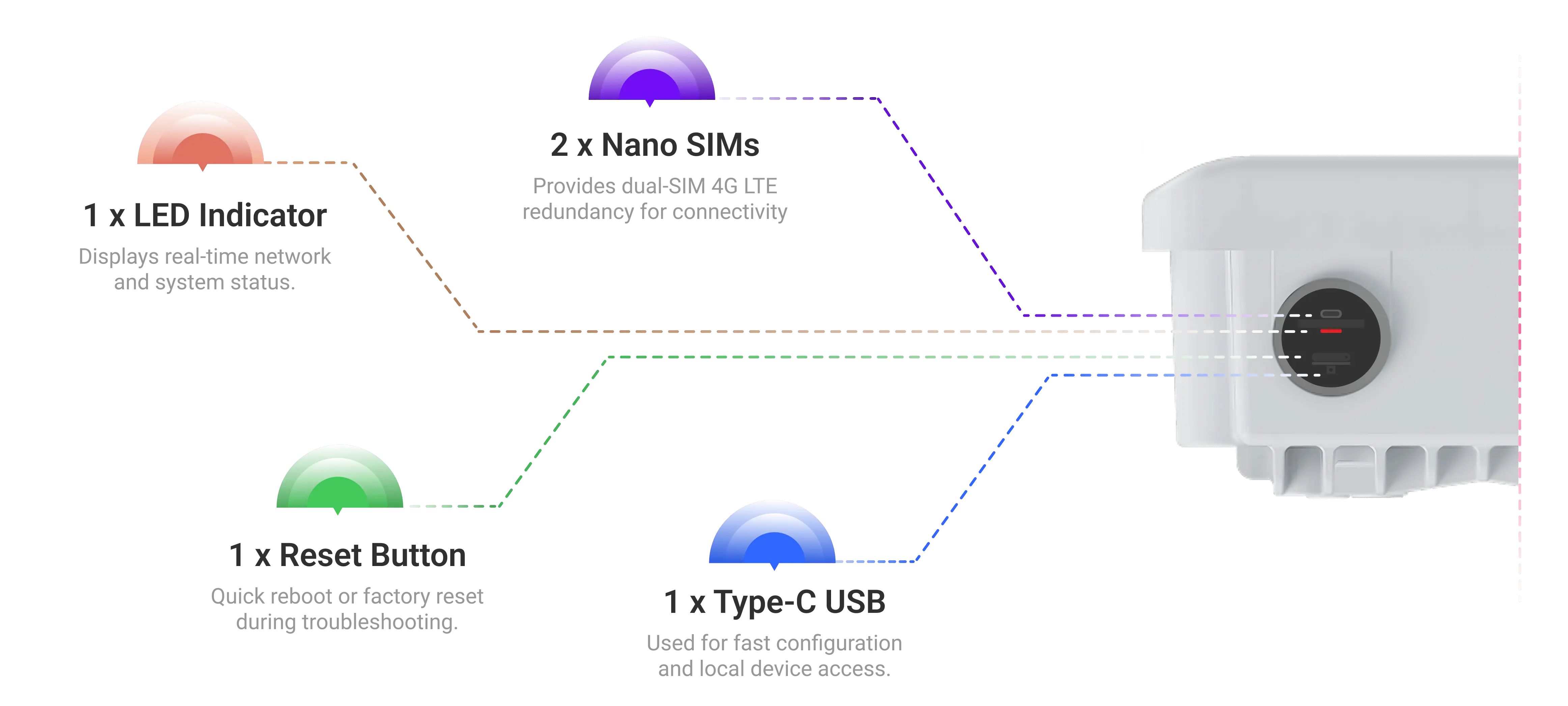

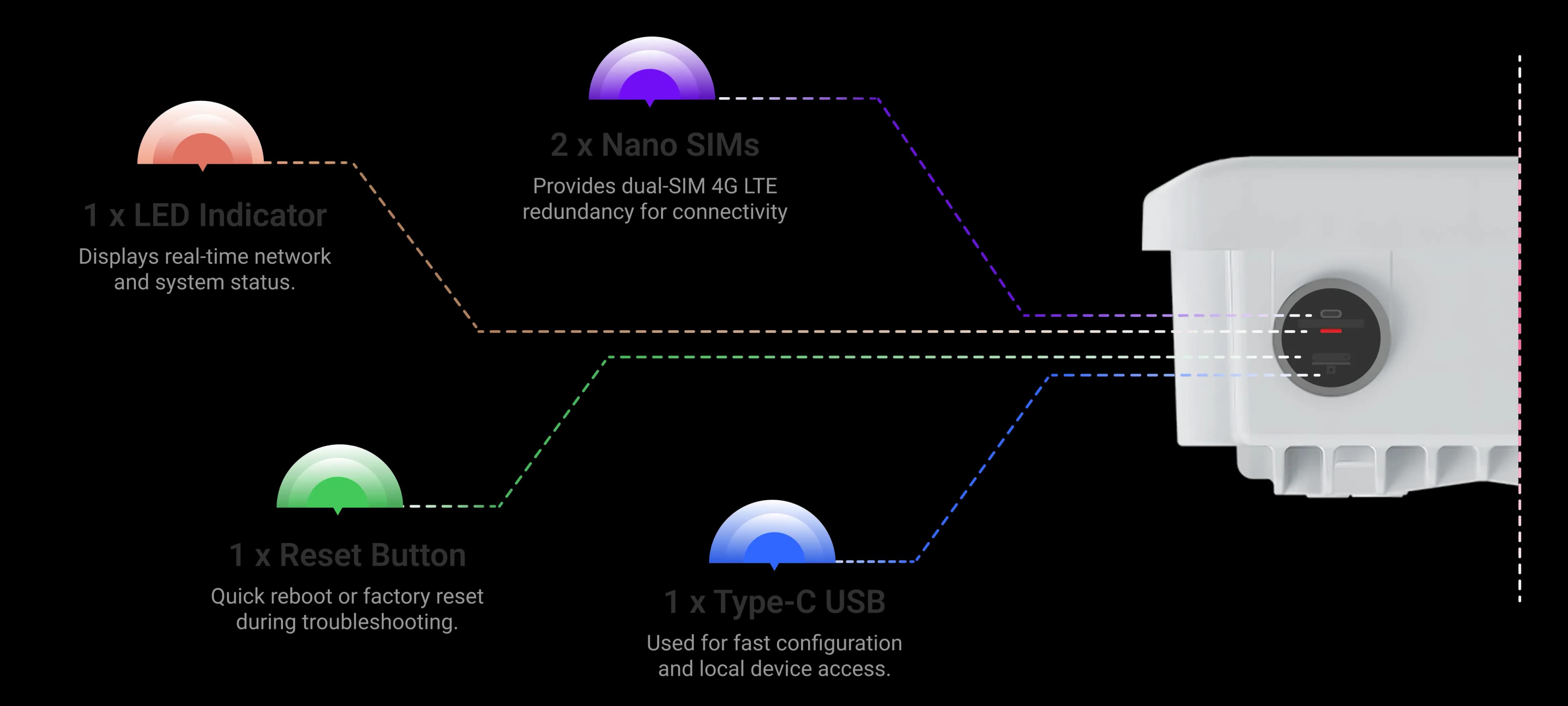

Essential Bottom-Side Controls for Easy Setup & Maintenance
Designed for quick installation and field troubleshooting

Highlights
6 Key Benefits of the MacLink Outdoor LoRaWAN Gateway
Discover why the MacLink Outdoor LoRaWAN® Gateway is the most reliable, long-range, and deployment-ready solution for industrial, agricultural, and smart-city IoT networks.
Long-Range LoRaWAN Performance
Covers multi-kilometer distances with high RF sensitivity for reliable communication in any environment.
Triple Backhaul Connectivity
Dual-SIM 4G LTE, PoE, and Wi-Fi ensure uninterrupted cloud communication with automatic failover.
Built-In ChirpStack & Node-RED
Comes preloaded with a full LoRaWAN Network Server and dashboard, so you can deploy instantly without setup.
Rugged IP67 Outdoor Build
Weatherproof, dustproof, and impact-resistant housing built to survive harsh industrial and outdoor conditions.
Flexible Mounting Options
Includes pole-mount and wall-mount brackets for quick installation in industrial, agricultural, or smart-city locations.
SuperCAP Backup Power
Instant power hold-up prevents downtime and data loss during sudden outages or electrical instability.
Works with

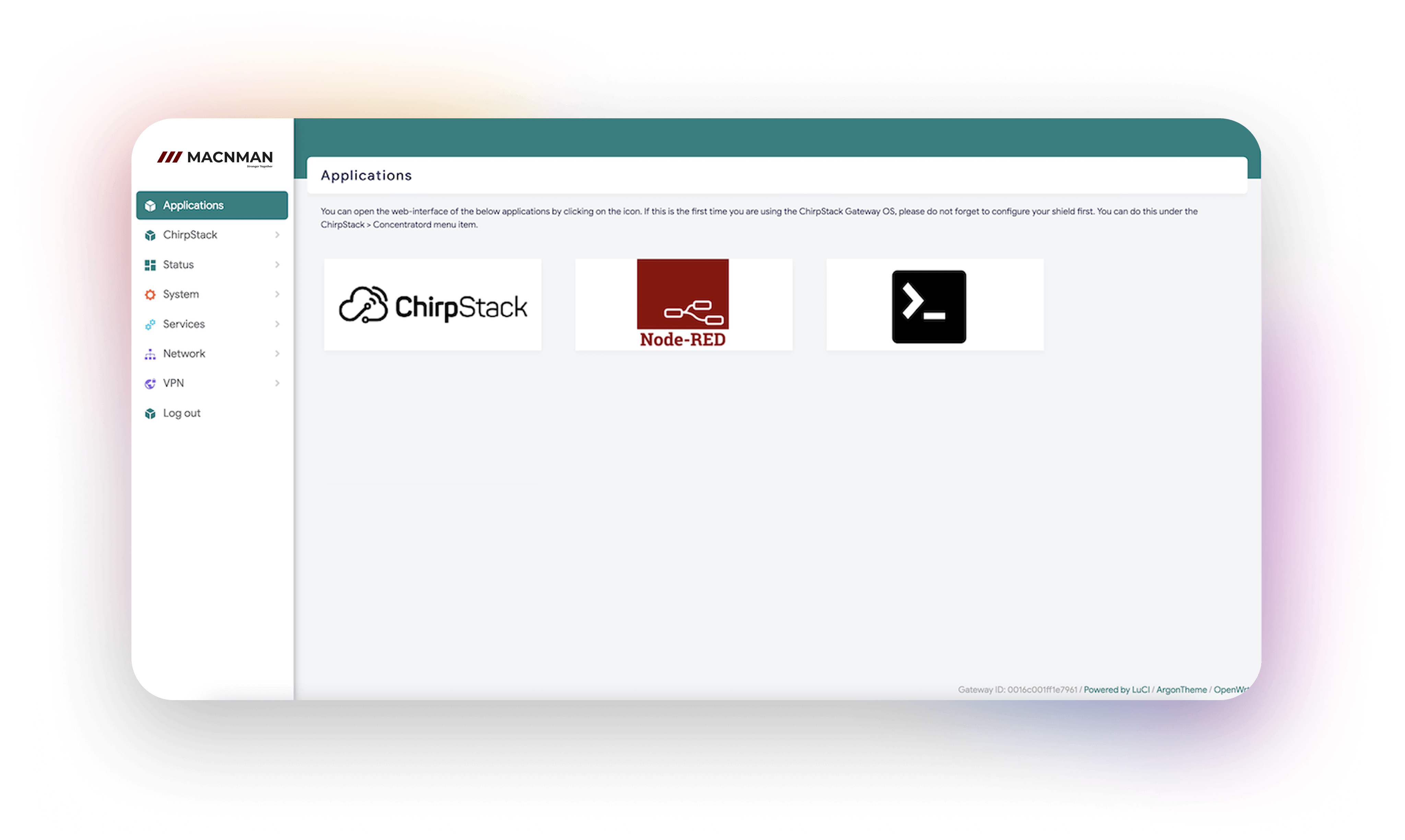

Ready-to-Deploy LoRaWAN® Gateway for Instant IoT Setup

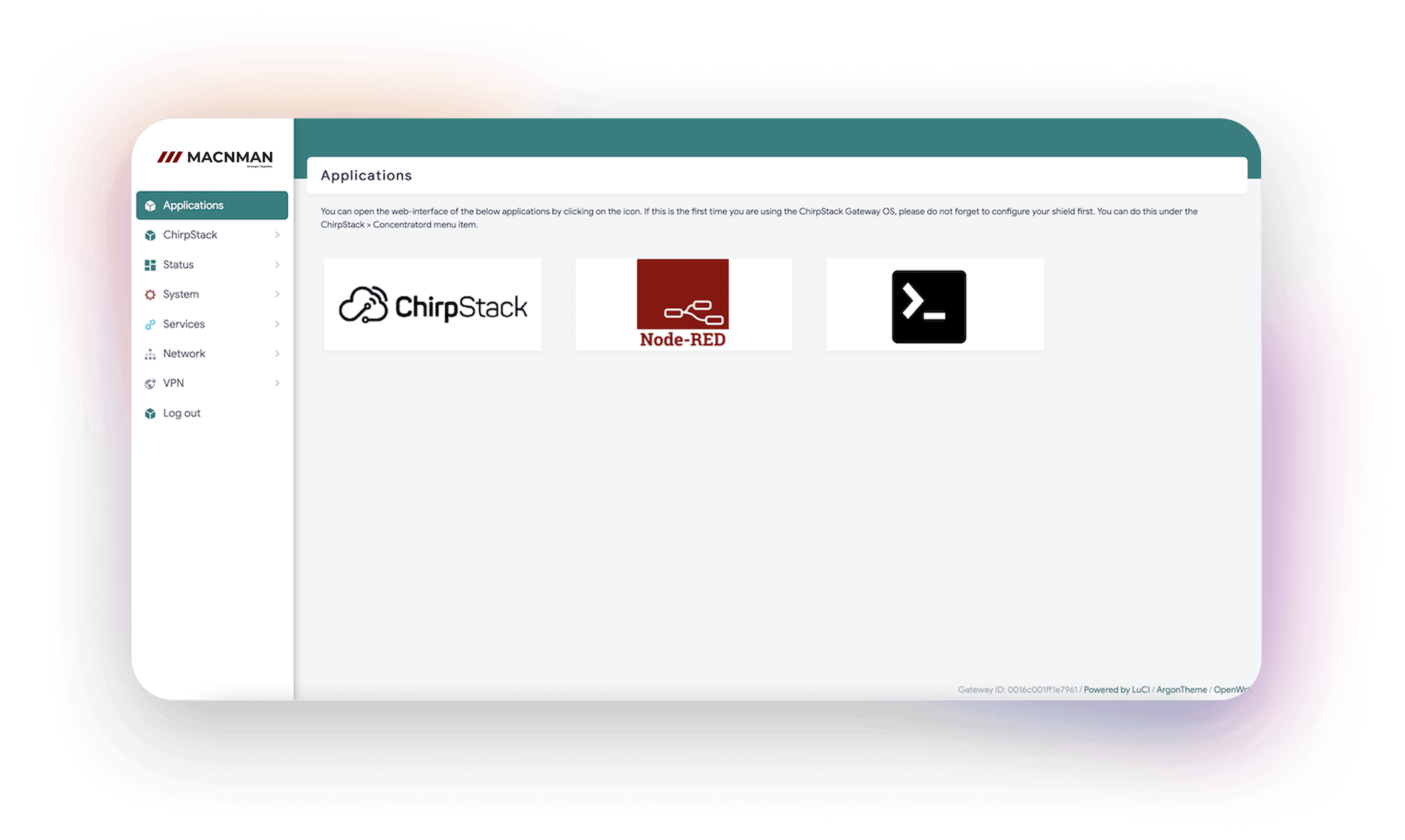

Built-In ChirpStack Network Server & Node-RED DashboardBuilt-In ChirpStack Network Server & Node-RED Dashboard


Hardware

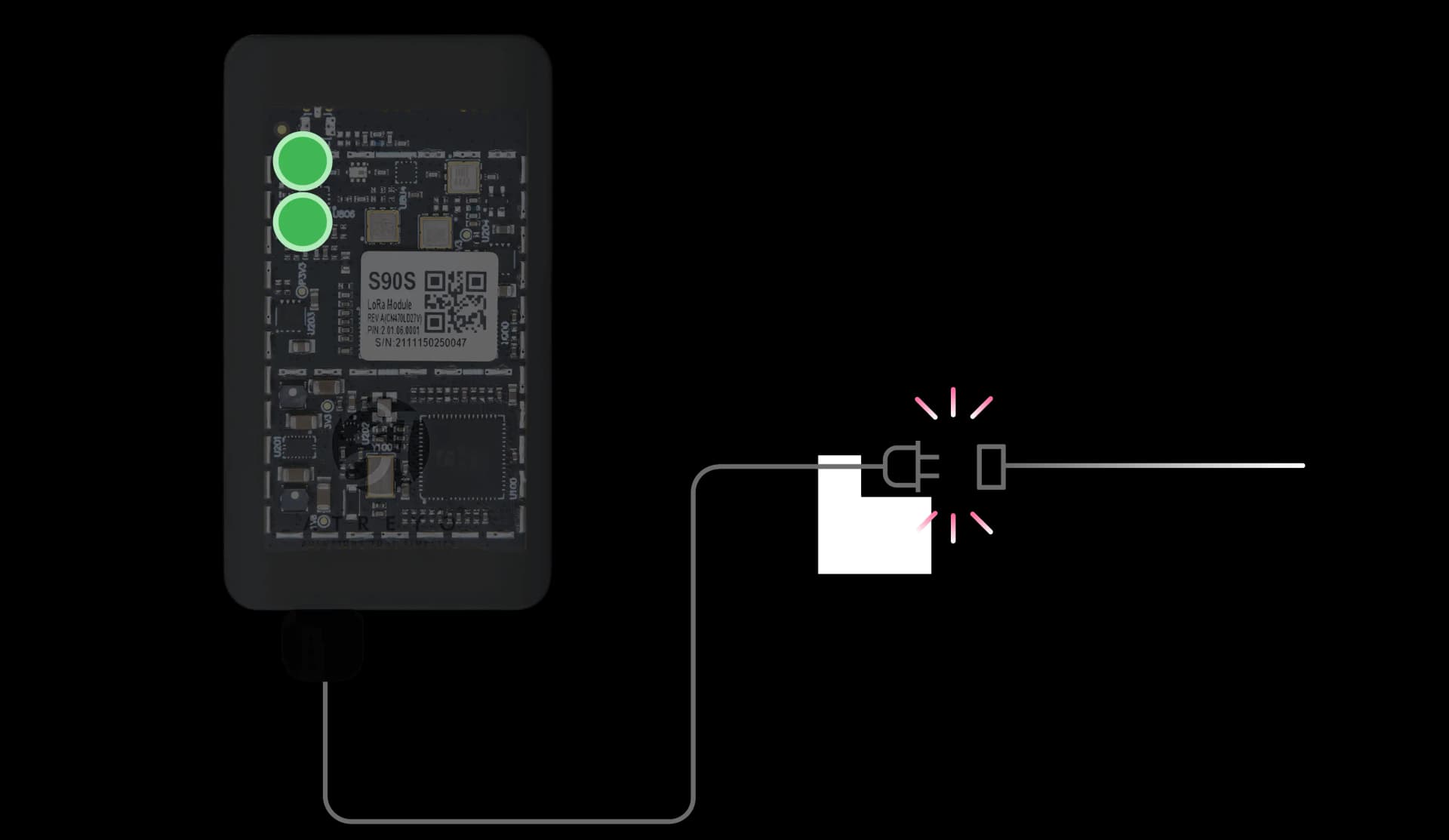

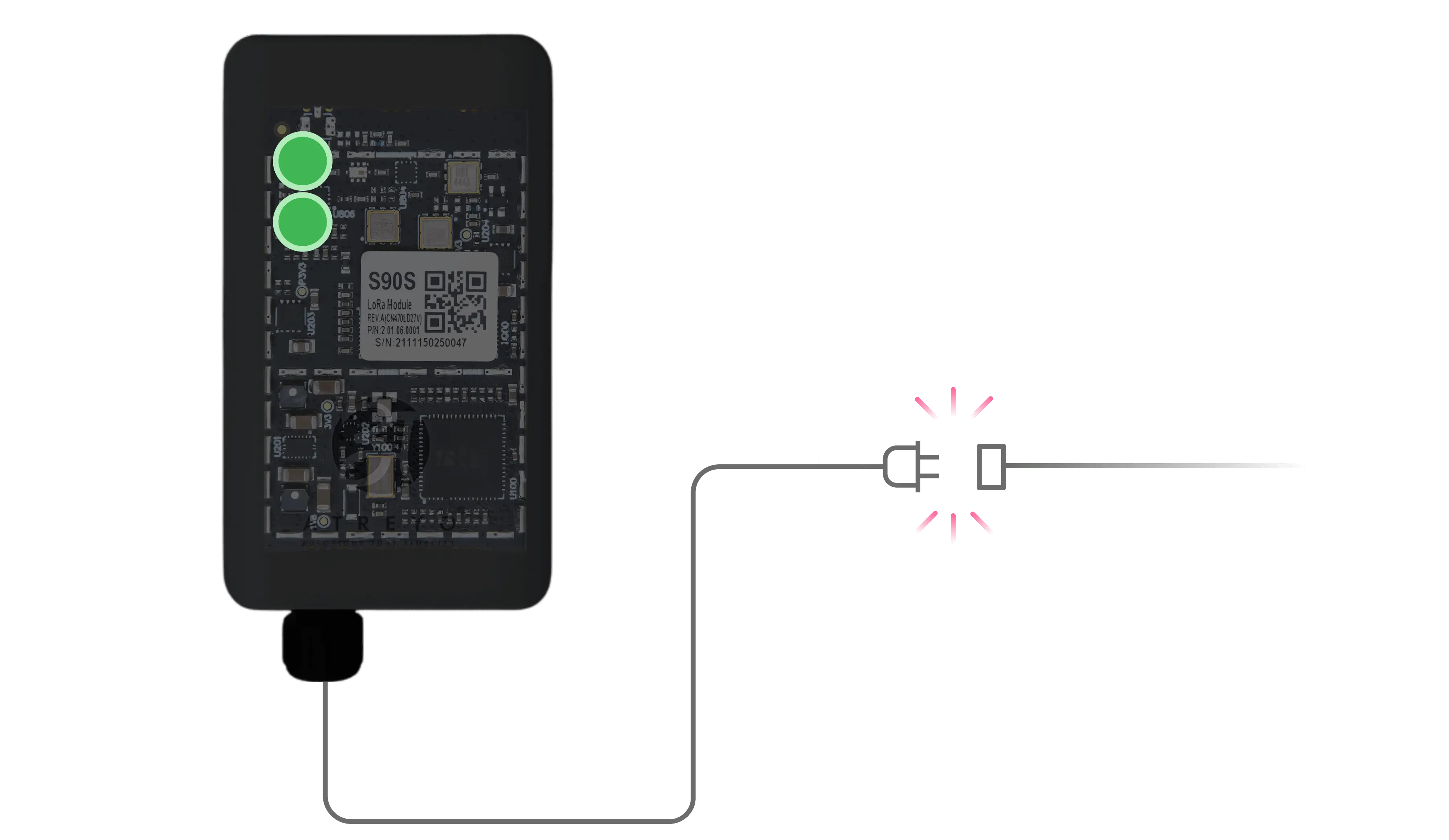

Built-In SuperCAP Backup for Reliable, Uninterrupted Operation Even When Power Cuts
The MacLink LoRaWAN® Gateway uses a high-capacity SuperCAP system to maintain power during sudden outages, preventing data loss and ensuring continuous LoRaWAN communication. This instant backup keeps critical IoT processes running smoothly even in unstable power environments.

Device-to-device

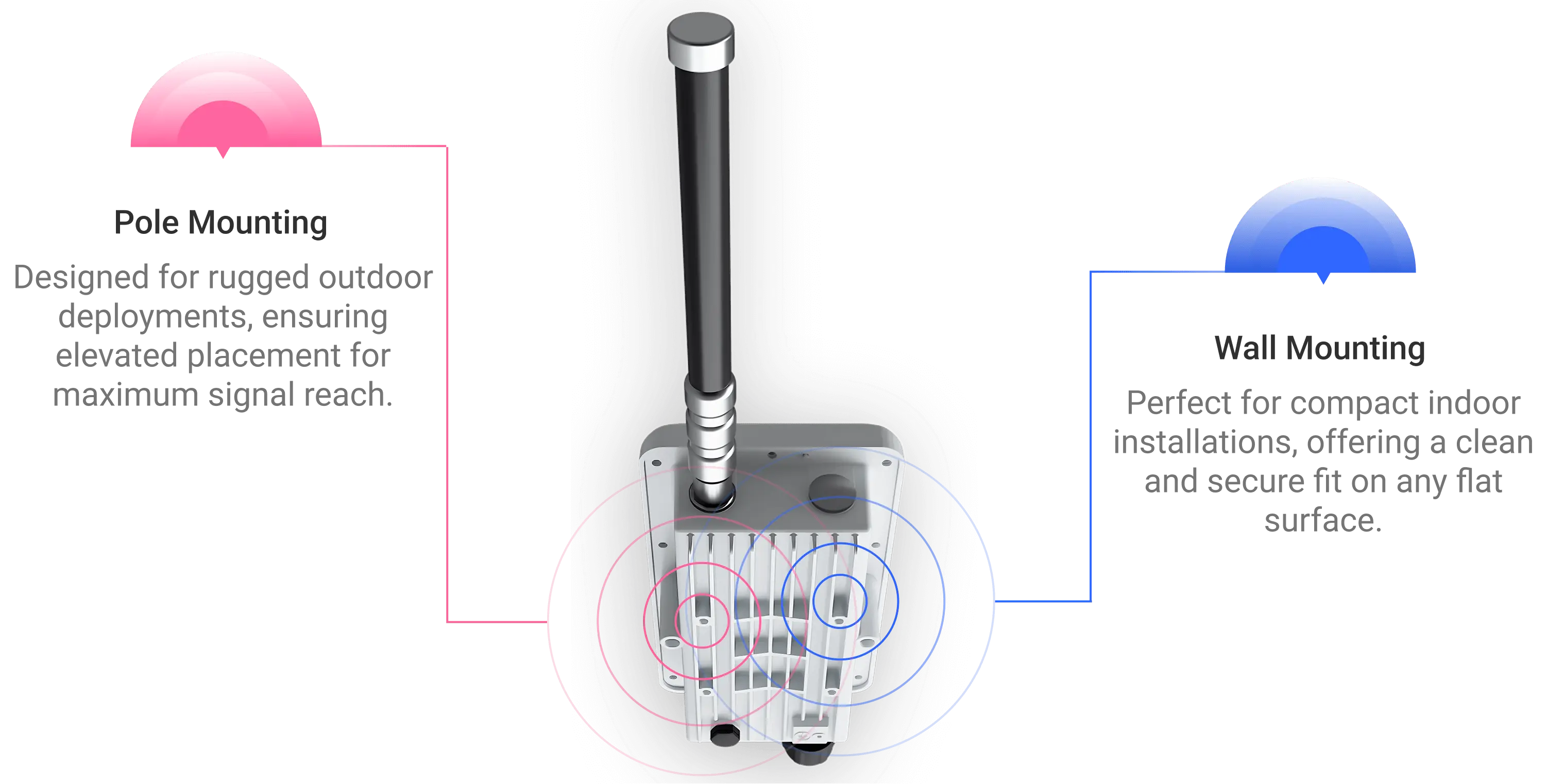

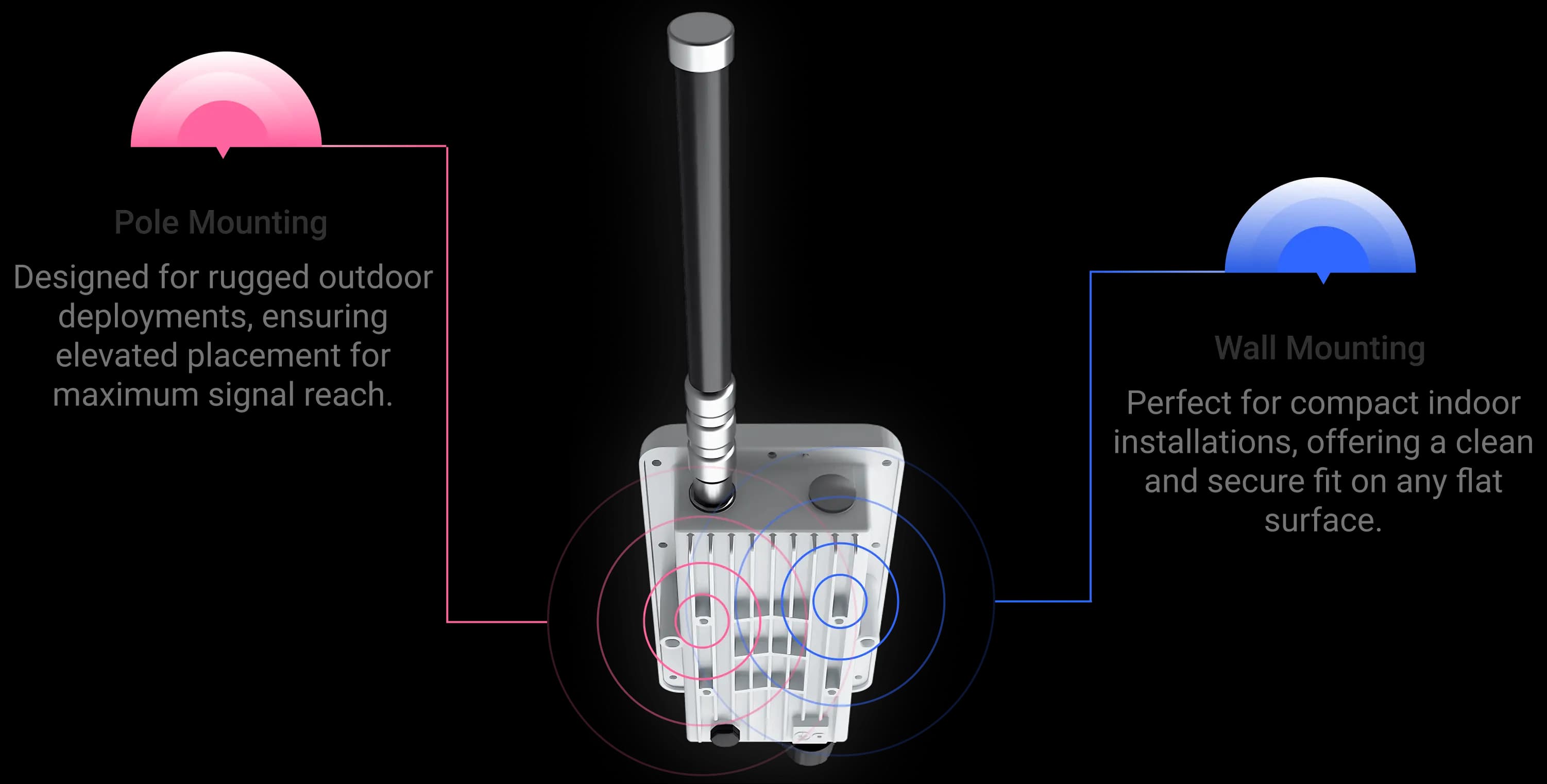

Pole & Wall Mount Outdoor LoRaWAN Gateway
Easy Outdoor & Industrial Installation
The MacLink Gateway includes industrial-grade wall and pole mounting brackets, allowing fast, secure installation on walls, poles, and outdoor structures—making it easy to deploy in industrial sites, farmlands, smart-city poles, and any IoT environment.
The MacLink Gateway includes industrial-grade wall and pole mounting brackets, allowing fast, secure installation on walls, poles, and outdoor structures—making it easy to deploy in industrial sites, farmlands, smart-city poles, and any IoT environment.


Wall Mount
Stable wall bracket setup
Pole Mount
Quick outdoor pole installation
Mounting Bracket
Heavy-duty mounting bracket
FAQ
Frequently asked questions
The MacLink Gen‑2 provides 2–5 km coverage in cities and up to 10–15 km line‑of‑sight in open outdoor environments depending on antenna placement and terrain.
The gateway supports 2000+ LoRaWAN nodes simultaneously thanks to its SX1303 chipset and high‑capacity packet handling.
Yes. It is fully compatible with ChirpStack, The Things Stack, Actility, AWS IoT Core, and all major LoRaWAN LNS platforms.
Check five things: channel capacity (8 channels handles most sites), ingress rating (IP67 for outdoors), backhaul options (4G, PoE, Wi-Fi — ideally with failover), node capacity (MacLink Gen-2 supports 2000+ devices), and whether a network server is built in so you can run without cloud dependency.
Yes. MacLink Gen-2 ships with ChirpStack and Node-RED preloaded, so the network server and dashboards run on the gateway itself — your sensors, data, and logic stay on-site, with no cloud subscription required.
The gateway includes Dual‑SIM 4G LTE, PoE Ethernet, and Wi‑Fi, ensuring reliable cloud connectivity with automatic failover.
Absolutely. It features an IP67‑rated enclosure that is waterproof, dustproof, and UV‑resistant—ideal for industrial, agricultural, and smart‑city deployments.
The built‑in SuperCAP backup provides instant hold‑up power during outages, ensuring uninterrupted operation and preventing data loss.
The gateway includes industrial wall‑mount and pole‑mount brackets for quick installation on buildings, poles, towers, or agricultural structures.
Yes. It comes with a built‑in ChirpStack Network Server and Node‑RED dashboard, enabling instant deployment without additional setup.
