Best 8 Channel Indoor LoRaWAN® Gateway
With 4G, Wi-Fi & Ethernet Backhaul & Long-Range LoRaWAN Coverage

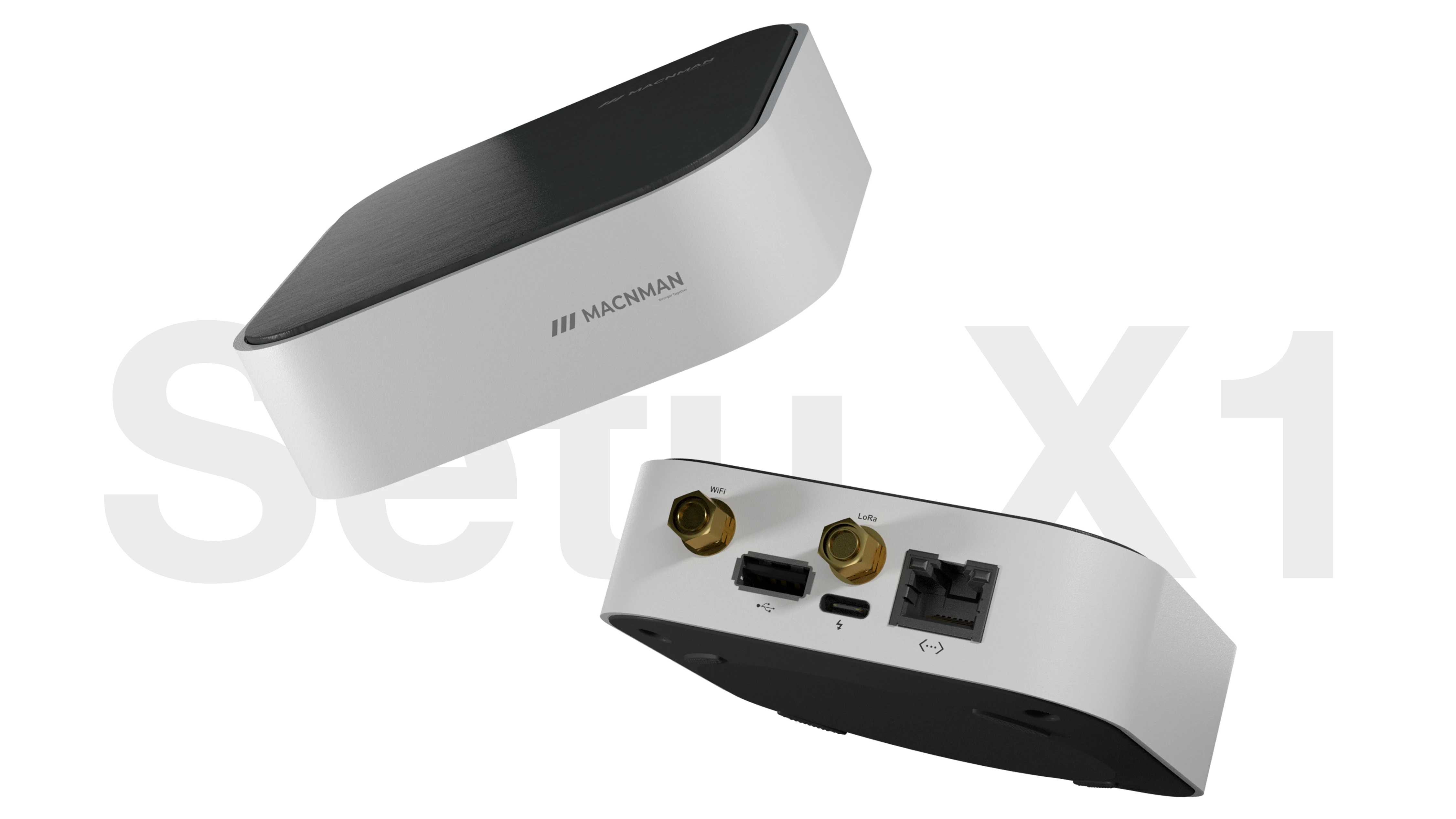

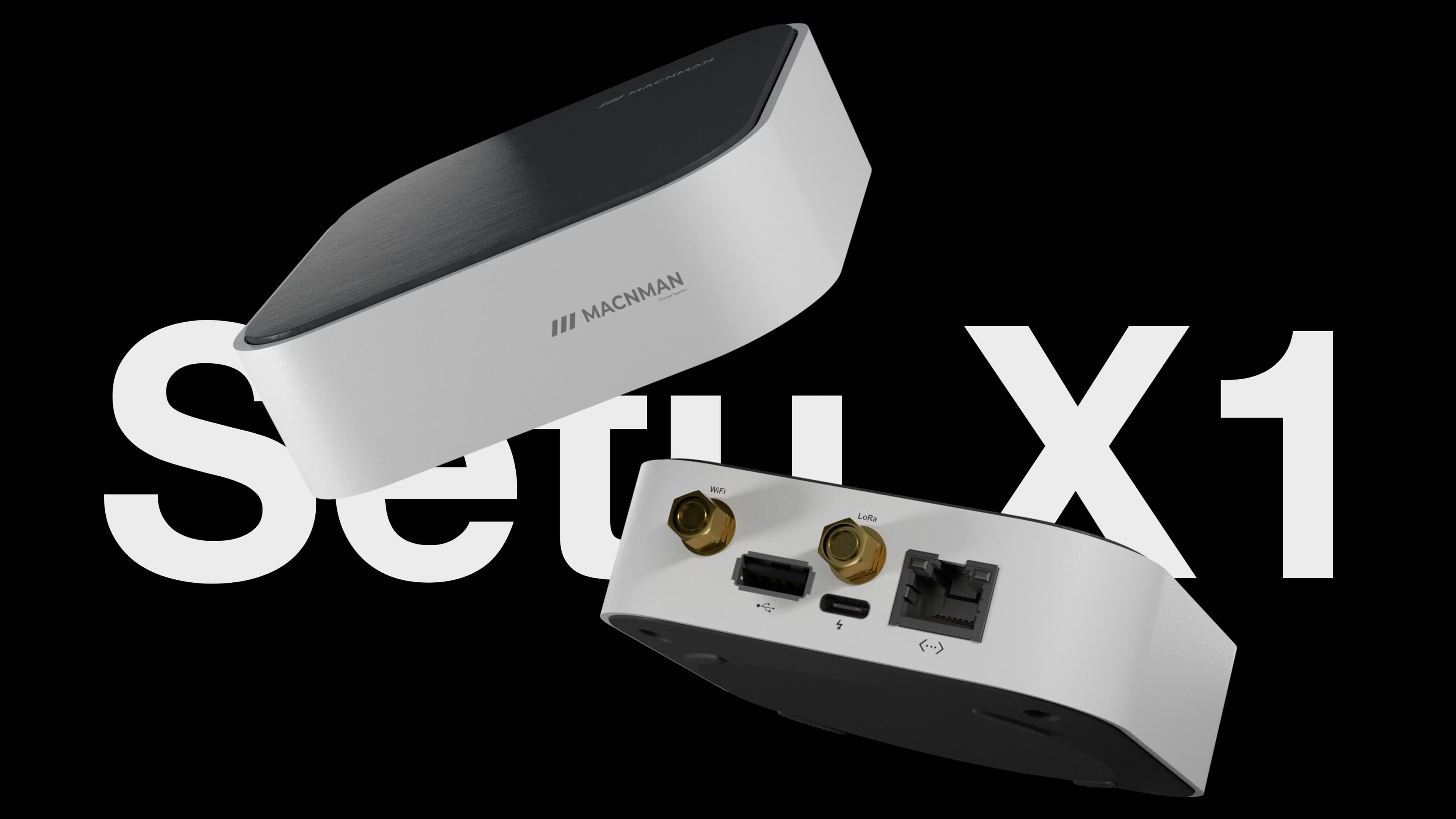

Setu X1 Multi-Channel Indoor LoRaWAN® Gateway
8-Channel Indoor LoRaWAN® Gateway for Smart Buildings & Industrial IoT
8-Channel Indoor LoRaWAN® Gateway for
Smart Buildings & Industrial IoT
Setu X1
Explore the highlights

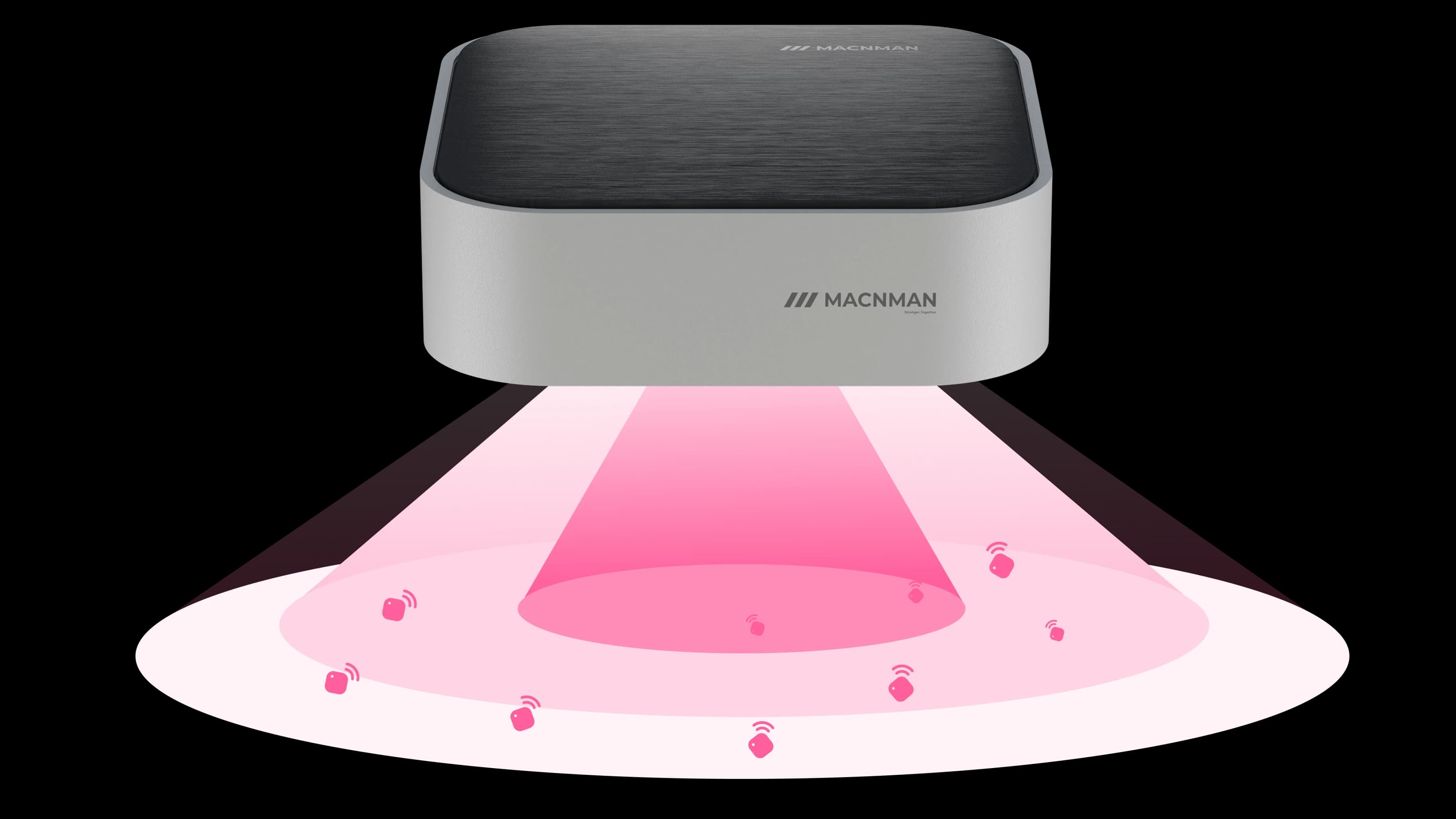

Listens on eight uplink channels at once, so a fleet of 2,000+ sensors across a building shares one gateway without queueing.
Transmits at up to 27 dBm — enough for a whole facility from one indoor unit, with our field tests reaching around 2 km through built-up sites.
With the optional PoE Ethernet, the network cable is the power cable. Mount it, plug it in, done — about 1 W average draw.
Forwards traffic over MQTT or HTTPS to the network server you already run — no lock-in to ours.
A built-in supercapacitor carries the gateway through short outages of around 20 seconds, so brief flickers never drop your fleet.
Runs LoRaWAN v1.0.4 in all three device classes, so scheduled downlinks and always-listening actuators work — not just uplink-only sensors.
If the wired link drops, it falls back to Wi-Fi or 4G on its own. The fleet stays online instead of waiting for someone to notice.
Rated for plant rooms, risers and unconditioned warehouse space, so it does not need a climate-controlled cabinet to stay in spec.
Firmware and configuration push over the air, so gateways across multiple sites move to a new build without a site visit.
In plain terms
What Is an Indoor LoRaWAN Gateway?
The short answer
An indoor LoRaWAN gateway is the receiver that sits inside a building, listens for the radio packets sent by LoRaWAN® sensors and forwards them to a network server over Ethernet, Wi-Fi or 4G. One gateway serves many sensors at once, so a factory floor, warehouse or office block can be monitored without running a cable to each device.
Channels
- 8 channels
Uplink, received in parallel
- 1 channel
Downlink
- ADR
Dynamic data-rate adaptation
Radio
- 27 dBm
Maximum transmit power
- −139 dBm
Receive sensitivity at SF12, 125 kHz
- N-type
Female antenna connector
LoRaWAN
- A · B · C
LoRaWAN® device classes
- IN865
Also EU868 and US915
- AES-128
LoRaWAN® encryption
Backhaul
- Ethernet
One 10/100 Mbps port
- Wi-Fi
802.11 b/g/n
- 4G LTE
Cellular backhaul
Software
- ChirpStack
Network server built into the gateway
- Node-RED
Automation flows on the gateway
- OpenWRT
Linux operating system
Processor
- Quad-core
ARM Cortex-A7 processor
- 512 MB
Memory
- 8 GB
eMMC storage

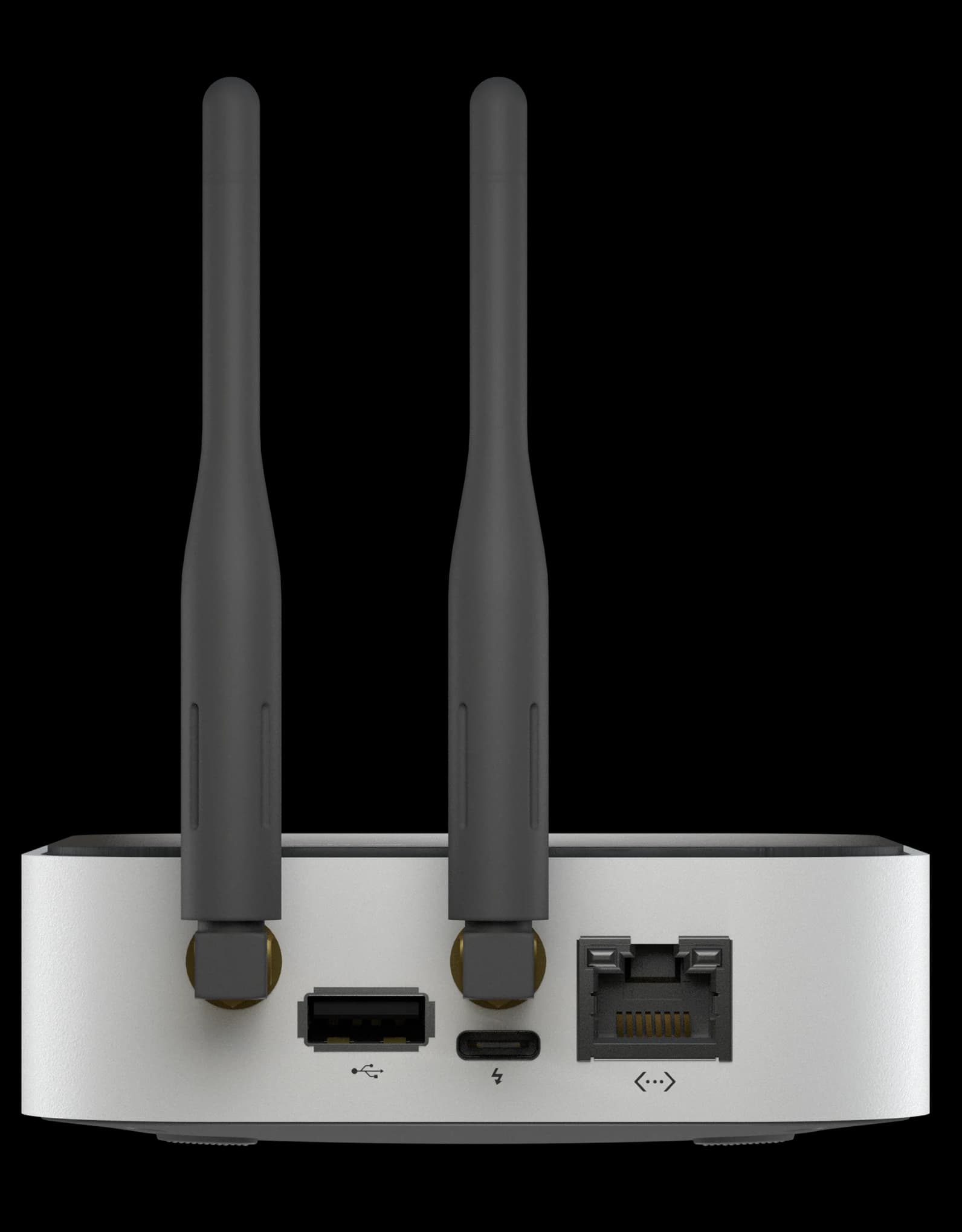

Setu X1
The Setu X1 is an 8-channel indoor gateway that can also be its own network server. ChirpStack and Node-RED run on the gateway itself, so a private LoRaWAN® network needs no cloud, and it still forwards to any server you already run.
Eight uplink channels received in parallel and one downlink channel, with dynamic data-rate adaptation.
Transmits at up to 27 dBm and receives down to −139 dBm at SF12 on a 125 kHz bandwidth.
Works with LoRaWAN® Class A, B and C devices on bands including IN865, EU868 and US915.
Reaches the network server over Ethernet, Wi-Fi or 4G LTE, with the Wi-Fi and cellular antennas inside the enclosure.
Runs OpenWRT Linux with a built-in ChirpStack network server, UDP and ChirpStack MQTT forwarders, and Node-RED.
A quad-core ARM Cortex-A7 with 512 MB of memory and 8 GB of eMMC storage handles the traffic.

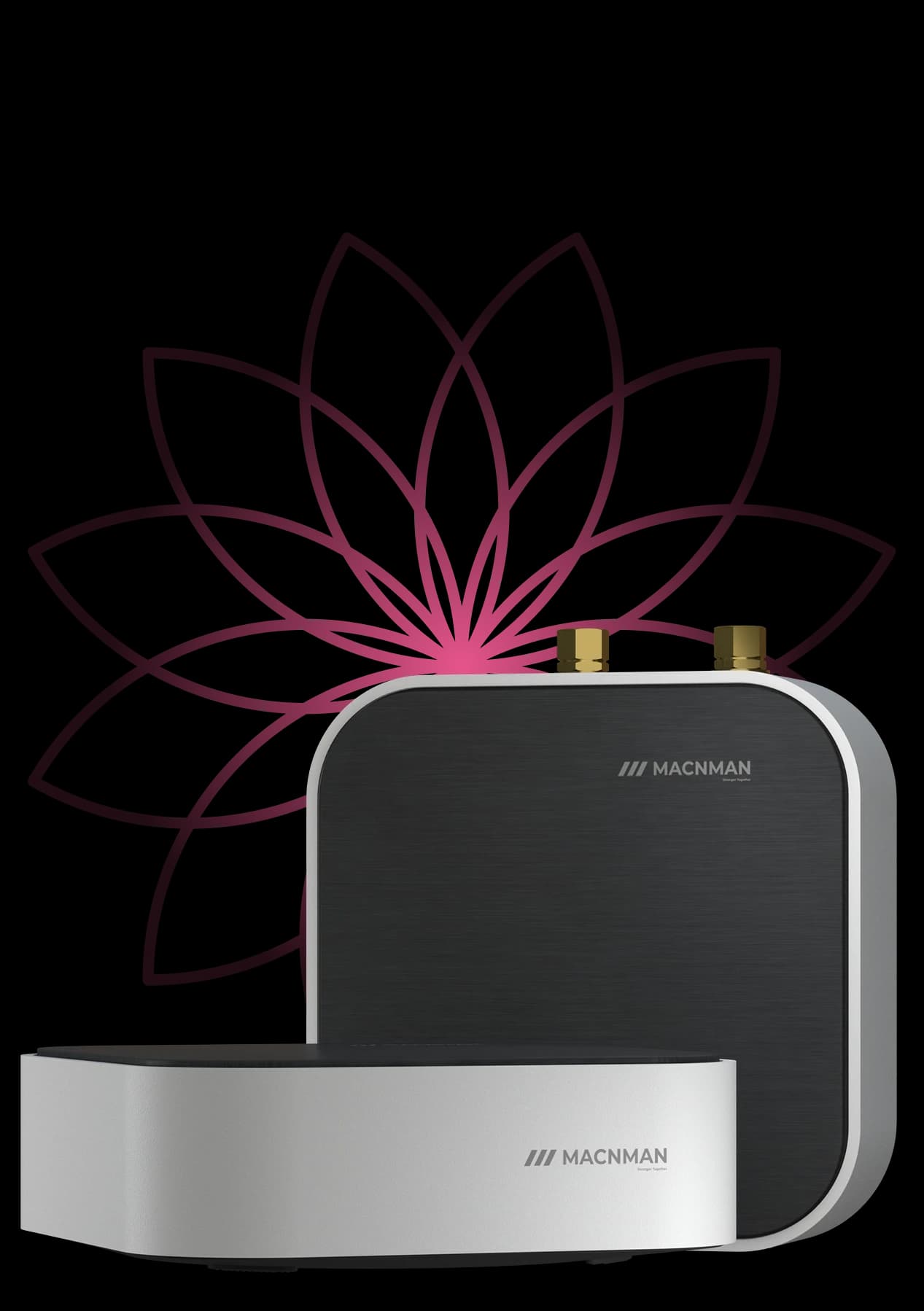

For masts and rooftops, the MacLink Gen-2 is the IP67 outdoor counterpart to this indoor unit.
Get a quote
Need a quote for the Setu X1?
Tell us how many you need and where they are going. A product engineer replies within one working day with availability, lead time and the right variant for your site.
- Reply within one working day
- Designed and built in Pune, India
- WPC compliant, RoHS conformant
Downloads
Everything You Need to Get Building
Datasheets, drawings, firmware, and tools — all in one place.
Product Datasheet
PDF · full technical specifications
In focus
The Capabilities That Set It Apart
Listens on eight uplink channels at once, so a fleet of 2,000+ sensors across a building shares one gateway without queueing.
01 / 05
Applications
Setu X1 Indoor LoRaWAN Gateway Applications
Industrial IoT Automation
Ideal for industrial automation where long‑range LoRaWAN coverage ensures uninterrupted monitoring, machine insights, and real‑time IoT control.
Read case studiesSmart Water & Flow Monitoring (Water Level, Flow Monitoring, Pump Automation): Perfect for water utilities and irrigation systems requiring reliable LoRaWAN connectivity for level, flow, and pump automation monitoring.
Energy Usage & Power Infrastructure (Energy Monitoring, Current Sensors, Power Analytics): Designed for remote power infrastructure where long‑range LoRaWAN helps monitor energy consumption, load patterns, and electrical health.
Cold Chain & Refrigeration Control (Temperature, Humidity, Cold Storage): Ensures long‑range monitoring of cold rooms, freezers, and storage facilities with reliable LoRaWAN connectivity for temperature compliance.
Predictive Maintenance (Vibration, Thermal Monitoring, Condition Alerts): Empowers industries with long‑range vibration and temperature monitoring for early fault detection and predictive maintenance.
Smart Agriculture & Irrigation (Soil Sensors, NPK, Smart Irrigation): Ideal for modern agriculture where LoRaWAN enables soil health, moisture, and crop environmental monitoring across large farmlands.
Facility & Building Automation (HVAC, CO₂ Sensors, Ambient Monitoring): Optimized for facility automation including HVAC, CO₂, and temperature monitoring with long‑range LoRaWAN coverage.
Tank & Silo Level Monitoring (Level, Pressure, Storage Tanks): Enables long‑range monitoring of industrial tanks and silos for level, pressure, and storage safety applications.
Smart Parking Systems (Parking Sensors, Occupancy, Digital Inputs): Supports smart parking deployment with long‑range LoRaWAN connectivity for occupancy detection and automated parking guidance.
Smart Waste Bin Monitoring (Bin Levels, 4–20mA Sensors, Smart City): Built for smart city waste systems where fill‑level monitoring requires dependable wide‑area LoRaWAN coverage.
Greenhouse Automation (CO₂, Humidity, Climate Control): Optimizes greenhouse climate by enabling long‑range monitoring of temperature, humidity, and CO₂ for automated growing environments.
Environmental Monitoring (Air Quality, PM2.5, NO₂): Perfect for pollution and environmental monitoring requiring dependable, kilometer‑scale LoRaWAN coverage.
Tank & Silo Level Monitoring (Level, Pressure, Storage Tanks): Enables long‑range monitoring of industrial tanks and silos for level, pressure, and storage safety applications.
Smart Building Automation (Building Sensors, CO₂, Digital IO): Ideal for building automation solutions including HVAC, occupancy, and environmental controls over LoRaWAN.
Utility Metering (Water Meters, Gas Meters, Pulse IO): Connect utility meters over long‑range LoRaWAN for real‑time consumption, alerts, and automated billing insights.
Mining & Harsh Industry Monitoring (Gas, Pressure, Vibration): Engineered for harsh mining environments with long‑range LoRaWAN ideal for gas, pressure, and vibration monitoring.
Quality Control & Automation (Relay Control, Digital Inputs, Automation): Supports remote control and automation of industrial processes using LoRaWAN‑based relay and sensor integration.
Chemical Tank Monitoring (pH, Temperature, Chemical Storage): Ensures safe monitoring of chemical tanks with long‑range LoRaWAN connectivity for pH, temperature, and storage levels.
Resource & Process Optimization (Occupancy, Process Sensors, Automation): Ideal for optimizing workflows and resources with long‑range monitoring of occupancy, equipment, and process sensors.
Airport Asset & Utility Monitoring (Utilities, Tracking, Digital IO): Supports airport‑wide LoRaWAN monitoring of baggage systems, utilities, and critical infrastructure assets.
Water & Sewage Treatment (pH, DO, Turbidity): Enables STP and ETP process automation with long‑range LoRaWAN monitoring of turbidity, DO, pH, and water levels.
Livestock & Poultry Automation (Temperature, Humidity, Farm Sensors): Enhances livestock productivity with long‑range LoRaWAN monitoring of barn temperature, humidity, and farm conditions.
Commercial & Mall Automation (Occupancy, HVAC, Digital Inputs): Ideal for malls and commercial buildings needing long‑range LoRaWAN monitoring for HVAC, occupancy, and energy control.
Browse all 23 applications
01 / 23
Capabilities

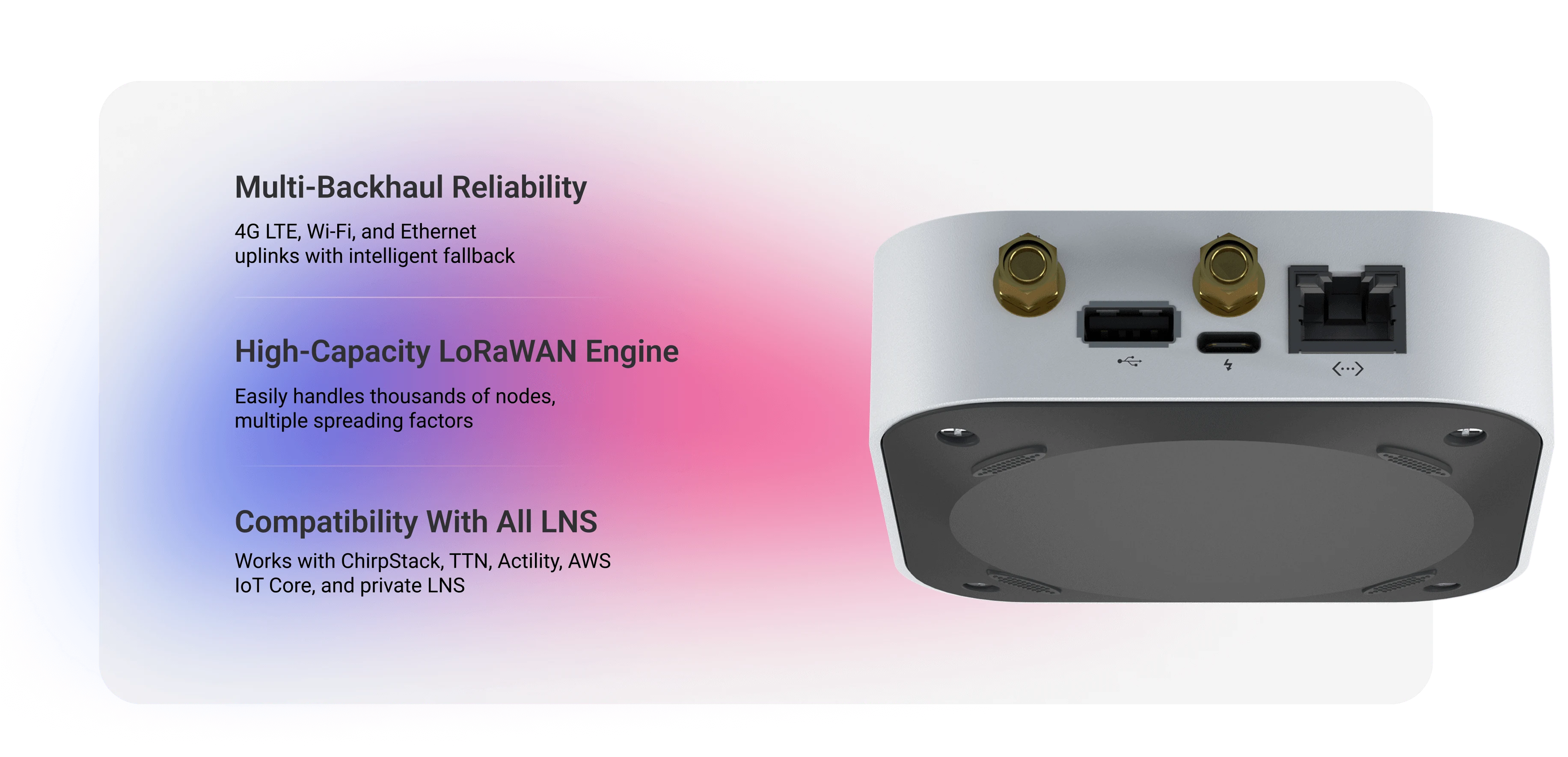

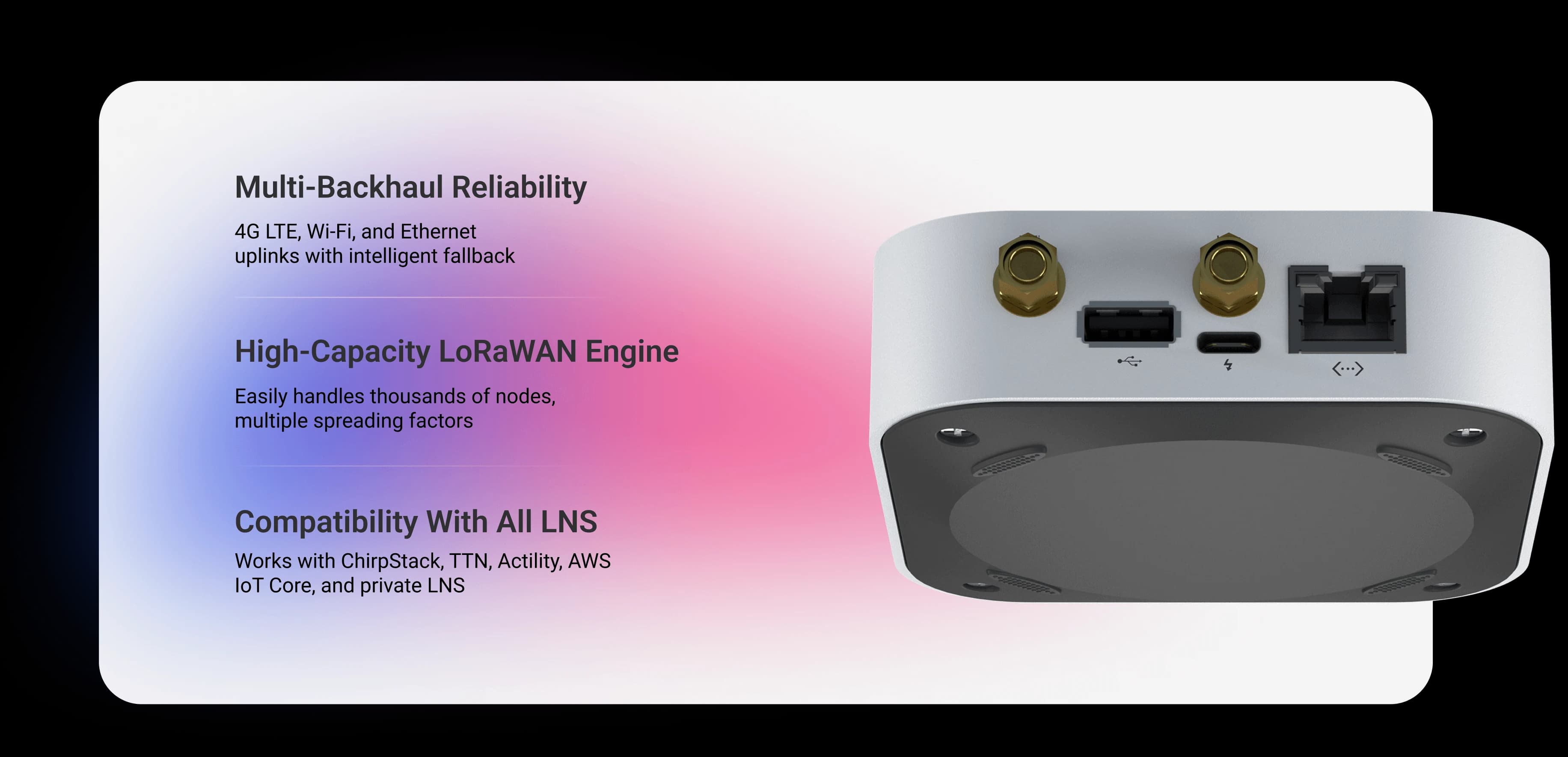

Why Setu X1 Is the Best Indoor LoRaWAN® Gateway for Your Needs
Engineered for maximum reliability, high-capacity LoRaWAN performance
Want to see how this gateway fits your project? Let’s talk.
Edge processing
High-Performance LoRaWAN® Gateway
Processing for Fast, Low-Latency Data Handling
512MB
RAM
1066MHz
max Speed
ARM Cortex-A7
Processor
Capacity
High-Capacity LoRaWAN® Chipset for Dense Long Range IoT Networks
Empower large-scale IoT networks with the Macnman's Setu X1 LoRaWAN® Gateway, powered by the SX1302 LoRa chip and a powerful quad-core CPU. It supports up to 2000 IoT devices, making it ideal for smart cities and large-scale industrial networks.
Chipset
High-Performance LoRaWAN® Concentrator for Long-Range
Setu X1 uses a high-capacity LoRaWAN concentrator with SX1302-class performance, delivering better LoRaWAN sensitivity, long-range communication, and high demodulation capacity for large-scale LoRaWAN networks.
Advanced LoRaWAN® Chip for High-Traffic Networks
Optimized for Low-Power, Long-Range IoT Communication
Supports Fast Spreading for faster transmission
Seamless Compatibility with LoRaWAN® Class A, B & C Devices

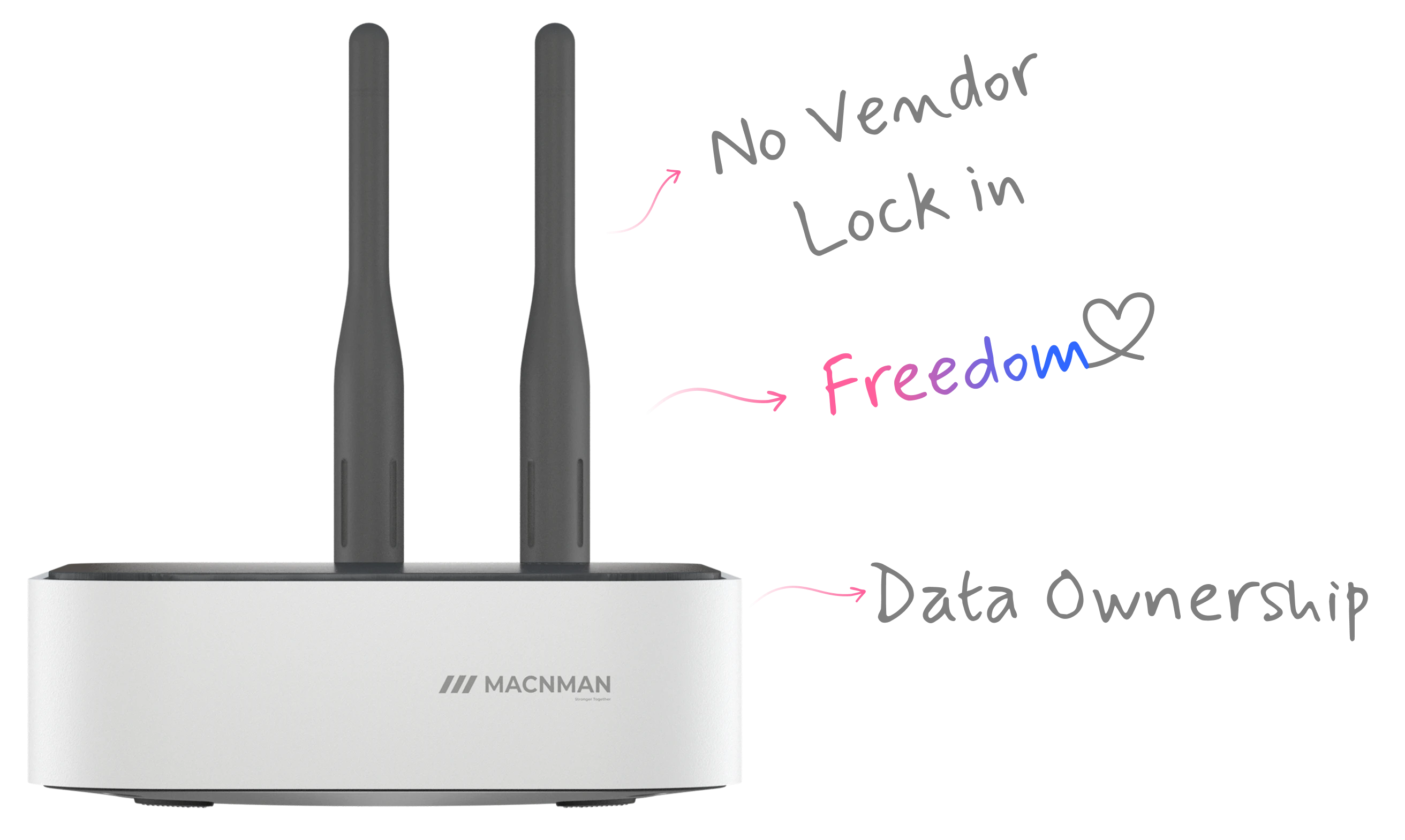

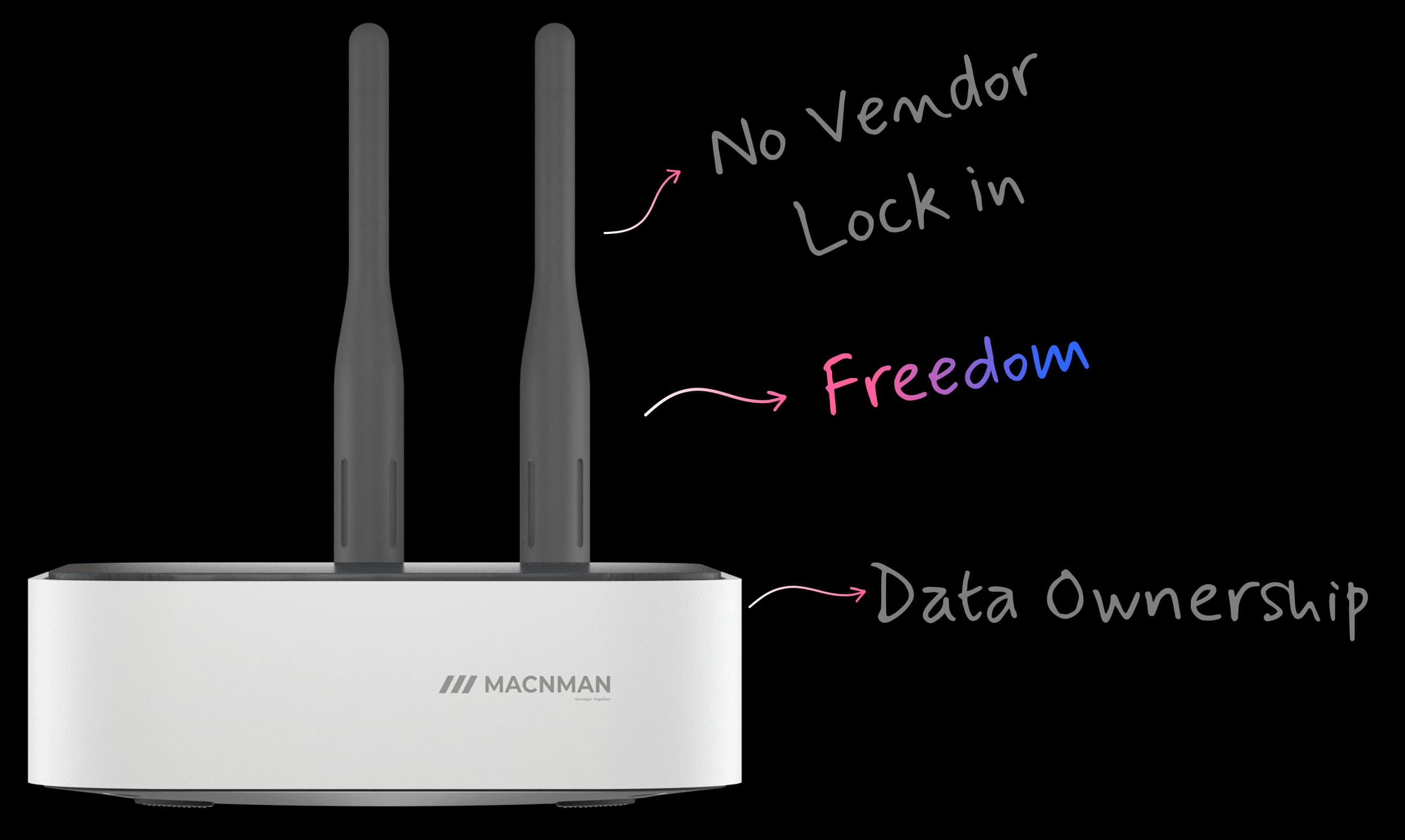

Cloud & LNS
Works Seamlessly With All Leading LoRaWAN® Network Servers
Supports ChirpStack, The Things Stack, Actility, AWS IoT Core
Setu X1 supports all major LoRaWAN network servers, making it fully compatible with ChirpStack, Actility, The Things Stack, TTN, and AWS IoT Core for LoRaWAN.
Works with

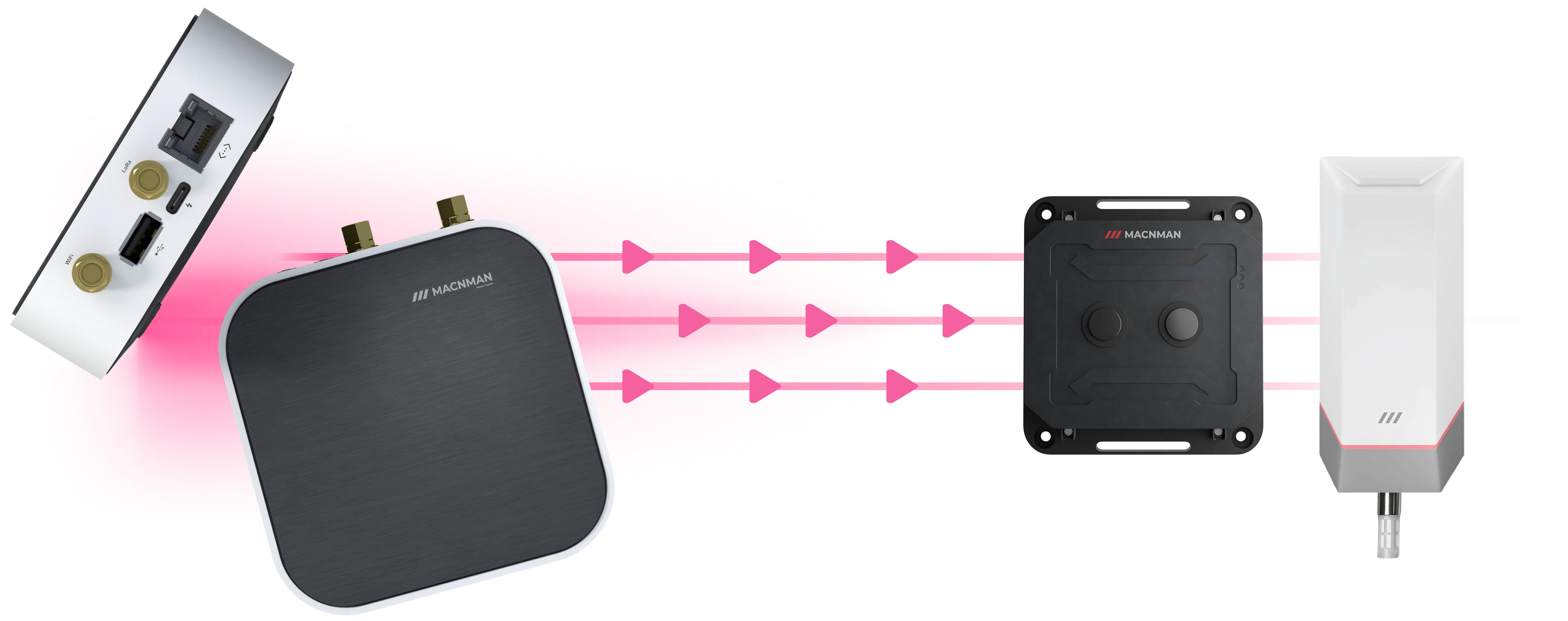

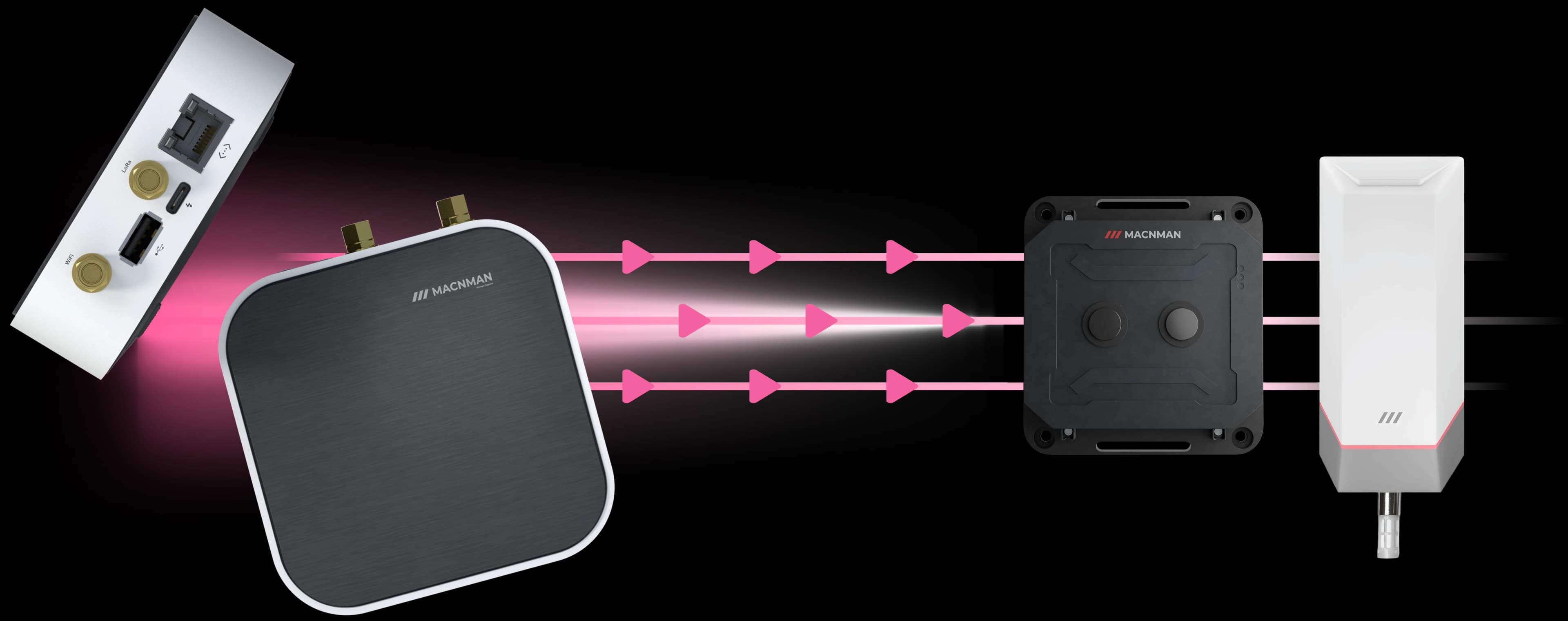

LoRaWAN® Gateway Remote Update & OTA Firmware Support
Secure cloud-managed LoRaWAN gateway with over-the-air firmware updatesSecure cloud-managed LoRaWAN gateway with over-the-air firmware updates
Hardware

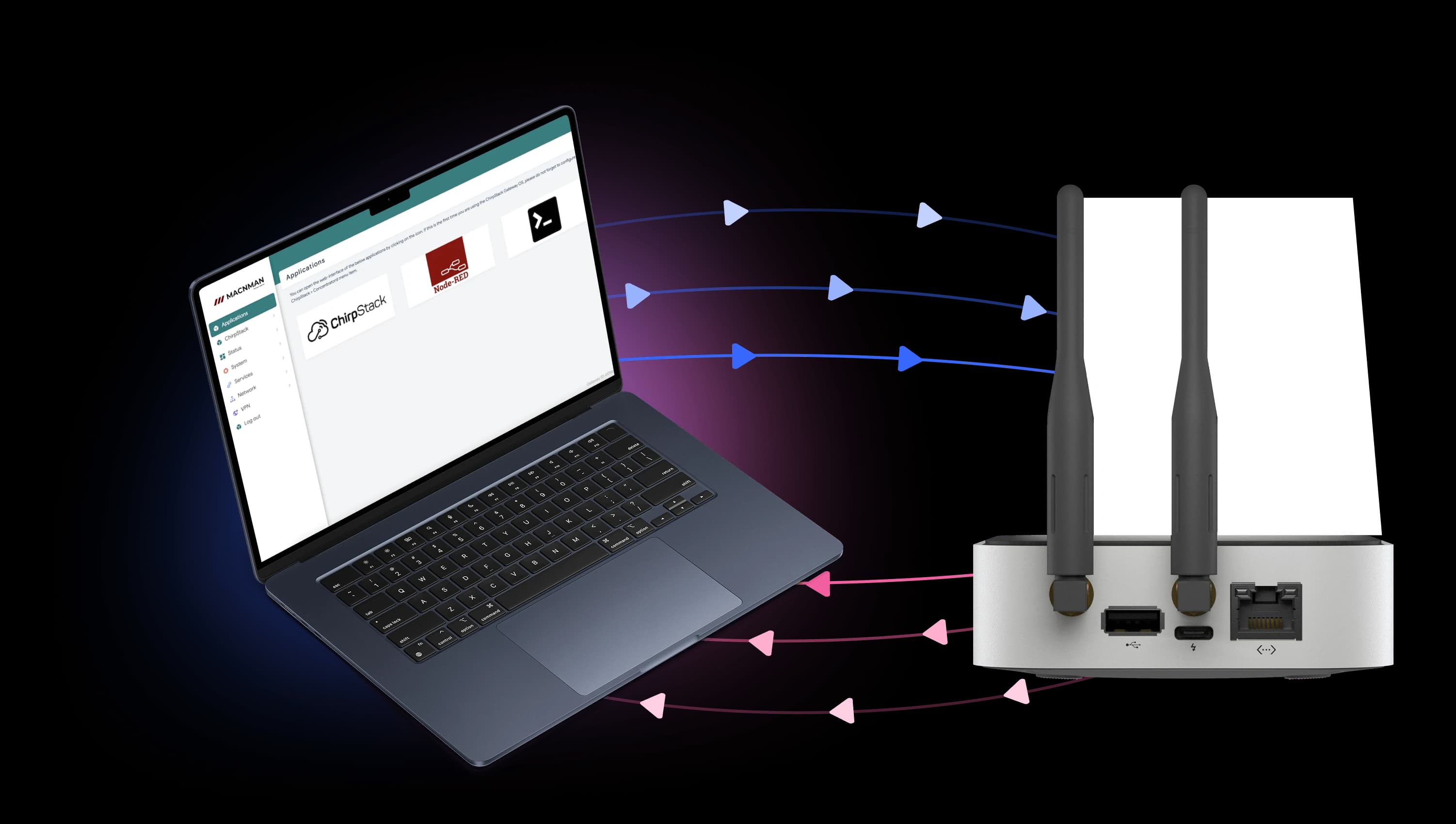

Macnman's Setu-X1 is Easy to Configure LoRaWAN® Gateway for Super Fast Deployment
Simple setup with a plug-and-play interface, web-based configuration, and quick installation workflow for any LoRaWAN® network.
Device-to-device

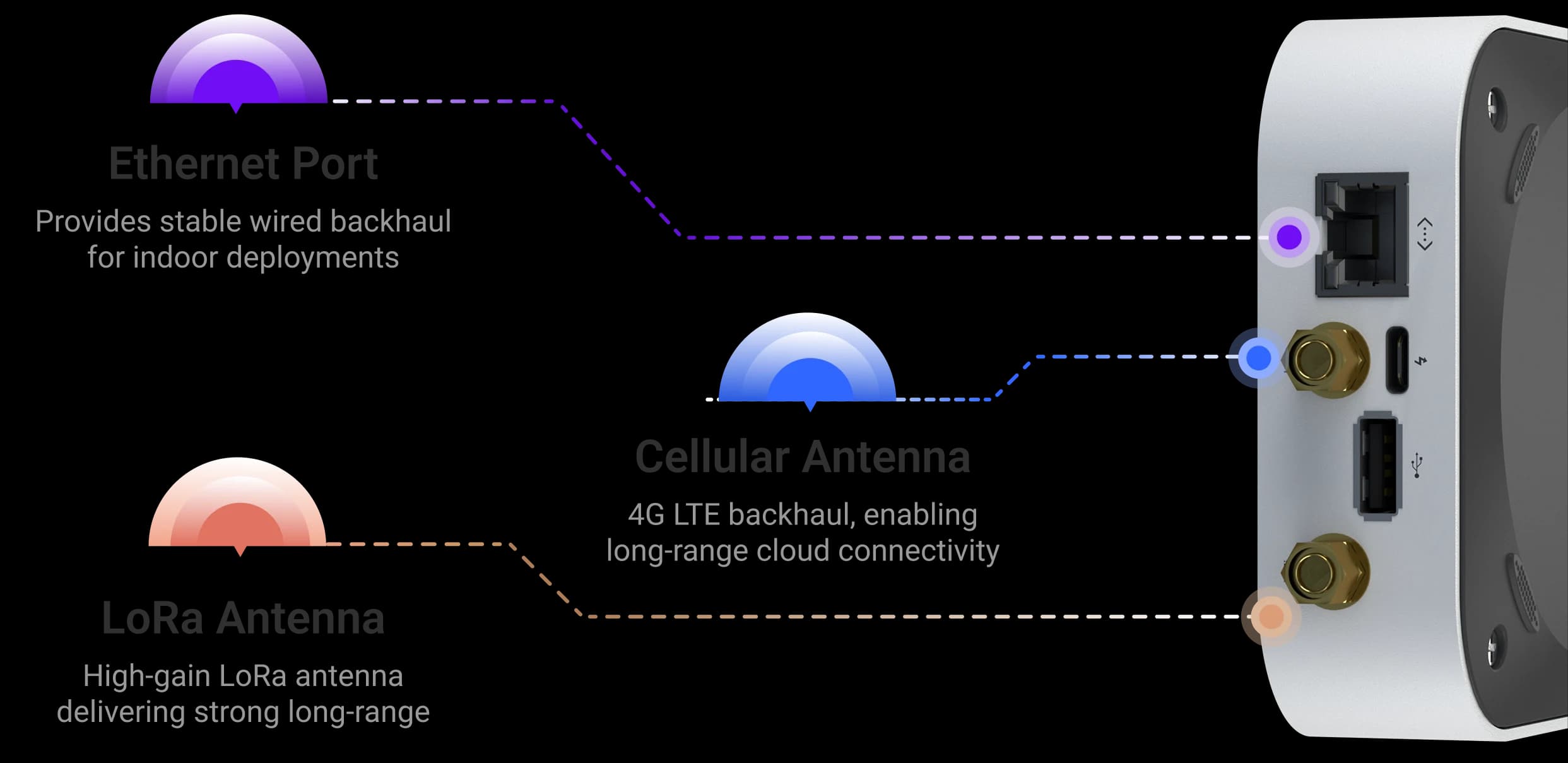

LoRaWAN Gateway with Ethernet Port, Cellular, & LoRa Antenna
for flexible backhaul and long-range wireless performance.
Setu X One features the essential LoRaWAN gateway ports users search for — an Ethernet backhaul port, a cellular antenna port for 4G connectivity, and a LoRa antenna interface for long-range wireless performance
Setu X One features the essential LoRaWAN gateway ports users search for — an Ethernet backhaul port, a cellular antenna port for 4G connectivity, and a LoRa antenna interface for long-range wireless performance
Cellular Connectivity
Deploy it Anywhere
LoRaWAN Antenna
High Gain LoRa Antenna
PoE Ethernet (Optional)
No Power Wire Hassel
At a glance
Setu X1 Indoor LoRaWAN Gateway — Key Specifications
Every key specification in one view.
8 ch
parallel channels
Concurrent LoRaWAN demodulation
2000+
nodes supported
High concurrent capacity
2 km
urban range
Reliable 1–2 km in urban areas
4G · Wi-Fi
backhaul
4G LTE · dual-band Wi-Fi · optional PoE Ethernet
v1.0.4
LoRaWAN protocol
Class A/B/C · global bands supported
Any LNS
network servers
Global LNS support
Features
Everything built in
Flexible Backhaul Options
Ethernet, 4G LTE & Wi-Fi ensure constant uplink across indoor deployments.
Reliable cellular connectivity for stable packet forwarding and uptime.
8-Channel LoRa® Connectivity
Supports dense sensor deployments with stable, long-range indoor coverage.
Inbuilt LNS for On-Prim Deployments
Ensures fast packet handling and smooth real-time data processing on prim.
Quad-Core ARM Processing
Powerful processors for the egde operations & local communication
Indoor-Ready Robust Build
Precision Time Sync Engine
Delivers stable timing for dense LoRaWAN® networks and traffic accuracy.
LoRaWAN® Classes A, B & C
Fully supports all device modes for complete indoor IoT flexibility.
Engineered for indoor reliability
Range & reliability
Long-Range LoRaWAN® Coverage for Deep Indoor Connectivity
Long Range LoRaWAN Networks with Strong Indoor Penetration
Setu X1 delivers long range LoRaWAN coverage with enhanced indoor signal penetration, supporting 1 km urban reach and 5+ km rural range ideal for users searching for the best LoRaWAN range and extended coverage IoT gateways.
Core features

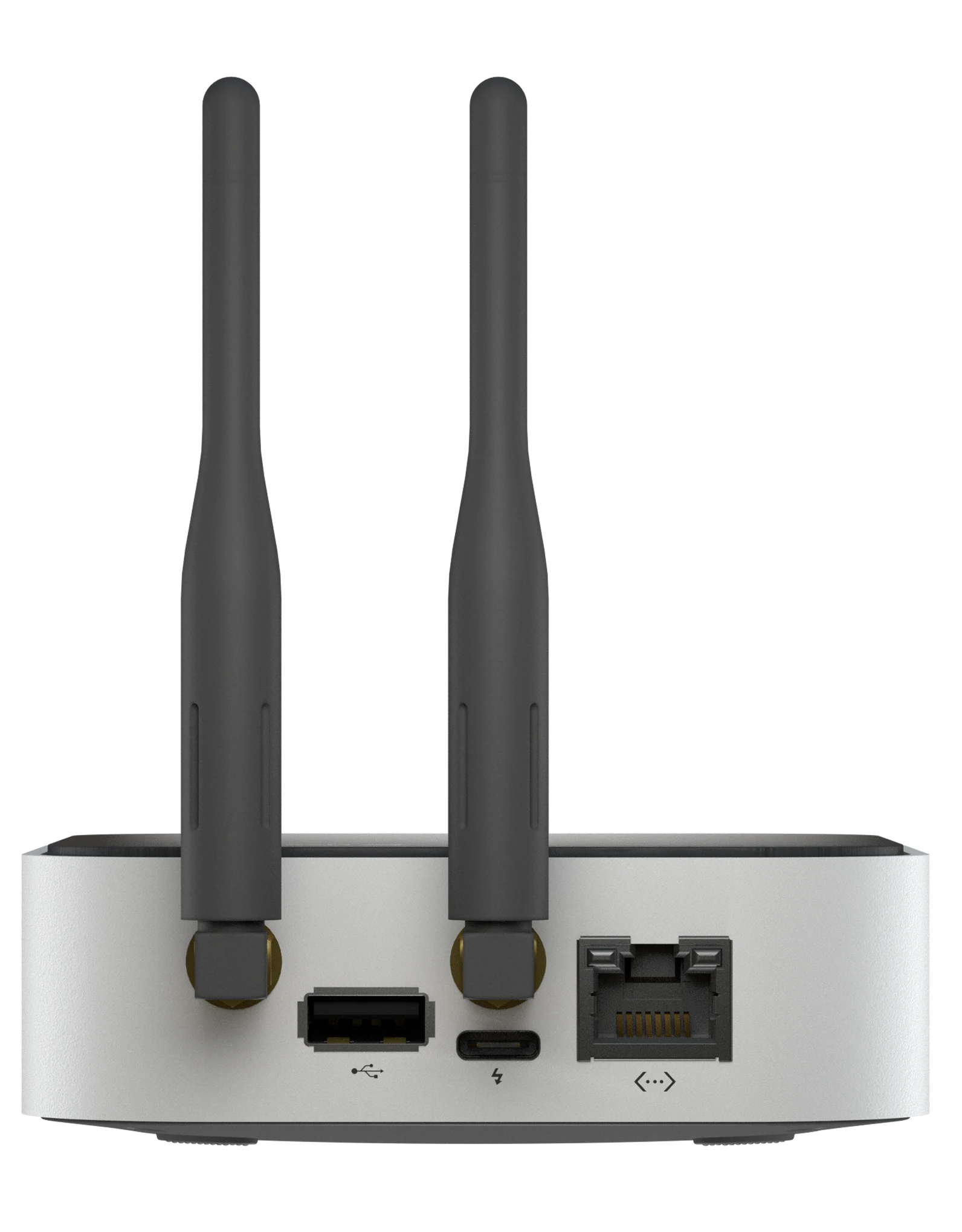

Multi-Backhaul LoRaWAN® Gateway With 4G, Wi-Fi & Ethernet
Multi-Network 4G Backhaul Support
Stay connected with optional 4G LTE uplink, delivering reliable cloud routing for mobile or remote LoRaWAN deployments.
With Automatic Failover & Reliable Fallback Redundancy
Flexible Network Options
Choose Wi-Fi for flexible setups or Ethernet for high-stability wired connectivity across indoor IoT environments
Power & Data in One Cable
Simplify installation with Power over Ethernet, providing clean, stable power and high-speed data through a single cable.
Always-On Connectivity
Designed with fallback backhaul, keeping your LoRaWAN gateway online even when a primary network link fails.

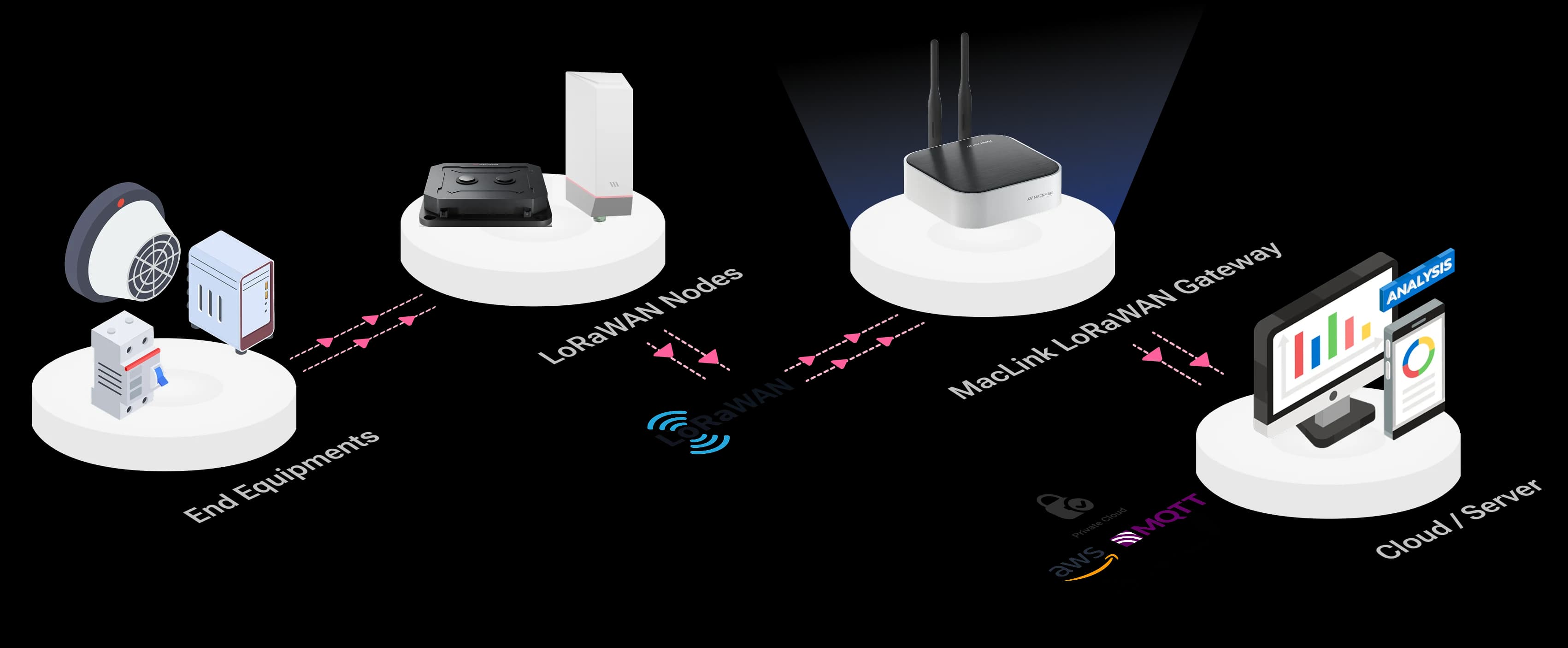

Architecture
LoRaWAN® Architecture Designed for Reliable End-Device to Cloud
Highlights
6 Key Benefits of the Setu X1 Indoor LoRaWAN® Gateway
Why Setu X1 is the most reliable, high‑capacity, and deployment‑ready indoor LoRaWAN® gateway for smart buildings, industries, and enterprise IoT networks.
Strong Indoor LoRaWAN Coverage
Designed for deep indoor penetration with superior RF sensitivity, ensuring stable LoRaWAN communication across multi‑floor buildings.
Multi‑Backhaul Connectivity
Supports Ethernet, Wi‑Fi, and optional 4G LTE uplink, providing reliable cloud connectivity with automatic fallback for uninterrupted performance.
High Device Capacity
Handles 2000+ LoRaWAN devices simultaneously, ideal for large campuses, factories, commercial buildings, and industrial IoT deployments.
Simple & Fast Setup
Plug‑and‑play configuration with an easy web interface makes deployment quick for integrators, installers, and enterprise IT teams.
Compact Indoor‑Friendly Design
A sleek, lightweight form factor suitable for offices, malls, warehouses, hospitals, labs, and enterprise facilities.
Enterprise‑Grade Reliability
Engineered with a high‑performance LoRaWAN concentrator, precision timing, and stable power design to ensure consistent packet delivery.
FAQ
Frequently asked questions
Setu X1 offers 1–2 km indoor coverage depending on building structure, antenna placement, and interference. Its high‑sensitivity SX1302-class concentrator ensures stable connectivity even in dense environments.
The gateway supports 2000+ LoRaWAN nodes simultaneously, making it ideal for large smart‑building, industrial automation, and commercial IoT deployments.
Yes. Setu X1 is fully compatible with ChirpStack, The Things Stack, Actility, Loriot, and AWS IoT Core for LoRaWAN. It supports standard LoRaWAN v1.0.4 Class A/B/C devices.
Setu X1 supports 4G LTE (Single SIM), Ethernet, and Wi‑Fi backhaul options. You can choose the best connectivity method for your building or enterprise network.
Yes. Setu X1 supports remote management, OTA firmware upgrades, remote configuration, and cloud‑based monitoring—allowing zero‑touch maintenance.
Absolutely. Its 8‑channel LoRaWAN capability, strong indoor penetration, multi‑backhaul support, and scalable connectivity make it ideal for HVAC monitoring, energy management, occupancy tracking, industrial automation, and more.
Setu X1 is designed for easy installation with a plug‑and‑play web interface. Configuration takes just a few minutes using its browser‑based setup panel.
No. Setu X1 is engineered specifically for indoor deployments such as offices, malls, hospitals, warehouses, and commercial buildings.
