Setu LX Series Indoor LoRaWAN® Gateway Datasheet
Product Overview

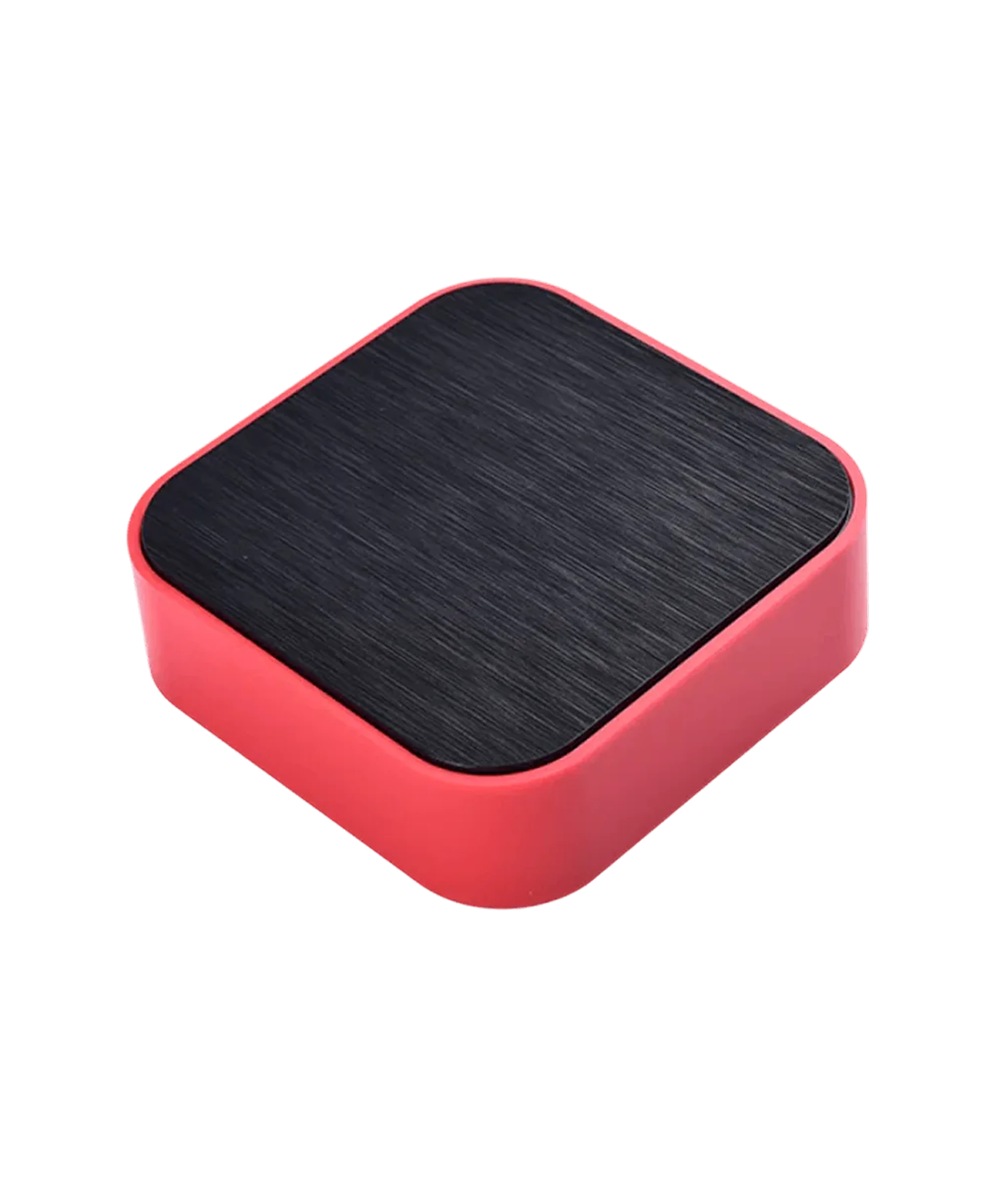

Setu LX Series is a compact and enterprise-grade Indoor LoRaWAN® Gateway Series engineered for reliable long-range wireless communication, smart building connectivity, and enterprise Industrial IoT deployments. Designed with high-sensitivity LoRaWAN® concentrator architecture, optimized RF performance, and flexible backhaul connectivity, the Setu LX Series enables seamless indoor LoRaWAN® coverage across offices, hospitals, commercial buildings, smart campuses, warehouses, hotels, retail infrastructure, and Industry 4.0 environments.
The Indoor LoRaWAN® Gateway Series supports Ethernet, Wi‑Fi, and optional cellular backhaul connectivity, enabling secure communication between LoRaWAN® sensors, controllers, smart meters, asset tracking systems, and cloud or private network servers. The fanless low-power architecture ensures silent operation and reliable deployment inside enterprise and commercial environments.
Setu LX Series gateways support AES‑128 LoRaWAN® encrypted communication, remote OTA firmware management, centralized device monitoring, and compatibility with major LoRaWAN® Network Servers including ChirpStack, The Things Network (TTN), MQTT, LORIOT, Orbiwise, and private Industrial IoT infrastructures.
The Indoor LoRaWAN® Gateway Series is optimized for smart building automation, energy monitoring, environmental sensing, predictive maintenance, asset tracking, industrial telemetry, occupancy analytics, and enterprise-wide wireless IoT deployments.
Whether deployed inside offices, hospitals, industrial facilities, educational campuses, warehouses, or smart commercial infrastructure — Setu LX Series delivers scalable, secure, and enterprise-ready Indoor LoRaWAN® connectivity for next-generation IoT deployments.
Download Center
Download the PDF version of the datasheet.
Click here to view the software resources for Setu LX Series
Key Features
Enterprise Indoor LoRaWAN® Gateway Compact enterprise-grade Indoor LoRaWAN® Gateway designed for smart buildings, offices, hospitals, warehouses, commercial infrastructure, and Industry 4.0 deployments.
High-Capacity 8-Channel LoRaWAN® Gateway Supports thousands of LoRaWAN® sensors, smart meters, controllers, and Industrial IoT devices with reliable long-range indoor wireless coverage.
Optimized Indoor RF Performance High-sensitivity LoRaWAN® concentrator architecture engineered for reliable indoor communication across multi-floor buildings, warehouses, campuses, and commercial spaces.
Ethernet, Wi‑Fi & LTE Connectivity Supports Ethernet, Wi‑Fi, and optional LTE backhaul connectivity for uninterrupted enterprise IoT communication and flexible indoor deployment.
Industrial Edge Intelligence Supports edge automation, local processing, Node‑RED integration, MQTT communication, and industrial telemetry infrastructure.
Enterprise-Grade Security AES‑128 LoRaWAN® encryption with TLS-secured backhaul connectivity ensures secure Industrial IoT and enterprise wireless communication.
Remote OTA Firmware Management Enables centralized remote diagnostics, firmware upgrades, configuration management, and enterprise gateway monitoring.
Silent Fanless Architecture Fanless low-power thermal design ensures silent operation for offices, hospitals, educational campuses, and indoor commercial environments.
Supports Major LoRaWAN® Network Servers Compatible with ChirpStack, The Things Network (TTN), MQTT, LORIOT, Orbiwise, and private LoRaWAN® network infrastructures.
Smart Building & Industry 4.0 Ready Designed for energy monitoring, occupancy analytics, predictive maintenance, environmental monitoring, and enterprise automation systems.
Flexible Wall & Ceiling Mount Installation Compact enclosure supports fast wall-mounted and ceiling-mounted installation inside enterprise and commercial infrastructure.
Scalable Enterprise IoT Infrastructure Enables scalable Indoor LoRaWAN® network expansion for commercial buildings, industrial facilities, smart campuses, and smart city infrastructure.
Suited Applications
Smart Buildings & Enterprise Offices Enables Indoor LoRaWAN® connectivity for smart office automation, BMS systems, occupancy monitoring, HVAC optimization, lighting automation, and workplace analytics.
Hospitals & Healthcare Infrastructure Supports patient safety systems, cold-chain monitoring, indoor asset tracking, air quality monitoring, pharmaceutical storage monitoring, and healthcare IoT infrastructure.
Industry 4.0 & Industrial Automation Connects predictive maintenance sensors, industrial telemetry systems, machine monitoring infrastructure, industrial environmental sensors, and factory automation systems.
Warehouses & Smart Logistics Ideal for warehouse automation, inventory monitoring, indoor asset tracking, pallet monitoring, RFID infrastructure extension, and logistics analytics.
Retail Stores & Shopping Malls Enables people counting, occupancy analytics, indoor environmental monitoring, smart retail automation, and energy management systems.
Hotels & Hospitality Automation Supports smart room automation, guest comfort monitoring, energy optimization, indoor environmental sensing, and hospitality infrastructure management.
Educational Campuses & Smart Institutions Provides enterprise-wide Indoor LoRaWAN® infrastructure for classrooms, laboratories, libraries, hostels, environmental monitoring, and campus automation systems.
Commercial Buildings & Facility Management Enables centralized monitoring of electrical systems, occupancy analytics, indoor air quality, maintenance alerts, and smart commercial building operations.
Indoor Environmental Monitoring Supports temperature, humidity, CO₂, IAQ, leak detection, smoke monitoring, and indoor climate sensing across enterprise facilities.
Energy Monitoring & Sustainability Systems Connects smart meters, power monitoring devices, solar energy systems, utility sensors, and enterprise sustainability monitoring infrastructure.
Indoor Asset Tracking & Telemetry Supports LoRaWAN® asset tracking tags, telemetry infrastructure, equipment monitoring, and enterprise mobility analytics across indoor facilities.
Data Centers & Server Room Monitoring Ideal for temperature monitoring, humidity sensing, leak detection, power infrastructure monitoring, and mission-critical environmental monitoring systems.
Airports, Metro Stations & Public Infrastructure Enables scalable Indoor LoRaWAN® coverage for public infrastructure monitoring, occupancy analytics, environmental sensing, and smart transportation systems.
Private Enterprise LoRaWAN® Networks Builds secure private Indoor LoRaWAN® infrastructure for enterprise IoT deployments, industrial facilities, commercial infrastructure, and smart campuses.
Node‑RED & Edge Automation Deployments Supports local automation workflows, MQTT telemetry, edge intelligence, industrial protocol integration, and enterprise edge processing applications.
Technical Specifications
Setu LX Series Variants
| SKU | Variant Name | Backhaul Connectivity | Power Input | Deployment Type | Ideal For |
|---|---|---|---|---|---|
| 82201 | Setu-L-PG-X1 | Ethernet + Wi-Fi + 4G LTE | PoE IEEE 802.3af / USB Type-C / 12–24 V DC | Industrial Indoor Installation | Indoor LoRaWAN® deployments for smart buildings, factories, hospitals, warehouses, offices, educational campuses, retail stores, hotels, commercial infrastructure, and Industry 4.0 applications requiring reliable multi-floor wireless coverage and enterprise IoT connectivity. |
What's in the Box?
The Setu LX Series Indoor LoRaWAN® Gateway package is designed for fast enterprise deployment, smart building integration, and indoor Industrial IoT installations. Before installation, verify that all gateway components and mounting accessories are available inside the package.
The standard package contents include:
- Setu LX Series Indoor LoRaWAN® Gateway
- USB Type‑C Power Cable
- Wall Mount Installation Kit
- Ceiling Mount Accessories
- Quick Installation Guide
- Product Warranty Card
- LTE Antenna * (For LTE Variants)
- LTE Antenna Pair * (For LTE Variants)
The included installation accessories simplify wall-mounted and ceiling-mounted deployment inside offices, hospitals, educational campuses, warehouses, smart buildings, commercial infrastructure, and Industry 4.0 environments.
Ensure all accessories and gateway components are inspected before powering the device or starting enterprise IoT deployment.
Optional accessories including LTE antennas, Ethernet cables, PoE accessories, and industrial mounting hardware may need to be purchased separately depending on deployment requirements and selected gateway variants.

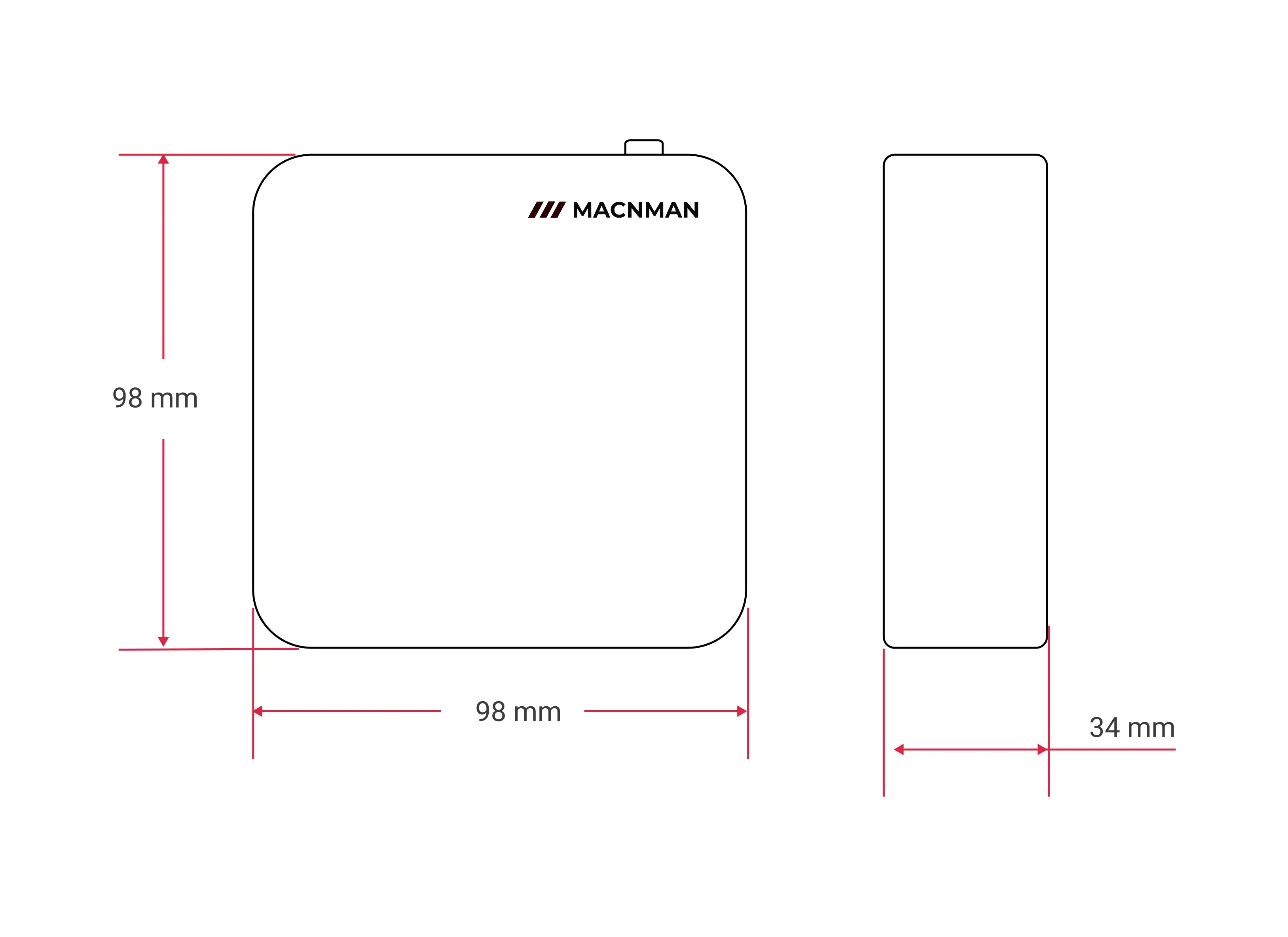

Setu LX Series Dimensions
The Setu LX Series Indoor LoRaWAN® Gateway features a compact enterprise-grade enclosure engineered for smart buildings, indoor Industrial IoT deployments, offices, hospitals, commercial infrastructure, and Industry 4.0 automation systems.
- 98 mm × 98 mm × 34 mm (Without Antenna)
The low-profile industrial enclosure enables clean wall-mounted and ceiling-mounted installation while maintaining reliable indoor wireless communication and optimized RF performance.
Frequently Asked Questions
What is the Setu LX Series used for?
Setu LX Series is a compact 8-channel indoor LoRaWAN gateway with Ethernet, Wi-Fi and LTE backhaul for smart buildings, enterprise IoT and Industry 4.0. Typical applications include Smart Buildings & Enterprise Offices, Hospitals & Healthcare Infrastructure, Industry 4.0 & Industrial Automation, Warehouses & Smart Logistics, Retail Stores & Shopping Malls and Hotels & Hospitality Automation.
How many LoRaWAN channels and which frequency bands does the Setu LX Series support?
The Setu LX Series has 8 uplink channels and 1 downlink channel, and is compatible with LoRaWAN® Class A / B / C devices. Supported frequency plans: IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4. Transmit power: Up to 27 dBm @ SF12, BW 125 kHz. Receive sensitivity: Down to -139 dBm @ SF12, BW 125 kHz.
Which backhaul options does the Setu LX Series have?
The Setu LX Series offers Ethernet, Wi-Fi and cellular LTE backhaul. Cellular bands: B1/3/5/7/8/20/28. SIM: 2 × Nano SIM. It also includes a built-in ChirpStack Server.
How is the Setu LX Series powered?
The Setu LX Series is powered from PoE IEEE 802.3af / 802.3at or 12–24 V DC. Typical power consumption is 4.5 W (with Ethernet Backhaul), with a peak of up to 7 W (with LTE & Wi-Fi Active).
What is the IP rating and operating temperature of the Setu LX Series?
The Setu LX Series has an ingress protection rating of IP67 and an operating temperature range of -40°C to +80°C. Operating humidity: 0% to 100% RH (non-condensing). Mounting options: Pole Mounting / Wall Mounting.
What is included in the box with the Setu LX Series?
The box contains: Setu LX Series Indoor LoRaWAN® Gateway, USB Type‑C Power Cable, Wall Mount Installation Kit, Ceiling Mount Accessories, Quick Installation Guide, Product Warranty Card, LTE Antenna * (For LTE Variants) and LTE Antenna Pair * (For LTE Variants).
