Wi-Fi Temperature & Humidity Sensor

Battery-Powered · No Gateway Needed · Industrial Grade

Wi-Fi Temperature & Humidity Sensor

MacSync Industrial Wi-Fi Temperature & Humidity Sensor is a battery-operated WiFi temperature and humidity sensor that delivers factory-calibrated climate monitoring over your existing Wi-Fi network

Wireless Climate Monitoring for
Cold Chain, Pharma & Server Rooms — No Hub Required.

±0.2 °C Accuracy-30 to +70 °C range
0-100% RH Humidity±2% RH accuracy
3-Year Battery Life19 Ah cell · @ 5-min uplinks
30,000 Records On-BoardNo data loss when Wi-Fi drops
Works on Existing Wi-FiDual-band 2.4 / 5 GHz · no gateway

MacSync TH Sensor

Explore the highlights

MacSync industrial Wi-Fi temperature and humidity sensor

No power cable, no data cable, no conduit. Mounts on a wall or pole in minutes and starts reporting — reposition it whenever your zones change.

Downloads

Everything You Need to Get Building

Datasheets, drawings, firmware, and tools — all in one place.

Product Datasheet

PDF · full technical specifications

Engineered in

Built for the Realities of Industrial Sites

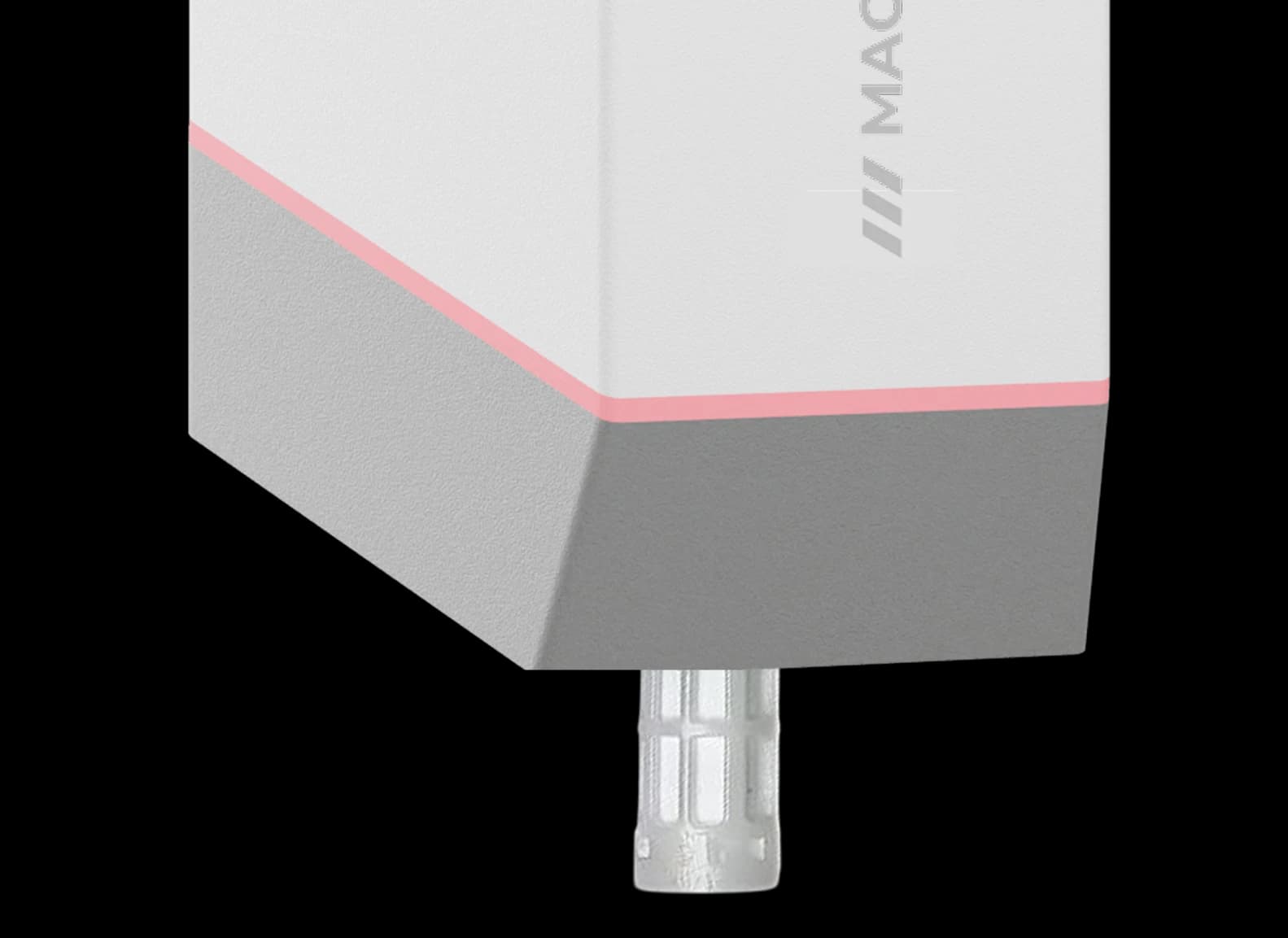

Measure ambient conditions, or run the external probe into freezers, chambers, and enclosures while the transmitter stays outside.

MacSync TH sensor external probe measuring inside a cold chamber

Applications

Industrial & Process Monitoring — IoT solution by Macnman

Industrial & Process Monitoring

Harsh Environments-40 to +80 °C

MacSync monitors temperature and humidity in manufacturing plants , machine rooms, and process industries — catching heat buildup and condensation before they affect quality or uptime.

Read case studies

Browse all 13 applications

01 / 13

Works with

±0.2 °C & 2% RH Accurate Temperature and Humidity Monitoring with Factory-Calibrated Sensing

Battery-Operated Wi-Fi Temperature & Humidity Sensor with Real-Time Threshold Alerts

Battery-Operated Wi-Fi Temperature & Humidity Sensor with Real-Time Threshold Alerts

Where it fits

Built for Every Environment, From Cold Rooms to Server Racks

Cold storage room monitored by an industrial Wi-Fi temperature and humidity sensor

Cold Chain & Cold Storage

Continuous temperature logging in cold rooms, chillers, and reefer transport. Deviation alerts reach your team before stock is at risk — no wiring into refrigerated spaces, and years of battery life per sensor.

Warehouse and pharma storage compliance monitoring with Wi-Fi temperature humidity sensors

Warehouses & Pharma Compliance

Automatic temperature and humidity records across storage zones give you audit-ready compliance logs — your existing Wi-Fi coverage reaches racks, aisles, and loading bays alike.

Server room climate monitored by a wireless Wi-Fi temperature and humidity sensor

Server Rooms & Critical Facilities

Track hotspots and humidity drift in server rooms, panels, and equipment enclosures around the clock — and act on alerts before heat or condensation becomes downtime.

Want to see the sensor running before you commit?

Book Live Demo Now

Why Macnman

Do Wi-Fi Temperature Sensors Need a Hub or Gateway?

No. The MacSync Wi-Fi TH sensor joins your existing Wi-Fi network — 2.4 or 5 GHz directly — no gateway, no hub, no extra hardware. Mount it, connect it with the Maya app, and readings arrive on your dashboard.

Do Wi-Fi Temperature Sensors Need a Hub or Gateway? — configuration and management with the Maya app

Free planning tools

Size your deployment before you order the hardware

Free engineering calculators for coverage, range and battery life — built on measurements from our own deployments rather than textbook models, which is why the answers tend to be smaller and a good deal more useful. Nothing here quotes a range we have not actually achieved.

Open the calculatorsCoverage & capacity ·Battery life ·Antenna height

No sign-up, no email, nothing to install. More on the way for Wi-Fi and BLE.

Hardware

Rugged IP65 Wi-Fi Temperature & Humidity Sensor, Built for Harsh Industrial Environments

The MacSync Wi-Fi TH sensor's glass-filled nylon enclosure is IP65-rated (IP67 optional) and operates from −40 °C to +80 °C — dust-tight, weatherproof, and thermally isolated for stable readings through rain, heat, and freezing conditions, with no maintenance between battery cycles.

Rugged IP65 Wi-Fi Temperature & Humidity Sensor, Built for Harsh Industrial Environments illustration

Ready to see every zone report its climate over your Wi-Fi? MacSync makes it effortless!

At a glance

MacSync Wi-Fi Temperature & Humidity Sensor — Key Specifications

Every key specification in one view.

MacSync industrial Wi-Fi temperature and humidity sensor key specifications

±0.2 °C

temperature accuracy

-30 °C to +70 °C range

0-100%

RH humidity range

±2% RH accuracy

2.4/5 GHz

Wi-Fi connectivity

Dual-band — joins your existing network

30,000

on-board records

Data survives Wi-Fi outages

3 yr

battery life

19 Ah Li-SOCl₂ · @ 5-min uplinks

IP65

rugged enclosure

IP67 optional variant

Features

Everything Built into One Wi-Fi Temperature & Humidity Sensor

Threshold-Based Alerts

Configurable temperature and humidity thresholds trigger instant alerts the moment conditions drift out of range.

Fixed intervals, event-driven alerts, or both — with sampling configurable from 1 minute to 24 hours.

Works on Your Existing Wi-Fi

No gateway, no hub, no new infrastructure — the sensor joins your 2.4 or 5 GHz Wi-Fi network and starts reporting.

3-Year Battery Life

Industrial 19 Ah Li-SOCl₂ cell delivers 3 years of maintenance-free monitoring at 5-minute uplinks — no power cable, mount it anywhere.

Internal & External Probe Options

Monitor ambient conditions, or reach inside freezers, chambers, and enclosures with the external probe variant.

Factory-Calibrated Sensing

Every unit ships factory calibrated for dependable temperature and humidity readings out of the box — no field calibration required.

30,000 Records On-Board

Built-in flash keeps logging through Wi-Fi outages — your history stays safe on the device.

Macnman Maya App

Manage every setting in one place — Wi-Fi credentials, thresholds, diagnostics, and updates from your phone.

Cloud & MQTT Ready

Stream readings to MQTT, HTTPS endpoints, or your private cloud — no vendor lock-in.

Capabilities

On-Board Memory That Never Loses a Reading

Built-in flash memory stores 30,000 records of historical data on the sensor itself — through Wi-Fi outages, router reboots, or transit, your temperature and humidity history stays safe on the device. Data never gets lost.

Built-in flash memory stores 30,000 records of historical data on the sensor itself — through Wi-Fi outages, router reboots, or transit, your temperature and humidity history stays safe on the device. Data never gets lost. device feature illustration (mobile view)

Not sure whether Wi-Fi or LoRaWAN suits your site?

Customize it !

Architecture

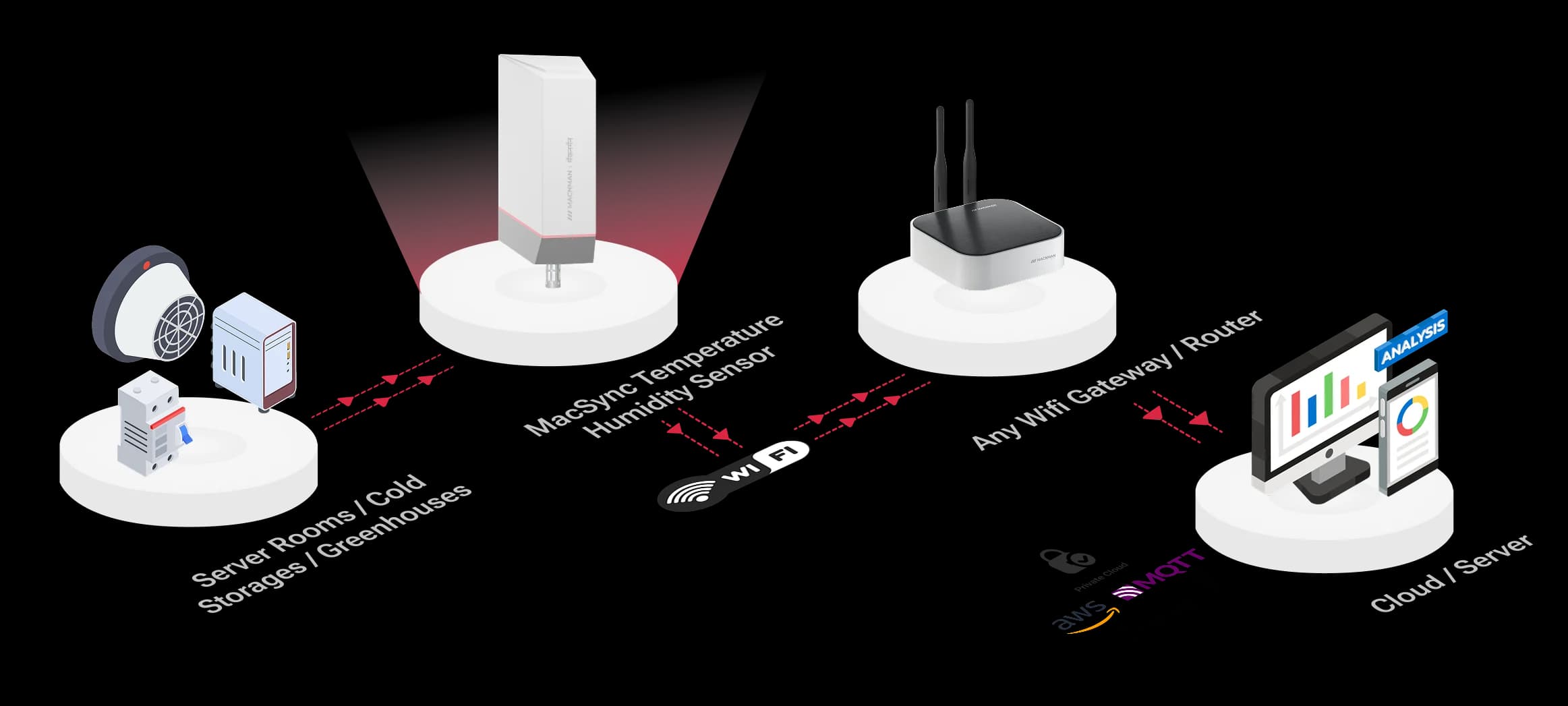

Wi-Fi Temperature & Humidity Sensor Network Architecture

Wi-Fi Temperature & Humidity Sensor Network Architecture IoT architecture diagram (mobile view)

Outcomes

MacSync's climate readings are a trigger, not just a record — alerts, compliance logs, and HVAC decisions all act on them in real time, over the Wi-Fi network you already run.

Prevent Spoilage & Stock Loss

Deviation alerts reach your team the moment a cold room, chiller, or storage zone drifts out of range — before perishables, pharma stock, or materials are at risk.

Cold chain

Automate Compliance Records

Continuous, timestamped temperature and humidity logs replace manual clipboard rounds — audit-ready history for HACCP, pharma, and quality programs.

Compliance

Alert Before It Becomes Downtime

Threshold-based event uplinks flag hotspots and humidity drift in server rooms, panels, and machine rooms while there is still time to act.

Alerts

Optimize HVAC & Energy Use

Room-level climate data shows where heating, cooling, and dehumidification are overshooting — facilities teams cut energy spend without sacrificing conditions.

Energy

How it works

How Does the Wi-Fi Temperature & Humidity Sensor Work?

Step 1 of 5

Mount it where it matters

Wall or pole mount in minutes — no wiring, no gateway to install. Choose the internal sensor or the external probe for freezers and chambers.

In plain terms

What Is a Wi-Fi Temperature and Humidity Sensor?

A WiFi temperature and humidity sensor is a battery-operated device that measures the temperature and relative humidity of a space and sends those readings to the cloud over an ordinary Wi-Fi network — with no gateway, hub, or receiver in between. Because it joins the Wi-Fi you already run, a site can be monitored using infrastructure that is already installed and already maintained.

The MacSync Wi-Fi TH Sensor is the industrial version of that idea. It is factory calibrated to ±0.2 °C and 2% RH, connects to dual-band 2.4 GHz and 5 GHz networks with WPA2 or WPA3 security, runs 3 years on a single 19 Ah lithium cell at 5-minute reporting, and stores 30,000 readings in on-board flash so nothing is lost when the network drops. It is rated IP65 and operates from −40 °C to +80 °C, which is what separates it from the consumer plug-in monitors sold for homes and offices.

What it measures
Temperature from −30 °C to +70 °C and relative humidity from 0 to 100%, sampled on an interval you set from 1 minute to 24 hours.
How it connects
Directly to your existing 2.4 GHz or 5 GHz Wi-Fi network — no gateway, hub, or proprietary receiver to buy or maintain.
Where the data goes
To MQTT brokers, HTTPS endpoints, or your own private cloud, so readings land in the dashboard or system you already use.
Logging and records
It doubles as a WiFi temperature data logger: 30,000 readings are stored in on-board flash, so a network outage or router reboot never leaves a gap in the record.
How it is powered
An industrial 19 Ah Li-SOCl₂ battery for 3 years of maintenance-free operation, or 9–36 V DC for permanently powered installations.
Who it is for
Cold chain and pharma storage, warehouses, server rooms, and any facility that needs audit-ready climate records without new cabling.

Choosing a technology

Wi-Fi vs LoRaWAN vs Bluetooth for Temperature Monitoring

Macnman builds temperature and humidity sensors on all three technologies, so this comparison is about picking the right one for your site — not about selling you a particular radio.

CriterionWi-FiLoRaWANBluetooth (BLE)
Extra infrastructureNone — uses your existing Wi-FiA LoRaWAN gateway per siteA phone or hub in range
Typical rangeYour Wi-Fi coverage, indoorsKilometres, through walls and racking5–30 m, line of sight
Battery life3 years @ 5-minute reportingUp to 12+ years @ 5-minute reportingMonths to a year, varies widely
Best forSites with good Wi-Fi and no appetite for new hardwareLarge sites, remote assets, hundreds of sensorsSpot checks and short-range local logging
Sensors per networkLimited by your access points2,000+ per gatewayA handful per hub
Data pathMQTT / HTTPS to your cloudAny LoRaWAN network server, then your cloudPhone app, then manual upload
Offline safety30,000 readings buffered on-board30,000 readings buffered on-boardDepends on the device

Ranges and battery figures are for Macnman sensors in typical deployments; real-world results vary with building materials, access-point placement, and reporting interval.

MacSync temperature and humidity sensor reporting modes

Reporting modes

Three Reporting Modes for Every Monitoring Strategy

The sensor samples and reports on a fixed schedule you set in the Maya app — anywhere from every minute to once a day. Predictable data, predictable battery life.

Note: Longer intervals extend battery life; compliance logging typically runs at 5–15 minutes.

Cloud & LNS

Open Connectivity with Universal Cloud Compatibility

Streams to MQTT, HTTPS & Private Clouds — No Vendor Lock-In

MacSync Wi-Fi TH sensors publish readings over your existing network to MQTT brokers, HTTPS endpoints, or your private cloud — encrypted end to end, with no gateway hardware and no vendor lock-in.

Industrial IoT device data integration illustration
Cloud platforms and LoRaWAN network servers supported

Installation

Installed in minutes, monitoring for years.

0.1Four steps to live data
1
Mounting the MacSync TH sensor bracket on a wall

Mount the bracket

Fix the mounting clip to a wall or pole with the included screws — indoors or out.

2
MacSync TH sensor snapped into its mounting clip

Snap the sensor in

The sensor clicks into the clip; the external-probe variant routes its probe into the zone you measure.

3
Configuring the MacSync TH sensor with the Maya app over Bluetooth

Connect to Wi-Fi with Maya

Pair over BLE, enter your Wi-Fi credentials, and set thresholds from your phone — no laptop, no cables.

4
MacSync Wi-Fi TH sensor readings arriving on a cloud dashboard

See live data on your dashboard

Watch the first readings arrive over your existing network — then walk away for years.

Range & reliability

Reliable Wi-Fi Connectivity, Built for Industrial Sites

Dependable 2.4 / 5 GHz Wi-Fi with automatic reconnect and 30,000-record on-board buffering

The MacSync Wi-Fi TH sensor holds a dependable link on busy industrial networks — automatic reconnection after outages, and 30,000 on-board records that keep your history intact until the connection returns. No repeaters, no gateways, no data gaps.

MacSync Wi-Fi temperature humidity sensor reliable connectivity

FAQ

Frequently asked questions

No. The MacSync Wi-Fi TH sensor connects directly to your existing Wi-Fi network — 2.4 or 5 GHz — there is no hub, gateway, or base station to buy, install, or maintain. If your site has Wi-Fi coverage, you have everything you need.

Yes. The MacSync Wi-Fi TH sensor is dual-band — it connects to both 2.4 GHz and 5 GHz Wi-Fi networks, so it works on modern mesh systems, enterprise access points, and 5 GHz-only networks where single-band sensors fail.

Nothing is lost. Built-in flash memory stores 30,000 records on the sensor itself, so it keeps logging through router reboots, network outages, and maintenance windows — your temperature and humidity history stays safe on the device.

Yes — it is a wireless data logger and a live sensor in one. Readings are written to 30,000 records of on-board flash and streamed over Wi-Fi at the same time, so you get real-time dashboards plus a complete local history that survives network outages. Logging intervals are configurable from 1 minute to 24 hours.

The MacSync Wi-Fi TH sensor runs 3 years on its industrial 19 Ah Li-SOCl₂ battery even when reporting every 5 minutes — and longer at relaxed intervals, which you set from 1 minute to 24 hours in the Maya app. That's well beyond the 12–24 months typical of AA-powered Wi-Fi sensors.

It is factory calibrated to ±0.2 °C between 0 °C and +70 °C (±0.6 °C below zero) and ±2% RH across the 10–90% humidity range — accurate enough for pharma, cold chain, and compliance-grade monitoring out of the box.

Yes. The sensor operates from −40 °C to +80 °C, and the external-probe variant lets the transmitter stay outside while the probe measures inside freezers, chambers, and enclosures — ideal for cold rooms and vaccine storage.

Yes. The glass-filled nylon enclosure is IP65 rated as standard, with an IP67 optional variant, and its thermal isolation keeps readings stable through rain, dust, heat, and freezing conditions.

Pair with the free Macnman Maya app over Bluetooth: connect the sensor to your Wi-Fi, set sampling intervals, choose periodic, event-based, or hybrid reporting, and define temperature and humidity thresholds. Cross one and the sensor sends an immediate excursion alert — no laptop required.

It streams readings to MQTT brokers, HTTPS endpoints, and private cloud platforms over your existing network — on WPA2 or WPA3 secured Wi-Fi, encrypted end to end, with no vendor lock-in and no gateway hardware in between.

Yes. Continuous data logging with configurable intervals produces audit-ready temperature and humidity history, and every temperature excursion is timestamped — the record-keeping pharma storage, food safety (HACCP), and cold chain compliance programs require.

Choose Wi-Fi when your sites already have good Wi-Fi coverage and you want zero new infrastructure. Choose LoRaWAN for very large sites, deep freezers at long distances, or hundreds of sensors on one gateway. Macnman builds both, on the same calibrated sensing platform, so you can mix them per site.
