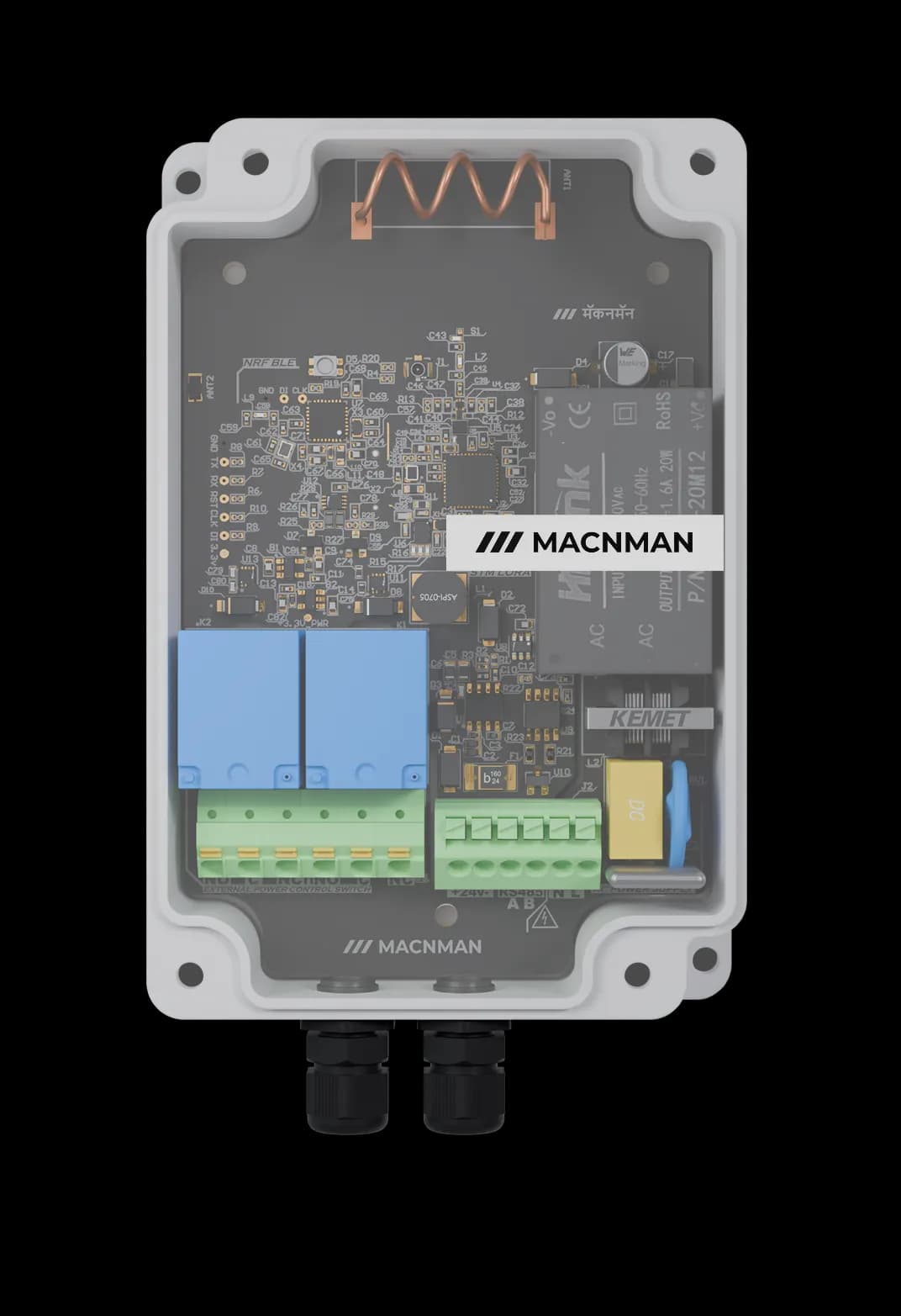

MacSet LX1 Technical Specifications

Part Order Number

MacSet-L-PC-X1 (SKU 81101)

Product Brand

Macnman Technologies Pvt Ltd

• 2X 16 A Relay
• 1X RS485
• 2X 4~20mA
• 2X 0~10 V
• 2X DI

•
  STM32WLE5xx
•
  nRF52810

2KM

8KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•
  MacSet LX1
•
  Mounting Bracket
•
  IP68 Cable Extender*
•
  Mounting Screws
•
  User Manuals
•
  Warranty Cards

(*) Accessories need to be purchased separately and are not included in the box.

Relay Outputs

2 × 16 A

RS485 Interface

1 × Modbus RTU master

4-20 mA Analog Channels

2

0-10 V Analog Channels

2

Digital Inputs

2

On-device Automation

Schedule, trigger and cyclic rules stored and run on the controller

Secure Onboarding

OTAA with AES-128 encryption

ADC Resolution

12-bit

Technology

LoRaWAN® (v1.0.4), Macnman MacTalk Protocol

Antenna

Internal high-efficiency antenna

Supported Bands

IN865 / RU864 / EU868 / US915 / AU915

Tx Power

23 dBm @ 865 MHz

Sensitivity

-137 dBm @ 300 bps

Activation

OTAA

LoRaWAN® Class

Class A (default), Class C via the Maya app

LED Type

1 Internal Multi-Color LED

Solid Blue

Device is connected with Maya App

Flashing Blue

OTA (Over-the-Air) update in progress

Slow Blinking Green

Attempting to connect to the LoRaWAN® network

Single Red Blink

A device parameter is being modified

Configuration

Via Macnman Maya Android App

Maya Features

Schedule, trigger and cyclic automation, Threshold alerts

Remote Configuration

Over-the-air configuration by downlink commands

Power Supply

230 V AC (180–260 V, 50 Hz), 9–36 V DC variant

Operating Temperature

-40°C to +80°C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection

IP65 standard (IP67 optional variant)

Housing Material

Glass-filled nylon

Color

Matte White

Weight

~175 g

Dimensions

142 mm × 80 mm × 32 mm (customizable branding available)

Mounting Options

Pole Mounting / Wall Mounting

Input Voltage Range

9–36 V DC (external supply variant), 230 V AC, 180–260 V AC, 50 Hz

Power Consumption

Depends on connected relay load and operating mode

BLE Connectivity

For local configuration and diagnostics via Maya App

Serial Interface

1 × RS485, Modbus RTU master, 1,200–115,200 baud

Cloud Protocols

MQTT / HTTPS / TCP/IP (gateway dependent)

Mains Input

230 V AC, 180–260 V AC, 50 Hz

DC Variant

9–36 V DC (external supply)

Power Connection

Terminal block connector

Isolation Protection

Supported

WPC

Compliant

RoHS

Conforms to RoHS directive

Data Encryption

AES-128 LoRaWAN® encryption

Authentication

OTAA device activation

Firmware Protection

Secure boot and signed OTA updates
