PLC-to-PLC Communication with Long-Range LoRa
SVR Robotics faced challenges in automating processes across two PLCs separated by 2 km in an industrial setup. Existing systems could not communicate reliably, causing delays and inefficiencies in valve and controller operations
This is where Macnman Technologies stepped in, bringing the MacSync and MacSet system into action a seamless LoRa-based communication link that made remote automation possible even in signal-challenged industrial zones.
The starting point
Problem: Inefficient PLC Communication in Industrial Automation
SVR Robotics faced significant challenges in automating industrial processes across two PLCs separated by 2 km. Without a reliable communication link, operations were slow, error-prone, and resource-intensive.
01
Long-Range Data Gap
PLCs could not exchange real-time process data across 2 km of industrial terrain.
02
Manual Intervention Bottlenecks
Operators had to manually trigger valves and controllers, slowing operations.
03
Lack of Infrastructure
Wired or internet connections were impractical for long-distance industrial automation.
04
Increased Risk
Absence of automated data exchange introduced safety and reliability concerns.
The approach
Proposed Solution: Long-Range Industrial PLC Communication via LoRa
To overcome industrial automation challenges over 2 km, SVR Robotics leveraged MacSync and MacSet LoRaWAN controllers to create a reliable PLC-to-PLC communication link, enabling real-time data exchange and automated control without changing existing infrastructure.
01
MacSync Node at Source PLC
Captures critical PLC process data and transmits it via long-range LoRa communication.
02
MacSet Controller at Target PLC
Acts as a Modbus slave to the secondary PLC, ensuring seamless industrial automation.
03
Automated Operations
Enables the target PLC to operate valves and controllers automatically, reducing manual interventions.
04
Plug-and-Play Industrial Integration
Requires no modifications to existing PLCs, valves, or industrial control systems.
05
Reliable 2 km LoRa Connectivity
Ensures low-latency, high-accuracy communication in industrial environments.
06
Enhanced Operational Efficiency
Improves process automation, resource utilization, and operational safety.
How it fits together
IoT Architecture for Smart Air Quality Monitoring
On site

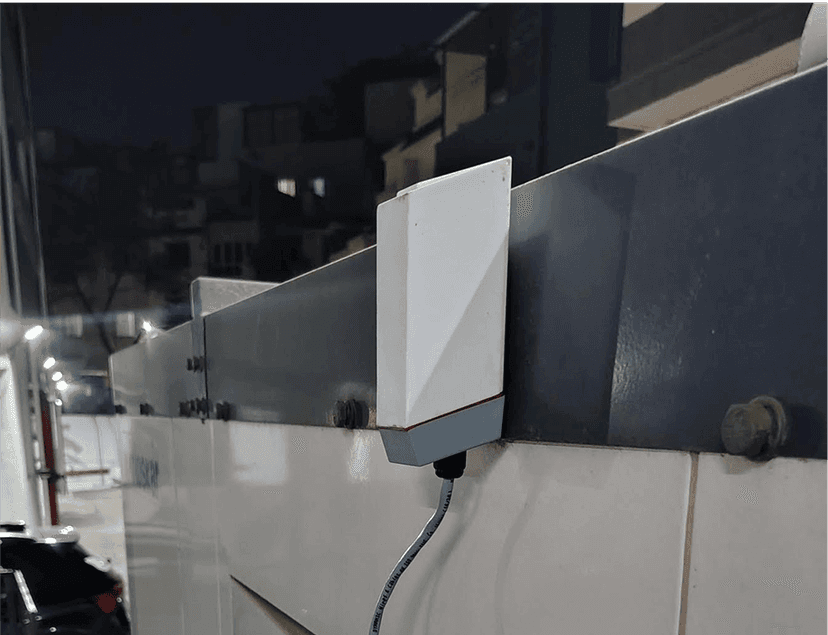

Deployment : Long-Range LoRa Communication Between MacSync & MacSet
The system architecture was designed to enable reliable, long-distance communication between remote water level sensors and motor control units using LoRa technology.
In this deployment
Installed at the source PLC, capturing real-time process data and transmitting it via long-range LoRa P2P communication.
Deployed near the valve and motor control system to receive LoRa data from MacSync and communicate with the PLC through RS485 Modbus RTU
The system architecture allows future integration with SCADA systems, enabling centralized monitoring and advanced data visualization.
The PLC used the incoming data to decide when to start or stop the motor, automating the entire water flow control process.
What stood in the way
Deployment Challenges: Ensuring Reliable Long-Range PLC Communication
01
Long-Range LoRa Connectivity
Maintaining stable LoRa communication over 2 km in an industrial environment with potential interference.
02
Seamless PLC Integration
Integrating MacSync and MacSet controllers with existing PLCs without modifying control logic.
03
Industrial Noise & Signal Interference
Overcoming electrical noise, metal obstructions, and machinery interference for accurate data transfer.
04
Scalable Industrial Network
Designing for future SCADA integration and additional PLC expansions without extra infrastructure
Put to the test

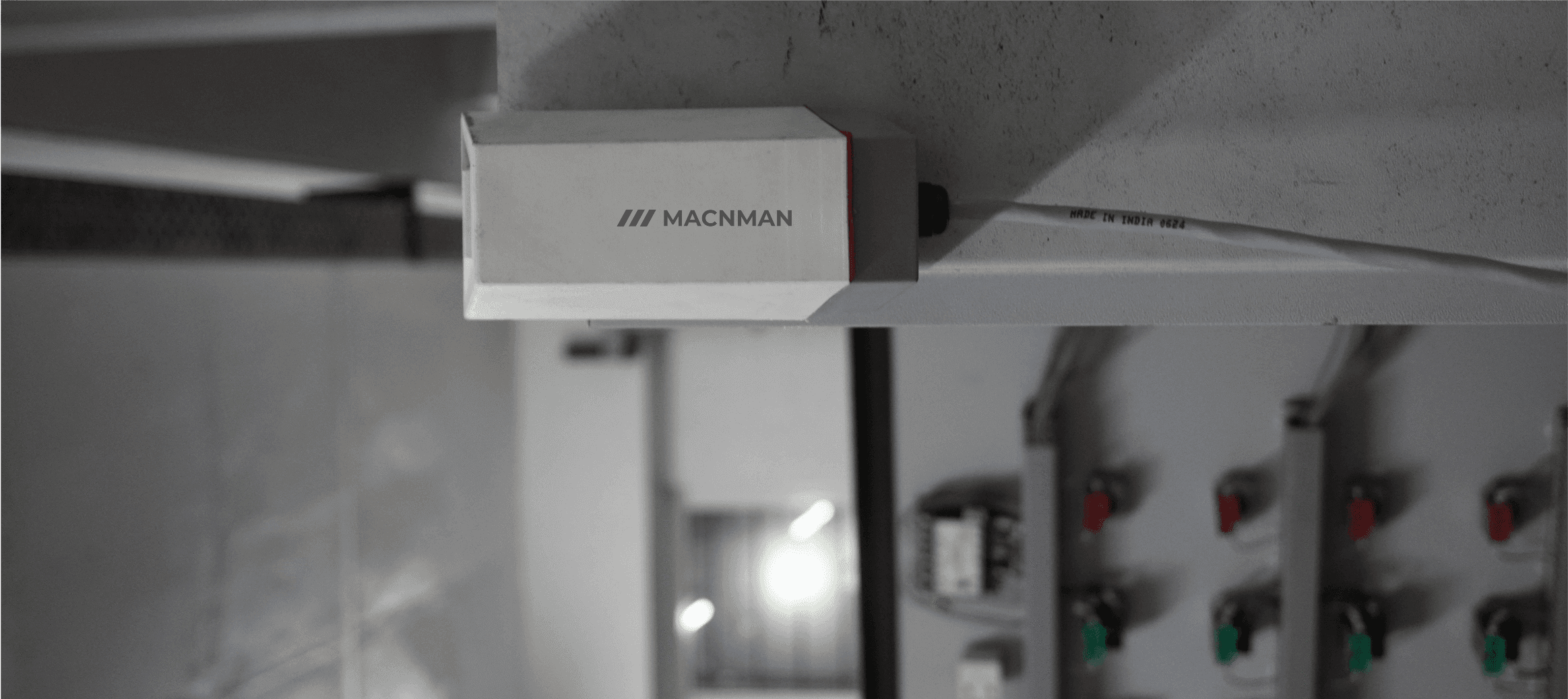

Testing & Validation: Ensuring Reliable Long-Range PLC Automation
End-to-End Data Verification
Confirmed accurate transmission of PLC data over 2 km without loss.
Latency & Response Testing
Ensured low-latency communication for immediate valve and controller operation.
PLC Integration Accuracy
Verified MacSync and MacSet nodes accurately communicated with PLCs as Modbus slave/master.
Reliability Over Continuous Operation
Long-duration tests confirmed stable, automated operations under real industrial conditions.
4 of 4 tests completed
What changed
Impact: Enhanced Industrial Automation with LoRaWAN PLC Integration
Real-Time Automated Control
Valves and controllers now operate automatically and accurately, reducing manual interventions.
Reduced Human Error
Automation minimizes manual mistakes, enhancing safety and reliability.
Cost Savings on Infrastructure
Eliminates the need for long-distance cabling or internet lines, reducing installation and maintenance costs.
Future-Ready Scalability
The network supports additional PLCs and SCADA integration, future-proofing industrial automation.
In closing

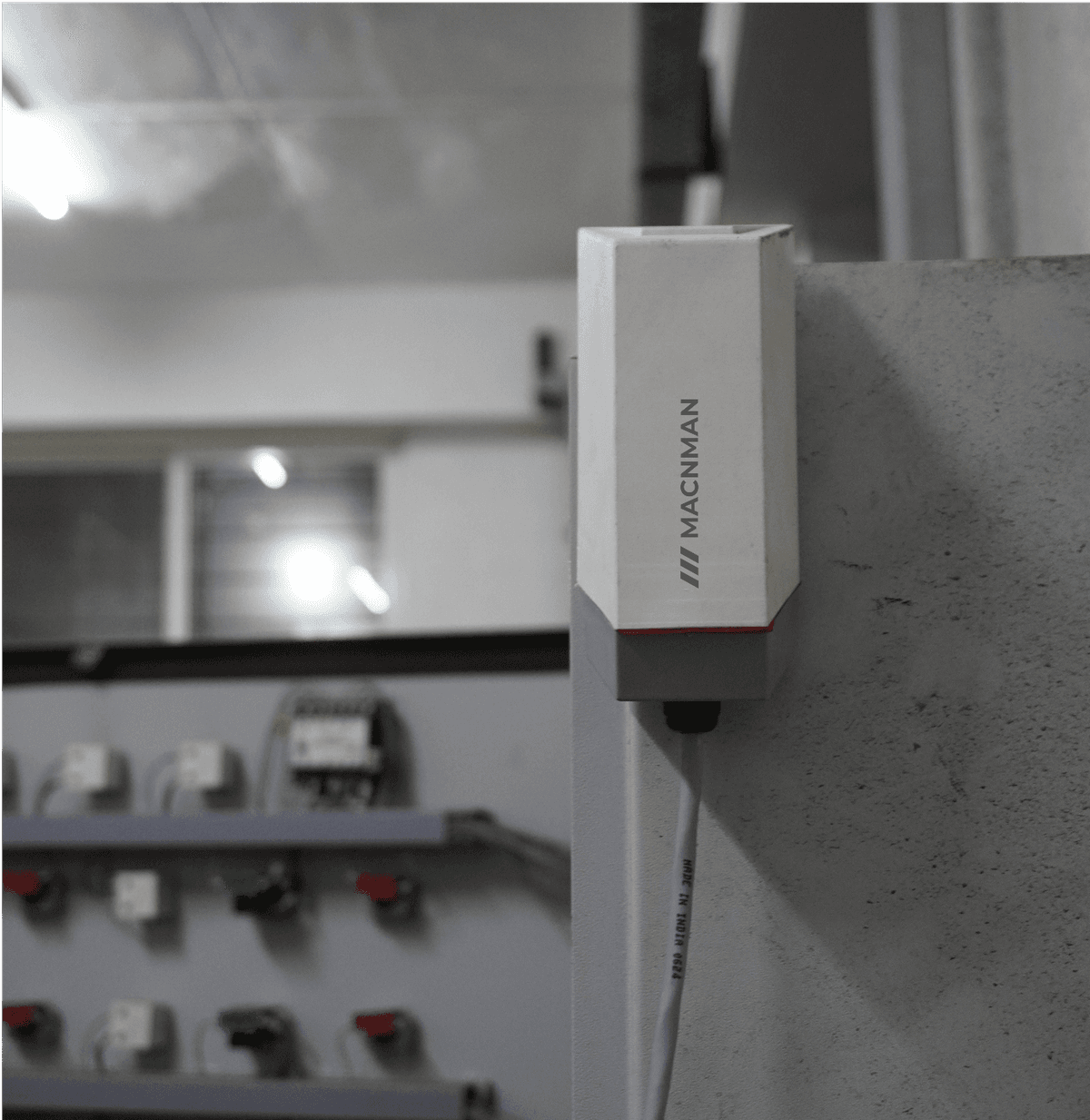

Conclusion: Transforming Industrial Automation with Long-Range LoRaWAN
By deploying MacSync and MacSet LoRaWAN controllers, SVR Robotics successfully enabled seamless PLC-to-PLC communication across 2 km, automating valve and controller operations without altering existing infrastructure.
- Enhanced Automation • Industrial processes now operate automatically and efficiently, reducing manual intervention.
- Reliable Long-Range Connectivity • Stable 2 km LoRa P2P link ensures real-time, low-latency data exchange.
- Operational Efficiency & Cost Savings • Eliminated need for long-distance cabling and reduced manual errors, improving productivity.
- Future-Ready Industrial Network • Architecture supports SCADA integration and additional PLC expansion, enabling scalable industrial automation.
This solution demonstrates how LoRaWAN technology can revolutionize long-distance industrial automation, delivering efficiency, reliability, and cost savings for complex operations.
