LoRaWAN-Based Forklift Route Optimization
In a large industrial warehouse, waste handling was becoming an invisible efficiency drain.
The facility had 10 room-sized waste collection rooms spread across the warehouse floor. Workers frequently dumped packaging and process waste into these rooms throughout the day. Forklift operators were responsible for collecting this waste and transporting it to a central processing area.
The problem?
- Forklift operators had no visibility into which rooms were actually filled
- Collection routes were based on fixed routines or guesswork
- Forklifts often visited empty or partially filled rooms
- This led to:
- Unnecessary travel
- Wasted fuel and battery cycles
- Increased operator time
- Congestion and inefficient operations
The waste operation was reactive, manual, and inefficient
The Problem : The Hidden Inefficiency in Forklift Waste Collection
In a large-scale warehouse, waste collection looked simple on paper but on the floor, it was quietly draining time, fuel, and productivity.
The facility operated 10 room-sized waste collection areas, spread across the warehouse. Workers continuously dumped packaging and process waste throughout the day. Forklift operators were assigned to collect this waste and move it to a central processing zone.
The challenge was visibility.
Forklift operators had no real-time insight into which waste rooms were actually full and which were empty. Routes were driven by fixed schedules, experience, or assumptions, not data. As a result, forklifts routinely traveled long distances only to find partially filled or empty waste rooms.
This led to:
Partial Data
Traditional sensors reported only overall fill levels, ignoring corner-specific variations.
Inefficient Collection
Trucks often visited bins that were partially empty, wasting fuel and manpower.
Overflow Risks
Lack of precise data caused localized overflow, creating hygiene and operational issues.
Manual Inspections
Staff had to physically check bins, increasing labor and operational costs.
Solution: IoT-Based Real-Time Waste Fill Level Monitoring Using LoRaWAN
To eliminate blind forklift routes and transform waste collection into a data-driven process, a real-time waste monitoring system was introduced.
The core of the solution was the MacRay LoRaWAN Time-of-Flight (ToF) sensor with an 8×8 grid, deployed inside each waste room. Instead of relying on manual checks or fixed schedules, the system continuously measured waste fill levels from a top-down perspective, creating a clear, accurate view of each room’s status.
Unlike single-point sensors, the 8×8 grid sensing allowed the system to:
- 01
Full 3D Coverage
Detects which corners of the bin are filled and which remain empty.
- 02
Long-Range LoRaWAN Communication
Sends data reliably to the central monitoring system without wiring.
- 03
Real-Time Alerts
Immediate notifications when specific areas of a bin reach critical levels.
- 04
Data-Driven Collection
Enables optimized pickup schedules, reducing trips and operational costs.
- 05
Non-Intrusive Deployment
Mounted on top of existing bins without modifying infrastructure.
- 06
Scalable Network
Additional bins or sites can be integrated easily into the LoRaWAN system.
LoRaWAN Network Architecture for Forklift Route Optimization
Deployment of MacRay LoRaWAN ToF Sensors in Warehouse Waste Rooms
Once the solution architecture was finalized, the next critical step was sensor selection and physical deployment. The accuracy of waste-level data would directly determine whether forklift routing decisions could be trusted.
Why Time-of-Flight (ToF) Over Ultrasonic Sensors
In this environment, ultrasonic sensors were evaluated but ruled out early.
Warehouse waste rooms are dynamic, noisy, and unpredictable. Waste is dumped unevenly, materials vary in shape and surface, and dust and ambient noise are common. Ultrasonic sensors, which rely on sound waves, are highly sensitive to these conditions.
They often suffer from:
- Inconsistent readings due to irregular waste surfaces
- Signal scattering caused by soft or angled materials
- Interference from ambient noise and airflow
- Single-point measurement that fails to represent the true fill state

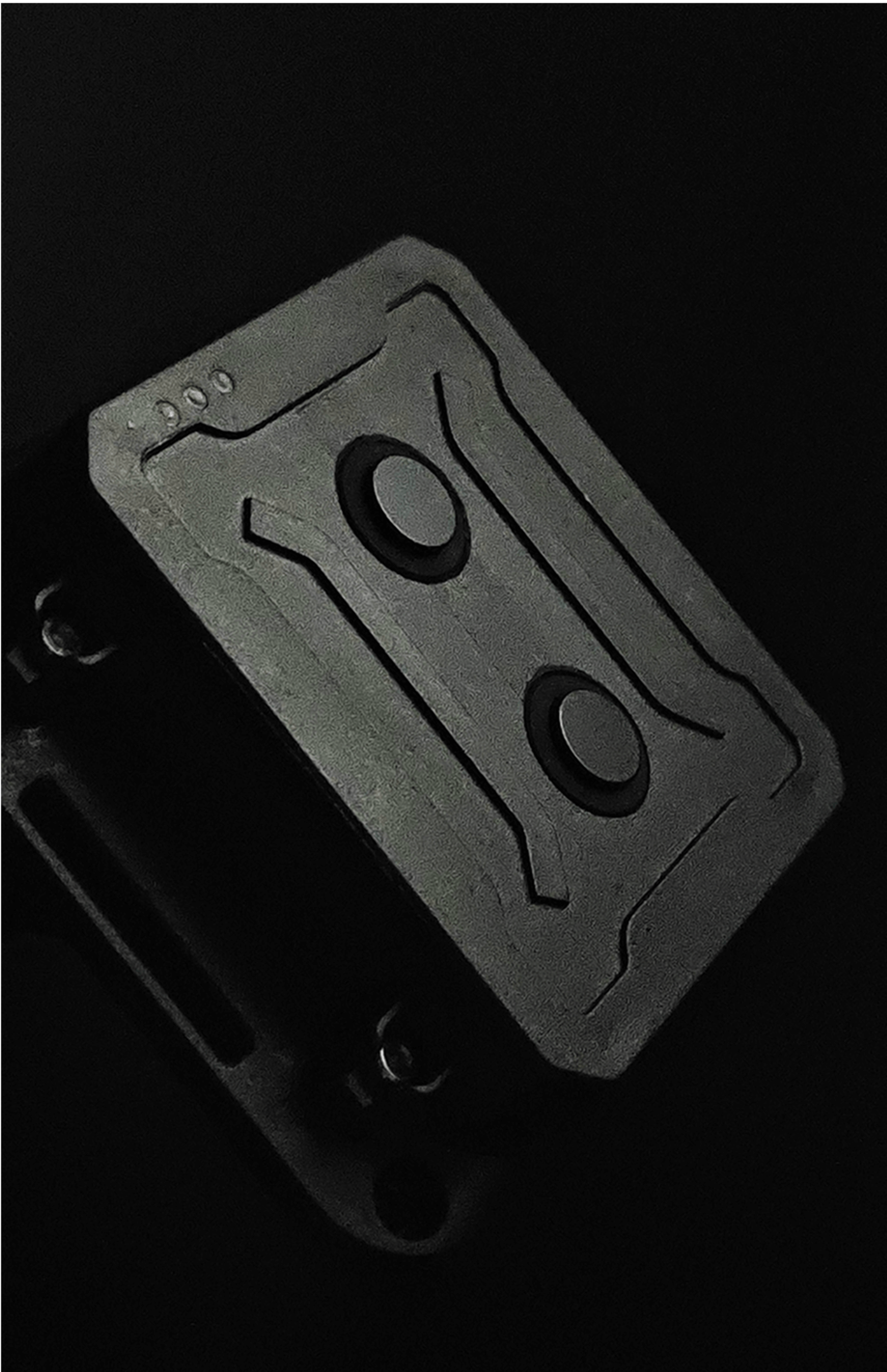

In contrast, the MacRay Time-of-Flight (ToF) sensor uses optical depth measurement and an 8×8 grid, allowing it to capture a spatial profile of the waste rather than a single distance value.
This made ToF the clear choice because it:
- Accurately measures uneven and non-uniform waste piles
- Remains stable in dusty, industrial environments
- Eliminates false readings caused by acoustic interference
- Provides reliable data suitable for operational decision-making
For a system that directly controls forklift movement and route optimization, data confidence was non-negotiable.

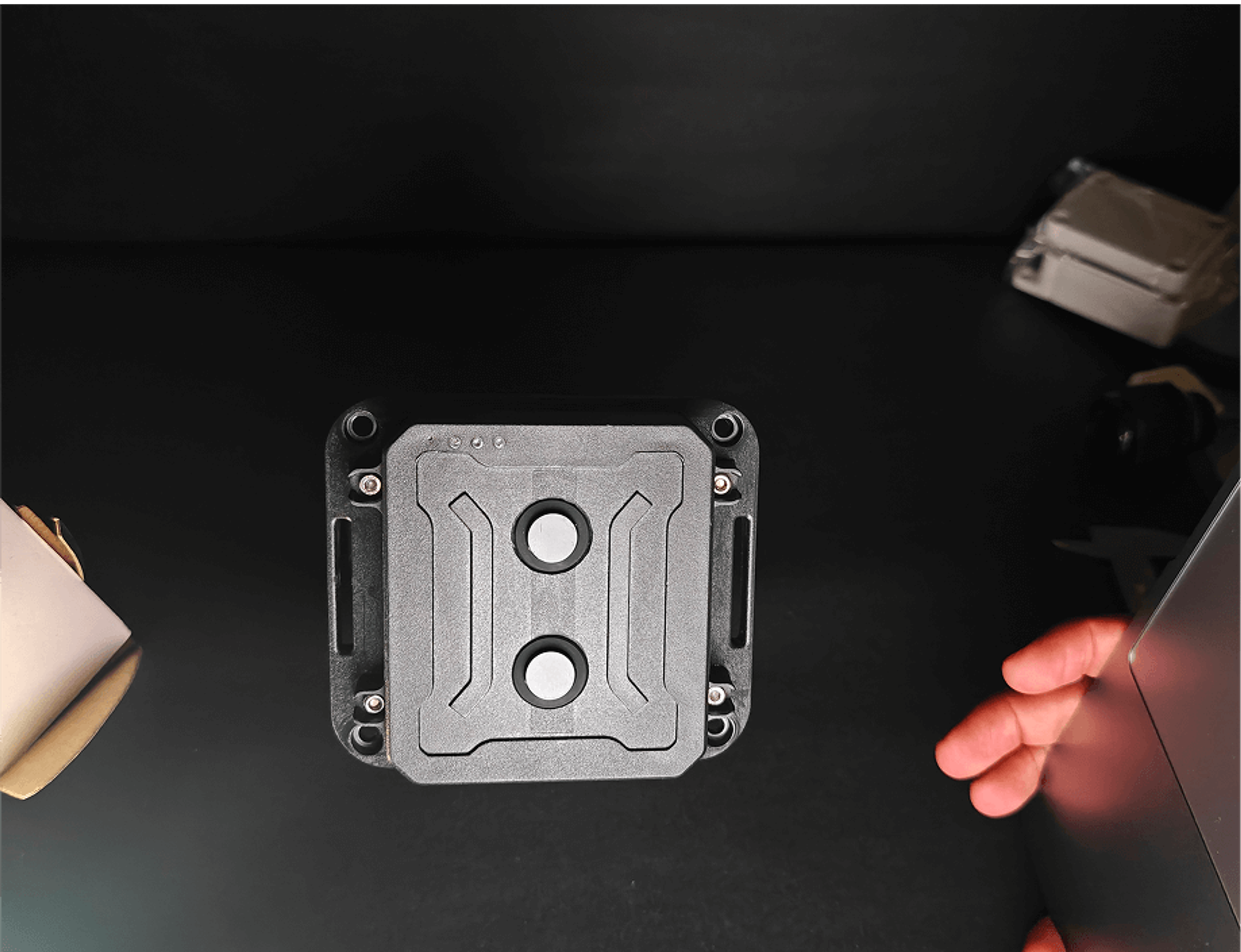

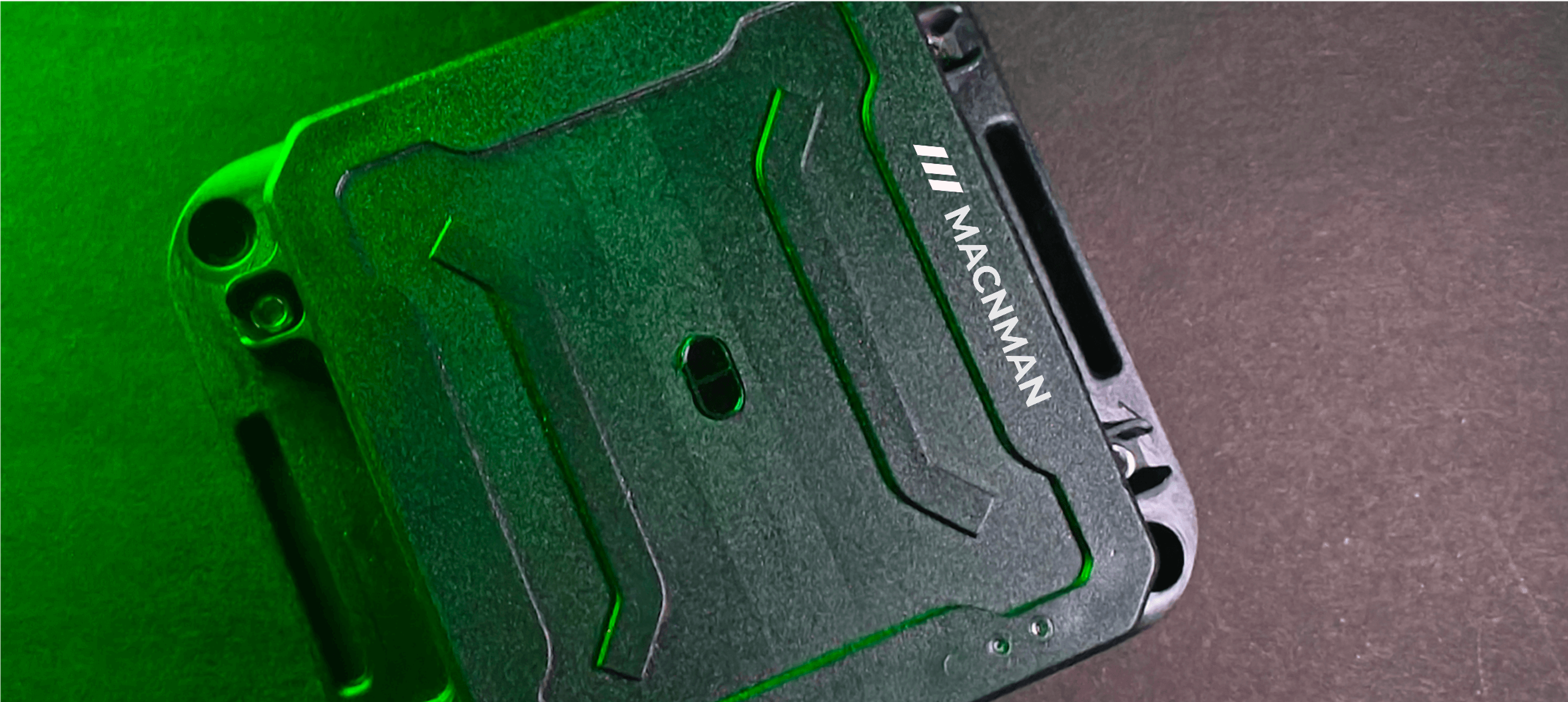

MacRay LoRaWAN ToF Sensors
Mounted on the top of each trash bin to capture full 3D mapping of the waste floor.
Industrial LoRaWAN Gateway
Aggregated data from all MacRay ToF Sensors and sent it to the SCADA system for real-time visualization.
SCADA System Integration
Data was mapped directly into existing dashboards for trend analysis, alert management, and automated actions..
Local Indicators
Additional indicators are installed in line with the MacRay ToF Sensors for the visual indicators.

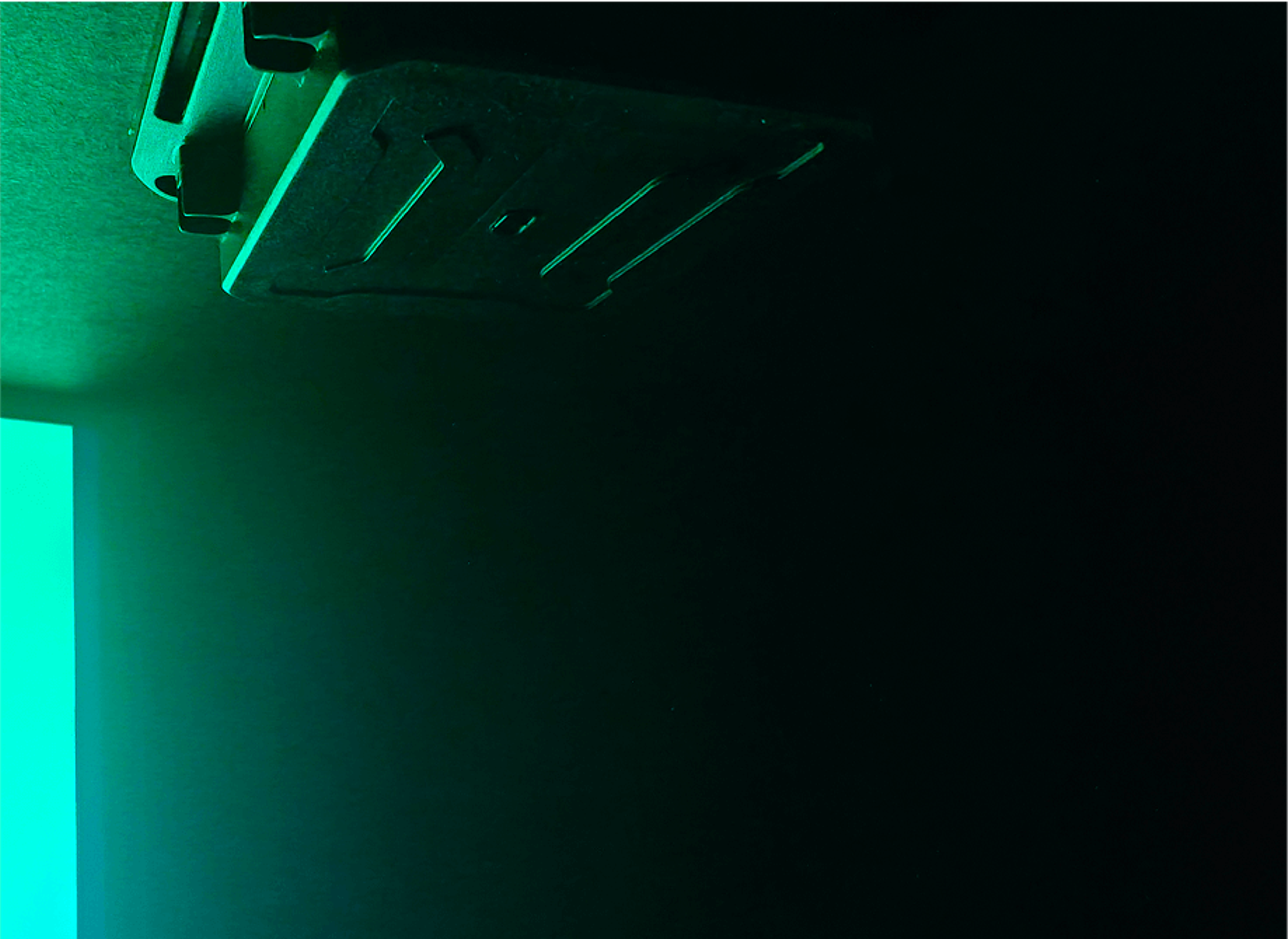

On-Site Deployment of MacRay LoRaWAN ToF Sensors in Warehouse Waste Rooms
Accurate 3D Mapping
Ensuring the sensor captured all corners of the bin for precise readings.
Long-Range Communication
Reliable LoRaWAN transmission from each bin to the gateway across the facility.
Environmental Interference
Dust, moisture, and sunlight could affect sensor performance, requiring robust housing and calibration.
Non-Intrusive Installation
The system needed to accommodate future expansion without additional wiring or major infrastructure changes.
Scalability
Ensuring the network could easily expand as more bins were added.
Long-Term Testing and Validation of the Deployed Solution
3D Mapping Accuracy Tests
The MacRay ToF sensor’s 3D mapping was verified using manual measurements achieving >95% accuracy in detecting waste distribution inside bins.
Real-Time Communication Checks
LoRaWAN connectivity was tested under different environmental conditions to ensure consistent data transmission even with signal interference or partial obstruction.
Power Efficiency Evaluation
Long-term trials validated the sensor’s low-power operation, confirming months of runtime on a single battery cycle.
Integration Testing
Data was validated on the Amazon Waste Monitoring Dashboard, ensuring that live readings matched on-ground conditions.
Edge-to-Cloud Verification
End-to-end data flow—from the MacRay ToF sensor to the LoRaWAN gateway and cloud dashboard—was continuously monitored to confirm system reliability above 99% uptime.
Impact: Measurable Gains in Forklift Efficiency and Warehouse Operations
Precise 3D Mapping
Knows exactly which corners of each bin are filled or empty.
Optimized Collection Routes
Trucks only visit bins that truly need emptying, reducing fuel and labor costs.
Real-Time Alerts
Immediate notifications when specific areas of a bin reach critical levels.
Reduced Overflow
Corner-level data prevents localized overflow, maintaining hygiene and operational efficiency.
Data-Driven Decisions
Historical and live data helps plan efficient schedules and improve operational planning.
Conclusion: From Guesswork to Intelligent Forklift Operations
This deployment proved that real-time visibility can transform routine warehouse tasks into optimized operations.
By using MacRay LoRaWAN ToF sensors to continuously monitor waste fill levels, forklift movement shifted from fixed routes to data-driven decision-making. Unnecessary trips were eliminated, routes became shorter, and overall operational efficiency improved without adding forklifts or manpower.
The result was lower energy consumption, better productivity, and a scalable foundation for future optimization showing that intelligent sensing is a direct driver of measurable ROI in large scale warehouse environments.
