LoRaWAN Vacuum Pressure Monitoring in Refrigerator Manufacturing
In a refrigerator manufacturing environment, vacuum pressure plays a critical role in maintaining process consistency and final product performance. However, the vacuum gauges installed on the production lines were limited to on-site readings, leaving engineering teams without centralized visibility or historical data.
Macnman Technologies implemented the MacSync RS485-to-LoRaWAN Data Logging solution to digitally connect these legacy vacuum meters to the plant’s control infrastructure. Using a serial communication interface, vacuum pressure data was collected, logged, and transmitted wirelessly to the central monitoring system.
The result was a unified view of vacuum performance across all lines, enabling trend analysis, early fault detection, and data-driven decision-making—all achieved without modifying existing equipment or halting production.
The Problem: Vacuum Data Trapped at the Machine Level BIG RISK
Before the implementation of the RS485 to LoRaWAN Datalogging solution, the refrigerator manufacturing plant faced several operational challenges related to vacuum pressure monitoring.
The vacuum gauges installed across production lines were standalone instruments, providing readings only at the machine level. Operators could view values locally, but engineering and quality teams had no centralized access to this data.
As production volumes increased and quality requirements tightened, the lack of actionable vacuum data became a bottleneck for process optimization and traceability.
The plant needed a solution that could digitize legacy vacuum measurements, enable remote monitoring, and integrate seamlessly with existing systems without disrupting production.
Key challenges included:
Siloed Data
Each gauge collected readings locally, with no centralized visibility across production lines.
Delayed Responses
Manual checks or periodic data downloads meant late detection of anomalies, risking equipment or product quality.
Limited Integration
Existing gauges were not connected to SCADA, making automated analysis and action impossible
Maintenance Complexity
Without remote monitoring, engineers had to physically inspect each gauge, increasing labor and downtime.
The Proposed Solution: Seamless RS232-to-LoRaWAN Vacuum Data Integration
Macnman Technologies proposed a non-intrusive, retrofit-ready solution to transform existing vacuum pressure gauges into connected, centrally monitored assets without replacing hardware or interrupting production.
At the core of the solution was the MacSync Series RS485-to-LoRaWAN Data Logger, paired with an industrial RS232-to-RS485 converter. This architecture enabled reliable data acquisition from legacy vacuum meters and secure wireless transmission to the plant’s central control system.
- 01
Seamless RS485 Integration
Connected directly to the existing vacuum pressure gauges without modifying hardware.
- 02
Long-Range LoRaWAN Transmission
Transmitted gauge readings wirelessly to the central SCADA system, covering the facility reliably.
- 03
Real-Time Data Access
Enabled engineers to monitor pressure trends instantly and respond to anomalies immediately.
- 04
SCADA System Integration
Data was fed directly into the customer’s existing SCADA dashboards for automated visualization and analysis.
- 05
Non-Intrusive Deployment
Installation required minimal downtime, keeping production uninterrupted.
- 06
Scalable & Future-Ready
Additional gauges or lines can be integrated into the LoRaWAN network without new wiring or infrastructure changes.
RS485-to-LoRaWAN System Architecture for Vacuum Pressure Monitoring
Deployment: Fast Retrofit Without Production Disruption
The deployment was executed directly on the active production floor with zero interruption to ongoing manufacturing operations. The primary objective was to integrate the solution seamlessly into the existing setup while maintaining process continuity.

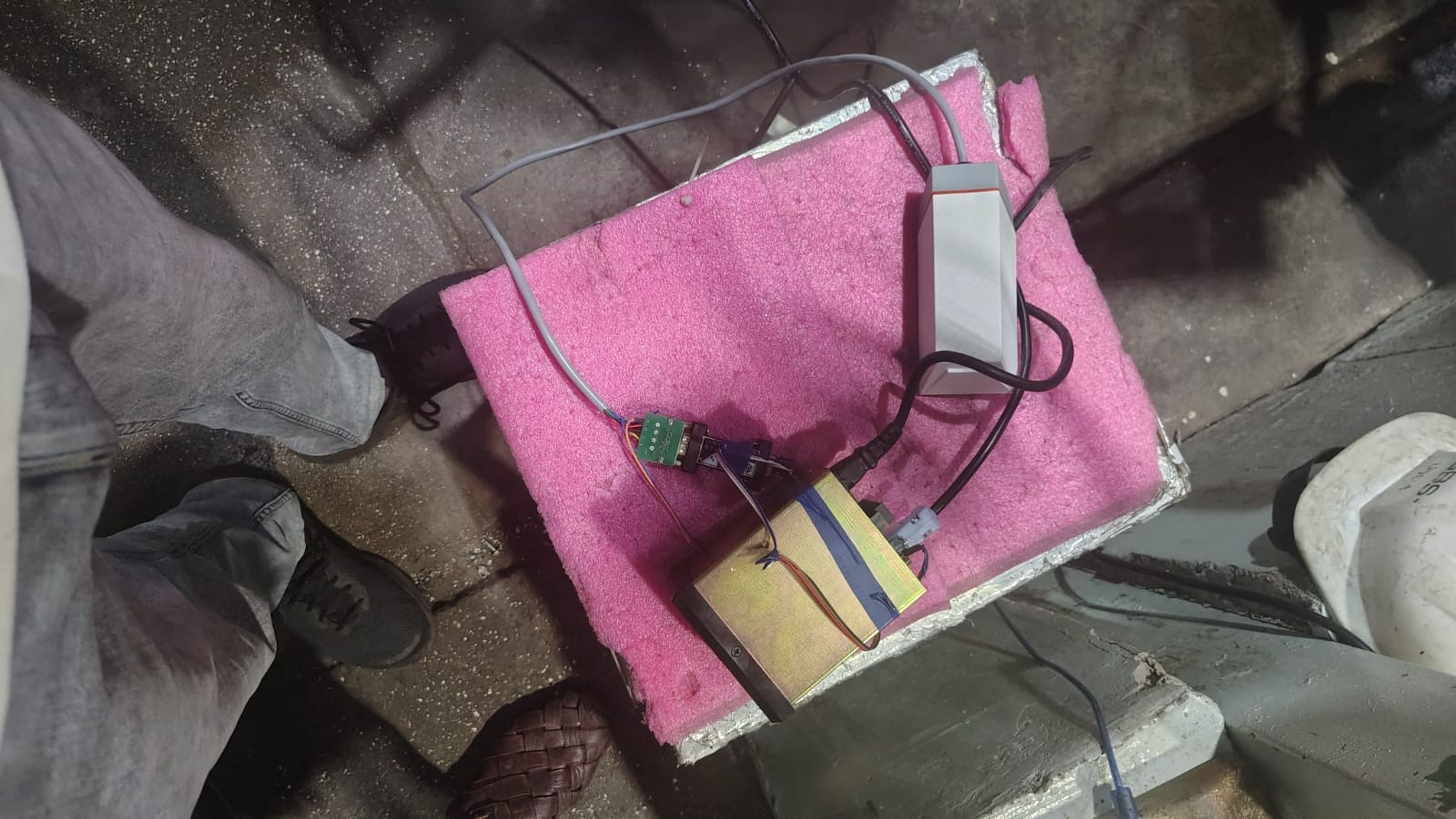

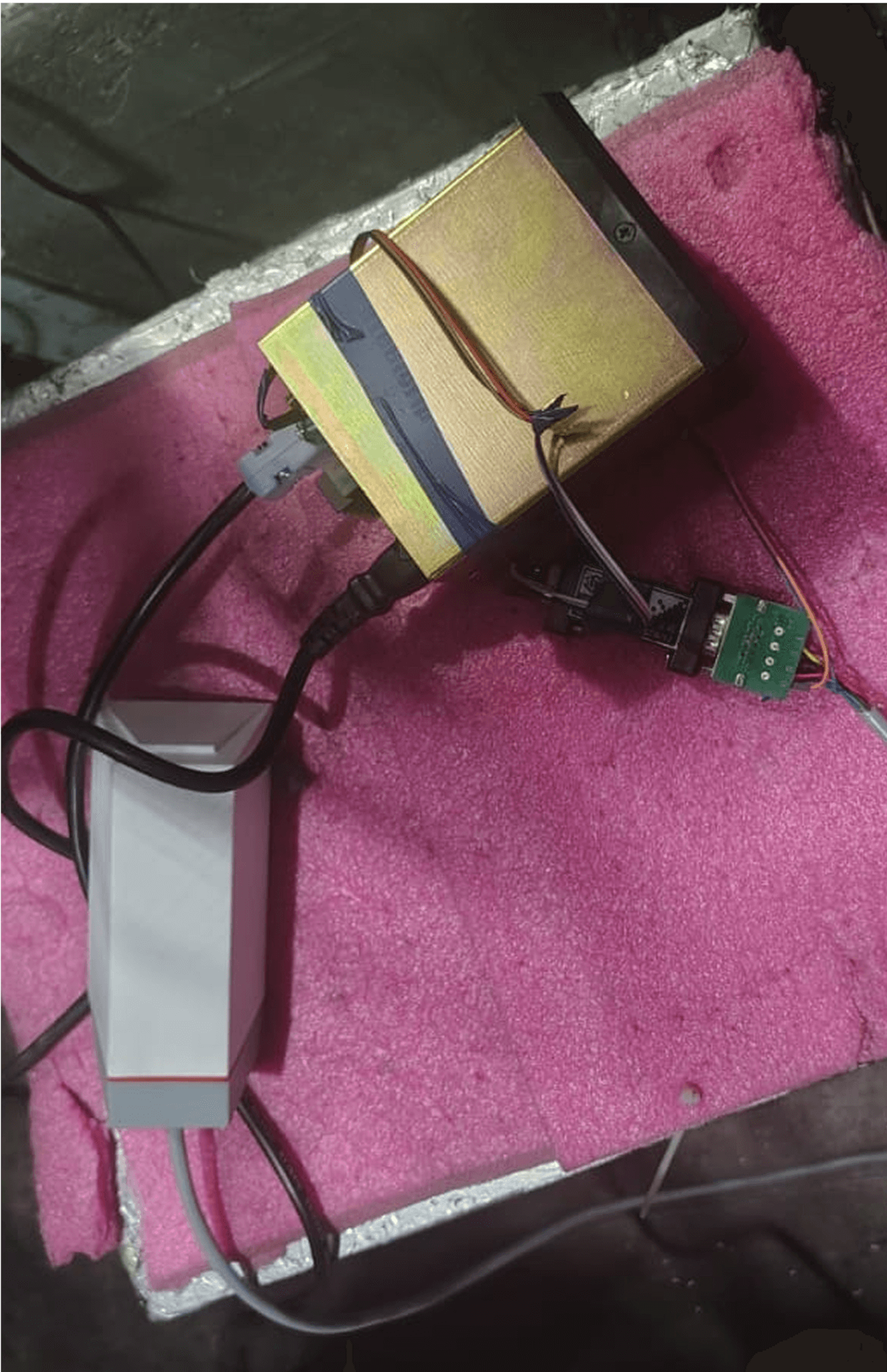

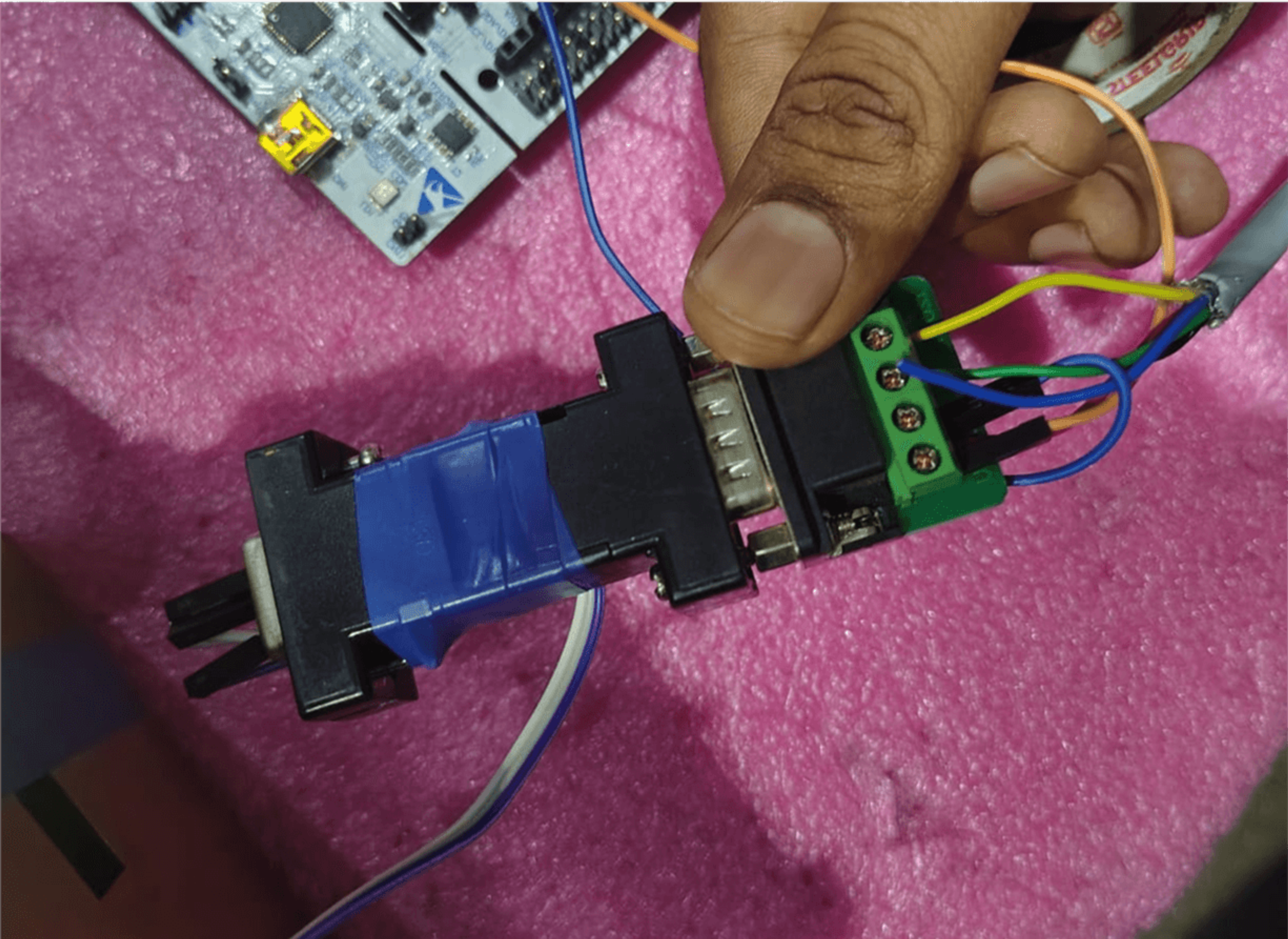

Each vacuum pressure gauge with RS232 output was connected to an industrial RS232-to-RS485 converter, allowing stable communication in the electrically noisy factory environment. The converted RS485 signal was then interfaced with the MacSync RS485-to-LoRaWAN Data Logger, mounted near the machine for short cable runs and ease of maintenance.
The data logger was configured to poll vacuum pressure values at predefined intervals, log readings locally, and transmit the data wirelessly over the LoRaWAN® network. Existing LoRaWAN gateways within the facility were used to forward data to the central SCADA system.
Once installed, the system was validated line-by-line to ensure:
- Accurate data acquisition
- Reliable wireless transmission
- Correct visualization on the SCADA dashboard
The modular design allowed additional production lines to be onboarded quickly, making the deployment scalable, repeatable, and maintenance-friendly.
MacSync Series RS485-to-LoRaWAN Data Loggers
Installed on each vacuum pressure gauge to capture readings and transmit them over LoRaWAN..
MacLink Gen2 Industrial LoRaWAN Gateway
Aggregated data from all MacSync loggers and sent it to the SCADA system for real-time visualization.
SCADA System Integration
Data was mapped directly into existing dashboards for trend analysis, alert management, and automated actions..
Local Indicators
Additional indicators are installed in line with the MacSync RS485 to LoRaWAN Datalogger for the visual alerts.
Challenges of Industrial RS232-to-LoRaWAN Integration
RS485 Compatibility
Ensuring all gauges communicated seamlessly with the MacSync LoRaWAN Data Loggers without hardware modifications.
Signal Interference
Metallic structures and machinery on the production floor created wireless signal obstacles, requiring careful placement of loggers and gateways.
Scalability Concerns
The system needed to accommodate future expansion without additional wiring or major infrastructure changes.
Non-Intrusive Installation
The system needed to accommodate future expansion without additional wiring or major infrastructure changes.
Field Testing and Validation of RS485-to-LoRaWAN Deployment
Wireless Signal Testing
Checked LoRaWAN connectivity across the production floor, ensuring consistent coverage and low latency.
SCADA Integration Validation
Continuous monitoring simulated different environmental scenarios, ensuring instant alerts and automated responses functioned correctly.
Stress Testing
All devices were subjected to heat, humidity, and dust conditions to verify IP67-rated reliability under greenhouse conditions.
Long-Duration Reliability Test
Ran the network for several days to confirm stable, uninterrupted performance.
Turning Vacuum Data into Measurable Manufacturing Impact
Centralized Data
All vacuum pressure readings were collected and visualized on SCADA dashboards in real-time.
Faster Response
Stable temperature and humidity control ensured uniform growth and healthier plants across all zones.
Reduced Manual Checks
Continuous monitoring allowed for optimized production and preventive maintenance.
Seamless SCADA Integration
Data flowed directly into existing systems, enabling automated alerts and trend analysis.
Full Regulatory Compliance
Continuous logging of pressure values satisfied audit requirements and ensured traceability.
Conclusion: Simplifying Industrial Monitoring Without Replacing Equipment
This case study demonstrates how legacy industrial instruments can be transformed into connected, intelligent systems without the cost, risk, or downtime of replacement. By integrating existing RS232-based vacuum gauges with the MacSync RS485-to-LoRaWAN Data Logging solution, the refrigerator manufacturing plant achieved centralized, real-time vacuum monitoring using the equipment already in place.
The solution eliminated manual data collection, improved visibility across production lines, and enabled engineers to act on reliable, time-stamped vacuum data from a single control point. Most importantly, this transformation was achieved without altering production processes or replacing proven instruments, protecting prior investments while delivering immediate operational benefits.
Through a rugged, scalable, and retrofit-friendly architecture, Macnman Technologies simplified vacuum pressure monitoring and laid the foundation for future expansion—turning isolated measurements into actionable manufacturing intelligence with faster ROI and minimal disruption.
