MacSync LTS X1 LoRaWAN® Temperature & Humidity Sensor Datasheet
Product Overview
MacSync-LTS X1 is an industrial-grade LoRaWAN® temperature humidity sensor designed for accurate environmental monitoring across smart industries, agriculture, cold chain logistics, warehouses, HVAC systems, greenhouses, pharmaceutical storage, and outdoor monitoring applications. Built for ultra-low-power operation and long-range wireless communication, the device continuously measures temperature, humidity, and optional barometric pressure and securely transmits real-time sensor data over LoRaWAN® networks.
Engineered for harsh industrial and outdoor environments, the MacSync-LTS X1 combines high-accuracy sensing elements, rugged IP-rated enclosure protection, and advanced thermal isolation architecture to deliver stable and reliable measurements even in extreme weather conditions. The sensor is ideal for applications requiring continuous wireless temperature and humidity monitoring with minimal maintenance and multi-year battery life.
As a professional LoRaWAN temperature sensor and LoRaWAN humidity sensor, the MacSync-LTS X1 supports ultra-long-range communication, enabling large-scale environmental monitoring deployments across factories, smart cities, farms, tunnels, telecom infrastructure, cold rooms, and remote industrial assets. Its optimized internal antenna and industrial LoRa® radio architecture ensure robust connectivity in challenging RF environments.
The device supports LoRaWAN® v1.0.4, Class A operation, OTAA activation, AES-encrypted communication, and optional BLE configuration through the Maya App for simplified deployment, diagnostics, and OTA parameter configuration. The MacSync-LTS X1 is compatible with major public and private LoRaWAN® network servers including ChirpStack, The Things Stack, LORIOT, MQTT platforms, and custom industrial IoT infrastructures.
Whether you are deploying a smart agriculture temperature humidity sensor, an industrial environmental monitoring system, or a low-power wireless climate monitoring network, the MacSync-LTS X1 delivers carrier-grade reliability, scalable connectivity, and real-time climate intelligence for next-generation IoT applications.
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacSync-L-TH
Key Features
High-Accuracy LoRaWAN® Temperature & Humidity Sensor Industrial-grade wireless temperature and humidity monitoring with precise environmental sensing.
Industrial LoRaWAN® Environmental Monitoring Designed for factories, warehouses, agriculture, HVAC systems, and outdoor climate monitoring.
Ultra-Low Power Wireless Sensor Battery-optimized LoRaWAN® Class A communication for multi-year remote deployments.
Wireless Temperature Humidity Data Logging Continuous environmental data logging with configurable uplink intervals and local storage.
Secure LoRaWAN® Connectivity AES-128 encrypted wireless communication with OTAA activation support.
IP65 / IP67 Industrial Enclosure Rugged outdoor-ready enclosure for harsh industrial and environmental monitoring applications.
BLE Configuration via Maya App Easy wireless setup, diagnostics, and OTA configuration using smartphone connectivity.
Compatible with All Major LoRaWAN® Networks Supports ChirpStack, The Things Stack, MQTT platforms, LORIOT, and private LNS deployments.
Long-Range LoRaWAN® Wireless Communication Reliable long-distance connectivity for remote agriculture, industrial, and infrastructure sites.
High-Efficiency Internal LoRa Antenna Optimized RF performance for stable long-range environmental monitoring communication.
Smart Agriculture Temperature Humidity Sensor Ideal for greenhouse automation, irrigation monitoring, and precision farming applications.
Industrial IoT Climate Monitoring Ready Enables predictive analytics, automated climate control, and industrial environmental intelligence.
Applications
Smart Agriculture & Greenhouses Real-time LoRaWAN® temperature and humidity monitoring for precision farming, greenhouses, irrigation control, and crop protection.
Cold Chain Monitoring Continuous wireless temperature humidity monitoring for vaccine storage, cold rooms, refrigerated transport, and food logistics.
Warehouse Environmental Monitoring Industrial climate monitoring for warehouses, FMCG storage, inventory preservation, and humidity-sensitive materials.
HVAC & Smart Buildings Indoor environmental sensing for HVAC optimization, smart offices, malls, commercial buildings, and energy-efficient infrastructure.
Industrial IoT Monitoring Wireless environmental monitoring for manufacturing plants, process industries, machine rooms, and production facilities.
Pharmaceutical Storage Monitoring Accurate temperature and humidity tracking for laboratories, medicine storage, healthcare facilities, and pharmaceutical warehouses.
Weather & Environmental Stations LoRaWAN® climate monitoring for micro-weather stations, environmental research, pollution tracking, and outdoor sensing.
Remote Infrastructure Monitoring Climate exposure tracking for telecom towers, substations, solar plants, wind turbines, and isolated infrastructure assets.
Smart Cities & Urban Monitoring Distributed wireless environmental sensing for public infrastructure, sustainability initiatives, and smart city deployments.
Data Centers & Server Rooms Continuous temperature and humidity monitoring to protect critical IT infrastructure and prevent thermal failures.
Mines, Tunnels & Harsh Industrial Sites Long-range wireless monitoring for underground, remote, and harsh industrial environments with limited connectivity.
Temperature Humidity Data Logging Real-time environmental data logging for compliance monitoring, analytics, and historical climate trend analysis.
Technical Specifications
| SKU | Variant Name | Power Source | Communication | Ideal For |
|---|---|---|---|---|
| 8101 | MacSync-L-TH-BS-X1 | Battery (19 Ah) | LoRaWAN® | Remote outdoor deployments with multi-year battery operation |
| 8102 | MacSync-L-TH-PS-X1 | 9–36 V DC | LoRaWAN® | Industrial and commercial installations with continuous power |
| 8103 | MacSync-M-TH-PS-X1 | 9–36 V DC | MacTalk | MacTalk-based industrial monitoring applications with external power |
| 8104 | MacSync-M-TH-BS-X1 | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for remote outdoor monitoring |
| 8105 | MacSync-B-TH-BS-X1 | Battery (19 Ah) | BLE | Local wireless temperature and humidity monitoring using BLE connectivity |
What's in the Box?
Make sure box contains following items before installations
- MacSync-L-TH Sensor
- Mounting Clip
- User Manual
- Warranty Card
- IP68 Cable Extender *
- Mounting Screws
- Power Adapters *
Ensure the following items are available before installation.
Accessories may not be included in the package and must be purchased separately.

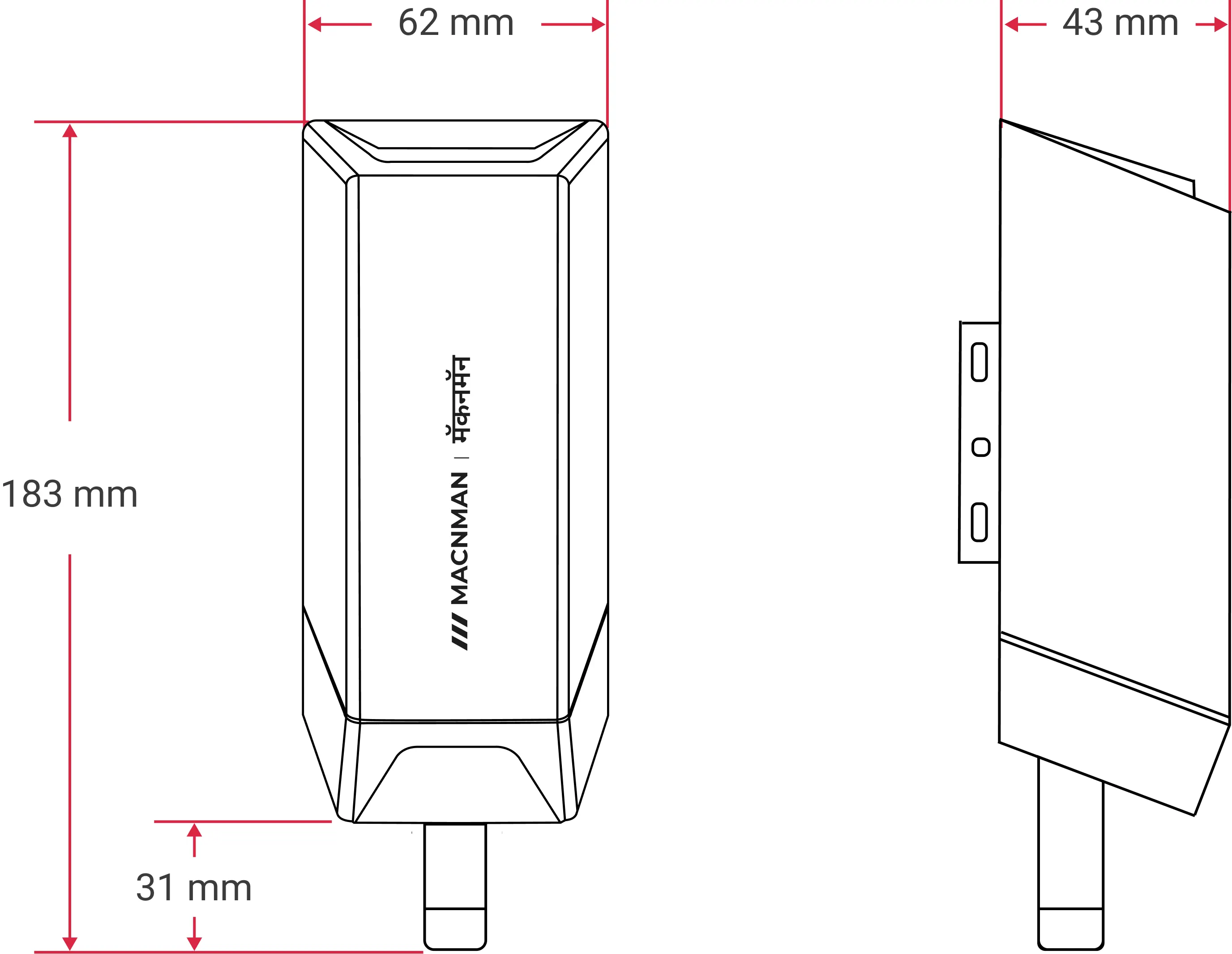

MacSync LTS X1 Dimensions
The MacSync-L-TH features a compact industrial-grade enclosure with overall dimensions of 183 mm × 62 mm × 43 mm, enabling easy wall and pole mounting across warehouses, cold storage facilities, smart agriculture deployments, industrial environments, and outdoor IoT monitoring infrastructure.
Frequently Asked Questions
What is the MacSync LTS X1 used for?
MacSync LTS X1 is an industrial LoRaWAN temperature and humidity sensor for outdoor environmental monitoring, smart agriculture, HVAC and cold chain. Typical applications include Smart Agriculture & Greenhouses, Cold Chain Monitoring, Warehouse Environmental Monitoring, HVAC & Smart Buildings, Industrial IoT Monitoring and Pharmaceutical Storage Monitoring.
What does the MacSync LTS X1 measure, and how accurately?
Measurement specifications of the MacSync LTS X1:
- Temperature: range -30°C to +70°C, accuracy 0°C to +70°C: ±0.3°C & -30°C to 0°C: ±0.6°C, resolution 0.1°C.
- Humidity: range 0% to 100% RH, accuracy 10% to 90% RH: ±3% RH & <10% or >90% RH: ±5% RH, resolution 0.5% RH.
Which LoRaWAN frequency bands and network servers does the MacSync LTS X1 support?
The MacSync LTS X1 supports LoRaWAN® (v1.0.4) and the Macnman MacTalk Protocol on the IN865 / RU864 / EU868 / US915 / AU915 frequency bands. It joins the network by OTAA activation. It runs as Class A by default and can be set to Class C in the Maya app. Supported network servers: Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, and direct PLC on-premise installations.
How long does the MacSync LTS X1 battery last?
The battery-operated MacSync LTS X1 runs on a 19 Ah industrial-grade Li-SOCl₂ cell. Estimated battery life is ~2 years at a 5-minute reporting interval, ~4 years at a 15-minute reporting interval and ~7+ years at a 60-minute reporting interval. A power-operated version runs from 9-36 V DC (External Supply).
What is the IP rating and operating temperature of the MacSync LTS X1?
The MacSync LTS X1 has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% to 100% RH (non-condensing). Mounting options: Pole Mount / Wall Mount.
How is the MacSync LTS X1 configured?
The MacSync LTS X1 is configured with the Macnman Maya Android app over Bluetooth Low Energy (BLE). Settings can also be changed remotely with over-the-air downlink commands.
What is included in the box with the MacSync LTS X1?
The box contains: MacSync-L-TH Sensor, Mounting Clip, User Manual, Warranty Card and Mounting Screws. IP68 Cable Extender and Power Adapters are optional and may need to be purchased separately.
