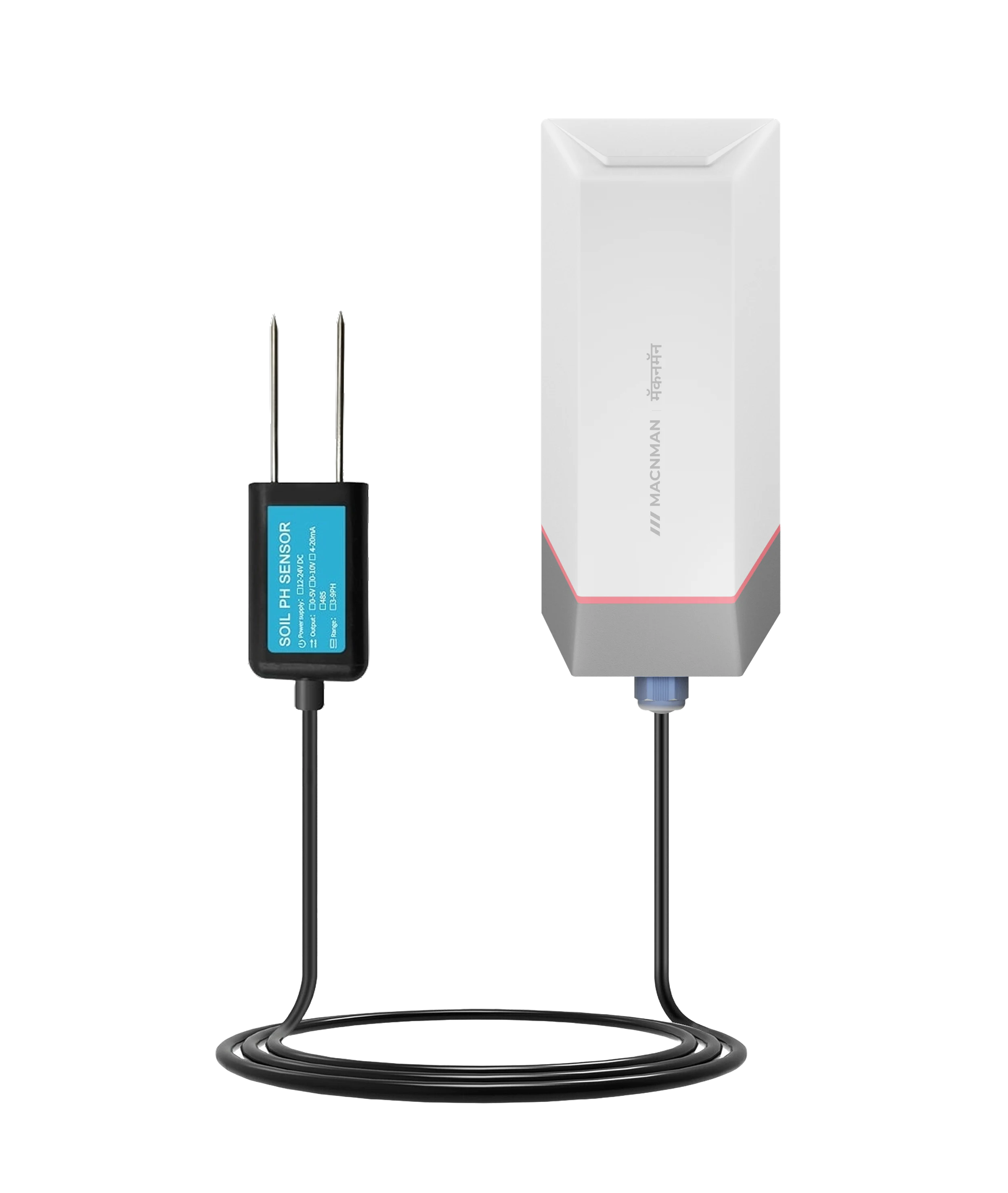

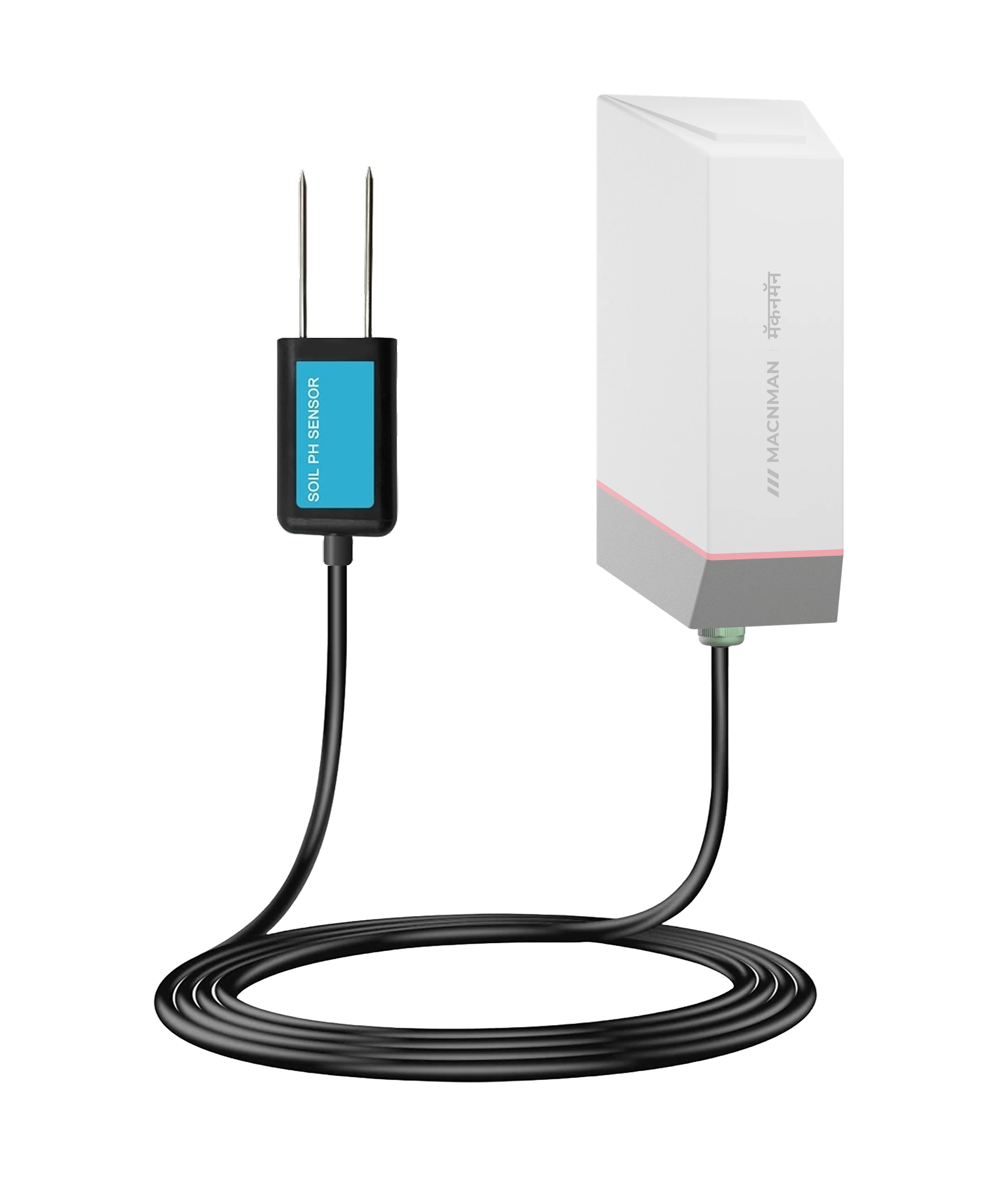

MacSync LSS X4 LoRaWAN® Soil pH Sensor Datasheet
Product Overview
MacSync LSS X4 is an industrial-grade LoRaWAN® soil pH sensor designed for precision agriculture, smart farming, greenhouse automation, plantations, vineyards, orchards, crop monitoring, and long-range environmental soil analysis applications. Built for ultra-low-power remote deployments, the sensor continuously measures soil pH levels in real time to help farmers and agricultural integrators optimize soil chemistry, fertilizer usage, nutrient absorption, and crop productivity.
The device enables continuous monitoring of soil acidity and alkalinity across agricultural fields, helping growers maintain balanced soil conditions for healthier crop development and improved irrigation and fertilization strategies.
Engineered using Macnman’s low-power wireless architecture, the MacSync LSS X4 LoRaWAN soil pH monitoring sensor provides stable and accurate soil pH measurements across multiple soil environments including clay soil, sandy soil, red soil, cocopeat, greenhouse media, plantation soil, and high-moisture agricultural fields.
Its rugged IP67/IP68-ready outdoor enclosure and corrosion-resistant industrial soil pH electrode enable long-term deployment in harsh agricultural and environmental conditions. The sensor supports seamless integration with The Things Network (TTN), ChirpStack, MQTT servers, Loriot, Orbiwise, private LoRaWAN® gateways, and industrial IoT dashboards.
The device supports configurable uplink intervals, threshold-based soil pH alerts, OTA configuration via the Maya App, local BLE diagnostics, onboard data buffering, and multi-year battery operation for remote farmland deployments.
MacSync LSS X4 is ideal for:
- Precision agriculture and smart farming
- Soil pH monitoring and soil chemistry analysis
- Fertilizer optimization and nutrient management
- Greenhouse and polyhouse farming
- Plantation and commercial agriculture
- Vineyard and orchard soil monitoring
- Soil health analytics and research
- Remote agricultural telemetry systems
- Smart irrigation and fertigation projects
- Agricultural universities and research farms
- Landscape and smart city soil monitoring
- Long-range LoRaWAN® environmental monitoring
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacSync LSS X4
Key Features
Industrial LoRaWAN® Soil pH Sensor High-precision soil pH monitoring sensor designed for precision agriculture, greenhouse automation, plantations, vineyards, orchards, and smart farming deployments.
Real-Time Soil Acidity & Alkalinity Monitoring Continuously monitors soil pH levels to help optimize nutrient absorption, fertilizer effectiveness, and overall crop productivity.
Improve Fertilizer & Nutrient Management Helps farmers and agronomists maintain balanced soil chemistry for healthier crop growth and improved fertilizer utilization.
Long-Range LoRaWAN® Wireless Connectivity Enables ultra-low-power wireless soil pH monitoring across large farms and remote agricultural deployments using public or private LoRaWAN® networks.
High Accuracy Industrial Soil pH Electrode Industrial-grade corrosion-resistant soil pH electrode delivers stable and reliable measurements across multiple soil environments.
Ultra-Low-Power Agriculture IoT Device Optimized low-power architecture enables multi-year battery operation for remote farmland monitoring and unattended outdoor deployments.
Rugged Outdoor Agricultural Enclosure IP67/IP68-ready industrial enclosure supports continuous operation in harsh outdoor farming and environmental conditions.
Supports Smart Irrigation & Fertigation Improve irrigation and fertigation strategies using real-time soil chemistry data and intelligent threshold-based alerts.
Compatible with TTN, ChirpStack & MQTT Easily integrates with The Things Network, ChirpStack, MQTT servers, industrial IoT dashboards, and private LoRaWAN® infrastructure.
Remote OTA Configuration via Maya App Configure uplink intervals, calibration parameters, alerts, and reporting modes remotely without physical access to the sensor.
Suited Applications
Precision Agriculture & Smart Farming Real-time soil pH monitoring for precision agriculture, crop-health optimization, and intelligent soil management.
Soil Fertility & Nutrient Management Monitor soil acidity and alkalinity to improve fertilizer planning, nutrient absorption, and balanced soil chemistry.
Greenhouses & Polyhouses Continuous soil pH monitoring for greenhouse vegetables, herbs, flowers, and controlled-environment agriculture.
Vineyards & Orchards Optimize grape cultivation, fruit orchards, and high-value crop production using accurate soil chemistry monitoring.
Plantations & Commercial Farming Long-range LoRaWAN® soil pH monitoring for tea, coffee, sugarcane, cotton, coconut, and commercial agricultural deployments.
Fertigation & Irrigation Optimization Improve irrigation water quality and fertigation efficiency using real-time soil pH analytics.
Agricultural Research & Soil Analysis Collect long-term soil chemistry data for environmental studies, crop research, and scientific soil analysis projects.
Landscape & Smart City Monitoring Monitor soil pH conditions across parks, campuses, golf courses, gardens, and urban green-zone projects.
Remote Farmland Monitoring Enable wireless remote soil pH telemetry using ultra-low-power LoRaWAN® communication infrastructure.
Environmental Soil Monitoring Monitor changing soil chemistry conditions across environmental restoration projects and sustainable agriculture initiatives.
Technical Specifications
MacSync LSS X4 Variants
| SKU | Variant Name | Power Source | Communication | Ideal For |
|---|---|---|---|---|
| 8815 | MacSync-L-SPH-SS-X1 | 20 W Solar + 8000 mAh Rechargeable Battery | LoRaWAN® | Continuous soil pH monitoring for precision agriculture, fertigation optimization, greenhouses, and smart farming deployments |
| 8816 | MacSync-L-SPH-BS-X1 | Battery (19 Ah) | LoRaWAN® | Remote soil pH monitoring for farms, plantations, vineyards, orchards, and precision agriculture applications |
| 8817 | MacSync-M-SPH-SS-X1 | 20 W Solar + 8000 mAh Rechargeable Battery | MacTalk | MacTalk-based continuous soil pH monitoring for commercial agriculture and agricultural automation |
| 8818 | MacSync-M-SPH-BS-X1 | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for remote soil pH and soil chemistry monitoring |
| 8819 | MacSync-B-SPH-BS-X1 | Battery (19 Ah) | BLE | Local soil pH monitoring, commissioning, calibration, and diagnostics using BLE connectivity |
What's in the Box?
Make sure the box contains the following items before installation.
- MacSync LSS X4 LoRaWAN Soil pH Sensor
- Mounting Clip
- User Manual
- Warranty Card
- IP68 Cable Extender *
- Mounting Screws
- Power Adapter *
Accessories marked with (*) must be purchased separately and may not be included in the box.

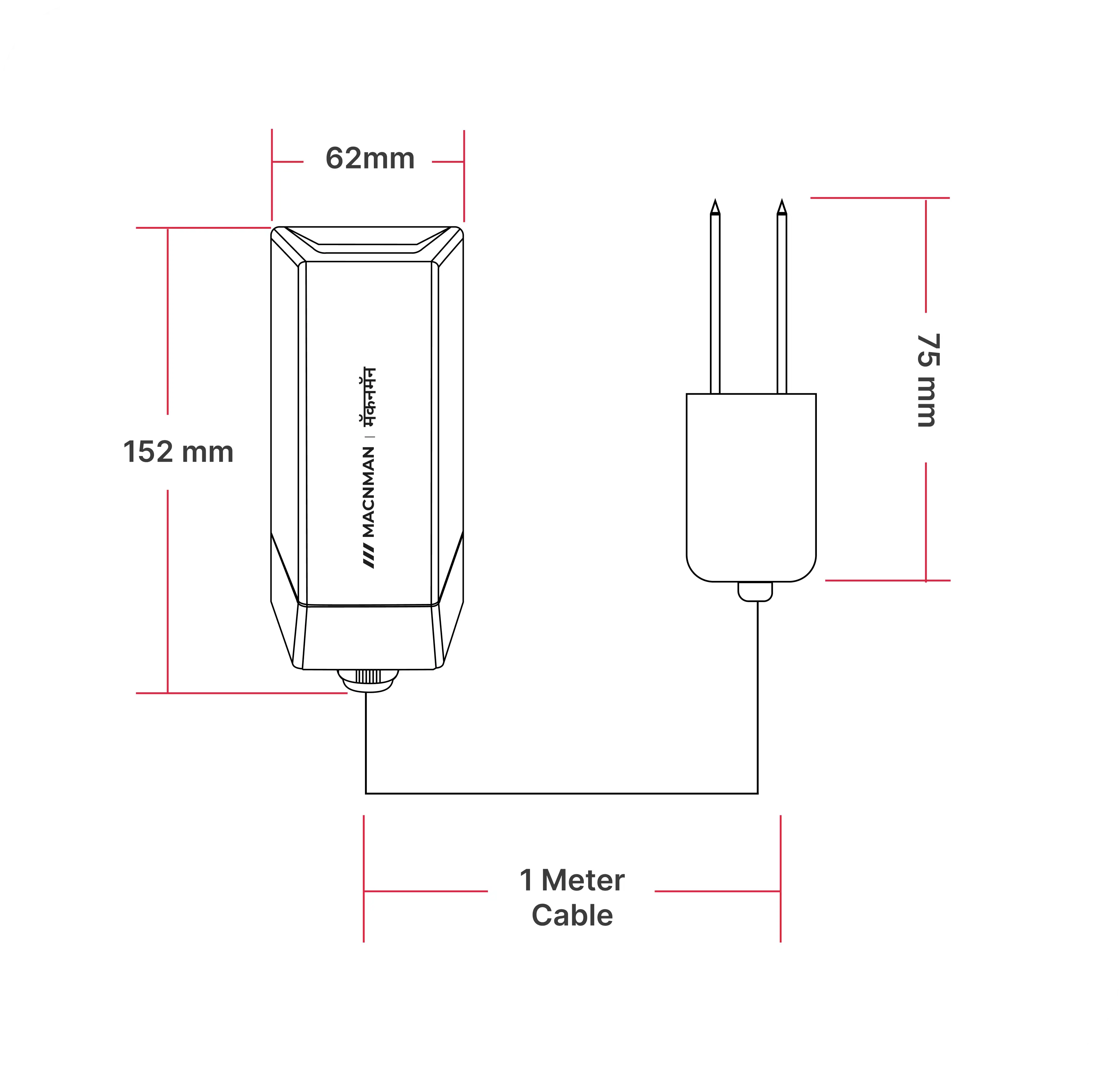

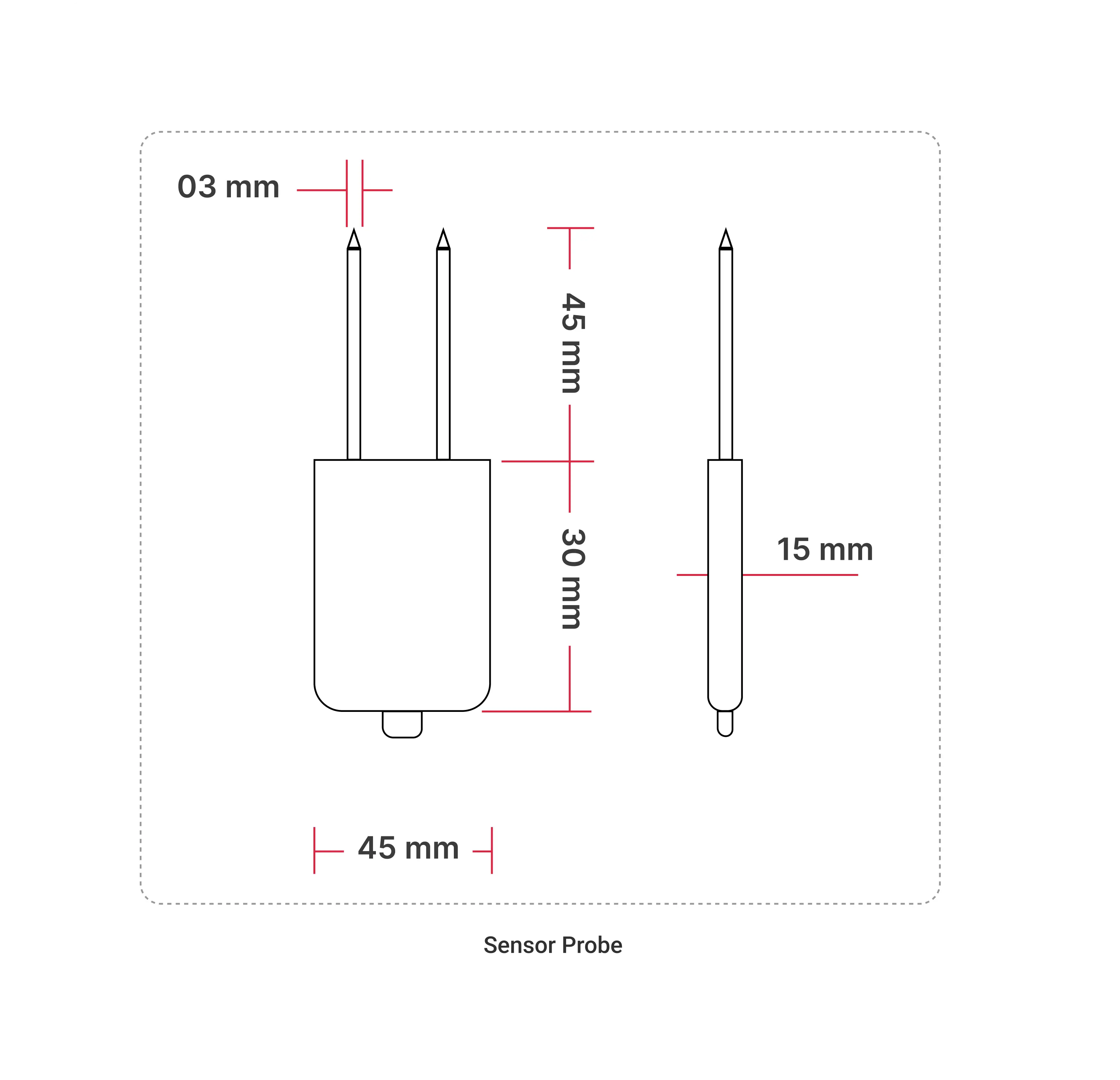

MacSync LSS X4 Dimensions
The MacSync LSS X4 features a rugged industrial-grade enclosure designed for long-term outdoor agricultural deployments. The compact enclosure dimensions of 152 mm × 62 mm × 43 mm enable easy installation across farms, greenhouses, plantations, vineyards, orchards, fertigation systems, and precision agriculture monitoring projects.
Frequently Asked Questions
What is the MacSync LSS X4 used for?
MacSync LSS X4 is an industrial LoRaWAN soil pH sensor for precision agriculture, smart farming, greenhouse automation and plantation monitoring. Typical applications include Precision Agriculture & Smart Farming, Soil Fertility & Nutrient Management, Greenhouses & Polyhouses, Vineyards & Orchards, Plantations & Commercial Farming and Fertigation & Irrigation Optimization.
What does the MacSync LSS X4 measure, and how accurately?
Measurement specifications of the MacSync LSS X4:
- Soil pH: range 3 – 9 pH, accuracy ±0.3 pH, resolution 0.01 pH.
Which LoRaWAN frequency bands and network servers does the MacSync LSS X4 support?
The MacSync LSS X4 supports LoRaWAN® (v1.0.4) and the Macnman MacTalk Protocol on the IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923 frequency bands. It joins the network by OTAA activation. It runs as Class A by default and can be set to Class C in the Maya app. Supported network servers: Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, and on-premise industrial IoT deployments.
How long does the MacSync LSS X4 battery last?
The battery-operated MacSync LSS X4 runs on a 19 Ah industrial-grade Li-SOCl₂ cell. Estimated battery life is ~2 years at a 5-minute reporting interval, ~4 years at a 15-minute reporting interval and ~7+ years at a 60-minute reporting interval. A solar option adds a 20 W High-Efficiency Solar Panel with an Integrated 8000 mAh Solar Rechargeable Battery.
What is the IP rating and operating temperature of the MacSync LSS X4?
The MacSync LSS X4 has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% ~ 100% RH (non-condensing). Mounting options: Pole Mount / Wall Mount.
How is the MacSync LSS X4 configured?
The MacSync LSS X4 is configured with the Macnman Maya Android app over Bluetooth Low Energy (BLE). Settings can also be changed remotely with over-the-air downlink commands.
What is included in the box with the MacSync LSS X4?
The box contains: MacSync LSS X4 LoRaWAN Soil pH Sensor, Mounting Clip, User Manual, Warranty Card and Mounting Screws. IP68 Cable Extender and Power Adapter are optional and may need to be purchased separately.
