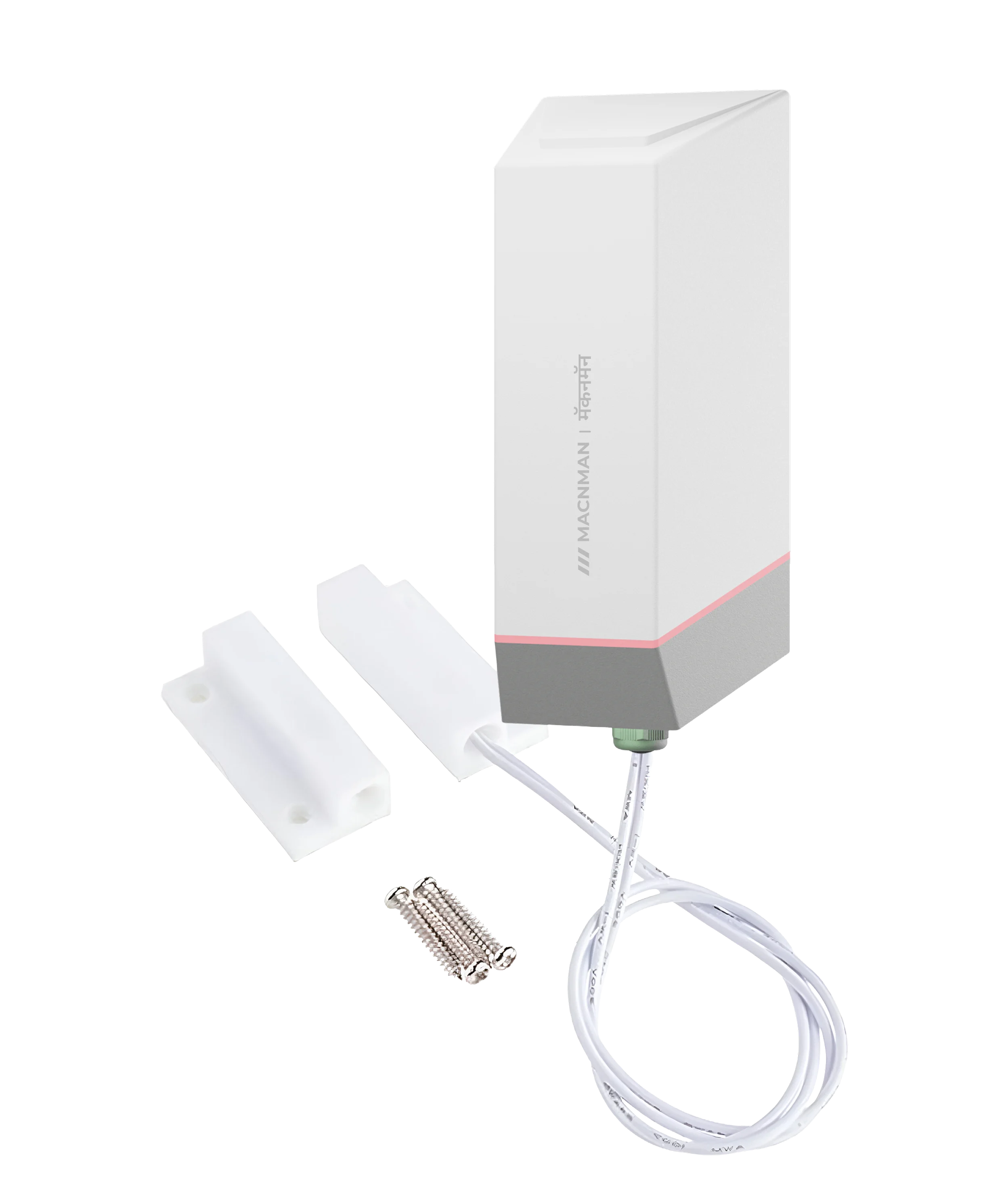

MacSync LDSS X1 LoRaWAN® Door Status Sensor Datasheet
Product Overview
MacSync LDSS X1 LoRaWAN® Door Status Sensor is an industrial-grade wireless door monitoring solution designed for continuous real-time door open and close status monitoring across warehouses, cold storage facilities, smart buildings, factories, server rooms, utility infrastructure, and Industrial IoT environments.
Built using ultra-low-power electronics and long-range LoRaWAN® wireless technology, the sensor enables reliable remote door monitoring without requiring complex wiring infrastructure. The device continuously detects door open, close, tamper, and access events to help organizations improve security, operational visibility, energy efficiency, and facility monitoring.
The LoRaWAN Door Status Sensor is engineered for Industrial IoT deployments where long battery life, wide-area coverage, secure wireless communication, and centralized cloud monitoring are critical. It is ideal for warehouse door monitoring, cold storage access monitoring, smart building automation, industrial security systems, logistics infrastructure, and remote facility management.
With configurable uplink intervals, event-based transmission, BLE configuration via the Macnman Maya App, and seamless integration with LoRaWAN® gateways and cloud IoT platforms, the MacSync LDSS X1 delivers scalable door activity analytics for Industry 4.0 deployments.
Its rugged industrial enclosure, IP65 protection, low-power battery operation, and AES-encrypted wireless communication make it suitable for harsh indoor and outdoor industrial deployments requiring reliable wireless door status monitoring.
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacSync LDSS X1
Key Features
Real-Time Door Open & Close Detection Continuously monitors door open and close activity for industrial facilities, warehouses, smart buildings, and Industrial IoT deployments.
LoRaWAN® Wireless Door Monitoring Long-range wireless communication enables remote door status monitoring across large industrial and commercial environments.

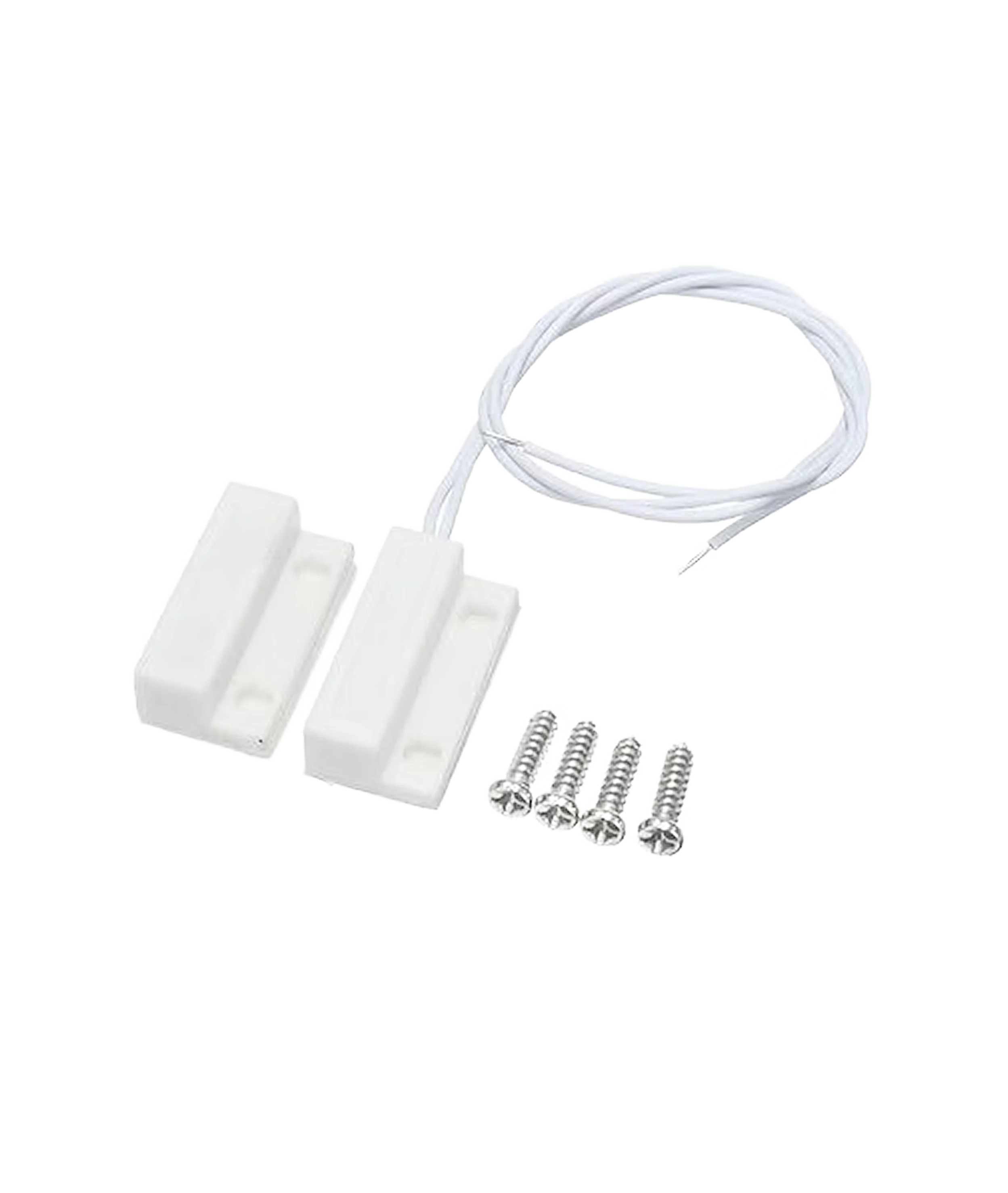

Magnetic Reed Switch Sensing High-reliability magnetic contact sensing technology for accurate door position and access detection.
Instant Event-Based Transmission Real-time event-triggered uplink transmission for immediate door open, close, and tamper alerts.
Ultra-Low-Power Architecture Optimized low-power electronics enable long battery life for multi-year wireless deployments.
Cold Storage Door Monitoring Monitor freezer and cold storage door activity to improve energy efficiency and reduce temperature leakage.
Industrial-Grade IP65 Enclosure Rugged enclosure designed for warehouses, factories, utility infrastructure, and harsh industrial environments.
BLE Configuration via Maya App Configure, diagnose, and manage the LoRaWAN® door status sensor wirelessly using the Macnman Maya mobile application.
Cloud, SCADA & Industrial IoT Integration Seamlessly integrates with LoRaWAN® gateways, MQTT servers, SCADA systems, and cloud monitoring dashboards.
Secure AES-Encrypted Communication AES-128 encrypted wireless communication ensures secure and reliable transmission of door activity data.
Applications
Warehouse Door Monitoring Real-time monitoring of warehouse shutter doors, loading bays, storage access points, and inventory movement areas.
Cold Storage Door Monitoring Detect freezer and cold storage door activity to maintain temperature stability and improve energy efficiency.
Smart Building Access Monitoring Wireless monitoring of office doors, restricted access zones, and commercial building infrastructure.
Industrial Security Monitoring Monitor unauthorized door access and industrial facility activity across factories and manufacturing plants.
Server Room Door Monitoring Detect server room access events and maintain visibility of critical infrastructure activity.
Remote Facility Monitoring Long-range LoRaWAN® door monitoring for unmanned utility stations, telecom sites, and remote industrial facilities.
Utility Cabinet & Panel Monitoring Monitor electrical cabinets, telecom enclosures, and outdoor utility infrastructure for unauthorized access.
Logistics & Supply Chain Monitoring Track loading dock access, cargo movement, and storage area activity across logistics operations.
Industrial IoT Door Analytics Integrate real-time door activity data into SCADA systems, cloud dashboards, and Industrial IoT platforms.
Smart Factory Infrastructure Monitoring Enable centralized visibility of factory door activity and operational access events in Industry 4.0 deployments.
MacSync LDSS X1 Variants
| SKU | Variant Name | Power Source | Communication | Ideal For |
|---|---|---|---|---|
| 9300 | MacSync-L-DRS-BS-X2 | Battery (19 Ah) | LoRaWAN® | Remote door monitoring for warehouses, cold storage facilities, utility cabinets, telecom shelters, factories, and smart building deployments. |
| 9301 | MacSync-L-DRS-PS-X2 | 9–36 V DC | LoRaWAN® | Continuous industrial door status monitoring for manufacturing plants, server rooms, data centers, and critical infrastructure. |
| 9302 | MacSync-M-DRS-BS-X2 | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for remote door access monitoring and Industrial IoT applications. |
| 9303 | MacSync-M-DRS-PS-X2 | 9–36 V DC | MacTalk | MacTalk-based door monitoring with continuous external power for industrial automation and facility management. |
| 9304 | MacSync-B-DRS-BS-X2 | Battery (19 Ah) | BLE | Local door status monitoring, commissioning, diagnostics, and maintenance using BLE connectivity. |
What's in the Box?
Make sure the box contains the following items before installation.
- MacSync LDSS X1 LoRaWAN® Door Status Sensor
- Mounting Clip
- User Manual
- Warranty Card
- IP68 Cable Extender *
- Mounting Screws
- Power Adapter *
Accessories marked with * must be purchased separately and may not be included in the box.

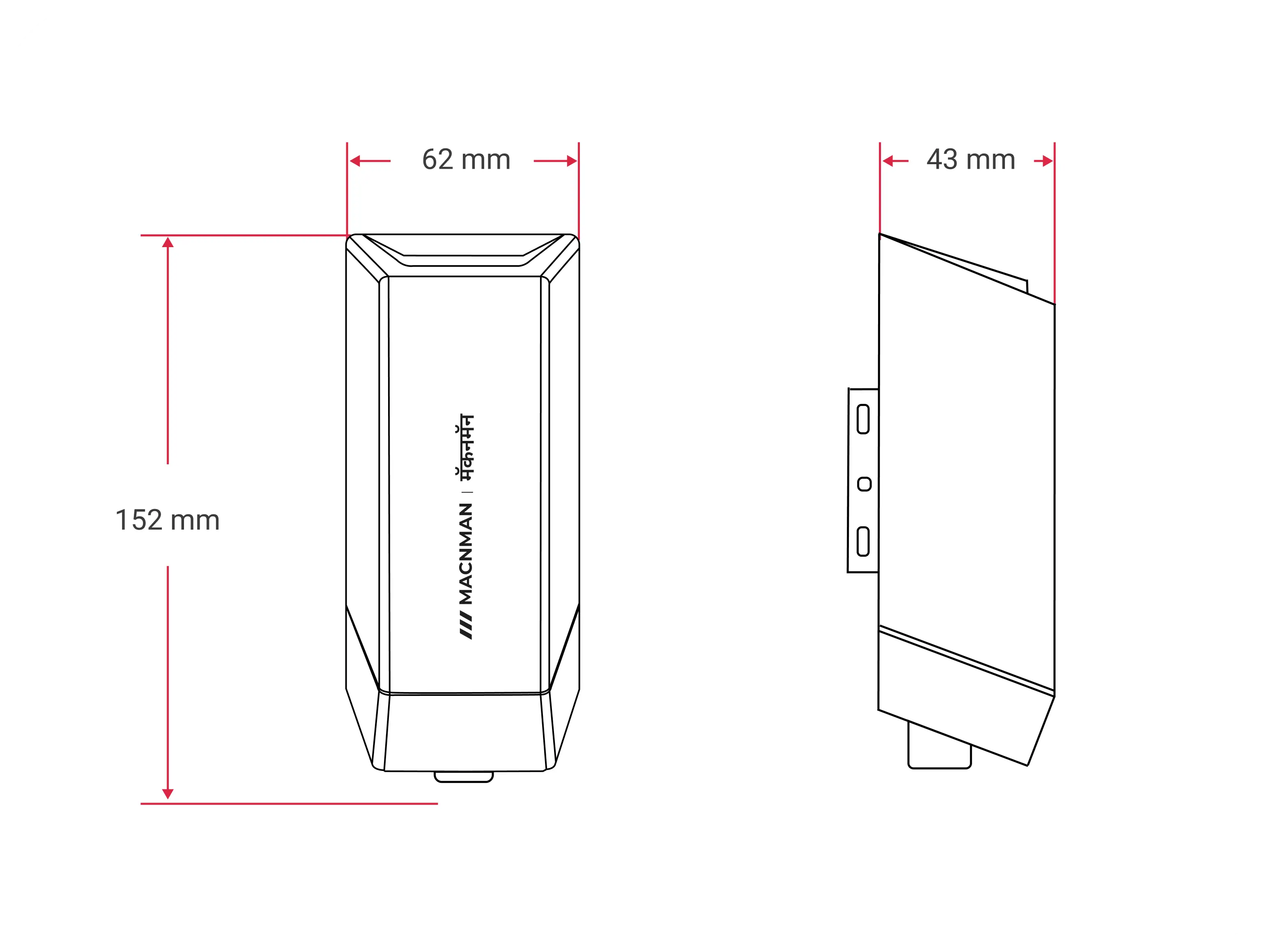

MacSync LDSS X1 Dimensions
The MacSync LDSS X1 features a compact industrial-grade enclosure with overall dimensions of 152 mm × 62 mm × 43 mm (Without sensor), enabling easy wall and pole mounting across warehouses, industrial facilities, smart buildings, utility infrastructure, and Industrial IoT deployments.
Frequently Asked Questions
What is the MacSync LDSS X1 used for?
MacSync LDSS X1 is an industrial LoRaWAN door status sensor for real-time door open and close monitoring in warehouses, cold storage and smart buildings. Typical applications include Warehouse Door Monitoring, Cold Storage Door Monitoring, Smart Building Access Monitoring, Industrial Security Monitoring, Server Room Door Monitoring and Remote Facility Monitoring.
How does the MacSync LDSS X1 detect door status?
Door Status Detection specifications of the MacSync LDSS X1:
- Detection Technology: Magnetic Reed Switch Detection
- Door Status Detection: Open / Close Status
- Trigger Distance: 15mm
- Event Reporting: Instant event-based uplink transmission
- Tamper Detection: Supported with Software
- Door Activity Logging: with Timestamp
Which LoRaWAN frequency bands and network servers does the MacSync LDSS X1 support?
The MacSync LDSS X1 supports LoRaWAN® (v1.0.4) and the Macnman MacTalk Protocol on the IN865 / RU864 / EU868 / US915 / AU915 frequency bands. It joins the network by OTAA activation. It runs as Class A by default and can be set to Class C in the Maya app. Supported network servers: Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, and direct PLC on-premise installations.
How long does the MacSync LDSS X1 battery last?
The battery-operated MacSync LDSS X1 runs on a 19 Ah industrial-grade Li-SOCl₂ cell. Estimated battery life is ~2 years at a 5-minute reporting interval, ~4 years at a 15-minute reporting interval and ~7+ years at a 60-minute reporting interval.
What is the IP rating and operating temperature of the MacSync LDSS X1?
The MacSync LDSS X1 has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% ~ 100% RH (non-condensing). Mounting options: Pole Mount / Wall Mount.
How is the MacSync LDSS X1 configured?
The MacSync LDSS X1 is configured with the Macnman Maya Android app over Bluetooth Low Energy (BLE). Settings can also be changed remotely with over-the-air downlink commands.
What is included in the box with the MacSync LDSS X1?
The box contains: MacSync LDSS X1 LoRaWAN® Door Status Sensor, Mounting Clip, User Manual, Warranty Card and Mounting Screws. IP68 Cable Extender and Power Adapter are optional and may need to be purchased separately.
