MacSync LPS Xx LoRaWAN® Pressure Transducer Datasheet
Product Overview
MacSync LPS Xx is an industrial-grade LoRaWAN® hydrostatic pressure transducer engineered for high-accuracy wireless pressure monitoring across water pipelines, industrial process systems, fire hydrants, sewage networks, oil & gas infrastructure, hydraulic systems, and smart utility deployments. Designed for Industrial IoT environments, the device continuously measures pressure variations and transmits real-time telemetry over ultra-long-range LoRaWAN® wireless networks.
Built using a precision SS316 stainless steel hydrostatic pressure sensing element, the MacSync LPS Xx LoRaWAN® pressure sensor delivers highly stable pressure analytics even in corrosive, vibration-prone, moisture-rich, and high-pressure industrial environments. Its rugged IP67-rated architecture, surge-resistant design, and wide operating temperature range make it ideal for outdoor industrial deployments, underground utility infrastructure, remote pumping stations, and harsh process automation environments.
The device supports LoRaWAN® v1.0.4 Class A communication, AES-128 encrypted wireless transmission, BLE-based configuration through the Macnman Maya App, and intelligent pressure analytics including threshold-based alerts, leakage detection, pressure anomaly monitoring, and event-driven telemetry reporting. Optimized for battery-powered or external DC-powered operation, the MacSync LPS Xx enables scalable wireless pressure monitoring deployments without expensive wiring infrastructure.
Whether deployed for municipal water distribution monitoring, fire pump discharge pressure analytics, industrial process automation, wastewater infrastructure monitoring, oil & gas pipeline supervision, hydraulic system diagnostics, or remote utility telemetry, the MacSync LPS Xx industrial LoRaWAN® pressure transducer transforms critical pressure data into actionable operational intelligence for Industry 4.0 and connected infrastructure ecosystems.
The MacSync LPS Xx wireless pressure monitoring sensor is fully compatible with major LoRaWAN® gateways and network servers including ChirpStack, The Things Stack, MQTT platforms, Orbiwise, LORIOT, and private industrial LoRaWAN® infrastructures — enabling seamless integration into SCADA systems, Industrial IoT dashboards, cloud analytics platforms, and smart utility management infrastructure.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync LPS Xx
Key Features
Industrial LoRaWAN® Pressure Sensor High-accuracy wireless pressure monitoring engineered for industrial pipelines, hydraulic systems, utilities, and process automation.
SS316 Hydrostatic Pressure Transducer Precision stainless steel sensing element designed for corrosive, high-pressure, and moisture-rich industrial environments.
Long-Range LoRaWAN® Connectivity Ultra-long-range wireless telemetry for remote pressure monitoring across large industrial and utility infrastructures.
Battery & DC Powered Variants Supports multi-year battery-powered deployments and continuous DC-powered industrial monitoring applications.
Pressure Threshold & Leakage Alerts Intelligent event-triggered transmission for pressure anomalies, sudden drops, leakage detection, and over-pressure alerts.
IP67 Industrial Rugged Design Durable industrial enclosure optimized for outdoor deployments, underground infrastructure, and harsh industrial conditions.
BLE Configuration via Maya App Fast local configuration, diagnostics, parameter tuning, and firmware updates using the Macnman Maya Android App.
Industrial Process Automation Ready Ideal for SCADA integration, industrial process monitoring, utility telemetry, and Industry 4.0 deployments.
Secure AES-128 LoRaWAN® Communication Encrypted wireless telemetry ensures secure industrial pressure data transmission across public and private LoRaWAN® networks.
Compatible with Major LoRaWAN® LNS Works seamlessly with ChirpStack, TTN, MQTT platforms, Orbiwise, LORIOT, and private industrial LoRaWAN® infrastructures.
Applications
Municipal Water Pressure Monitoring Continuous pressure monitoring for water distribution pipelines, pumping stations, reservoirs, and smart water utility infrastructure.
Fire Hydrant & Fire Pump Monitoring Real-time pressure analytics for firefighting systems, hydrants, discharge pipelines, and fire safety infrastructure.
Industrial Process Automation Wireless pressure telemetry for manufacturing plants, industrial fluid systems, and automated process control infrastructure.
Oil & Gas Pipeline Monitoring Monitor pipeline pressure variations, leakage risks, and abnormal operating conditions in remote energy infrastructure.
Wastewater & Sewage Infrastructure Pressure monitoring for sewage treatment plants, effluent systems, underground utility networks, and wastewater pipelines.
Hydraulic System Diagnostics High-accuracy pressure sensing for hydraulic machinery, industrial pumps, compressors, and fluid control systems.
Smart Utility Telemetry Remote wireless pressure monitoring for distributed utility infrastructure and smart city deployments.
Remote & Unmanned Installations Multi-year battery-powered LoRaWAN® pressure monitoring for isolated industrial and utility locations.
Industry 4.0 Pressure Analytics Real-time industrial pressure analytics for predictive maintenance, operational intelligence, and connected infrastructure monitoring.
MacSync LPS Xx Variants
| SKU | Variant Name | Pressure Range | Power Source | Communication | Ideal For |
|---|---|---|---|---|---|
| 9101 | MacSync-L-HPT-BS-X1 | 0–2.5 MPa | Battery (19 Ah) | LoRaWAN® | Remote water distribution, utility pipelines, and industrial pressure monitoring deployments. |
| 9102 | MacSync-L-HPT-PS-X1 | 0–2.5 MPa | 9–36 V DC | LoRaWAN® | Continuous pressure monitoring for industrial processes, water utilities, and pumping stations. |
| 9103 | MacSync-M-HPT-BS-X1 | 0–2.5 MPa | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for remote pressure monitoring. |
| 9104 | MacSync-M-HPT-PS-X1 | 0–2.5 MPa | 9–36 V DC | MacTalk | MacTalk-based industrial pressure monitoring with continuous external power. |
| 9105 | MacSync-B-HPT-BS-X1 | 0–2.5 MPa | Battery (19 Ah) | BLE | Local pressure monitoring, commissioning, and diagnostics using BLE connectivity. |
| 9106 | MacSync-L-HPT-BS-X2 | 0–5 MPa | Battery (19 Ah) | LoRaWAN® | Remote hydraulic systems, industrial pipelines, and utility pressure monitoring. |
| 9107 | MacSync-L-HPT-PS-X2 | 0–5 MPa | 9–36 V DC | LoRaWAN® | Continuous pressure monitoring for hydraulic equipment and industrial automation. |
| 9108 | MacSync-M-HPT-BS-X2 | 0–5 MPa | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for medium-pressure industrial monitoring. |
| 9109 | MacSync-M-HPT-PS-X2 | 0–5 MPa | 9–36 V DC | MacTalk | MacTalk-based pressure monitoring with continuous external power. |
| 9110 | MacSync-B-HPT-BS-X2 | 0–5 MPa | Battery (19 Ah) | BLE | Local medium-pressure monitoring, commissioning, and diagnostics using BLE connectivity. |
| 9111 | MacSync-L-HPT-BS-X3 | 0–10 MPa | Battery (19 Ah) | LoRaWAN® | Remote high-pressure monitoring for oil & gas, fire protection, and industrial pipelines. |
| 9112 | MacSync-L-HPT-PS-X3 | 0–10 MPa | 9–36 V DC | LoRaWAN® | Continuous high-pressure monitoring for hydraulic systems and industrial processes. |
| 9113 | MacSync-M-HPT-BS-X3 | 0–10 MPa | Battery (19 Ah) | MacTalk | Battery-operated MacTalk deployments for remote high-pressure monitoring. |
| 9114 | MacSync-M-HPT-PS-X3 | 0–10 MPa | 9–36 V DC | MacTalk | MacTalk-based high-pressure monitoring with continuous external power. |
| 9115 | MacSync-B-HPT-BS-X3 | 0–10 MPa | Battery (19 Ah) | BLE | Local high-pressure monitoring, commissioning, and diagnostics using BLE connectivity. |
What's in the Box?
Make sure the package contains the following items before installation and deployment of the MacSync LPS Xx LoRaWAN® Pressure Transducer.
- MacSync LPS Xx LoRaWAN® Pressure Transducer
- Mounting Clip
- User Manual
- Warranty Card
- IP68 Cable Extender *
- Mounting Screws
- Power Adapter *
Accessories marked with (*) may vary depending on deployment requirements and ordering configuration.

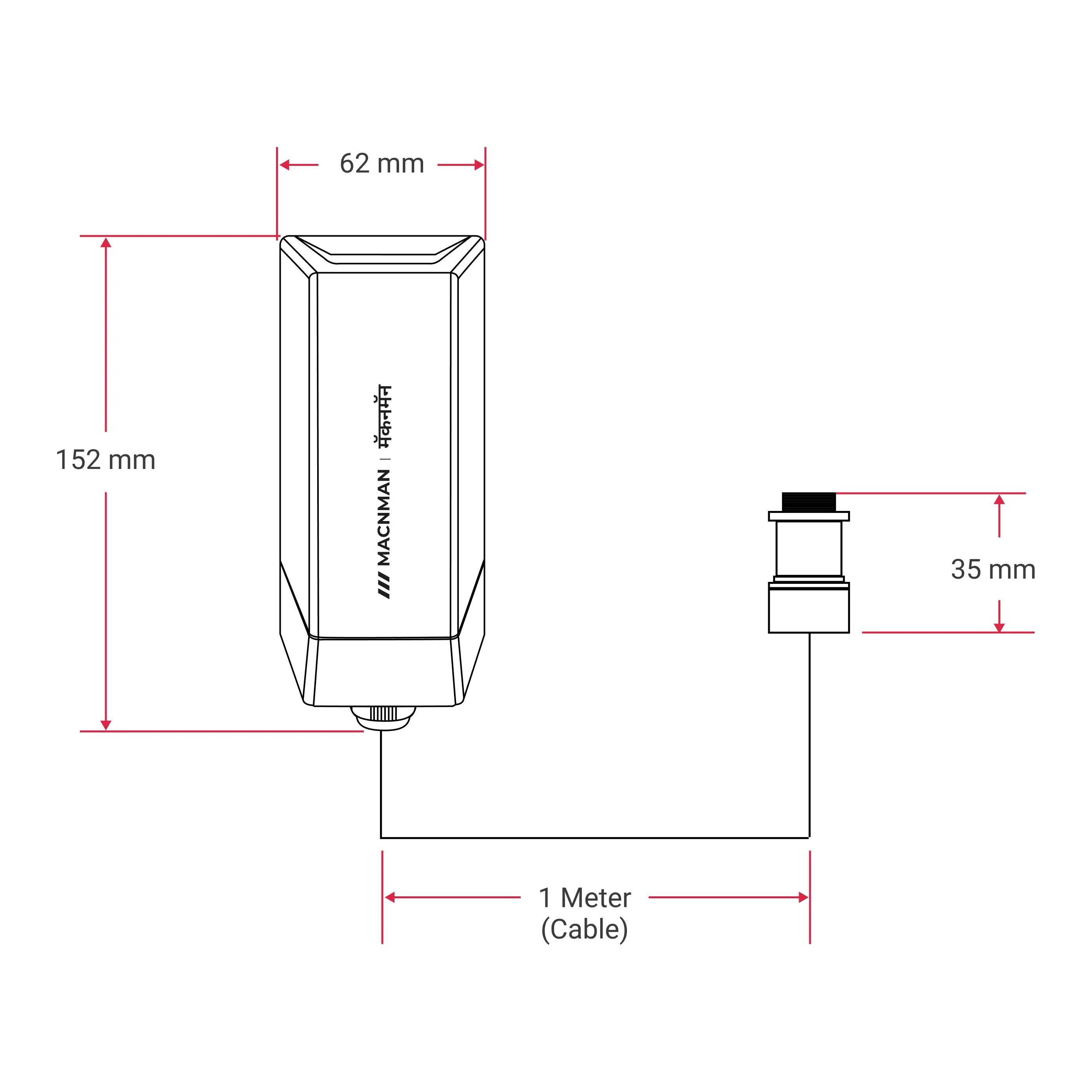

MacSync LPS Xx Dimensions
Compact industrial enclosure designed for rugged field deployments with overall dimensions 152 mm X 62 mm X 43 mm ( Without Sensor Probe ) optimized for wall mounting and industrial pressure monitoring installations.
Frequently Asked Questions
What is the MacSync LPS Xx used for?
MacSync LPS Xx is an industrial LoRaWAN pressure transducer for wireless pipeline pressure, water utility, fire hydrant and process monitoring. Typical applications include Municipal Water Pressure Monitoring, Fire Hydrant & Fire Pump Monitoring, Industrial Process Automation, Oil & Gas Pipeline Monitoring, Wastewater & Sewage Infrastructure and Hydraulic System Diagnostics.
What does the MacSync LPS Xx measure, and how accurately?
Measurement specifications of the MacSync LPS Xx:
- Pressure (Model X1): Working Pressure: 0 ~ 2.5 MPa; Measurement Accuracy: ±0.05 %FS.
- Pressure (Model X2): Working Pressure: 0 ~ 5 MPa; Measurement Accuracy: ±0.05 %FS.
- Pressure (Model X3): Working Pressure: 0 ~ 10 MPa; Measurement Accuracy: ±0.05 %FS.
Which LoRaWAN frequency bands and network servers does the MacSync LPS Xx support?
The MacSync LPS Xx supports LoRaWAN® (v1.0.4) and the Macnman MacTalk Protocol on the IN865 / RU864 / EU868 / US915 / AU915 frequency bands. It joins the network by OTAA activation. It runs as Class A by default and can be set to Class C in the Maya app. Supported network servers: Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, Direct PLC On-Prem Installations.
How long does the MacSync LPS Xx battery last?
The battery-operated MacSync LPS Xx runs on a 19 Ah industrial-grade Li-SOCl₂ cell. Estimated battery life is ~2 years at a 5-minute reporting interval, ~4 years at a 15-minute reporting interval and ~7+ years at a 60-minute reporting interval. A power-operated version runs from 9-36 V DC (External Supply).
What is the IP rating and operating temperature of the MacSync LPS Xx?
The MacSync LPS Xx has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% to 100% RH (non-condensing). Mounting options: Pole Mounting / Wall Mounting.
How is the MacSync LPS Xx configured?
The MacSync LPS Xx is configured with the Macnman Maya Android app over Bluetooth Low Energy (BLE). Settings can also be changed remotely with over-the-air downlink commands.
What is included in the box with the MacSync LPS Xx?
The box contains: MacSync LPS Xx LoRaWAN® Pressure Transducer, Mounting Clip, User Manual, Warranty Card and Mounting Screws. IP68 Cable Extender and Power Adapter are optional and may need to be purchased separately.
