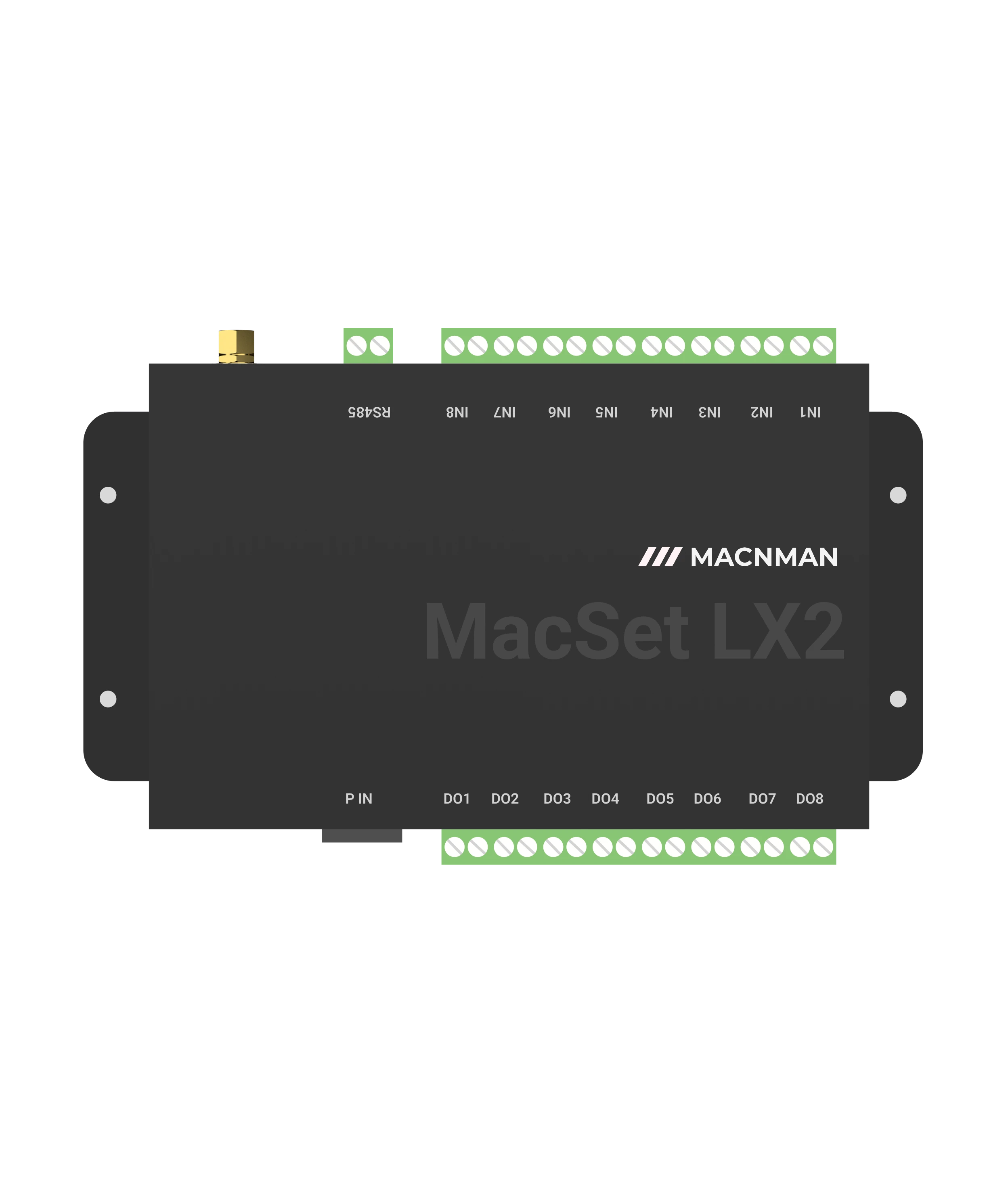

MacSet LX2 Industrial® LoRaWAN Controller
Product Overview
MacSet LX2 is an industrial-grade LoRaWAN® Multi-IO Controller engineered for advanced remote automation, industrial equipment control, multi-channel digital output switching, analog and digital input monitoring, and wireless Industrial IoT deployments. Designed for large-scale industrial automation and infrastructure control, the controller enables reliable long-range wireless operation of pumps, motors, solenoid valves, alarms, contactors, lighting systems, actuators, industrial panels, and field equipment over secure LoRaWAN® networks.
Built for demanding industrial and outdoor operating environments, the MacSet LX2 LoRaWAN Controller combines 8 high-current digital outputs, 8 configurable AI/DI interfaces, RS485 Modbus RTU communication, and intelligent automation logic inside a rugged industrial IP-rated enclosure. The controller is ideal for industrial process automation, smart agriculture systems, utility automation, water infrastructure, factory automation, SCADA integration, remote pumping stations, energy management systems, environmental monitoring, and unmanned industrial installations.
With support for LoRaWAN® v1.0.4, Class A and Class C operation, the controller delivers ultra-long-range wireless communication with optimized power efficiency for highly scalable Industrial IoT deployments. The integrated Macnman MacTalk Protocol enables direct peer-to-peer device communication and local automation workflows without requiring cloud connectivity, reducing latency and improving reliability for mission-critical industrial automation systems.
The controller supports flexible industrial interfacing including 8 high-current digital outputs, 1 × RS485 Modbus RTU interface, and 8 configurable AI/DI channels supporting analog and digital input monitoring. This enables seamless integration with industrial sensors, PLC systems, SCADA infrastructure, process instruments, VFDs, industrial meters, automation panels, and industrial control systems.
Optimized for Industrial IoT scalability, the device supports secure AES-encrypted communication, OTA configuration using the Macnman Maya App, remote parameter management, event-driven automation logic, threshold-based actuation, cyclic automation workflows, and compatibility with major LoRaWAN® platforms including ChirpStack, TTN, MQTT, Orbiwise, LORIOT, and private industrial LoRaWAN® servers.
Whether deployed for industrial automation, remote pump control, smart irrigation systems, industrial process monitoring, factory automation, utility infrastructure control, wireless digital output switching, or edge-based Industrial IoT automation systems, MacSet LX2 delivers a scalable, reliable, and future-ready solution for modern industrial wireless automation infrastructure.
 |  |
|---|---|
 |  |
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacSet LX1
Key Features
Industrial LoRaWAN® IO Controller Advanced industrial LoRaWAN® IO Controller with 8 digital outputs, configurable analog and digital IO interfaces, and RS485 Modbus RTU support for remote automation and Industrial IoT deployments.
8 High-Power Digital Outputs Control pumps, motors, contactors, alarms, industrial relays, solenoid valves, lighting systems, exhaust fans, and automation equipment remotely over LoRaWAN® networks.
8 Configurable AI / DI Interfaces Flexible multi-function input channels supporting digital inputs, 0–10 V sensors, and 4–20 mA industrial transmitters for process monitoring and automation applications.
RS485 Modbus RTU Master Support Integrate Modbus energy meters, VFDs, PLCs, water quality sensors, flow meters, pressure transmitters, and industrial field instruments directly into LoRaWAN® infrastructure.
LoRaWAN® Remote IO Expansion Extend industrial PLC and SCADA systems wirelessly using long-range LoRaWAN® communication without additional wiring infrastructure or expensive cable deployment.
Industrial Automation Rule Engine Supports trigger-based automation, cyclic operation, timer-based scheduling, threshold actuation, and autonomous edge control logic for industrial operations.
Edge-Based Local Automation Executes automation workflows locally without depending on cloud servers or internet connectivity, improving reliability for critical industrial control systems.
Long-Range Industrial Wireless Communication LoRaWAN® Class A and Class C operation enables ultra-long-range communication for factories, water infrastructure, agriculture fields, remote pumping stations, and utility networks.
Industrial Pump & Motor Automation Designed for intelligent pump control, motor automation, tank systems, irrigation control, compressor automation, and industrial process equipment management.
SCADA & PLC Integration Ready Easily integrate with existing industrial automation systems, SCADA software, PLC infrastructure, HMI systems, and industrial monitoring platforms.
Multi-Sensor Monitoring Capability Supports pressure sensors, level sensors, temperature transmitters, energy meters, water quality sensors, flow sensors, switches, and industrial monitoring devices.
Macnman MacTalk Peer-to-Peer Protocol Enables direct device-to-device LoRa communication for ultra-fast local automation, distributed control logic, and gateway-independent field operations.
Secure Industrial LoRaWAN® Communication AES-128 encrypted communication with secure OTAA activation for reliable and secure Industrial IoT data transmission and remote control applications.
BLE Configuration via Maya App Configure IO logic, relay behavior, LoRaWAN® parameters, automation rules, and diagnostics wirelessly using the Macnman Maya Android application.
Designed for Industrial & Outdoor Deployments Rugged IP-rated enclosure engineered for harsh industrial environments, utility infrastructure, factory automation panels, agricultural fields, and outdoor installations.
Compatible with Major LoRaWAN® Platforms Fully compatible with ChirpStack, TTN, MQTT, LORIOT, Orbiwise, Netmore, private LoRaWAN® servers, and Industrial IoT cloud platforms.
Suited Applications
Industrial Remote IO Automation Deploy the controller as a wireless remote IO module for industrial automation systems requiring long-range digital output control, analog sensor monitoring, and distributed field automation.
Industrial Pump Control Systems Remotely operate water pumps, borewell pumps, transfer pumps, booster pumps, and industrial pumping systems with automated scheduling, threshold logic, and remote monitoring.
Factory Automation & Process Control Monitor and control conveyors, compressors, contactors, motors, exhaust systems, alarms, production equipment, and industrial process automation infrastructure.
RS485 Modbus Sensor Integration Connect Modbus energy meters, VFDs, PLCs, water quality sensors, pressure transmitters, flow meters, industrial analyzers, and process instruments over LoRaWAN®.
Smart Water Infrastructure Automation Automate water treatment plants, STP systems, WTP infrastructure, underground tanks, overhead tanks, pumping stations, and distributed utility water networks.
Smart Agriculture & Irrigation Control Enable wireless automation for irrigation valves, fertigation systems, greenhouse controllers, farm pumps, agricultural motors, and smart farming infrastructure.
Industrial Tank Level Monitoring Integrate level sensors, float switches, ultrasonic sensors, and pressure transmitters for automated tank management and liquid storage monitoring systems.
Energy Monitoring & Power Automation Control DG systems, electrical panels, solar infrastructure, battery banks, power relays, and industrial energy management systems remotely.
Cold Storage & Refrigeration Automation Operate compressors, cooling systems, ventilation units, alarm systems, and industrial refrigeration infrastructure for cold-chain applications.
SCADA & PLC Wireless Expansion Extend SCADA and PLC systems wirelessly in factories, utilities, process plants, and industrial infrastructure without additional cable deployment.
Environmental & Safety Automation Trigger sirens, ventilation systems, warning lights, exhaust blowers, and emergency systems based on gas sensors, temperature thresholds, or industrial safety conditions.
Smart Building & Utility Infrastructure Automate HVAC systems, lighting systems, access control panels, utility rooms, telecom shelters, and unmanned infrastructure installations remotely.
Oil, Gas & Pipeline Monitoring Monitor and automate valve systems, pressure stations, remote utility assets, actuator systems, and distributed pipeline infrastructure using LoRaWAN®.
Industrial Alarm & Event Management Generate real-time alerts and automated output actions based on digital events, Modbus data, threshold violations, or industrial fault conditions.
Remote Infrastructure Monitoring Monitor remote industrial sites, unmanned utility stations, field panels, roadside infrastructure, solar farms, telecom towers, and outdoor automation systems.
Wireless Industrial IoT Deployments Build scalable Industrial IoT automation systems using long-range LoRaWAN® communication for remote monitoring, automation, telemetry, and industrial control.
Technical Specifications
MacSet LX2 Variants
| Variant Name | Power Source | IO Configuration | Ideal For | SKU |
|---|---|---|---|---|
| MacSet LX2 DC | 9–36 V DC External Supply | 8 × 16A Relay Outputs + 8 × AI/DI + RS485 | Solar-powered automation systems, remote infrastructure monitoring, outdoor industrial deployments, telecom systems, utility automation, smart agriculture systems, and battery-backed Industrial IoT applications. | 903 |
What's in the Box?
The MacSet LX2 Industrial LoRaWAN® IO Controller package is designed to simplify industrial deployment, remote automation installation, and Industrial IoT commissioning. Before starting installation, verify that all supplied accessories and mounting components are available inside the package.
The standard package contents include:
- MacSet LX2 Industrial LoRaWAN® IO Controller
- Industrial Mounting Clip
- Quick Installation & User Manual
- Product Warranty Card
- Mounting Screws & Fasteners
- IP68 Cable Extender *
- External Power Adapter *
The included mounting accessories help simplify installation inside industrial automation panels, factory control systems, utility infrastructure, water management systems, smart agriculture installations, pump control panels, SCADA systems, and outdoor Industrial IoT deployments.
Ensure all accessories and installation components are inspected before powering the device or starting field deployment.
Optional accessories including IP68 cable extenders, external power adapters, and additional industrial mounting accessories may not be included in the standard package and can be purchased separately based on deployment requirements.
MacSet LX1 Controller Dimensions
The MacSet LX2 Industrial LoRaWAN® IO Controller is designed with a rugged industrial enclosure optimized for Industrial IoT automation, remote equipment control, wireless monitoring, and distributed industrial infrastructure deployments. With compact dimensions of 142 mm × 80 mm × 32 mm, the controller enables easy installation inside industrial automation panels, electrical cabinets, utility control rooms, pump control systems, smart agriculture infrastructure, factory automation systems, and outdoor field deployments.
