Mini Scheduler X2 Datasheet
Product Overview
Mini Scheduler X2 is a Bluetooth® Low Energy (BLE)–based single-phase smart relay controller with an integrated touchscreen, designed for time-based, event-based, and manual automation in industrial, commercial, and building environments.
The device allows users to configure and execute multiple task types such as simple alarms, scheduled ON/OFF control, timed operations, notifications, and rule-based actions directly from the touchscreen or via a BLE-enabled mobile application. This makes Mini Scheduler X2 ideal for applications where local control, simplicity, and reliability are critical.
At its core, Mini Scheduler X2 features a single-phase relay output capable of controlling lighting circuits, pumps, motors, signage, and other electrical loads. The intuitive touchscreen interface enables quick task creation, schedule modification, and real-time status visibility without requiring external controllers or cloud dependency.
Designed as an edge automation device, Mini Scheduler X2 operates independently once configured, ensuring continued operation even without network connectivity. BLE connectivity is used for secure configuration, diagnostics, and updates, making deployment fast and maintenance simple.
With its compact design, flexible task scheduling engine, and industrial-ready control capability, Mini Scheduler X2 serves as a powerful yet easy-to-use automation controller for smart lighting, energy management, alarms, and time-based control applications.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for FireGaurd Gen 1
Key Features
BLE-Based Smart Scheduler Bluetooth® Low Energy connectivity for local configuration, control, and diagnostics without cloud or internet dependency.
Single-Phase Relay Control Integrated industrial-grade relay for controlling lights, pumps, motors, signage, and other single-phase electrical loads.

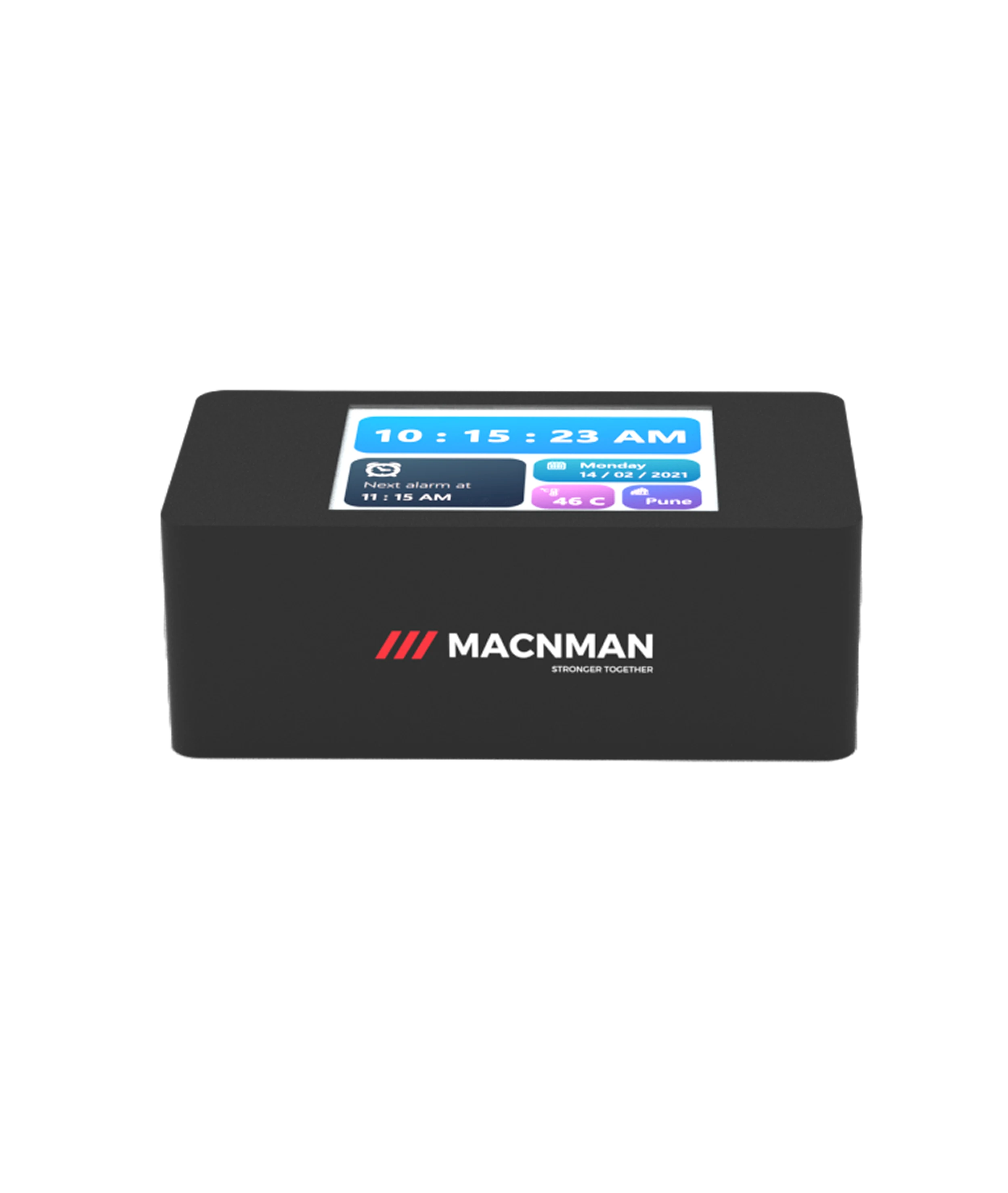

Touchscreen User Interface Built-in touchscreen enables intuitive task creation, schedule editing, manual control, and real-time status monitoring.
Flexible Task Scheduling Engine Supports alarms, time-based ON/OFF schedules, interval timers, recurring tasks, and rule-based automation.
Alarm & Notification Tasks Configure local alarms and event-triggered notifications for operational alerts and reminders.
Standalone Edge Operation Executes all schedules and tasks locally, ensuring uninterrupted operation even without network connectivity.
Manual Override & Local Control Allows instant manual switching via touchscreen for maintenance, emergency, or override scenarios.
Industrial-Ready Design Designed for continuous operation in industrial and commercial environments with reliable performance.
Suited Applications
Smart Lighting Control Time-based and event-based ON/OFF scheduling for indoor and outdoor lighting in factories, offices, warehouses, and commercial buildings.
Pump & Motor Scheduling Automated control of single-phase pumps, exhaust fans, and motors using timers, alarms, and predefined schedules.
Industrial Equipment Automation Control auxiliary machines, heaters, blowers, and process equipment based on time schedules or manual override.
Alarm & Reminder Systems Configure local alarms and notifications for shift changes, maintenance reminders, safety alerts, and operational events.
Energy Management & Load Control Reduce energy consumption by scheduling non-critical loads and preventing unnecessary runtime of electrical equipment.
Building & Facility Automation Automate lighting, utilities, signage, and auxiliary systems in commercial buildings, campuses, and facilities.
Standalone Automation Panels Ideal for deployments where local control and independent operation are required without cloud or internet connectivity.
Retrofit Automation Projects Easily retrofit existing electrical panels with BLE-based scheduling and touchscreen control without major rewiring.
Technical Specification
General
Specifications
Product Name
Mini Scheduler X2
Product Brand
Macnman Technologies Pvt Ltd
Device Type
BLE-based Single-Phase Smart Relay Scheduler with Touchscreen
Core
Hardware
Processor
nRF52 Series Bluetooth® Low Energy SoC
CPU Architecture
32-bit ARM® Cortex®-M4
Flash Memory
≥ 512 KB
RAM
≥ 128 KB
Local Interface

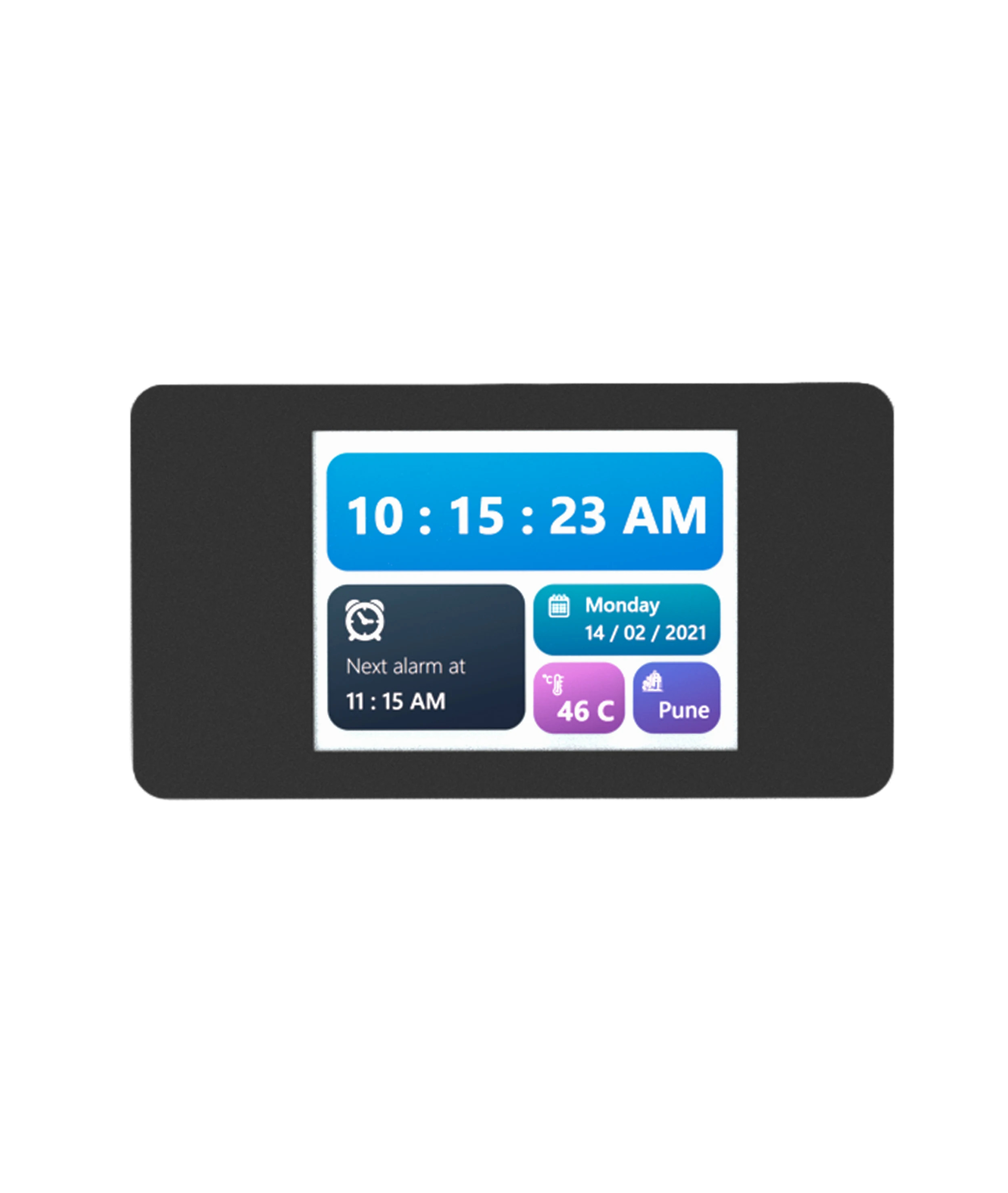

Capacitive Touchscreen Display
Relay
Specifications
Relay Type
Single-Phase Electromechanical Relay
Rated Voltage
230 VAC
Rated Current
Up to 16 A (resistive load)
Control Modes
Scheduled / Manual / Event-Based
Task &
Scheduling
Supported Tasks
Time-based ON/OFF
Interval Timers
Recurring Schedules
Alarms & Reminders
Manual Override Tasks
Task Storage
Non-volatile internal memory
Wireless
Connectivity
Wireless Technology
Bluetooth® Low Energy (BLE)
Frequency Band
2.4 GHz ISM Band
Configuration Method
BLE Mobile Application
Power
Requirements
Input Power
110–240 VAC, 50/60 Hz
Power Consumption
Low-power edge operation
Physical
Characteristics
Operating Temperature
-20°C to +60°C
Humidity
0–95% RH (non-condensing)
Mounting
Wall / Panel Mount
Enclosure
Industrial-grade plastic enclosure
Security
BLE Security
Authenticated pairing with encrypted communication
Firmware Protection
Secure boot and signed firmware updates
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
