MeterLink Gen1 Datasheet
Product Overview

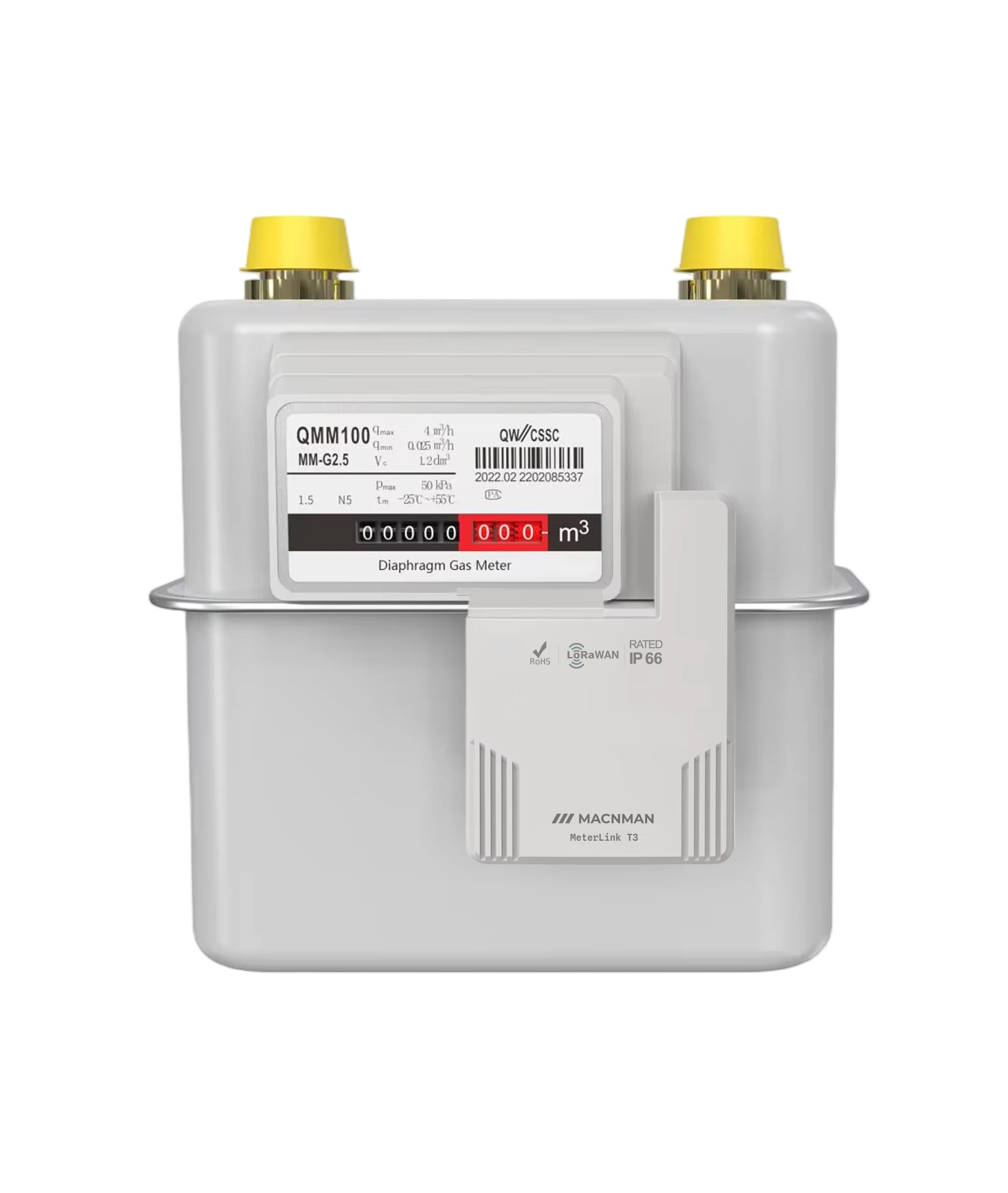

MeterLink Gen1 is a compact, industrial-grade LoRaWAN® retrofit gas meter module designed to convert existing mechanical gas meters into smart, connected utility devices—without replacing installed meters.
The module accurately reads the mechanical gas totalizer and securely transmits consumption data over long‑range LoRaWAN® networks, enabling real‑time gas usage monitoring, automated billing, and operational visibility for utilities and city gas distribution companies.
MeterLink Gen1 supports prepaid gas metering, allowing remote credit recharge and balance enforcement. An integrated automatic shutoff valve ensures safety and revenue protection by immediately closing gas flow when prepaid credit is exhausted or when a remote shutoff command is issued.
Optimized for low‑power, long‑life field operation, MeterLink Gen1 enables large‑scale smart gas metering rollouts with minimal installation effort and reduced CAPEX. It is an ideal retrofit solution for utilities upgrading legacy gas infrastructure to scalable, secure, and future‑ready IoT‑based smart metering systems.
 |  |
|---|---|
 |  |
Key Benefits
No Meter Replacement Required Upgrades existing mechanical gas meters into smart meters without civil work or meter change, reducing installation time and cost.
Lower CAPEX for Utilities Retrofit architecture avoids large-scale meter replacement programs, significantly lowering capital expenditure.
Prepaid Billing & Revenue Protection Enables prepaid gas usage models with automatic credit enforcement and shutoff to prevent revenue leakage.
Remote Control & Operational Safety Allows secure remote valve control to shut off gas supply during emergencies, non-payment, or maintenance.
Long Battery Life Ultra-low power LoRaWAN operation supports multi-year battery life, minimizing field maintenance visits.
Scalable Utility Deployments Designed for mass rollout across residential, commercial, and industrial consumers with centralized monitoring.
Accurate Consumption Visibility Provides real-time and historical gas usage data for billing, analytics, and demand forecasting.
Future-Ready Smart Metering Enables utilities to transition to smart gas metering without disrupting existing infrastructure.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacLink Gen-2
Key Features
LoRaWAN® Retrofit Gas Meter Module Converts existing mechanical gas meters into smart IoT-enabled devices without replacing installed meters.
Mechanical Totalizer Reading Accurately reads gas consumption from mechanical index or pulse output for reliable billing data.
Prepaid Gas Metering Support Enables remote prepaid credit recharge, balance enforcement, and consumption-based billing models.
Integrated Automatic Shutoff Valve Automatically closes gas flow when prepaid credit is exhausted or upon secure remote command.
Secure LoRaWAN® Communication Long-range, low-power data transmission with AES encryption and OTAA-based device authentication.
Ultra‑Low Power Operation Optimized for long battery life, enabling multi‑year field operation with minimal maintenance.
Utility‑Grade Reliability Designed for continuous operation in residential, commercial, and industrial gas metering environments.
Remote Monitoring & Control Supports real-time gas usage monitoring, valve control, and status alerts over LoRaWAN networks.
Scalable Mass Deployment Ready Ideal for city gas distribution companies and utilities deploying thousands of smart gas meters.
Legacy Infrastructure Friendly Seamlessly integrates with existing gas meters, reducing CAPEX and accelerating smart metering rollouts.
Suited Applications
City Gas Distribution (CGD) Smart gas metering for residential and commercial consumers under city gas distribution networks.
Residential Gas Metering Enables prepaid and postpaid gas metering for apartments, housing societies, and individual homes.
Commercial & Industrial Gas Consumers Accurate gas consumption monitoring for factories, hotels, hospitals, and large commercial facilities.
Utility Smart Metering Programs Ideal for government and utility-led smart gas metering and digitization initiatives.
Prepaid Gas Supply Systems Supports prepaid gas distribution models with automated credit enforcement and shutoff.
Legacy Gas Meter Modernization Digitizes installed mechanical gas meters without replacement or service disruption.
Remote & Hard-to-Access Installations Enables reliable gas monitoring in basements, apartments, and distributed urban locations.
Smart City Utility Infrastructure Integrates gas metering into broader smart city and smart utility IoT platforms.
Technical Specification
General
Specifications
Part Order Number
MacLink Gen-2
Product Brand
Macnman Technologies Pvt Ltd
System Hardware
Specifications
Processor Type
ARM Cortex-A7
Number of Cores
Quad Core
Clock Speed
960 MHz per Core
Memory Size
512 MB RAM
Memory Speed
Up to 1066 MHz
Internal Storage
8 GB eMMC
USB Port
Debug Interface (Bottom of Enclosure)
Connector Type
USB Type‑C
Interface Protection
Surge Protection Enabled
LoRaWAN
Specifications
Compatibility
LoRaWAN® Class A / B / C
Frequency Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923‑1/2/3/4
LoRa Demodulators
8 × 8 LoRa Packet Detectors
Demodulation Paths
Up to 10 Parallel Paths
Uplink Channels
8 Channels
Downlink Channel
1 Channel
Tx Power
Up to 27 dBm @ SF12, BW 125 kHz
Rx Sensitivity
Down to ‑139 dBm @ SF12, BW 125 kHz
Data‑Rate
Adaptive Data‑Rate (ADR)
Backhual
Ethernet
Number of Ports
x 1
Type
1 x 10/100M
Backhual
WiFi
Bands
2.4 GHz ISM Band
Standards
IEEE 802.11 b/g/n, 802.3, 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16 QAM, 64 QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Backhual
Cellular Lte
Cellular Bands
B1 / B3 / B5 / B7 / B8 / B20 / B28
Standards
3GPP LTE, IEEE 802.3, IEEE 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16‑QAM, 64‑QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations Through TCP/IP
Physical
Characteristics
Power Supply
9-36 V PoE
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP67
Housing Material
Aluminium
Color
Matte White
Weight
~410g
Mounting Options(Brackets)
Pole Mounting / Wall Mounting
Electrical
Characteristics
Power Input
PoE IEEE 802.3af / 802.3at or 12–24 V DC
Power Consumption (Typical)
4.5 W (with Ethernet Backhaul)
Power Consumption (Peak)
Up to 7 W (with LTE & Wi‑Fi Active)
Lightning / Surge Protection
Integrated surge protection on power & RF ports
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes (Nodes)
Firmware Protection
Secure boot and signed OTA updates
MacLink Gen-2 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacLink Gen-2-PO | 12–24 V (Power) | ✖️ | ✖️ | ✖️ | Industrial or commercial sites with stable power supply |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
