MacSync LWS X2 Technical Specifications

Part Order Number

MacSync-L-WST-SS-X2

Product Brand

Macnman Technologies Pvt Ltd

• 6-in-1weather sensing: rainfall, wind speed, wind direction, temperature, humidity, pressure

•
  STM32WLE5xx (LoRaWAN MCU)

2KM

2KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•

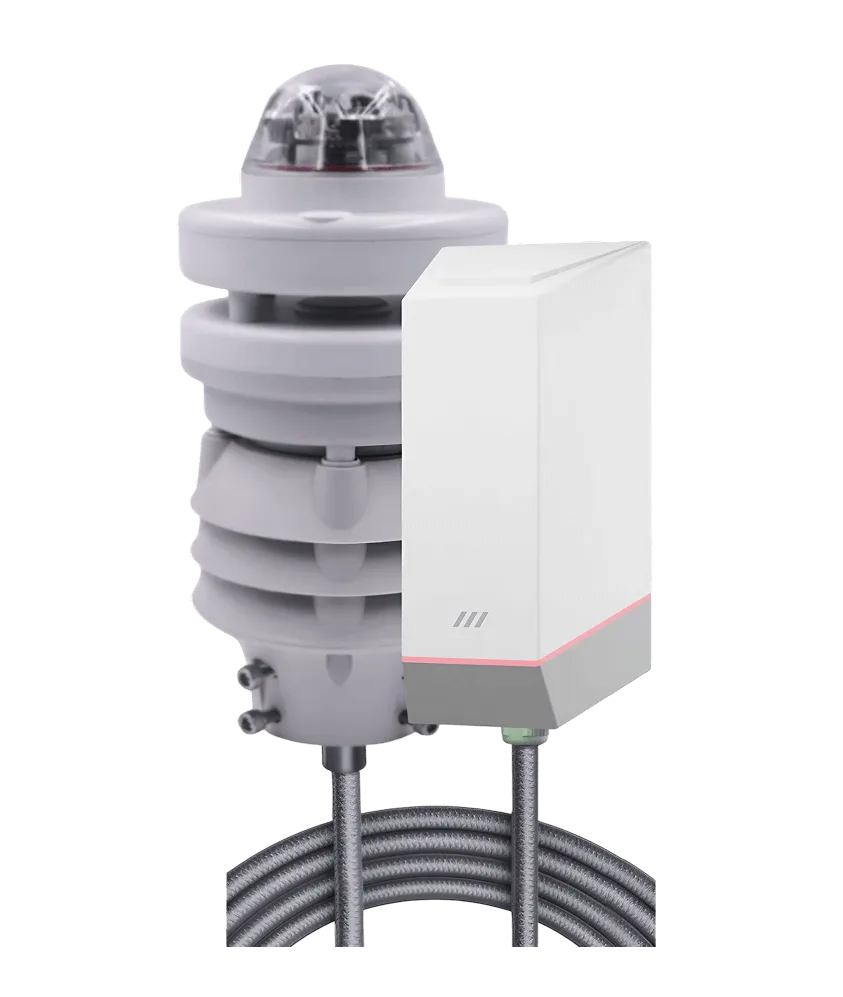

  MacSync LWS X2 Weather Station
•
  Mounting Screws & Hardware
•
  User Manual
•
  Warranty Card
•
  Industrial Mounting Bracket (optional)
•
  IP68 Cable Extender (optional)

(*) Accessories need to be purchased separately and are not included in the box.

Rainfall (optical)

0 – 200 mm/h, ±0.2 mm/h accuracy

Wind Speed

0 – 60 m/s, ±(0.3 + 0.03V) m/s accuracy, 0.01 m/s resolution

Wind Direction

0° – 359.9°, ±3° accuracy below 10 m/s, 0.1° resolution

Ambient Temperature

-40 °C to +85 °C, ±0.3 °C at 25 °C, 0.01 °C resolution

Relative Humidity

0 – 100 % RH (non-condensing), ±3 % RH at 90 % RH, 0.01 % RH resolution

Atmospheric Pressure

500 – 1100 hPa, ±0.5 hPa at 25 °C, 0.1 hPa resolution

Protocols

LoRaWAN® v1.0.4, Macnman MacTalk Protocol

LoRaWAN® Class

Class A (default), Class C configurable via Maya

Antenna

Internal high-efficiency antenna

Frequency Bands

IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923

Tx Power

23 dBm @ 865 MHz

Sensitivity

-137 dBm @ 300 bps

Activation

OTAA

Supported LNS

Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore

Solar (LoRaWAN 9210, MacTalk 9212)

20 W high-efficiency solar panel, 8000 mAh rechargeable battery

DC (LoRaWAN 9211, MacTalk 9213)

9–36 V DC

Battery (BLE 9214)

Li-SOCl₂ 19 Ah industrial-grade cell

Power Consumption

~100 µA sleep, ~50 mA transmit

Battery Life (19 Ah, datasheet estimate)

~2 years at 5-minute reports, ~4 years at 15-minute reports, ~7+ years at hourly reports

Data Reporting

Periodic, Event-based, Hybrid

Threshold Alerts

Configurable rainfall, wind, temperature, humidity and pressure thresholds

Sampling Interval

Configurable, 1 minute to 24 hours

Transmission Interval

Independent uplink interval

Configuration

Macnman Maya Android App

Local Configuration

BLE-based via Maya

Remote Configuration

Over-the-air downlink commands

Status LED

1 × internal multi-color LED

Operating Temperature

-40 °C to +80 °C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection

IP65 standard, IP67 optional variant

Housing

UV-resistant glass-filled nylon, matte white

Transmitter Dimensions

~152 × 62 × 43 mm, ~175 g

Mounting

Pole mount, Wall mount

Data Encryption

AES-128 LoRaWAN® encryption

Authentication

OTAA device activation

Firmware Protection

Secure boot, Signed OTA updates

9210 · MacSync-L-WST-SS-X2

20 W solar + 8000 mAh, LoRaWAN®

9211 · MacSync-L-WST-PS-X2

9–36 V DC, LoRaWAN®

9212 · MacSync-M-WST-SS-X2

20 W solar + 8000 mAh, MacTalk

9213 · MacSync-M-WST-PS-X2

9–36 V DC, MacTalk

9214 · MacSync-B-WST-BS-X2

Battery 19 Ah, BLE

WPC

Compliant

RoHS

Conforms to RoHS directive
