MacSync LPS Xx Technical Specifications

Part Order Number

MacSync-L-HPT-BS-X1

Product Brand

Macnman Technologies Pvt Ltd

• Pressuretransducer: 0–2.5, 0–5 or 0–10 MPa

•
  STM32WLE5xx (LoRaWAN MCU)

2KM

2KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•

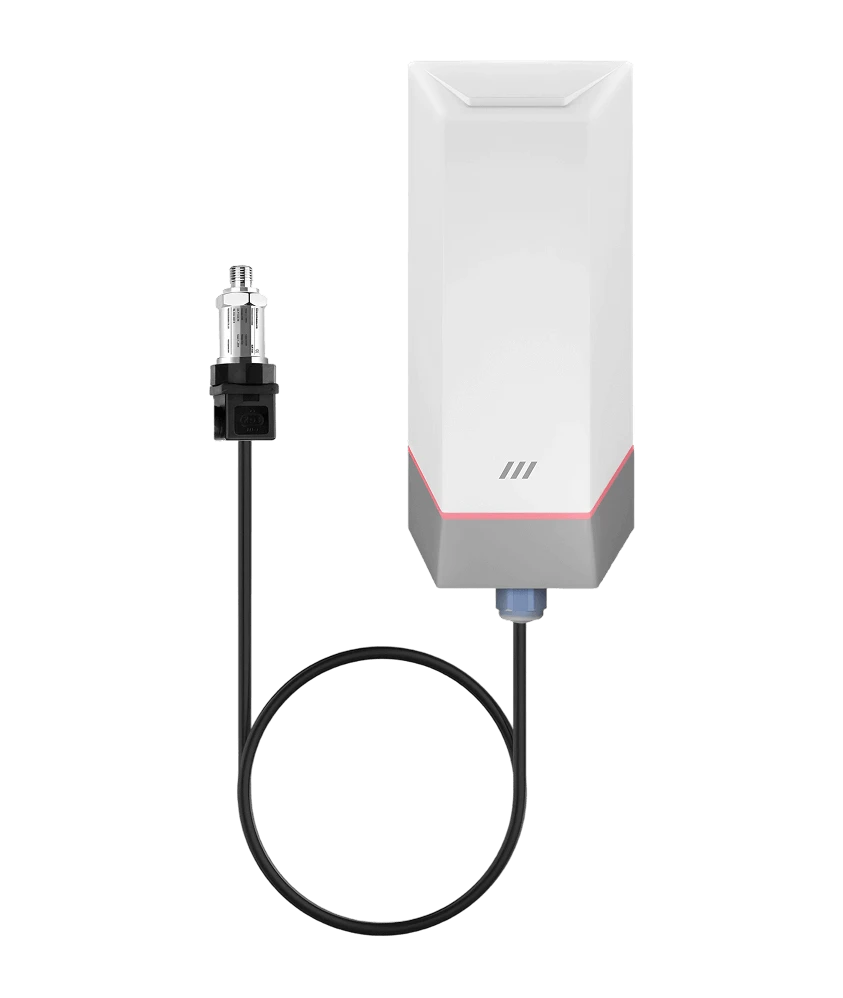

  MacSync LPS Xx with Transducer
•
  Mounting Clip
•
  Mounting Screws
•
  User Manual
•
  Warranty Card
•
  IP68 Cable Extender (optional)

(*) Accessories need to be purchased separately and are not included in the box.

Working Pressure

X1: 0 – 2.5 MPa, X2: 0 – 5 MPa, X3: 0 – 10 MPa

Measurement Accuracy

±0.05 % FS

Temperature Effects

±0.02 % FS / °C

Overload / Breaking Pressure

200 % / 300 %

Response Time

≤ 10 ms

Cycle Life

≥ 1,000,000 cycles

Load Impedance

≤ 500 Ω

Wetted Element

SS316 stainless steel

Thread

G1/4

Transducer Sealing

IP65

Suitable For

Water pipelines, Oil and gas tanks, Hydraulic systems, Industrial process lines

Cable

IP68 cable extender optional

Protocols

LoRaWAN® v1.0.4, Macnman MacTalk Protocol

LoRaWAN® Class

Class A (default), Class C configurable via Maya

Antenna

Internal high-efficiency antenna

Frequency Bands

IN865 / RU864 / EU868 / US915 / AU915

Tx Power

23 dBm @ 865 MHz

Sensitivity

-137 dBm @ 300 bps

Activation

OTAA

Supported LNS

Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, Direct PLC on-prem

Battery (BO series)

Li-SOCl₂ 19 Ah industrial-grade cell

DC (PO series)

9–36 V DC

Power Consumption

~100 µA sleep, ~50 mA transmit

Battery Life (19 Ah, datasheet estimate)

~2 years at 5-minute reports, ~4 years at 15-minute reports, ~7+ years at hourly reports

Data Reporting

Periodic, Event-based, Hybrid

Threshold Alerts

Configurable low and high pressure limits for event-triggered transmission

Sampling Interval

Configurable, 1 minute to 24 hours

Transmission Interval

Independent uplink interval

Configuration

Macnman Maya Android App

Local Configuration

BLE-based via Maya

Remote Configuration

Over-the-air downlink commands

Status LED

1 × internal multi-color LED

Operating Temperature

-40 °C to +80 °C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection (node)

IP65 standard, IP67 optional variant

Housing

Glass-filled nylon, matte white

Dimensions and Weight

~152 × 62 × 43 mm without transducer, ~175 g

Mounting

Pole mount, Wall mount

Data Encryption

AES-128 LoRaWAN® encryption

Authentication

OTAA device activation

Firmware Protection

Secure boot, Signed OTA updates

X1 · 0–2.5 MPa

9101 battery LoRaWAN®, 9102 DC LoRaWAN®, 9103 / 9104 MacTalk, 9105 BLE

X2 · 0–5 MPa

9106 battery LoRaWAN®, 9107 DC LoRaWAN®, 9108 / 9109 MacTalk, 9110 BLE

X3 · 0–10 MPa

9111 battery LoRaWAN®, 9112 DC LoRaWAN®, 9113 / 9114 MacTalk, 9115 BLE

WPC

Compliant

RoHS

Conforms to RoHS directive
