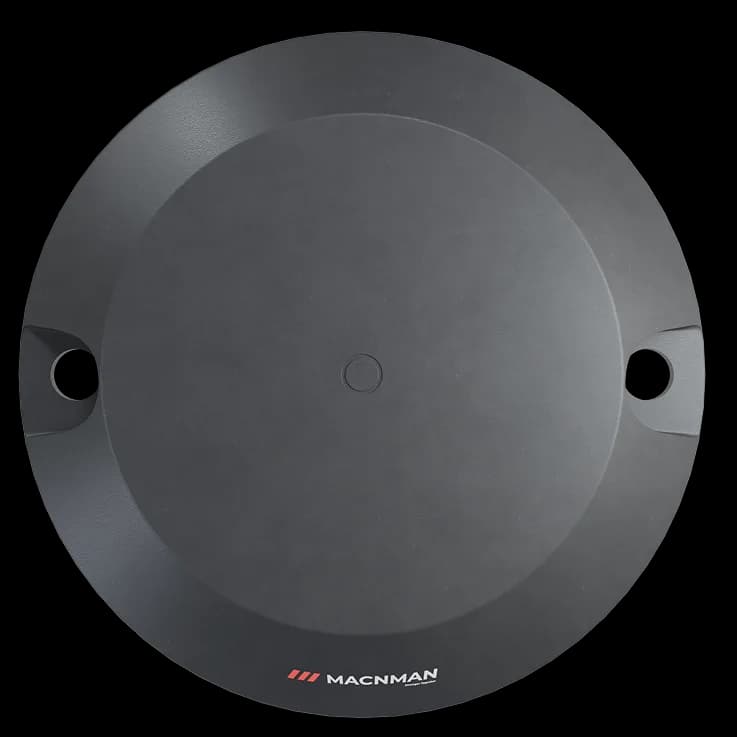

ParkNode Gen-1
ParkNode Gen-1

Technology

Technology 1

General Specifications

Part Order Number
ParkNode Gen-1-X1 (SKU 9305) · Gen-1-X2 (SKU 9306)
Product Brand
Macnman Technologies Pvt Ltd

Interfaces

  • 3-axisgeomagnetic vehicle detection

Chips

  • STM32WLE5xx (LoRaWAN MCU)
    STM32WLE5xx (LoRaWAN MCU)

LoRaWAN Range

2KM

MultipleBuildings range

2KM

OneBuilding range

LoRaWAN® range varies based on deployment location. Typical coverage: 500–1000 meters in urban areas and up to 5 KM in open environments.

Cloud Platforms

  • Cloud platform 1
  • Cloud platform 2
  • Cloud platform 3
  • Cloud platform 4
  • Cloud platform 5

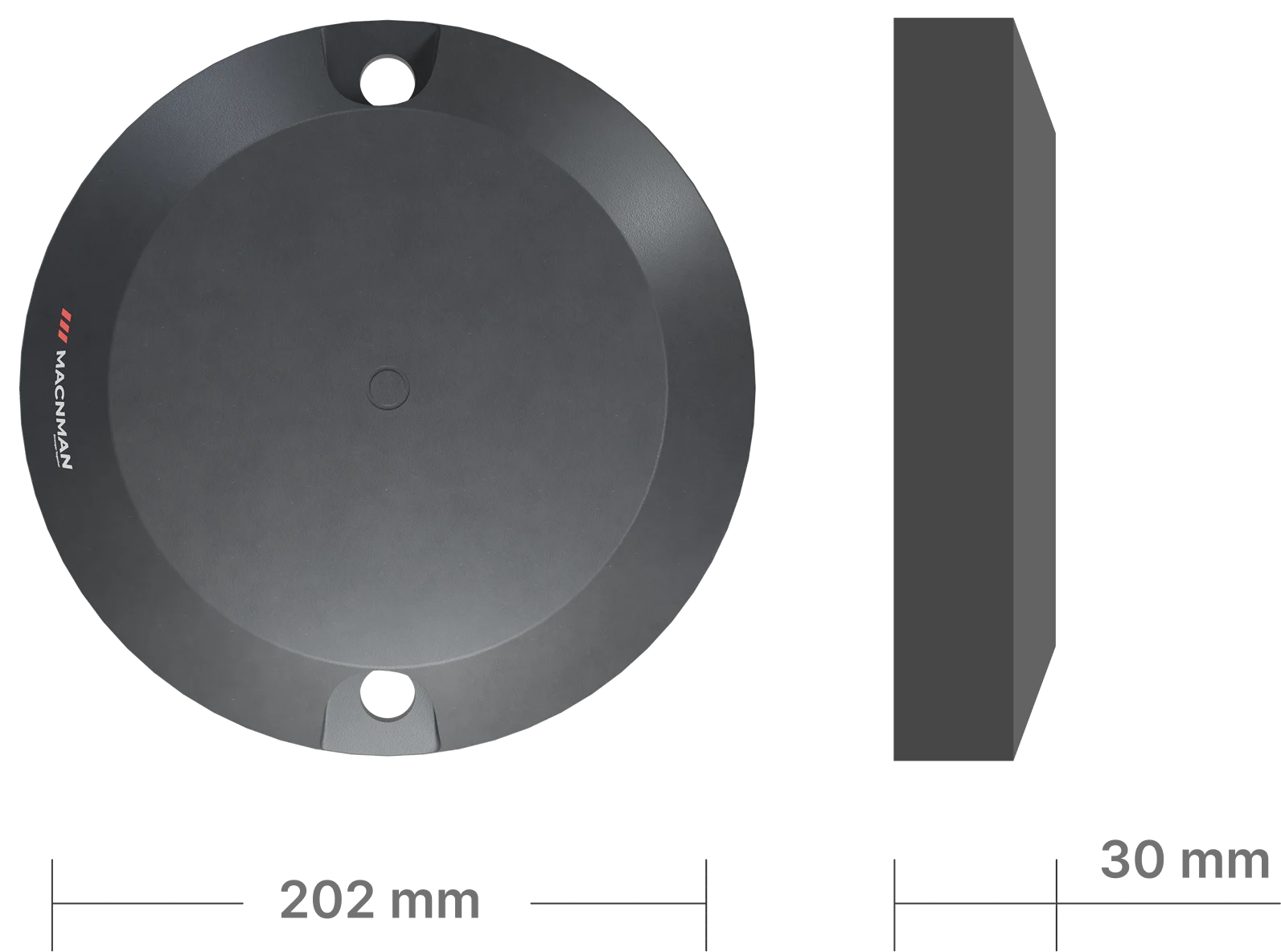

ParkNode Gen~1 Dimensions

ParkNode Gen~1 Dimensions diagram

What's in the Box?

  • ParkNode Gen-1 Sensor
    ParkNode Gen-1 Sensor
  • User Manual
    User Manual
  • Warranty Card
    Warranty Card
  • Mounting Clip, Fasteners, Screws, Base Rubber Sheet (per order)
    Mounting Clip, Fasteners, Screws, Base Rubber Sheet (per order)

(*) Accessories need to be purchased separately and are not included in the box.

Geomagnetic Detection

Detection Method
3-axis geomagnetic field sensing
Magnetic Sensitivity
±200 to ±1000 µT dynamic range
Detection Accuracy
Above 98 % vehicle presence detection
Detection Latency
Under 7 to 10 s (arrival / departure)
Self-Calibration
Automatic baseline calibration and drift compensation
Noise Filtering
Resistant to EMI from motors, HVAC systems and power lines
False-Trigger Prevention
Filters bicycles, carts, pedestrians and environmental magnetic noise
Multi-Vehicle Handling
Algorithms for sequential vehicle detection

Reporting

Data Reporting Mode
Event-based: arrival and departure
Periodic Transmission
Heartbeat message, interval set by downlink
Tamper Alerts
Device displacement, tilt and unauthorised access

Wireless Transmission

Protocol
LoRaWAN®
Activation
OTAA
Frequency Band
IN865 for India (WPC compliant); other regional plans by order
Cloud Protocols
MQTT / HTTPS / TCP/IP (gateway dependent)

Device Management

Configuration
Factory pre-configured
Local Configuration
Not required
Remote Configuration
Over-the-air downlink commands
Status LED
None

Battery & Power

Battery Type
Integrated Li-SOCl₂ cell
Variants
X1: 19 Ah, rated up to 10 years, X2: 8 Ah, rated up to 5 years
Estimated Life at 25 °C
~7 years at 50 parking events a day, ~3.5 years at 100 events a day, ~1 year at 250 events a day

Physical Characteristics

Ingress Protection
IP68
Operating Temperature
-40 °C to +80 °C
Humidity Range
0 % to 100 % RH (non-condensing)
Housing
Glass-filled nylon, matte white
Dimensions
202 mm diameter × 33 mm
Weight
~290 g
Mounting
Surface mount or flush mount on asphalt or concrete

Security & Encryption

Data Encryption
AES-128 LoRaWAN® encryption
Authentication
OTAA device activation
Firmware Protection
Secure boot and signed OTA updates

Ordering Variants

9305 · ParkNode Gen-1-X1
Battery 19 Ah, LoRaWAN®, Up to 10 years
9306 · ParkNode Gen-1-X2
Battery 8 Ah, LoRaWAN®, Up to 5 years

Certifications & Compliance

WPC
Compliant
RoHS
Conforms to RoHS directive
