MacSync TH Sensor Technical Specifications

Part Order Number

MacSync-L-TH-X1

Product Brand

Macnman Technologies Pvt Ltd

• Temperature& Humidity Sensing

•
  STM32WLE5xx (LoRaWAN MCU)

2KM

2KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•
  MacSync TH Sensor
•
  Mounting Clip
•
  Mounting Screws
•
  User Manual
•
  Warranty Card
•
  IP68 Cable Extender (optional)

(*) Accessories need to be purchased separately and are not included in the box.

Range

-30 °C to +70 °C

Accuracy

±0.3 °C (0 °C to +70 °C), ±0.6 °C (-30 °C to 0 °C)

Resolution

0.1 °C

Calibration

Factory calibrated

Probe Options

Internal & External

Range

0% to 100% RH

Accuracy

±3% RH (10% to 90% RH), ±5% RH (<10% or >90% RH)

Resolution

0.5% RH

Calibration

Factory calibrated

Protocols

LoRaWAN® v1.0.4, Macnman MacTalk Protocol

LoRaWAN® Class

Class A (default), Class C configurable via Maya

Antenna

Internal high-efficiency antenna

Frequency Bands

IN865 / RU864 / EU868 / US915 / AU915

Tx Power

23 dBm @ 865 MHz

Sensitivity

-137 dBm @ 300 bps

Activation

OTAA

Supported LNS

Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, Direct PLC on-premise

Battery (BO Series)

Li-SOCl₂ 19 Ah industrial-grade cell

External Supply (PO Series)

9-36 V DC

Power Consumption

~100 µA sleep, ~50 mA transmit

Battery Life (estimated, SF7)

14+ years @ 5-min reporting interval, Varies with spreading factor and uplink interval

Data Reporting

Periodic, Event-based, Hybrid

Transmission Interval

Independent uplink interval for optimized power

Threshold Alerts

Configurable temperature & humidity thresholds

Sampling Interval

Configurable, 1 min to 24 hours

Configuration

Macnman Maya Android App

Local Configuration

BLE-based via Maya

Remote Configuration

Over-the-air downlink commands

Status LED

1 × internal multi-color LED

Operating Temperature

-40 °C to +80 °C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection

IP65 standard, IP67 optional variant

Housing

Glass-filled nylon, matte white

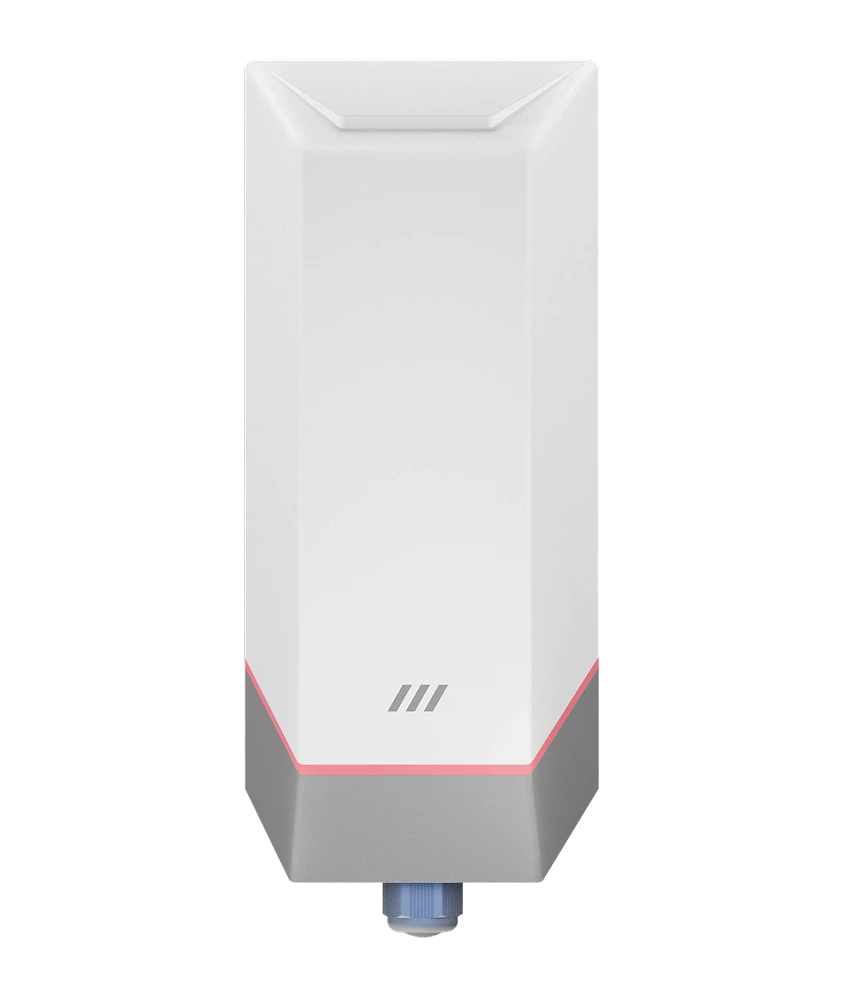

Dimensions

183 mm × 62 mm × 43 mm

Weight

~175 g

Mounting

Pole mount, Wall mount

Data Encryption

AES-128 LoRaWAN® encryption

Authentication

OTAA device activation

Firmware Protection

Secure boot, Signed OTA updates

8101 · MacSync-L-TH-BS-X1

Battery 19 Ah, LoRaWAN®

8102 · MacSync-L-TH-PS-X1

9-36 V DC, LoRaWAN®

8103 · MacSync-M-TH-PS-X1

9-36 V DC, MacTalk

8104 · MacSync-M-TH-BS-X1

Battery 19 Ah, MacTalk

8105 · MacSync-B-TH-BS-X1

Battery 19 Ah, BLE

WPC

Compliant

RoHS

Conforms to RoHS directive
