MacSync Gas Sensors Technical Specifications

Part Order Number

MacSync-L-H2S-BS-X1

Product Brand

Macnman Technologies Pvt Ltd

• ElectrochemicalH₂S, NH₃ + H₂S, O₂ or C₂H₄ cell

•
  STM32WLE5xx (LoRaWAN MCU)

2KM

2KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

•

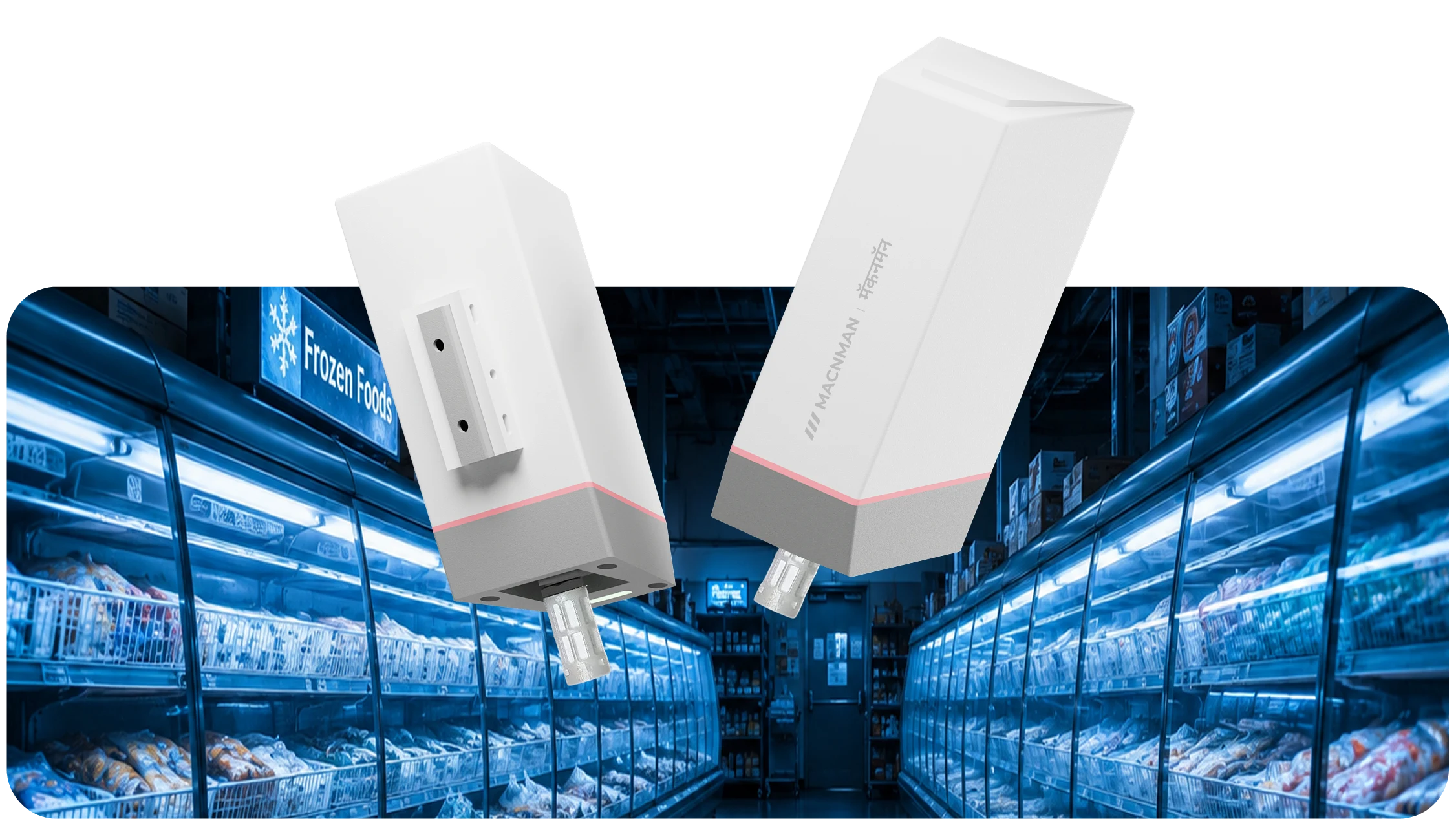

  MacSync Gas Sensor Node
•
  Mounting Clip
•
  Mounting Screws
•
  User Manual
•
  Warranty Card
•
  IP68 Cable Extender (optional)

(*) Accessories need to be purchased separately and are not included in the box.

Range / Maximum

0 – 100 ppm, 500 ppm maximum detectable

Resolution

0.1 ppm

Repeatability / Stability

< 2 % of output, < 2 % per month

Zero Drift

≤ 0.2 ppm

Sensitivity

(0.8 ± 0.15) µA/ppm

Expected Life / Calibration

2 years in air, Factory calibrated

Range / Maximum

0 – 100 ppm, 200 ppm maximum detectable

Resolution

0.5 ppm

Repeatability / Stability

< 10 % of output, < 10 % per month

Zero Drift

-3 to +10 ppm (-20 °C to +40 °C)

Sensitivity

(50 – 100) nA/ppm

Expected Life / Calibration

2 years at 2 ppm NH₃, Factory calibrated

Range

0 – 30 % VOL

Resolution

0.1 % VOL

Response Time (T90)

≤ 15 s

Repeatability / Stability

< 2 % of output, < 2 % per month

Output

Linear

Expected Life / Calibration

~2 years (typical), Factory calibrated

Range / Maximum

0 – 100 ppm, 200 ppm maximum detectable

Resolution

0.5 ppm

Repeatability

1 % of output

Response Time (T90)

< 30 s

Sensitivity / Filter

0.04 ± 0.012 µA/ppm, Filters SOₓ / NOₓ and H₂S

Cell Operating Range / Life

-20 °C to +50 °C, 3 years in air

Protocols

LoRaWAN® v1.0.4, Macnman MacTalk Protocol

LoRaWAN® Class

Class A (default), Class C configurable via Maya

Antenna

Internal high-efficiency antenna

Frequency Bands

IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923

Tx Power

23 dBm @ 865 MHz

Sensitivity

-137 dBm @ 300 bps

Activation

OTAA

Supported LNS

Private LNS, ChirpStack, TTN, MQTT, Orbiwise, Netmore, Direct PLC on-prem

Battery (BO series)

Li-SOCl₂ 19 Ah industrial-grade cell

DC (PO series)

9–36 V DC

Power Consumption

~100 µA sleep, ~50 mA transmit

Battery Life (19 Ah, datasheet estimate)

~2 years at 5-minute reports, ~4 years at 15-minute reports, ~7+ years at hourly reports

Data Reporting

Periodic, Event-based, Hybrid

Threshold Alerts

Configurable low and high concentration limits per gas for event-triggered transmission

Sampling Interval

Configurable, 1 minute to 24 hours

Transmission Interval

Independent uplink interval

Configuration

Macnman Maya Android App

Local Configuration

BLE-based via Maya

Remote Configuration

Over-the-air downlink commands

Status LED

1 × internal multi-color LED

Operating Temperature (node)

-40 °C to +80 °C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection (node)

IP65 standard, IP67 optional variant

Housing

Glass-filled nylon, matte white

Weight

~175 g

Mounting

Pole mount, Wall mount

Data Encryption

AES-128 LoRaWAN® encryption

Authentication

OTAA device activation

Firmware Protection

Secure boot, Signed OTA updates

LH2S X1 · H₂S

8305 battery LoRaWAN®, 8306 DC LoRaWAN®, 8307 / 8308 MacTalk, 8309 BLE

LODS X2 · NH₃ + H₂S

8516 battery LoRaWAN®, 8517 DC LoRaWAN®, 8518 / 8519 MacTalk, 8520 BLE

LOXGS X1 · O₂

8521 battery LoRaWAN®, 8522 DC LoRaWAN®, 8523 / 8524 MacTalk, 8525 BLE

LC2H4 X1 · C₂H₄

8526 battery LoRaWAN®, 8527 DC LoRaWAN®, 8528 / 8529 MacTalk, 8530 BLE

WPC

Compliant

RoHS

Conforms to RoHS directive
