MacRay-ToF-WXx Wi-Fi Time-of-Flight Sensor Datasheet
Product Overview

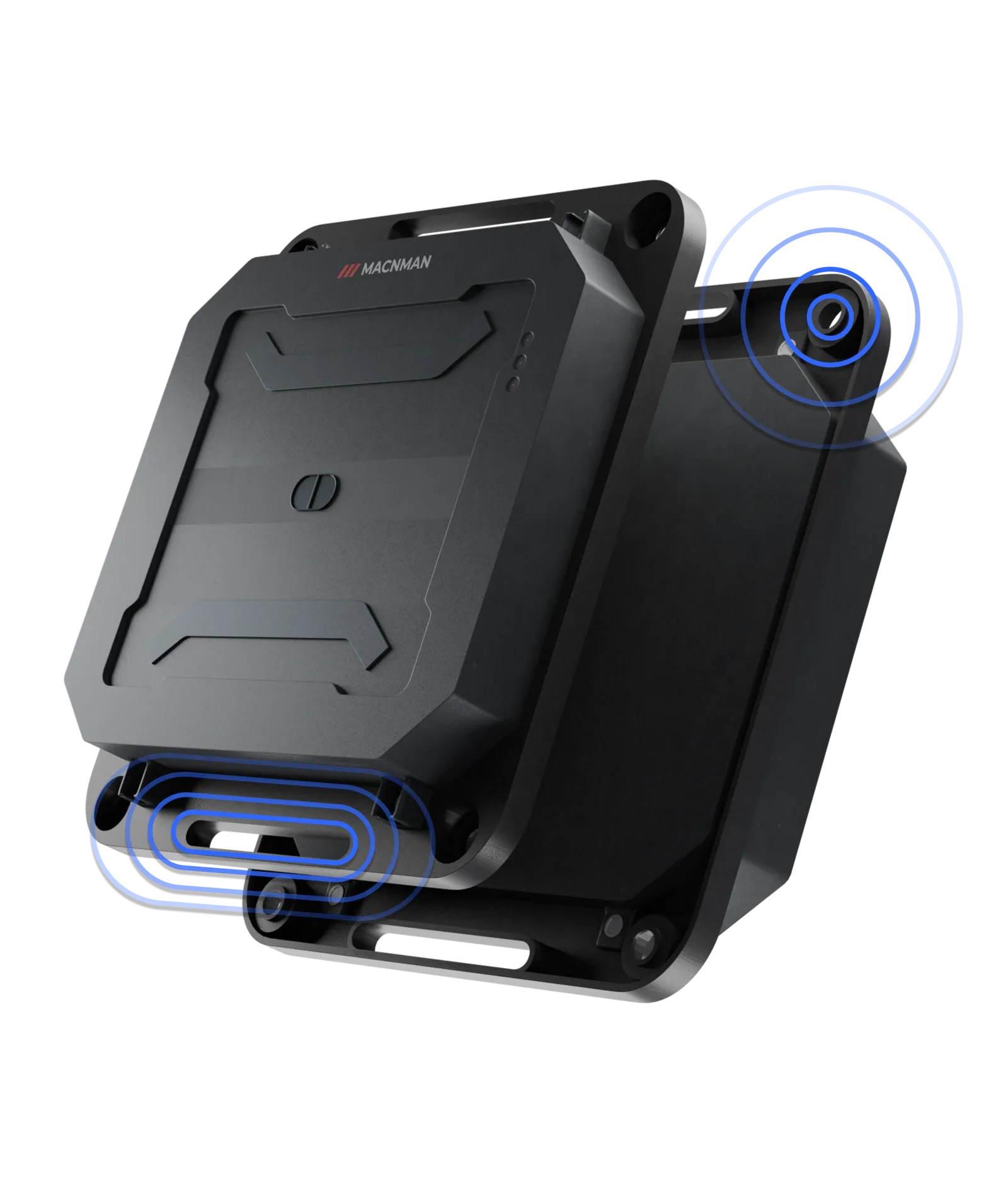

MacRay-ToF-WXx is a high‑precision Wi‑Fi–based Time‑of‑Flight (ToF) sensor designed for indoor people counting, occupancy analytics, and zone monitoring applications within Wi‑Fi–enabled environments. Using short‑range 3D depth sensing with millimeter‑level accuracy, it enables real‑time space utilization insights, facility automation, and safety monitoring without relying on cameras or capturing personal identity data.
The sensor uses advanced ToF distance mapping and motion detection algorithms to detect human presence, count bidirectional movement across defined boundaries, monitor zone activity, and generate accurate occupancy metrics. Its privacy‑first design ensures compliance with workplace and public‑space privacy requirements.
MacRay-ToF-WXx features a power‑operated design with inbuilt backup battery, ensuring uninterrupted operation during short power interruptions. It communicates directly over standard Wi‑Fi networks (2.4 GHz / 5 GHz) to on‑premise servers, building management systems, or cloud platforms using industry‑standard IP protocols such as MQTT, HTTP, and HTTPS, without the need for gateways or long‑range wireless infrastructure.
With support for entry/exit counting, room occupancy limits, restricted‑zone alerts, and automation triggers, MacRay-ToF-WXx transforms physical movement data into actionable insights for smart buildings, offices, hospitals, retail spaces, industrial facilities, and campuses, enabling improved space efficiency, energy optimization, and operational safety.
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacRay-ToF-WXx
Key Features
People Counting & Occupancy Detection Accurate bidirectional people counting and real-time occupancy analytics using privacy-safe ToF sensing.
Time-of-Flight 3D Depth Sensing Millimeter-level short-range distance and depth measurement for precise zone monitoring and entry/exit detection.
Privacy-First Design No images, video, or personally identifiable data captured, making it ideal for sensitive indoor environments.
Wi-Fi Based Connectivity Direct communication over standard Wi-Fi networks (2.4 GHz / 5 GHz) without gateways or long-range infrastructure.
Real-Time Events & Automation Triggers Supports occupancy limits, restricted-zone alerts, and automation triggers for HVAC, lighting, and access control.
Power-Operated with Backup Battery Continuous operation with inbuilt backup battery support during short power interruptions.
Compact Ceiling & Wall Mount Design Optimized form factor for doors, corridors, rooms, and zone-focused indoor installations.
Standard IP Protocol Support Supports MQTT, HTTP, and HTTPS for seamless integration with BMS, dashboards, and cloud platforms.
Secure Wireless Communication WPA2 / WPA3 Wi-Fi security with TLS-encrypted data transmission.
Local Configuration via BLE Fast provisioning, diagnostics, and configuration using the Macnman Maya mobile application.
Suited Applications
People Counting at Entry & Exit Points Accurate bidirectional people counting at doors, corridors, turnstiles, and access-controlled entry points using privacy-safe ToF sensing.
Room & Zone Occupancy Monitoring Real-time occupancy tracking for offices, meeting rooms, classrooms, hospital wards, and conference areas to optimize space usage.
Smart Buildings & Facility Management Occupancy-driven automation for HVAC, lighting, and ventilation systems within Wi‑Fi–enabled buildings and campuses.
Retail Footfall & Queue Analytics Customer movement analysis, queue length monitoring, and zone engagement insights for retail stores and shopping spaces.
Hospitals & Healthcare Facilities Privacy-safe monitoring of patient flow, waiting areas, and restricted zones without using cameras.
Restricted & Secure Area Monitoring Detects unauthorized entry into server rooms, labs, storage areas, and sensitive operational zones.
Warehouses & Industrial Indoor Areas Tracks workforce movement and zone activity inside warehouses and factories for safety compliance and operational visibility.
Smart Campuses & Public Facilities Occupancy and movement analytics for airports, stations, educational campuses, and large public buildings.
Technical Specifications
General
Specifications
Part Order Number
MacRay-ToF-WXx
Product Brand
Macnman Technologies Pvt Ltd
Time-of-Flight
Measurement
Distance Range
Long Range Mode: 4 cm to 400 cm *
Short Range Mode: 4 cm to 130 cm *
Sensors Grid Options
2 X 2
4 X 4
8 X 8
Accuracy
±3% typical *
< ±5 mm (Indoor lighting conditions)
Repeatability
< ±10 mm (under strong ambient light)
Resolution
Up to 1 mm
Measurement Rate
Up to 60 Hz (adjustable)
Field of View (FoV)
Programmable, up to 26° ~ 60°
Ambient Light Immunity
Up to 100k Lux (sunlight)
Wavelength
940 nm (IR, eye-safe & invisible)
Response Time
< 25 ms (typical)
Target Reflectivity Tolerance
Reliable performance on dark, light, & low-reflective surfaces
Wireless
Communication
Wi‑Fi Standards
IEEE 802.11 b/g/n/ac
Frequency Bands
2.4 GHz & 5 GHz (Dual‑Band)
Operating Modes
Station Mode (Client)
Access Point Mode (Configuration)
Network Protocols
MQTT, HTTP, HTTPS
Security
WPA2‑PSK / WPA3
TLS / SSL Encrypted Communication
IP Configuration
DHCP / Static IP
Typical Indoor Range
Up to 100 m (environment dependent)
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Supported
Cloud & Platforms
Deployment Models
On-Premise Servers
Private Cloud Deployments
Public Cloud Platforms
IoT Cloud Platforms
AWS IoT Core
Microsoft Azure IoT Hub
Google Cloud (via MQTT / HTTPS)
Custom IoT Platforms
Integration Methods
MQTT Brokers
REST / HTTPS APIs
Webhooks
Enterprise Systems
SCADA Systems
BMS / IBMS Platforms
Data Lakes & Analytics Engines
Physical
Characteristics
Power Supply
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~150 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacRay-ToF-WXx Variants
| Variant Name | Sensor Grid Pattern | Coverage | Recommended Use |
|---|---|---|---|
| MacRay-ToF-LX2-PO | 2 × 2 (4‑point ToF) | Narrow zone detection | Doorway people counting / Access control |
| MacRay-ToF-LX4-PO | 4 × 4 (16‑point ToF) | Medium area coverage | Room occupancy analytics / Facility automation |
| MacRay-ToF-LX8-PO | 8 × 8 (64‑point ToF) | Wider coverage with higher precision | Zone activity mapping / Retail & smart workspace analytics |
What's in the Box?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
MacRay-ToF-WXx Dimensions
Frequently Asked Questions
What is the MacRay-ToF-WXx used for?
MacRay-ToF-WXx is a high-precision Wi-Fi Time-of-Flight sensor for indoor people counting, occupancy analytics and zone monitoring. Typical applications include People Counting at Entry & Exit Points, Room & Zone Occupancy Monitoring, Smart Buildings & Facility Management, Retail Footfall & Queue Analytics, Hospitals & Healthcare Facilities and Restricted & Secure Area Monitoring.
What does the MacRay-ToF-WXx measure, and how accurately?
Measurement specifications of the MacRay-ToF-WXx:
- Time-of-Flight: range Long Range Mode: 4 cm to 400 cm *, Short Range Mode: 4 cm to 130 cm *, accuracy ±3% typical *, < ±5 mm (Indoor lighting conditions), resolution Up to 1 mm.
How does the MacRay-ToF-WXx connect and send data over Wi-Fi?
The MacRay-ToF-WXx connects over IEEE 802.11 b/g/n/ac Wi-Fi on 2.4 GHz & 5 GHz (Dual‑Band). Security: WPA2‑PSK / WPA3, TLS / SSL Encrypted Communication. IP configuration: DHCP / Static IP. It sends data using MQTT, HTTP, HTTPS. Typical indoor range is up to 100 m (environment dependent).
How is the MacRay-ToF-WXx powered?
The MacRay-ToF-WXx is powered from 9-36 V DC (External Supply).
What is the IP rating and operating temperature of the MacRay-ToF-WXx?
The MacRay-ToF-WXx has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% to 100% RH (non-condensing). Mounting options: Pole Mounting / Wall Mounting.
How is the MacRay-ToF-WXx configured?
The MacRay-ToF-WXx is configured with the Macnman Maya Android app. Supported uplink modes: Time Based / Threshold Based / Sampling Based. It can also be configured remotely with JSON data sent from the server.
Which cloud platforms does the MacRay-ToF-WXx work with?
The MacRay-ToF-WXx can send data to platforms including AWS IoT Core, Microsoft Azure IoT Hub, Google Cloud (via MQTT / HTTPS), Custom IoT Platforms. Deployment models: On-Premise Servers, Private Cloud Deployments, Public Cloud Platforms. Integration methods: MQTT Brokers, REST / HTTPS APIs, Webhooks.
