MacSet CX1 4G LTE Cellular Relay Controller Datasheet
Product Overview

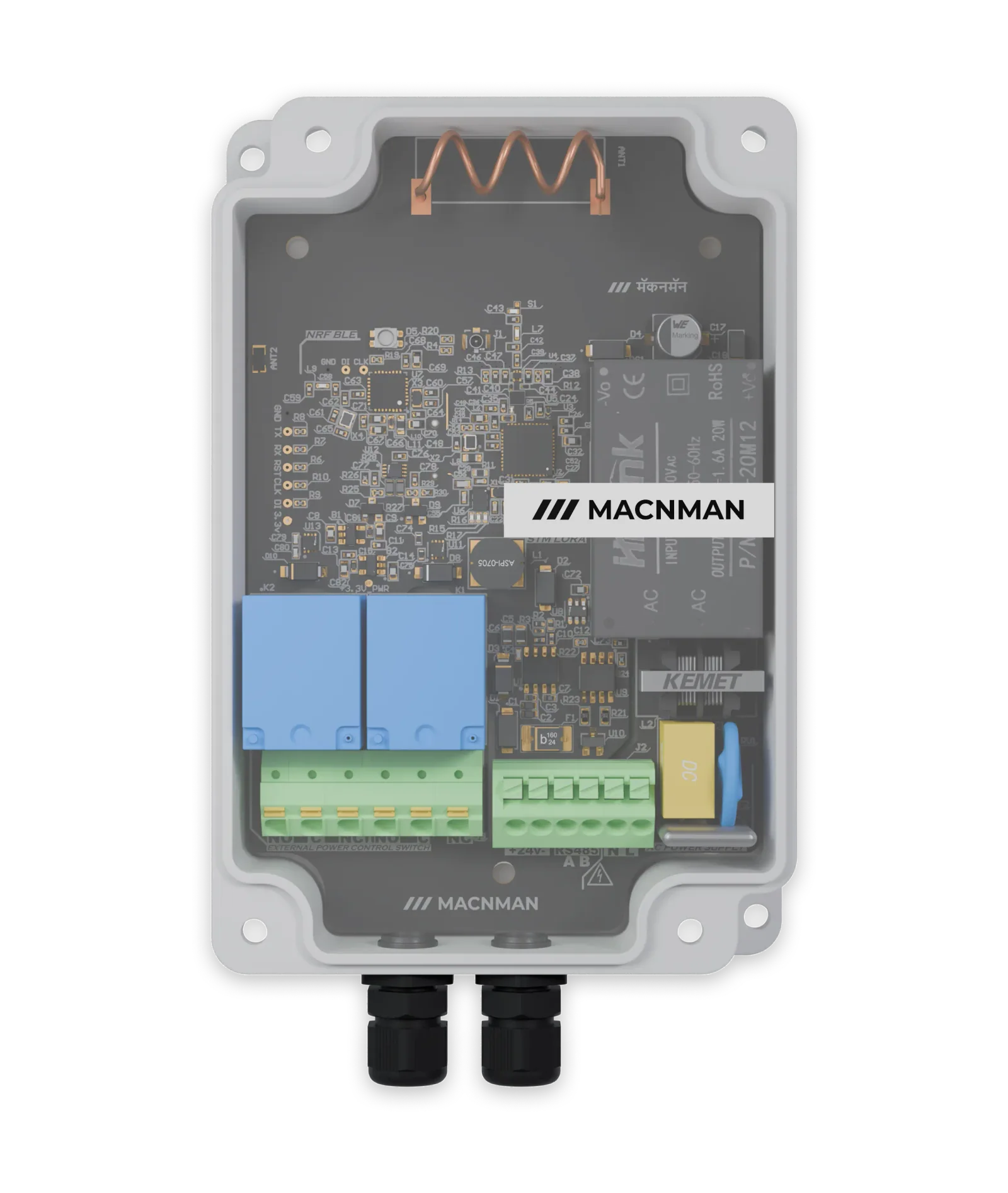

MacSet-CX1 is a robust, power-operated 4G LTE Cellular Controller designed for reliable remote control and automation of industrial and field equipment. Equipped with 2 high-current digital outputs, it enables secure switching of pumps, motors, valves, alarms, solenoids, lighting systems, and other electrical loads over cellular connectivity — without requiring any local Wi-Fi, Ethernet, or LoRaWAN gateway infrastructure.
Engineered for demanding outdoor and industrial environments, the MacSet-CX1 features a stable 12–24 V DC power architecture, noise-immune circuitry, and an IP66-rated enclosure suitable for harsh field conditions. Its always-on cellular link ensures dependable command delivery and monitoring across farms, industrial plants, buildings, and remote infrastructure sites.
The device supports cloud integration using MQTT / HTTPS and can be configured locally via BLE using the Macnman Maya App, enabling fast installation, testing, and diagnostics. It also supports local automation logic such as timers, schedules, and fail-safe output behavior for uninterrupted operations.
Whether used for smart agriculture, industrial automation, water management, or remote asset control, MacSet-CX1 delivers a powerful, scalable, and future-ready solution for cellular-based switching and automation.
Download Center
Download the PDF version of the datasheet.
Click here to view the decoders for MacSync-LX2-STD-PO
Key Features
Dual High-Current Digital Outputs Enables remote switching of pumps, motors, solenoids, alarms, and lighting loads.
4G LTE Cellular Controller Always-on remote control over cellular network without Wi‑Fi, Ethernet, or LoRaWAN gateway dependency.
Industrial 12–24 V Power Operation Stable, noise-immune power input designed for factories and outdoor field installations.
Outdoor IP66 Industrial-Grade Enclosure Rugged design suitable for outdoor, dusty, and moisture-prone environments.
Local Automation Logic Execute actions based on triggers, timers, or inputs — even without cloud dependency.
Cloud Ready (MQTT / HTTPS) Integrates easily with AWS IoT Core, Azure IoT Hub, ThingsBoard, Ubidots, and custom cloud platforms.
BLE Configuration via Maya App Quick on-site setup, testing, and diagnostics using Bluetooth Low Energy.
Secure Remote Switching Supports encrypted communication and reliable command delivery for critical operations.
Event-Based Actuation Trigger outputs based on cloud commands, schedules, or device-side automation rules.
Fail-Safe Output Handling Supports power-restore behavior, default states, and safe automation routines.
Firmware OTA-Ready Future upgrades, improvements, and feature releases supported over BLE.
Designed for Remote Industrial Control Ideal for irrigation systems, pump automation, industrial utilities, and remote site switching.
Suited Applications
Smart Agriculture & Irrigation Remotely control irrigation pumps, valves, solenoids, and fertigation systems using cellular connectivity.
Water & Wastewater Management Operate pumps, blowers, aerators, chlorination units, and valve actuators at remote water sites.
Industrial Automation Switch motors, relays, contactors, alarms, and machinery as part of factory automation workflows.
Smart Buildings & Facilities Control lighting circuits, exhaust fans, access gates, HVAC auxiliary systems, and building utilities.
Solar & Energy Systems Remotely activate inverter controls, battery bank relays, and system bypass/switching mechanisms.
Remote Infrastructure Control Manage field devices such as telecom tower equipment, remote panels, and unmanned site actuators.
Cold Storage & Food Industry Switch compressors, fans, alarms, and standby systems for temperature-sensitive operations.
Pipeline & Industrial Utility Networks Control valves, pumps, pressure release actuators, and emergency shutoff systems remotely.
Smart City Deployments Operate sirens, public lighting, fountains, signage, and remote utility controllers over cellular network.
Environmental Monitoring Systems Trigger fans, blowers, alarms, or auxiliary devices based on sensor-driven automation rules.
Technical Specifications
General
Specifications
Part Order Number
MacSet-CX1
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
Available
High Current Relay Outputs
x2 @16 Amps
RS485 Interface
1 (Switchable)
4-20 mA Analog Channels
x 2 (Switchable)
0-10 V Analog Channels
x 2 (Switchable)
Digital Inputs
x 2 (Switchable)
ADC Resolution
12-bit
The device use same channels for the RS485 & Analog inputs, either can be used at a time.
Wireless
Transmission
Communication Module
Quectel EC200 Series
Network Technology
4G LTE (Cat 1)
2G GSM (Fallback)
Supported LTE Bands*
B1 / B3 / B5 / B8 / B40 / B41 (Region dependent)
Supported GSM Bands*
900 / 1800 MHz
Tx Power
LTE: Up to +23 dBm
GSM: Up to +33 dBm
Receiver Sensitivity*
LTE: Up to -100 dBm (typical)
GSM: Up to -109 dBm (typical)
Cloud Protocols
MQTT / HTTPS
Antenna
External high-efficiency cellular antenna
SIM Support
Nano SIM
Data Transmission
Configurable reporting interval with event-based alerts
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the network
Single Red Blink
A confirmed parameter of MacSet-CX1 is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Remote Configuration
JSON Format Data - from server
Supported
Cloud Platforms
Supports Major Cloud Platforms
AWS IoT Core
Microsoft Azure IoT Hub
ThingsBoard
Ubidots
Datacake
TagoIO
Blynk
Custom Cloud via MQTT / HTTPS
Physical
Characteristics
Power Supply
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 - 250 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-128 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSet CX1 Variants
| Variant Name | Power Source | Input Voltage | Relay Outputs | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|---|
| MacSet CX1 - PO | External Power | 12–24 V DC | 2 | ✖️ | ✖️ | Outdoor and industrial switching applications with always-on cellular connectivity |
What's in the Box?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
MacSet CX1 Dimensions
Frequently Asked Questions
What is the MacSet CX1 used for?
MacSet CX1 is a power-operated 4G LTE cellular relay controller for reliable remote control and automation of pumps, motors and field equipment. Typical applications include Smart Agriculture & Irrigation, Water & Wastewater Management, Industrial Automation, Smart Buildings & Facilities, Solar & Energy Systems and Remote Infrastructure Control.
What inputs and outputs does the MacSet CX1 have?
The MacSet CX1 provides the following interfaces:
- High Current Relay Outputs: x2 @16 Amps
- RS485 Interface: 1 (Switchable)
- 4-20 mA Analog Channels: x 2 (Switchable)
- 0-10 V Analog Channels: x 2 (Switchable)
- Digital Inputs: x 2 (Switchable)
- ADC Resolution: 12-bit
Which cellular networks does the MacSet CX1 support?
The MacSet CX1 uses a Quectel EC200 Series module for 4G LTE (Cat 1), 2G GSM (Fallback) connectivity. Supported LTE bands: B1 / B3 / B5 / B8 / B40 / B41 (Region dependent). Supported GSM bands: 900 / 1800 MHz. It takes a Nano SIM and sends data over MQTT / HTTPS.
How is the MacSet CX1 powered?
The MacSet CX1 is powered from 9-36 V DC (External Supply).
What is the IP rating and operating temperature of the MacSet CX1?
The MacSet CX1 has an ingress protection rating of IP65 standard (IP67 optional variant) and an operating temperature range of -40°C to +80°C. Operating humidity: 0% to 100% RH (non-condensing). Mounting options: Pole Mounting / Wall Mounting.
How is the MacSet CX1 configured?
The MacSet CX1 is configured with the Macnman Maya Android app. Supported uplink modes: Time Based / Threshold Based / Sampling Based. It can also be configured remotely with JSON data sent from the server.
