Setu WX1 Datasheet
Product Overview
Setu WX1 is a compact and industrial-grade BLE to Wi-Fi IoT gateway, designed to bridge Bluetooth Low Energy (BLE) devices with local servers and cloud platforms over standard Wi-Fi networks. It enables seamless data aggregation, protocol translation, and secure IP-based communication without requiring internet connectivity on the end BLE devices.
The gateway continuously scans, connects, and collects data from multiple BLE sensors, beacons, meters, and edge devices, and reliably forwards this data to on-premise systems or cloud platforms using MQTT, HTTP/HTTPS, and TCP/IP(Optional) protocols. This makes Setu WX1 ideal for environments where low-power BLE devices need centralized connectivity and management.
Built for continuous indoor operation, Setu WX1 features a low-power, fanless design, stable power architecture, and an industrial enclosure suitable for commercial, healthcare, retail, and industrial deployments. Local buffering and store-and-forward mechanisms ensure data reliability even during temporary network outages.
Whether used for asset tracking, occupancy monitoring, environmental sensing, healthcare device integration, or smart building analytics, Setu WX1 delivers a secure, scalable, and gateway-centric BLE to Wi-Fi connectivity solution for modern IoT deployments.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for Setu X1
Key Features
BLE to Wi‑Fi Protocol Gateway Seamlessly bridges Bluetooth Low Energy (BLE) devices to IP‑based networks over standard Wi‑Fi connectivity.
Multi‑Device BLE Aggregation Concurrently scans, connects, and manages data from multiple BLE sensors, beacons, and edge devices.
Standard IP Protocol Support Supports MQTT, HTTP, HTTPS, and TCP/IP for easy integration with local servers, SCADA systems, and cloud platforms.
Local Buffering & Store‑and‑Forward Ensures data reliability by buffering BLE data during network interruptions and forwarding once connectivity is restored.
Secure Wi‑Fi Communication Encrypted Wi‑Fi backhaul with secure authentication and credential‑based access for protected data transmission.
OTA Configuration & Firmware Updates Supports remote configuration, diagnostics, and firmware upgrades without physical access to the device.
Low‑Power, Fanless Design Optimized for continuous indoor operation with silent, low‑heat performance in commercial and industrial environments.
Industrial‑Grade Hardware Built with reliable components, stable power architecture, and rugged enclosure for 24×7 operation.
Gateway‑Centric Architecture Eliminates the need for internet connectivity on BLE end devices, simplifying large‑scale deployments.
Flexible Deployment & Mounting Compact form factor with wall and ceiling mounting options for rapid indoor installations.
Suited Applications
Smart Buildings & Offices Aggregates data from BLE sensors for indoor air quality, occupancy monitoring, energy analytics, and building management systems over Wi-Fi.
Hospitals & Healthcare Facilities Enables reliable connectivity for BLE medical devices, asset tracking tags, patient monitoring wearables, and compliance sensors.
Retail & Shopping Centers Supports BLE-based people counting, footfall analytics, proximity marketing, and in-store asset tracking.
Hotels & Hospitality Spaces Connects BLE room sensors, smart locks, occupancy sensors, and service devices to centralized hotel management platforms.
Smart Campuses & Educational Institutions Ideal for BLE-enabled attendance systems, indoor navigation, safety monitoring, and facility analytics across large campuses.
Industrial & Factory Interiors Bridges BLE condition-monitoring sensors, equipment tags, and maintenance beacons to local servers and cloud platforms.
Warehouses & Logistics Facilities Enables real-time tracking of BLE tags on pallets, racks, tools, and assets with centralized Wi-Fi backhaul.
Data Centers & Server Rooms Collects data from BLE temperature, humidity, and access sensors for continuous monitoring of critical indoor infrastructure.
Public Indoor Venues Supports BLE-based monitoring and analytics in airports, metro stations, malls, and large indoor public spaces.
Technical Specification
General
Specifications
Part Order Number
Setu WX1
Product Brand
Macnman Technologies Pvt Ltd
Hardware
Specifications
Processor Type
ARM Cortex Processor
Number of Cores
Duel Core
Clock Speed
960 MHz per Core
Memory Size
256 MB RAM
Memory Speed
Up to 1066 MHz
Internal Storage
4 GB eMMC
USB Port
Debug Interface (Bottom of Enclosure)
Connector Type
USB Type‑C
Interface Protection (External*)
Surge Protection Enabled
BLE
Specifications
Bluetooth Standard
Bluetooth Low Energy (BLE) 5.0 / 5.1
Operating Role
Central / Gateway
Supported BLE Devices
BLE Sensors, Beacons, Tags, Wearables, Edge Devices
Maximum BLE Connections
Multiple Concurrent BLE Devices (Configurable)
Data Handling
Periodic Scanning, Event-Based Collection, On-Demand Reads
Data Forwarding Protocols
MQTT, HTTP, HTTPS, TCP/IP
Local Buffering
Supported (Store-and-Forward during Network Outages)
Transmission Range (Indoor)
Up to 30–50 meters (Environment Dependent)
Security
Secure BLE Pairing, Encrypted Wi-Fi Backhaul
Backhual
Ethernet
Number of Ports
x 1
Type
1 x 10/100M
Backhual
WiFi
Bands
2.4 GHz ISM Band
5 GHz ISM Band
Standards
IEEE 802.11 b/g/n, 802.3, 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16 QAM, 64 QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Backhual
Cellular Lte*
Cellular Bands
B1 / B3 / B5 / B7 / B8 / B20 / B28
Standards
3GPP LTE, IEEE 802.3, IEEE 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16‑QAM, 64‑QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Supported
Cloud & Platforms
Cloud Connectivity
Public Cloud Platforms
Private Cloud Deployments
On-Premise Servers
Protocol Support
MQTT Brokers
HTTP / HTTPS APIs
TCP/IP Based Systems
IoT & Data Platforms
AWS IoT Core
Microsoft Azure IoT Hub
Google Cloud IoT (via MQTT / HTTP)
Custom IoT Platforms
Enterprise Systems
SCADA Systems
BMS / IBMS Platforms
Data Lakes & Analytics Engines
Integration Method
REST APIs, Webhooks, MQTT Topics
Physical
Characteristics
Power Supply
9-36 V PoE
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP35
Housing Material
Plastic
Color
Matte White
Weight
~140g
Mounting Options(Brackets)
Pole Mounting / Wall Mounting
Electrical
Characteristics
Power Input
PoE IEEE 802.3af / 802.3at or 12–24 V DC
Power Consumption (Typical)
4.5 W (with Ethernet Backhaul)
Power Consumption (Peak)
Up to 7 W (with LTE & Wi‑Fi Active)
Lightning / Surge Protection
Integrated surge protection on power & RF ports
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes (Nodes)
Firmware Protection
Secure boot and signed OTA updates
Setu WX1 Variants
| Variant Name | Power Source | Wifi | Ethernet | Cellular | Ideal For |
|---|---|---|---|---|---|
| Setu WX1 | 12–24 V (Power) | ✔️ | ✖️ | ✖️ | Ideal for small indoor networks with stable Wi-Fi backhaul such as offices, retail stores and hospitality environments. |
| Setu WX2 | 12–24 V (Power) | ✔️ | ✔️ | ✖️ | Best for enterprise networks requiring reliable wired Ethernet connectivity and expanded indoor coverage in commercial buildings. |
| Setu WX3 | 12–24 V (Power) | ✔️ | ✔️ | ✔️ | Designed for mission‑critical deployments where Ethernet, Wi‑Fi and LTE failover ensure uninterrupted connectivity in industrial and multi‑site facilities. |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.

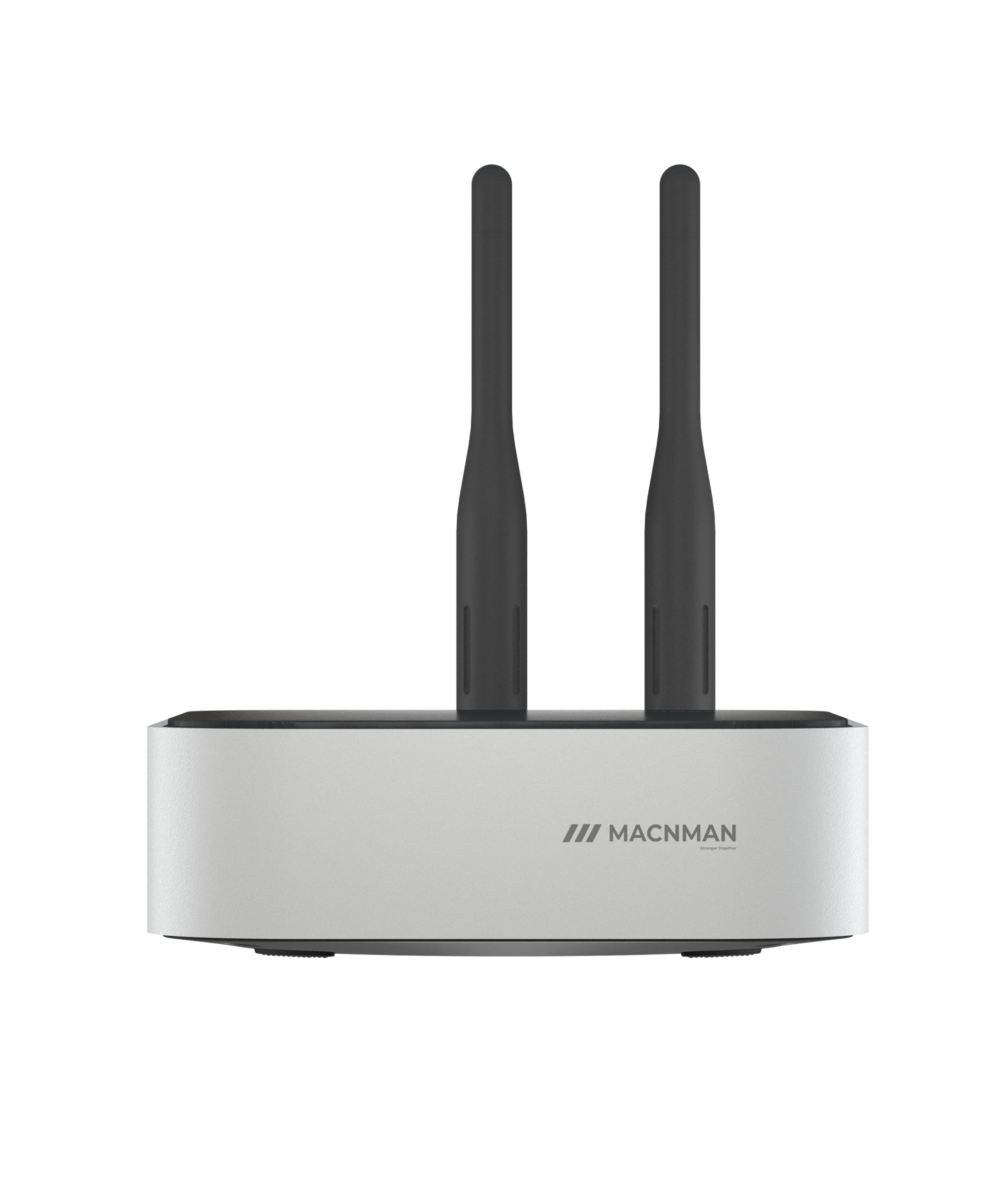

Product Dimensions
